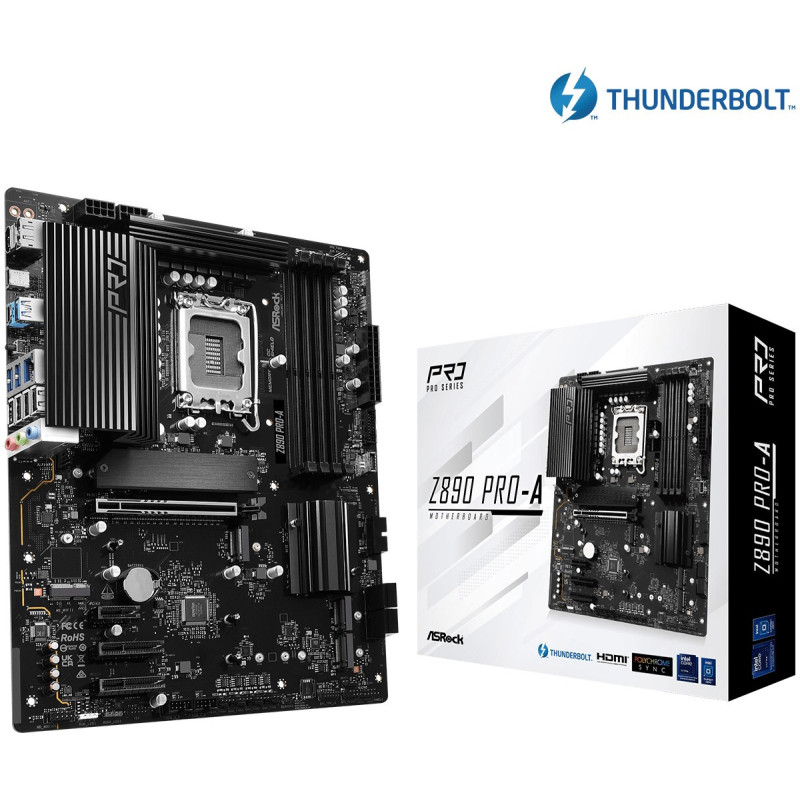

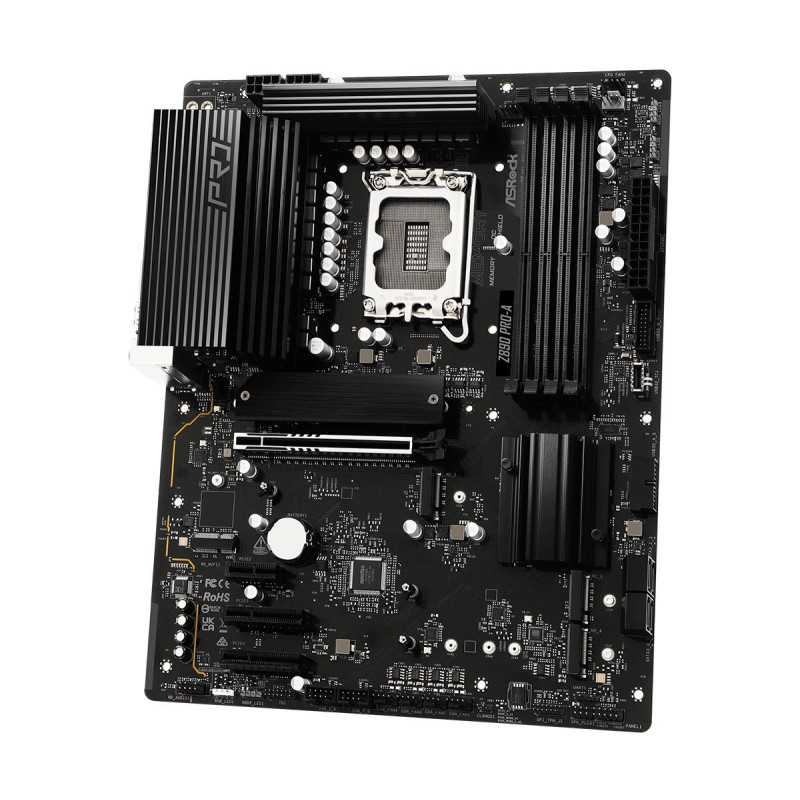

Motherboard Z890 PRO-A ATX
Product reference:
3-4710483947537
Motherboard Z890 PRO-A ATX
Motherboard Z890 PRO-A ATX
Product reference:
3-4710483947537
Motherboard Z890 PRO-A ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset | Intel Z890 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Memory | |
| Memory channels | Dual channel |
| ECC compatibility | Non-ECC |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9066 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Weight dimensions | |
| Width | 305mm |
| Depth | 244 mm |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | From |
| LAN controller | Dragon RTL8125BG |
| Internal I/O | |
| TPM connector | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Audio connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 5 |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Storage controllers | |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID levels | 0, 10, 5, 1 |
| Supported storage drive types | HDD SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |

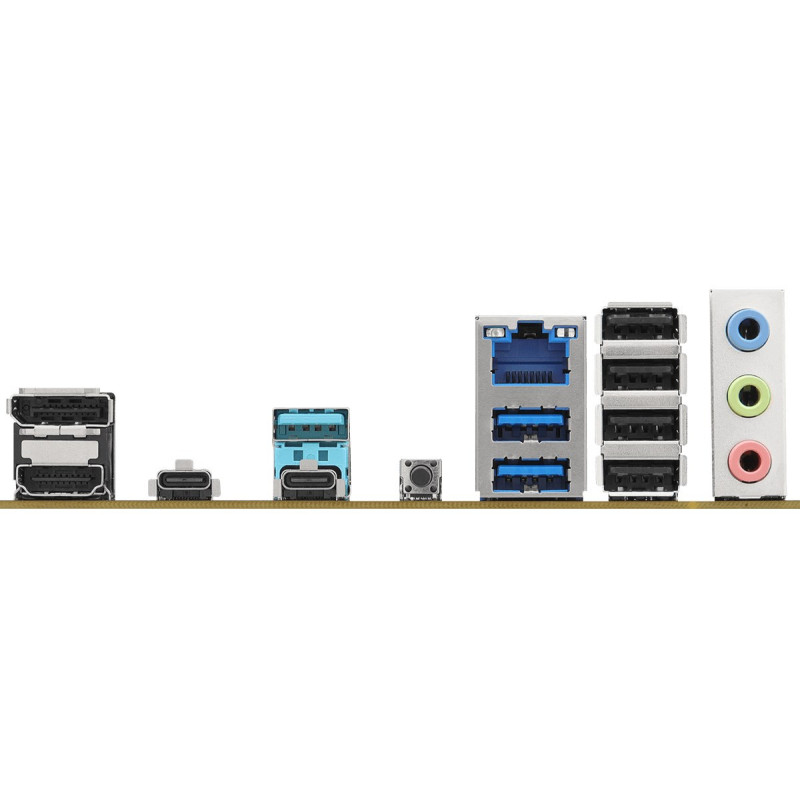

| Rear panel I/O port | |
| HDMI port quantity | 1 |
| Thunderbolt ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB 3.2 Gen 2x2 Type-C port quantity | 1 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 2 |
| DisplayPort quantity | 1 |
| USB 2.0 ports quantity | 4 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) port | 1 |
| Expansion slot | |
| PCI Express x4 (Gen 4.x) slot | 2 |
| PCI Express x1 (Gen 4.x) slot | 1 |
| PCI Express x16 (Gen 5.x) slot | 1 |
