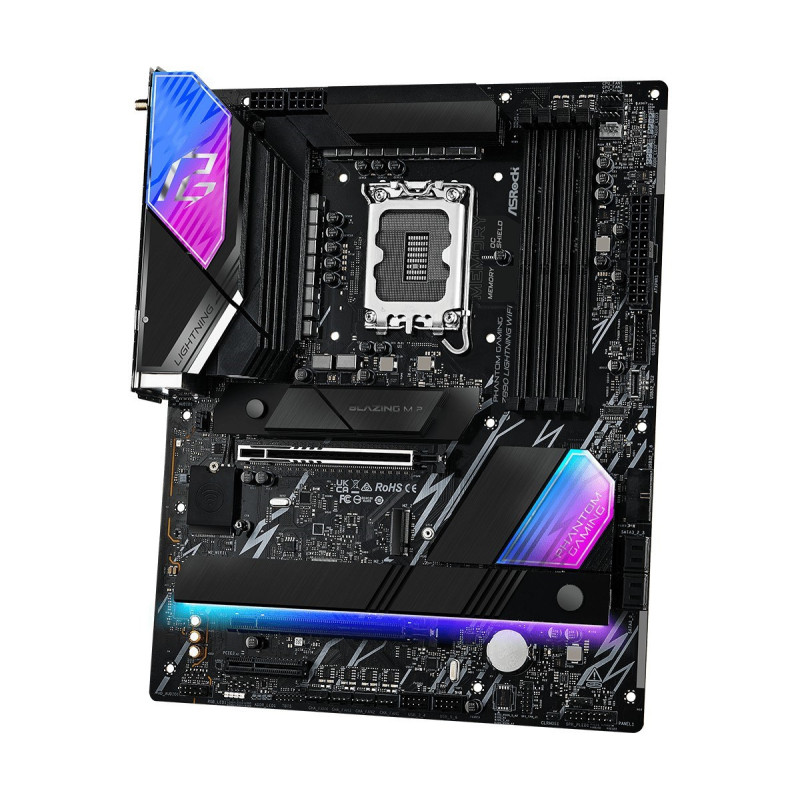

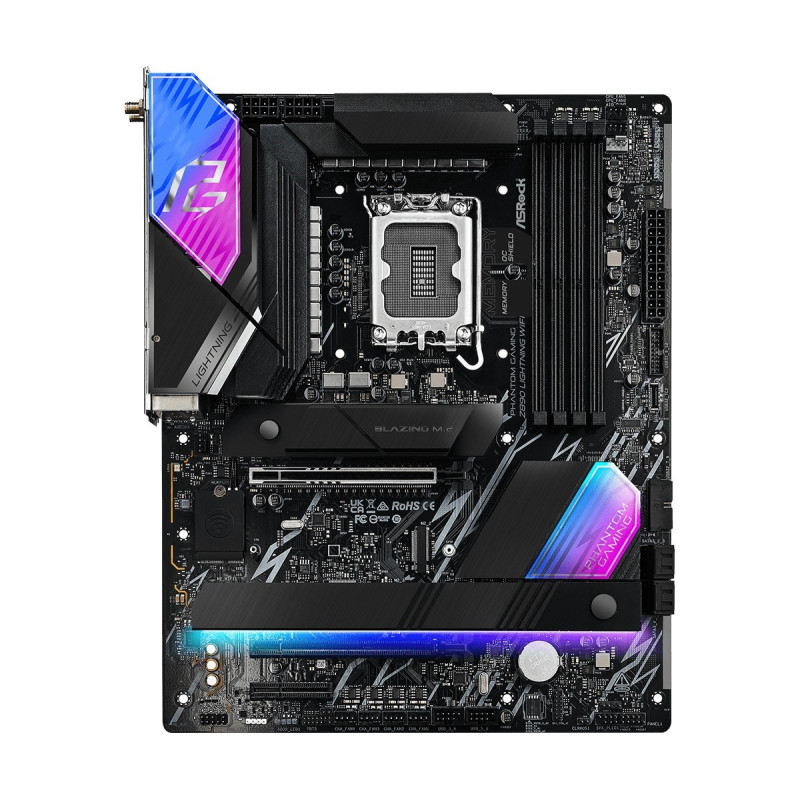

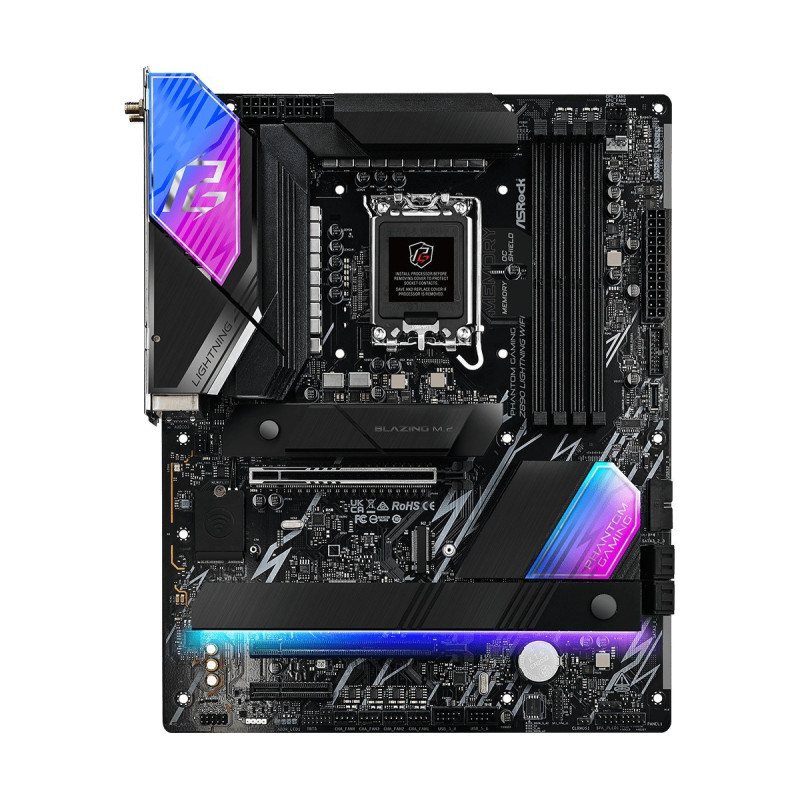

Motherboard Z890 LIGHTNING WIFI ATX
Product reference:
3-4710483947513
Motherboard Z890 LIGHTNING WIFI ATX
Motherboard Z890 LIGHTNING WIFI ATX
Product reference:
3-4710483947513
Motherboard Z890 LIGHTNING WIFI ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Processor socket | LGA1851 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Features | |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC1220 |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Memory | |
| Unbuffered memory | Yes |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Memory channels | Dual channel |
| ECC compatibility | Non-ECC |
| Number of memory slots | 4 |
| Maximum internal memory | 256GB |
| Weight dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Network | |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi frequency | 2.4GHz / 5GHz / 6GHz |
| Wi-Fi standard | IEEE 802.11be, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b, IEEE 802.11n, 802.11 ax, IEEE 802.11ax |
| LAN controller | Killer E3100G |
| Wireless statistics | Yes |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| Pump connector | 1 |
| Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C port | 1 |
| CPU fan connector | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Chassis fan connector (4-pin) | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| AIO pump fan connector | 1 |
| Thunderbolt headers | 1 |
| 8-pin power connector 12 V | 2 |
| Front panel audio connector | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Wi-Fi antenna | Yes |
| Motherboard | Yes |
| Cables included | SATA III 2 pcs., ARGB Splitter Cable x 1, Thermistor Cable x 1 |
| Antenna quantity | 2 |
| Storage controllers | |
| RAID levels | 5, 10, 1, 0 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD SSD |

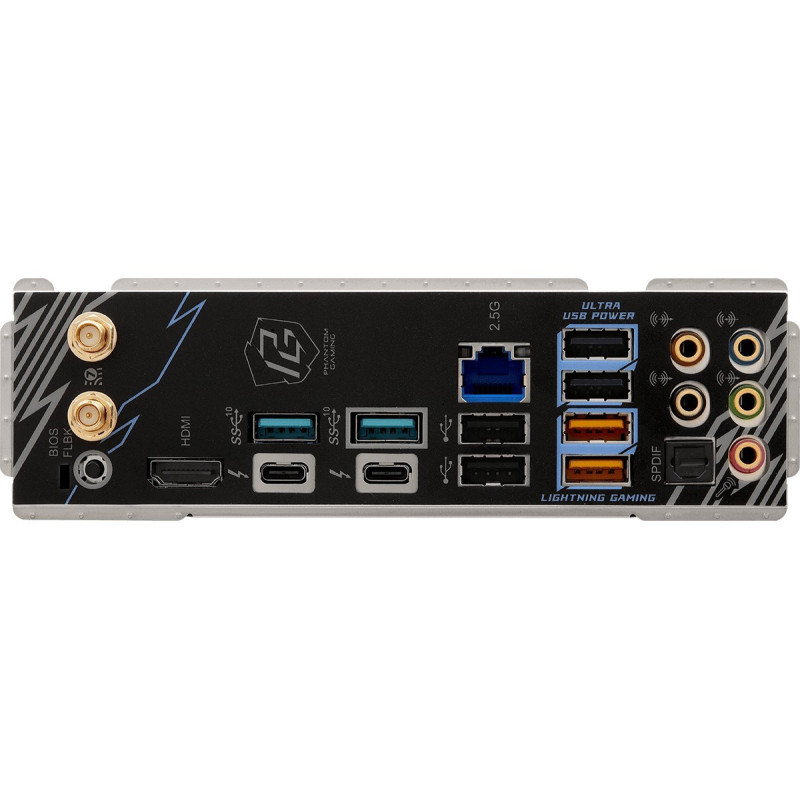

| Rear panel I/O port | |
| Number of antenna connectors | 2 |
| USB 2.0 Type-A port quantity | 2 |
| Ethernet LAN (RJ-45) port | 1 |
| Number of Thunderbolt 4 USB-C ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| SPDIF optical output | Y |
| HDMI port quantity | 1 |
| Expansion slot | |
| PCI Express x1 (Gen 3.x) slot | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| PCI Express x16 (Gen 4.x) slot | 1 |
| Certificates | |
| Certificates | CE, FCC, ErP/EuP ready |
