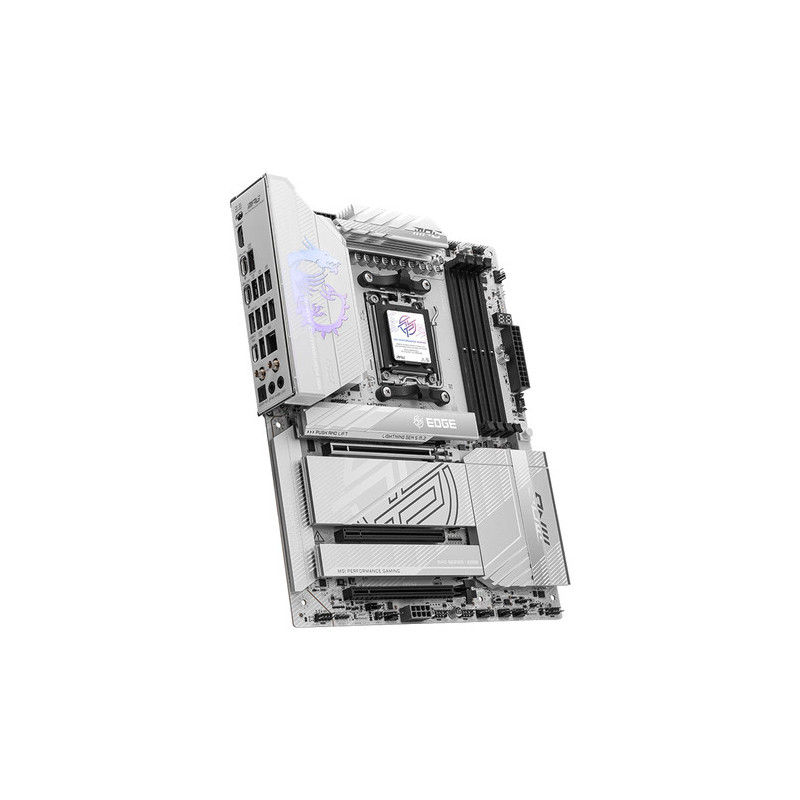

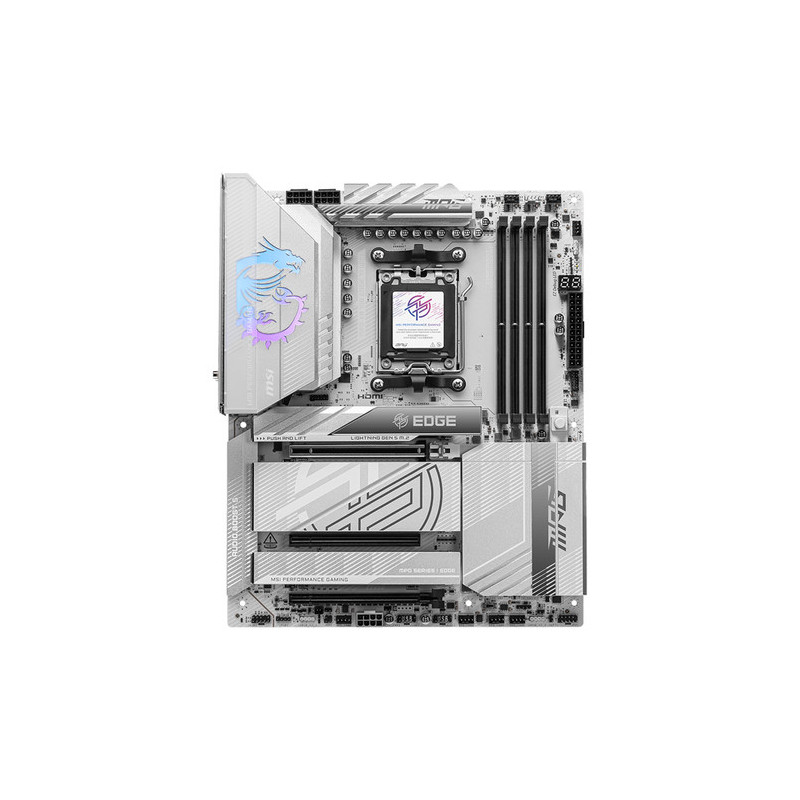

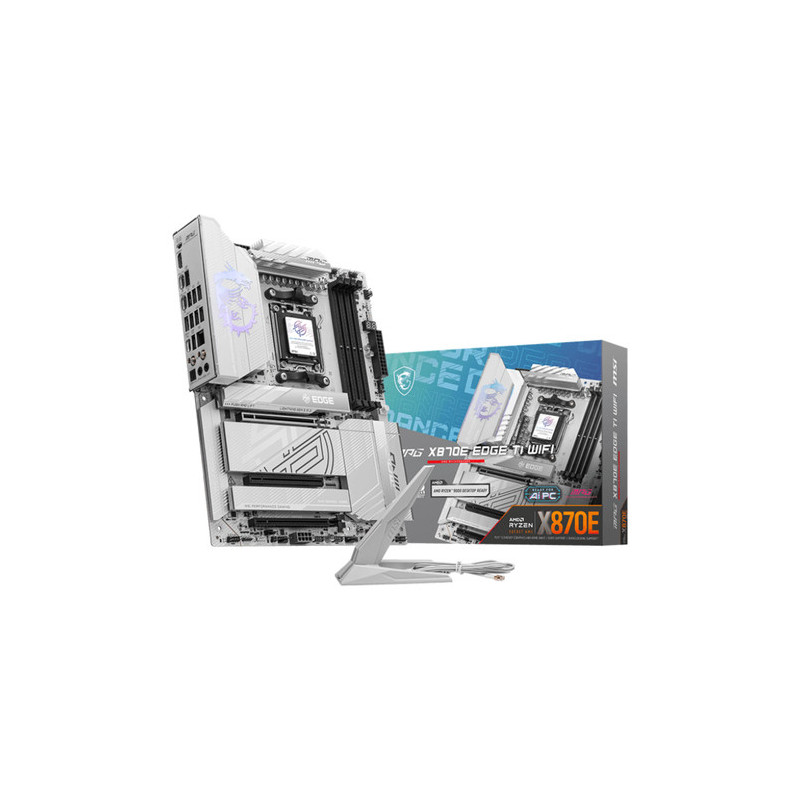

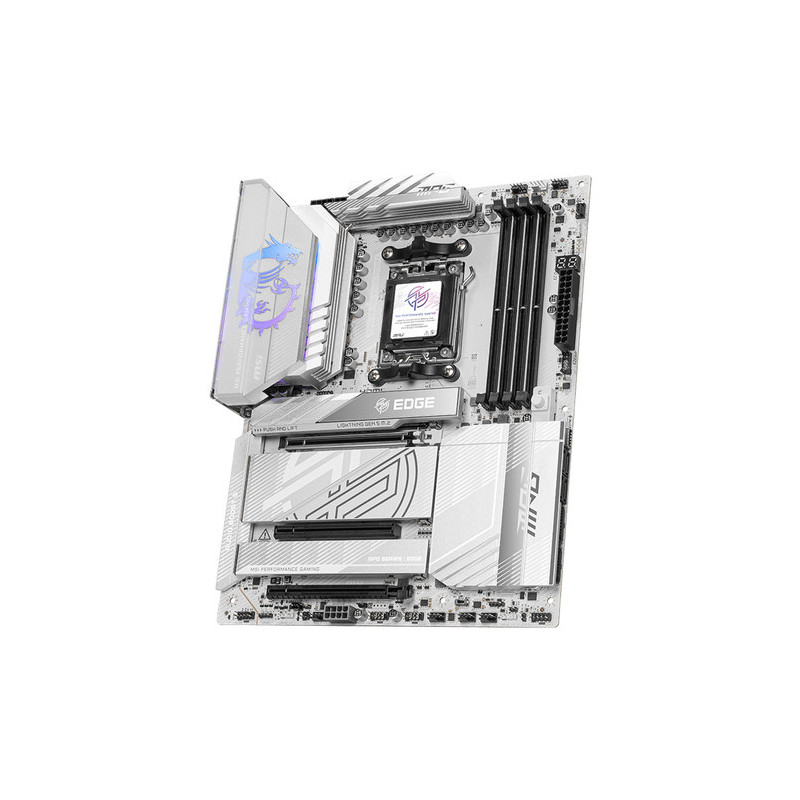

MPG X870E EDGE TI WIFI
MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Summary: | MSI MPG X870E EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD |
| Vendor Homepage: | https://www.msi.com/Motherboard/MPG-X870E-EDGE-TI-WIFI/Overview |
| Category Code: | MBA |
| CnCode: | 84733020 |
| Unit Box Height: | 0.275 |
| Unit Box Length: | 0.345 |
| Unit Box Width: | 0.075 |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Motherboard chipset: | AMD X870E |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| PC health monitoring: | CPU/Fan/Temperature/Voltage |
| Product colour: | White |
| Compatible processor series: | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Maximum internal memory supported by processor: | 256GB |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Supported processor sockets: | Socket AM5 |
| ECC compatibility: | Non-ECC |
| Maximum internal memory: | 256GB |
| Memory channels: | Dual channel |
| Memory slot type: | DIMMs |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 8400MHz |
| Supported memory clock speeds: | 4800/5600/8400MHz |
| Supported memory types: | DDR5-SDRAM |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 8 |
| RAID levels: | 0/1/10/5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,SATA III |
| Supported storage drive types: | HDD SSD |
| On-board graphics card: | From |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of SATA III connectors: | 4 |
| Total number of SATA connectors: | 4 |
| USB 2.0 connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| DisplayPort version: | 1.4 |
| DisplayPort quantity: | 2 |
| Ethernet LAN (RJ-45) port: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Microphone in: | Yes |
| S/PDIF out port: | Yes |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity: | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity: | 1 |
| USB4 Gen 2x2 ports quantity: | 1 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8126 |
| Top Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Wi-Fi standard: | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 22110 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 2280 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 4th M.2 largest key size: | 2280 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 3.x) slot: | 1 |
| PCI Express x16 (Gen 4.x) slot: | 1 |
| PCI Express x16 (Gen 5.x) slot: | 1 |
| Depth: | 304.8mm |
| Width: | 243.84mm |
| Model: | MPG X870E EDGE TI WIFI |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 5 |
| Unit Calculated Volume: | 0.00777m³ |
| Unit Calculated Weight: | 2.6kg |
