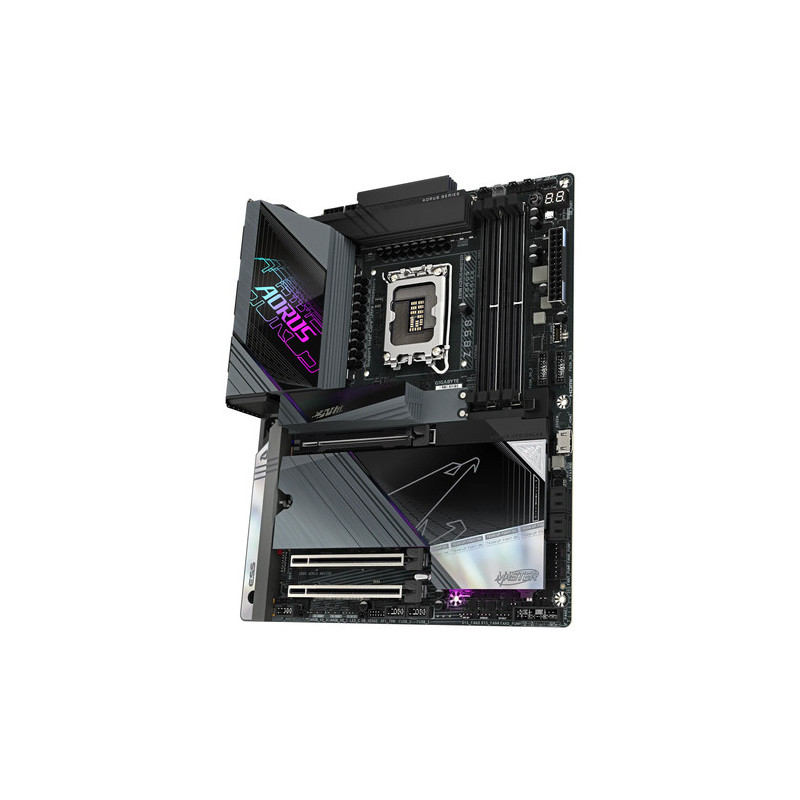

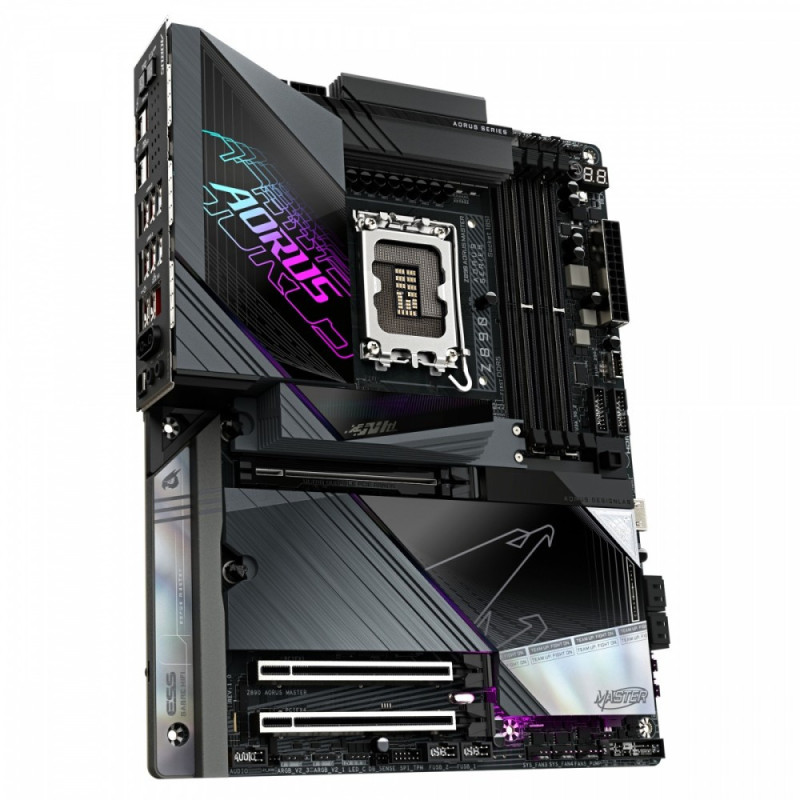

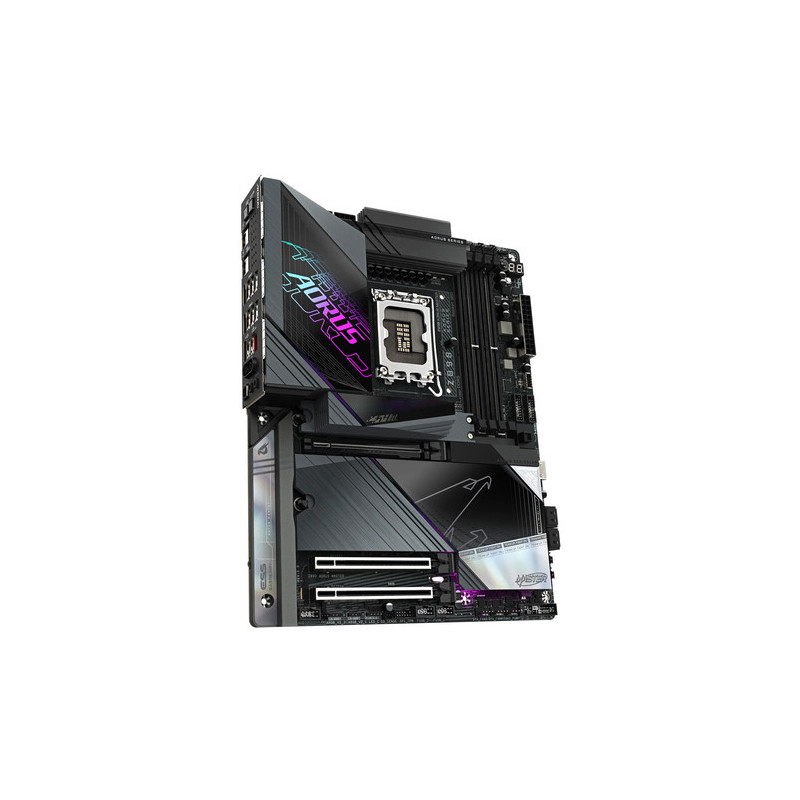

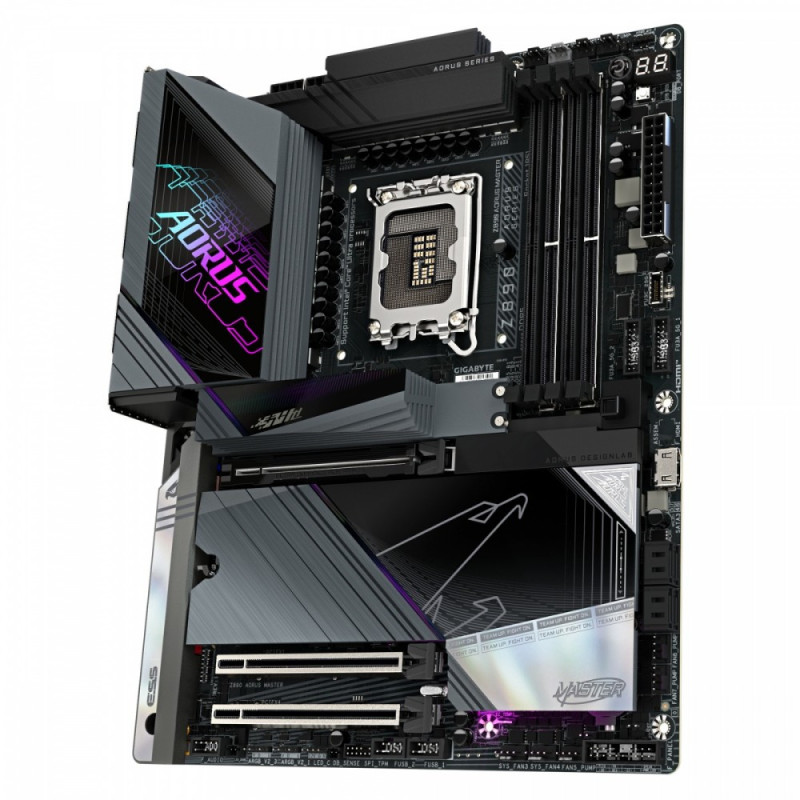

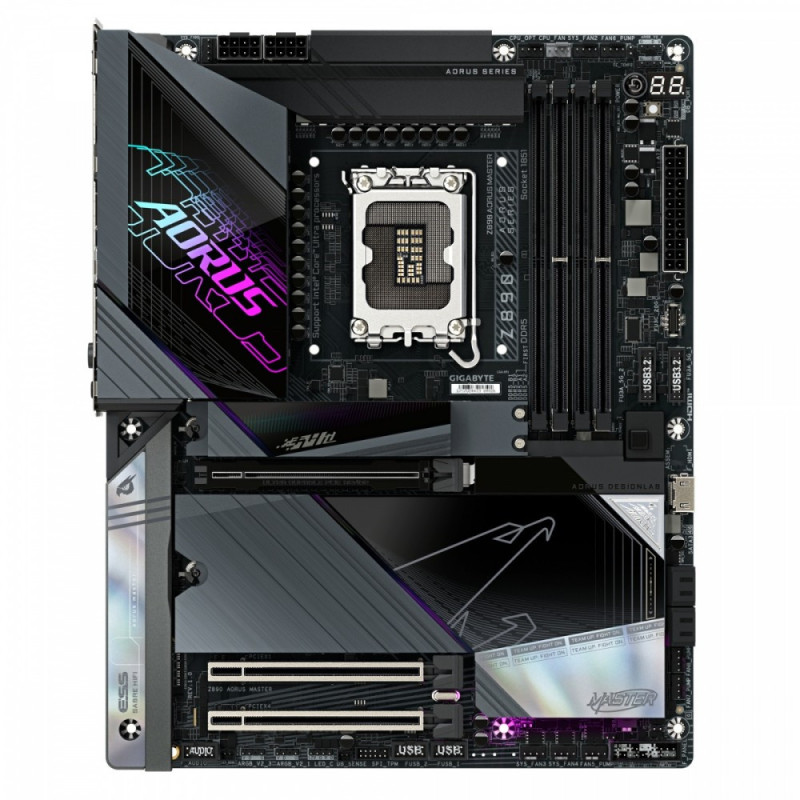

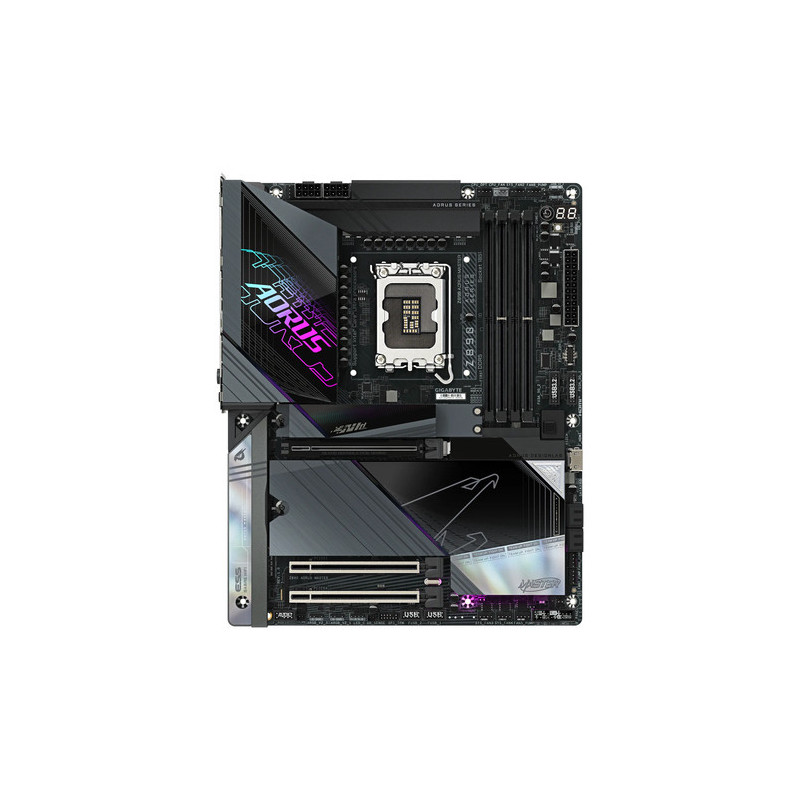

Motherboard Gigabyte Z890 AORUS MASTER

Intel® Z890 Express
Dimensional format: ATX (305x244mm)
Processor support: Intel® Core™ Ultra
Processor socket: LGA1851
Remember:
* 4x DIMM socket supporting up to 256GB, DDR5 9500(OC) / 9466(OC) / 9333(OC) / 9200(OC)/ 9066(OC) / 8933(OC) /8800(OC) /8600(OC) / 8400(OC) /8266(OC) / 8200(OC) / 8000 (OC) / 7950 (OC) / 7900 (OC) / 7800 (OC) / 7600 (OC) / 7400 (OC) / 7200 (OC) / 7000 (OC) / 6800 (OC) / 6600 (OC) / 6400 / 6200 / 600 / 5800 / 5600MT/s memory modules
* dvoukanálová architektura mámí
* support for Extreme Memory Profile (XMP) modulů
Graphic outputs:
* 1x front HDMI port for maximum resolutions 1920 x 1080 at 30 Hz
* 2x Intel® Thunderbolt™ 4 (USB4® USB Type-C® porty), supporting video outputs DisplayPort a Thunderbolt™
Sound card:
* Realtek® ALC1220 codec
* Support for DTS:X® Ultra
* High Definition Audio
* 2/4/5.1 channel
* Supports S/PDIF output
Ethernet: Marvell® AQtion AQC113C 10GbE LAN
WLAN + Bluetooth: Wi-Fi 7 (802.11a, b, g, n, ac, ax, be), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.4
Expansion slots:
* 1x PCI Express x16 supports PCIe 5.0 and runs na x16 (PCIEX16)
* 1x PCI Express x16 supports PCIe 4.0 and runs na x4 (PCIEX4)
* 1x PCI Express x16 supports PCIe 4.0 a runs na x1 (PCIEX1)
Storage space:
in total supports 5 slots M.2 a 4 ports SATA 6Gb/s
* 1x M.2, M key typ 25110/22110/2580/2280 - support PCIe 5.0 x4/x2 SSD (M2A_CPU)
* 1x M.2, M key, typ 22110/2280 - support PCIe 4.0 x4/x2 SSD (M2B_CPU)
* 1x M.2, M key, typ 22110/2280 - support PCIe 5.0 x4/x2 SSD (M2D_CPU)
* 1x M.2, M key, typ 2280 - support PCIe 4.0 x4/x2 SSD (M2P_SB)
* 1x M.2, M key, typ 2280 - support SATA a PCIe 4.0 x4/x2 SSD (M2M_SB)
* 4x SATA 6Gb/s ports
RAID controller: podpora RAID 0/1/5/10 for internal device NVMe SSD and for internal device SATA
USB:
Rear USB (total 14 ports)
* 2x Intel® Thunderbolt™ 4 (USB4® USB Type-C® porty)
* 6x USB 3.2 Gen 2 type-A (red)
* 4x USB 3.2 Gen 1
* 2x USB 2.0/1.1
Front USB (9 ports in total)
* 1x USB typ-C® connector - support USB 3.2 Gen 2x2
* 4x USB 3.2 Gen 1 headers
* 4x USB 2.0/1.1 headers

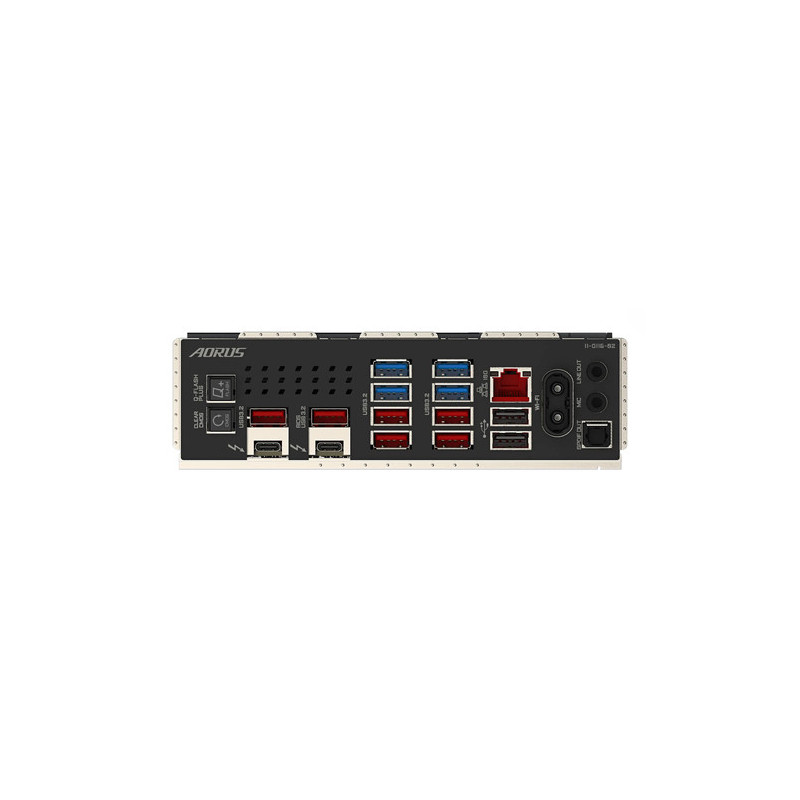

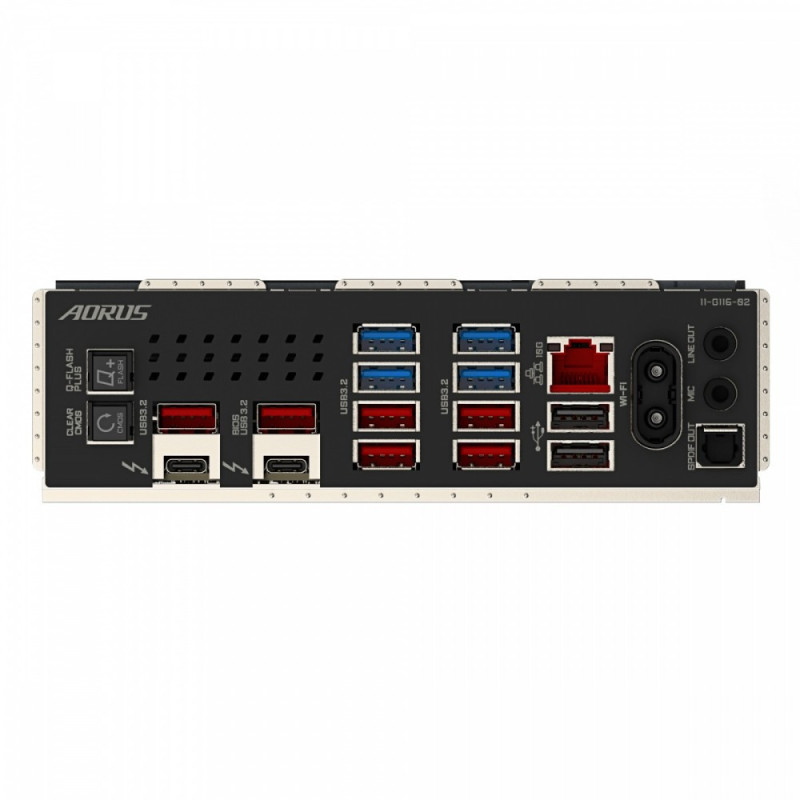

Ports on the rear panel:
* 2x Intel® Thunderbolt™ 4 (USB4® USB Type-C® porty)
* 6x USB 3.2 Gen 2 type-A (red)
* 4x USB 3.2 Gen 1
* 2x USB 2.0/1.1
* 2x antenna connector (2T2R)
* 1x RJ-45
* 1x optical connector S/PDIF Out
* 2x audio jacks
Internal ports:
Power supply
* 1x 24-pin ATX main power connector
* 2x 8-pin ATX 12V power connector
Související s ventiláriom a článizém
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 4x system fan headers
* 4x system fan/water cooling pump header
Repository related
* 5x M.2 slots (Key M)
* 4x SATA 6Gb/s ports
USB
* 1x USB typ-C® connector - support USB 3.2 Gen 2x2
* 2x USB 3.2 Gen 1 headers
* 2x USB 2.0/1.1 headers
Others
* 4x addressable RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x noise detection header
* 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x HDMI port
* 1x power button
* 1x reset button
* 2x temperature sensor headers Voltage Measurement Points
* 1x reset jumper
* 1x Clear CMOS jumper
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.cz/motherboards/Z890-AORUS-MASTER/Key-Features
