−1%

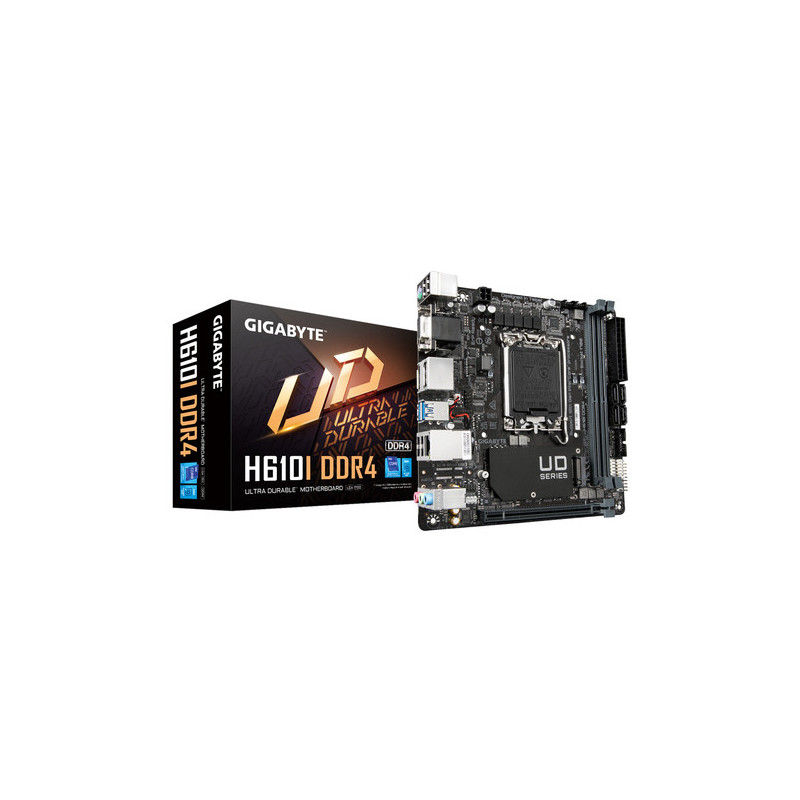

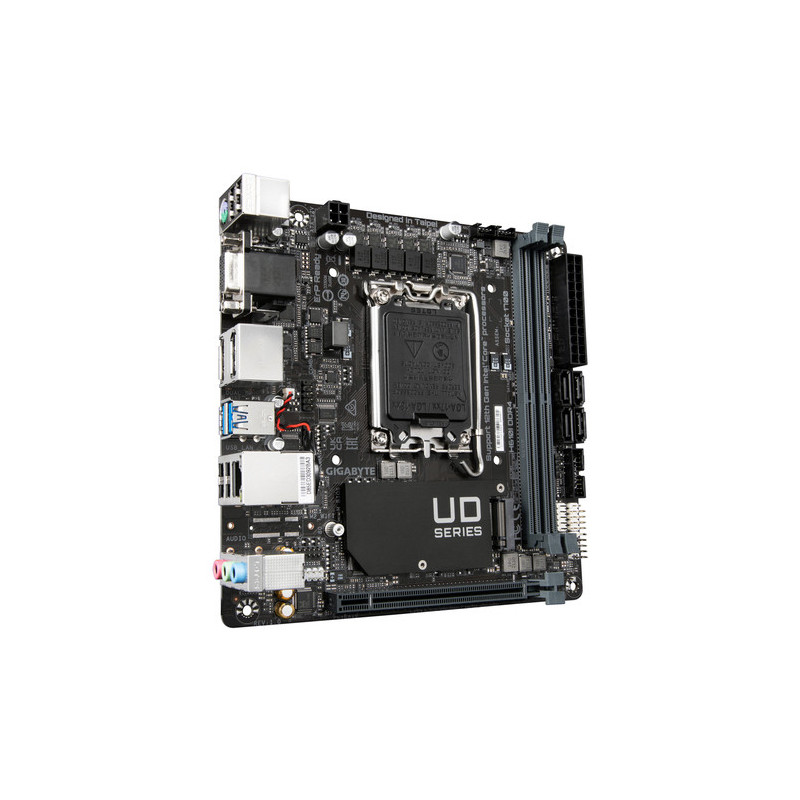

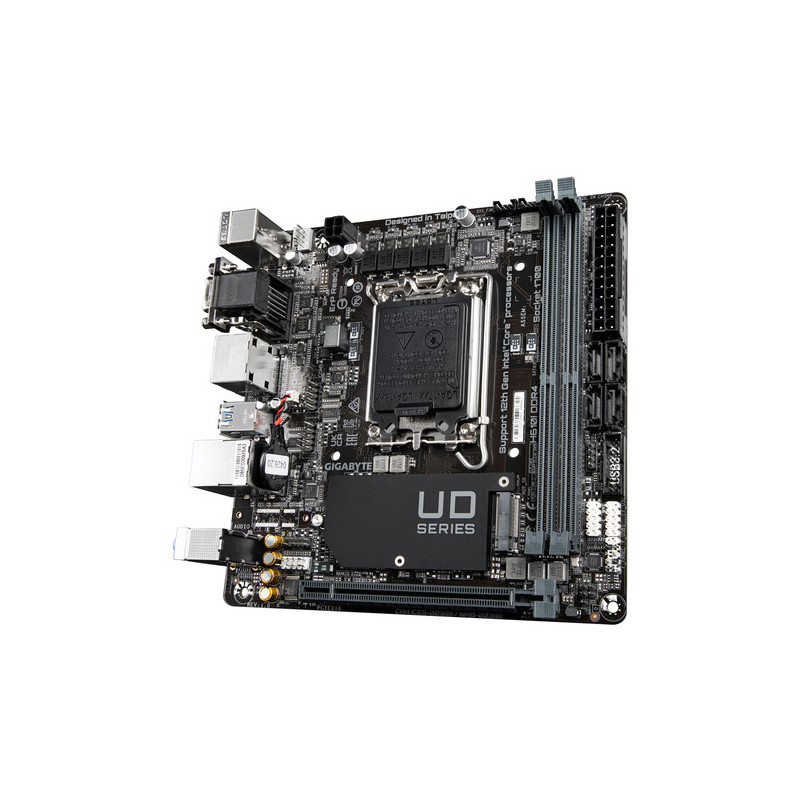

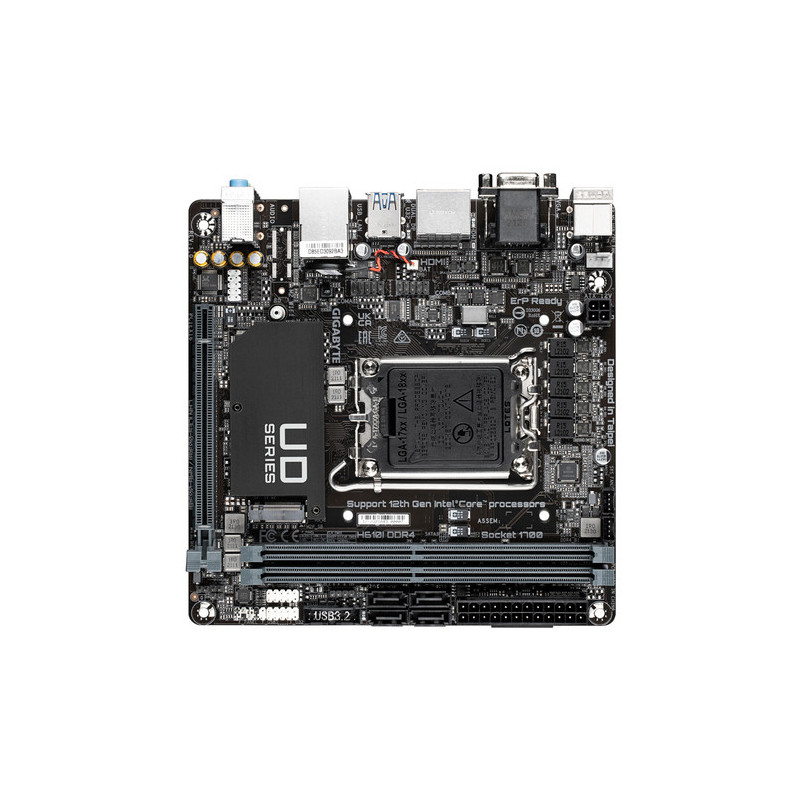

Motherboard Gigabyte H610I DDR4
Product reference:
3-4719331834562
Motherboard Gigabyte H610I DDR4
Motherboard Gigabyte H610I DDR4
Product reference:
3-4719331834562
Motherboard Gigabyte H610I DDR4
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
Chipset:
Intel H610 Express Chipset
Dimensions: Mini-ITX (17.0 cm x 17.0 cm)
Processor support: Procesory Intel Core 12th generation, Pentium Gold a Celeron
Processor Socket: LGA 1700
Memory slots: 2 x DDR4 DIMM, dvojkanálová architecture memory
Support of memory modules: DDR4 3200/3000/2933/2666/2400/2133 MHz
Max. size of operating memory: 64 GB
Memory type support: ECC, XMP
Graphic outputs: (Intel HD Graphics)
*1 x port D-Sub - 1920x1200 pri 60 Hz
*1 x port HDMI 2.1 - 4096x2160 pri 60 Hz
*2 x DisplayPort 1.2 - 4096x2304 pri 60 Hz
Sound card: Realtek Audio CODEC
*2/4/5.1/7.1-kanálová
Network card: Intel GbE LAN chip (1 Gbps/100 Mbps)
Expansion slots: 1 x PCI Express x16 slot, not x16 (standard PCI Express 4.0)
SATA: 4 x SATA 6 Gb/s connector
M.2: 1 x connector M.2
USB:
* Internal:
*1 x connector USB 3.2 Gen 1
*2 x connector USB 2.0/1.1
* External:
*2 x porty USB 3.2 Gen 1
*4 x porty USB 2.0/1.1
Internal ports:
*1 x 24-pinový main power connector ATX
*1 x 4-pinový power supply connector ATX 12V
*1 x fan connector procesora
*2 x konektory systemových ventilátorov
*1 x konektor pre RGB LED pásik
*1 x konektor M.2 Socket 3
*4 x konektor SATA 6 Gb/s
*1 x konektor predného panela
*1 x konektor pre audio na prednom panel
*1 x konektor USB 3.2 Gen 1
*2 x konektory USB 2.0/1.1
*1 x connector Trusted Platform Module (len pre module GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0)
*2 x connector serial port
*1 x jumper for erasing CMOS
*1 x connector for detection narušenia skrine

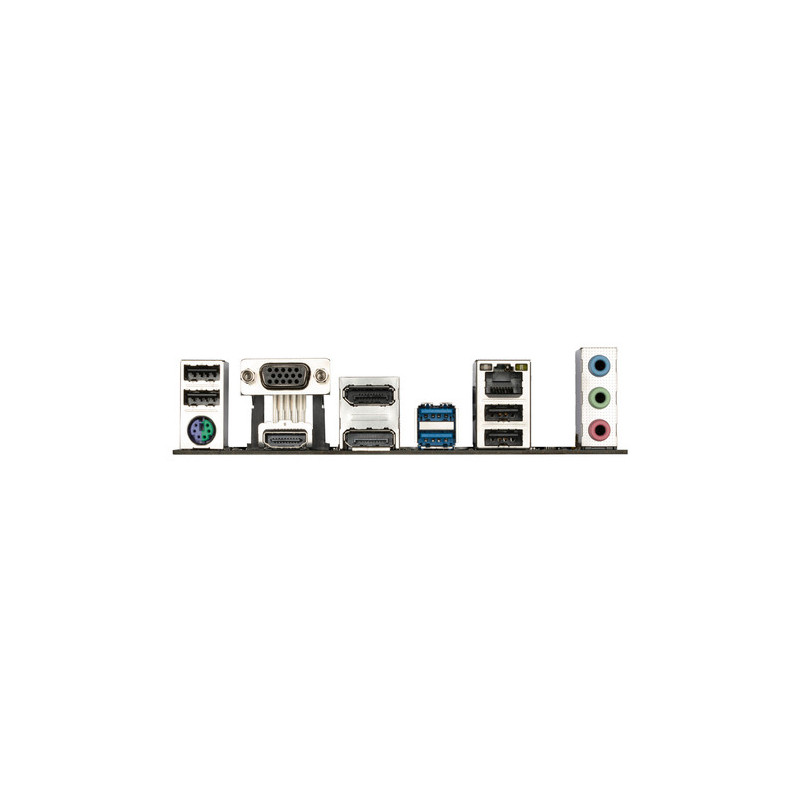

External ports:
*1 x port PS/2 for keyboard/mouse
*2 x porty USB 3.2 Gen 1
*4 x porty USB 2.0/1.1
*1 x port D-Sub
*2 x porty DisplayPort
*1 x port HDMI 2.0
*1 x port RJ-45
*3 x audio connector
BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Manufacturer's website: http://www.gigabyte.com/Motherboard/H610I-DDR4-rev-10#kf
| Next | |
|---|---|
| Game version | No |
| Graphic outputs | |
| DisplayPort / mini DisplayPort | Yes |
| HDMI connector | Yes |
| DVI connector | No |
| VGA connector (D-Sub) | Yes |
| Model design | |
| Model | GIGABYTE H610I DDR4 |
| To revise | Yes |
| Motherboard size | mini-ITX |
| Processor and memory | |
| Integrated CPU per MB | No |
| Maximum frequency base | 3200 |
| Pamäť - total number of slots | 2 |
| Memory - maximum size (GB) | 64 |
| Pätice | LGA 1700 |
| Processor generation support | No |
| ECC memory support | Yes |
| Memory type | No |
| Chip set | |
| Chip set | H610 |
| Chipset manufacturer | Intel |
| Interior equipment | |
| COM port (internal) | Yes |
| external SATA interface | rev 1.0 |
| Connector for RGB LED | 1 |
| Number of SATA 6 Gb/s connectors | 1 |
| Number of USB 2.0 connectors (internal) | Yes |
| Pochet konektorov USB 3.x (internal) | No |
| Number of slots M.2 | 1 |
| Number of PCI slots | 2 |
| Pochet slotov PCIe x1 | 4 |
| Pochet slotov PCIe x16 | 1 |
| Port LPT (internal) | No |
| RAID controller | No |
| Rozšíritélní bzádováčí jazyk | Yes |
| TPM header | Yes |
| Outdoor accessories | |
| Bluetooth | No |
| COM port (external) | 12th gen. Intel |
| Ethernet - speed | 1 Gb |
| Number of USB 2.0 ports (external) | 4 |
| Počet portov USB 3.x (externých) | 2 |
| Port LPT (external) | DDR4 |
| Network card type | Intel |
| Wi-Fi | Yes |
