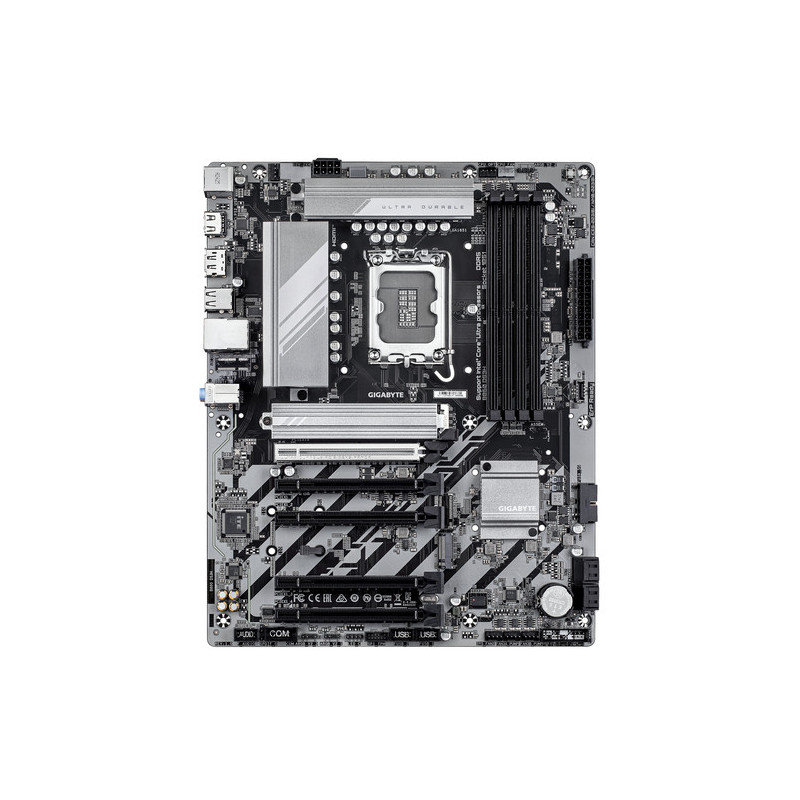

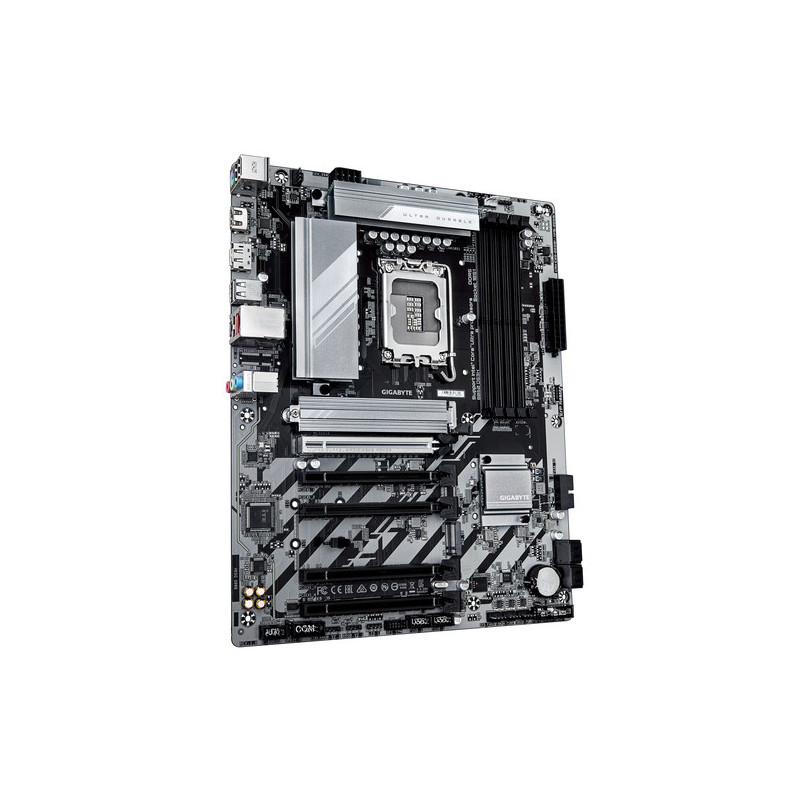

Motherboard Gigabyte B860 DS3H
Product reference:
3-4719331868178
Motherboard Gigabyte B860 DS3H
Motherboard Gigabyte B860 DS3H
Product reference:
3-4719331868178
Motherboard Gigabyte B860 DS3H
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Hybrid 8+1+2+2 Phases 50A PPAK MIA
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot EZ-Latch
- M.2 Gen5 (Up to 25110) with EZ-Latch Plus
- MOSFET Heatsinks/M.2 Thermal Guard
- 2.5GbE LAN, USB 3.2 Gen2x2 Type-C
- Q-Flash Plus
| Summary: | GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125 |
| Vendor Homepage: | https://www.gigabyte.com/ |
| Category Code: | MBI |
| CnCode: | 84733020 |
| Unit Box Height: | 0.27 |
| Unit Box Length: | 0.34 |
| Unit Box Width: | 0.08 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Cooling type: | Passive |
| Motherboard chipset: | Intel B860 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| PC health monitoring: | Fan/Temperature/Voltage/Water cooling |
| Power source type: | ATX |
| Product colour: | Dark brown |
| Windows operating systems supported: | Windows 10 x64/Windows 11 x64 |
| Compatible processor series: | Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1) |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Supported processor sockets: | LGA 1851 |
| ECC compatibility: | ECC Non-ECC |
| Maximum internal memory: | 256GB |
| Maximum internal memory per slot: | 64GB |
| Memory channels: | Dual channel |
| Memory slot type: | DIMMs |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 9066MHz |
| Supported memory clock speeds: | 5600/6400/9066MHz |
| Supported memory types: | DDR5-SDRAM |
| Unbuffered memory: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| RAID levels: | 0/1/10/5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,SATA III |
| Supported storage drive types: | HDD SSD |
| DirectX version: | 12.0 |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2160pixels |
| Parallel processing technology support: | Not supported |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 4 |
| Number of CPU fan connectors: | 2 |
| Number of EPS power connectors (8-pin): | 1 |
| Number of RGB LED pin headers: | 4 |
| Number of SATA III connectors: | 4 |
| Number of water pump connectors: | 3 |
| RGB LED pin header: | Yes |
| S/PDIF out connector: | Yes |
| Serial port headers: | 1 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| DisplayPort version: | 2.1 |
| DisplayPort quantity: | 1 |
| Ethernet LAN (RJ-45) port: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| PS/2 port quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C port quantity: | 1 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8125 |
| Wi-Fi: | From |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 25110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 25110 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slot: | 4 |
| PCI Express x16 (Gen 5.x) slot: | 1 |
| ACPI version: | 5.0 |
| BIOS memory size: | 256Mbit |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3g |
| Country of origin: | China |
| Lithium weight per battery: | 0.07g |
| Number of battery cells: | 1 |
| Package depth: | 270mm |
| Package height: | 80mm |
| Package width: | 335mm |
| Products per shipping (inner) case: | 1pc(s) |
| Depth: | 244mm |
| Height: | 35mm |
| Width: | 305mm |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included: | Yes |
| Warranty period: | 3year(s) |
| Weight: | 2000g |
| Model: | B860 DS3H |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 8 |
| Unit Calculated Volume: | 0.01011m³ |
| Unit Calculated Weight: | 1.58kg |
