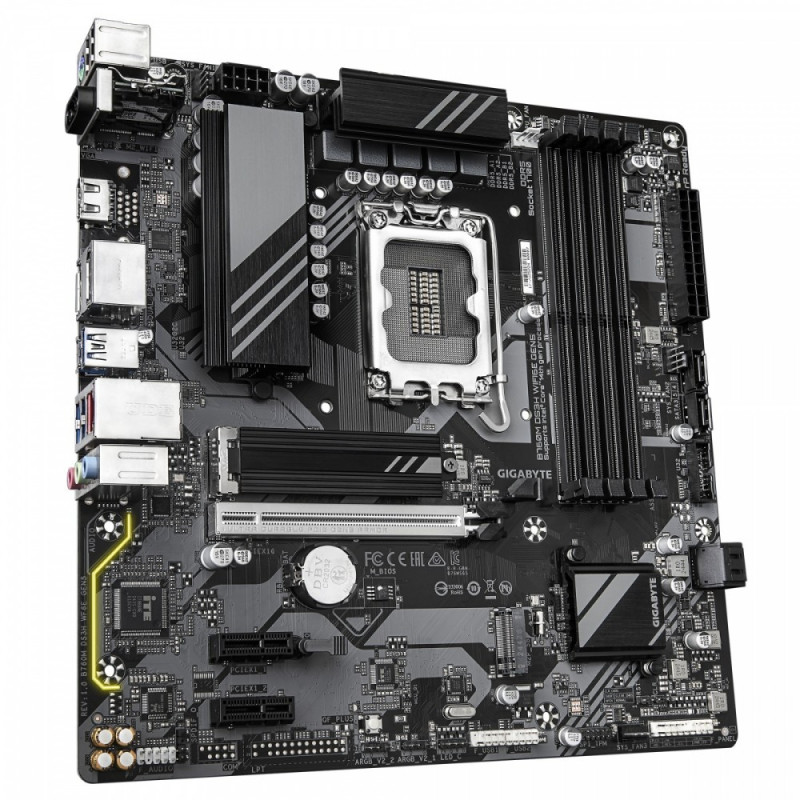

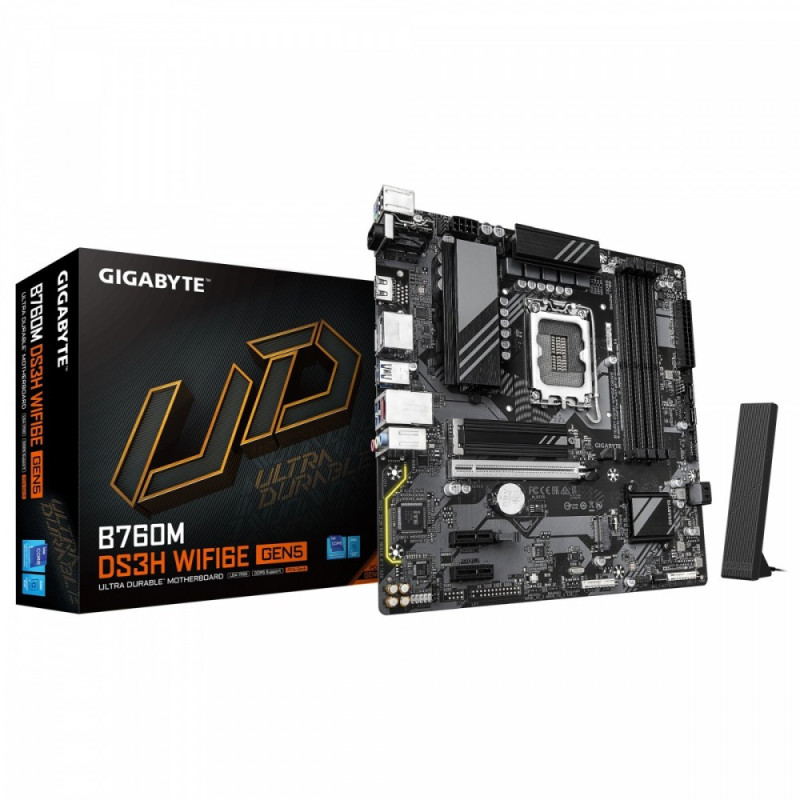

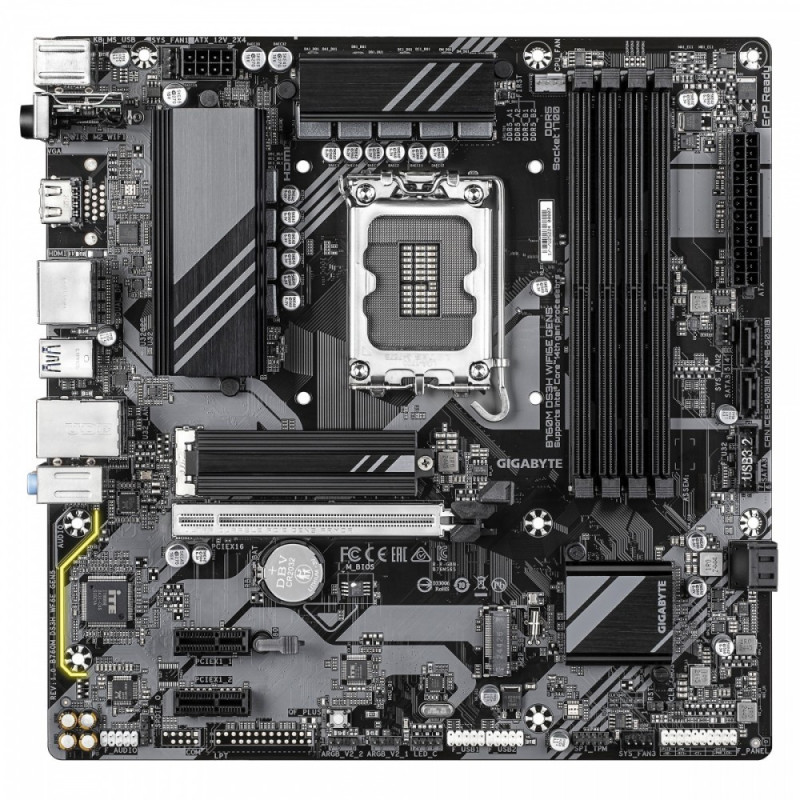

Motherboard Gigabyte B760M DS3H WIFI6E GEN5
Product reference:
3-4719331872809
Motherboard Gigabyte B760M DS3H WIFI6E GEN5
Motherboard Gigabyte B760M DS3H WIFI6E GEN5
Product reference:
3-4719331872809
Motherboard Gigabyte B760M DS3H WIFI6E GEN5
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series caters to your needs, ensuring uncompromising quality and cutting-edge technology.
- PCIe Gen5 Performance: Perfect Sync to Win
- Supports Intel Core 14th/ 13th /12th processors
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- WIFI Compass: Auto detects the best antenna position for the strongest Wi-Fi signal
- EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
- Unparalleled Performance: Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
- Fast Networks: 2.5 GbE LAN Wi-Fi 802.11ax
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C 10Gb/s, DP, HDMI
| Summary: | GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Vendor Homepage: | https://www.gigabyte.com/ |
| Category Code: | MBI |
| CnCode: | 84733020 |
| Unit Box Height: | 0.07 |
| Unit Box Length: | 0.27 |
| Unit Box Width: | 0.27 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Cooling type: | Passive |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| PC health monitoring: | Fan/Temperature/Voltage/Water cooling |
| Power source type: | ATX |
| Product colour: | Dark brown |
| Windows operating systems supported: | Windows 10 x64/Windows 11 x64 |
| Compatible processor series: | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| ECC compatibility: | ECC Non-ECC |
| Maximum internal memory: | 256GB |
| Maximum internal memory per slot: | 64GB |
| Memory channels: | Dual channel |
| Memory slot type: | DIMMs |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 5600MHz |
| Supported memory clock speeds: | 4400/4800/5200/5600MHz |
| Supported memory types: | DDR5-SDRAM |
| Unbuffered memory: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| RAID levels: | 0/1/10/5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types: | HDD SSD |
| DirectX version: | 12.0 |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2304pixels |
| Parallel processing technology support: | Not supported |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 3 |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| Number of RGB LED pin headers: | 3 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| S/PDIF out connector: | Yes |
| TPM connector: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |

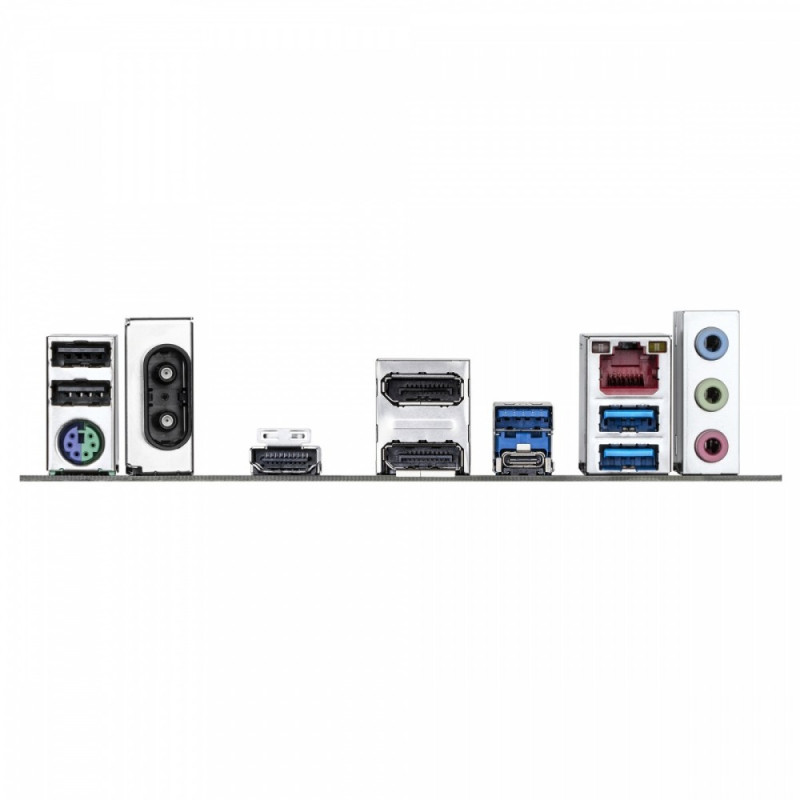

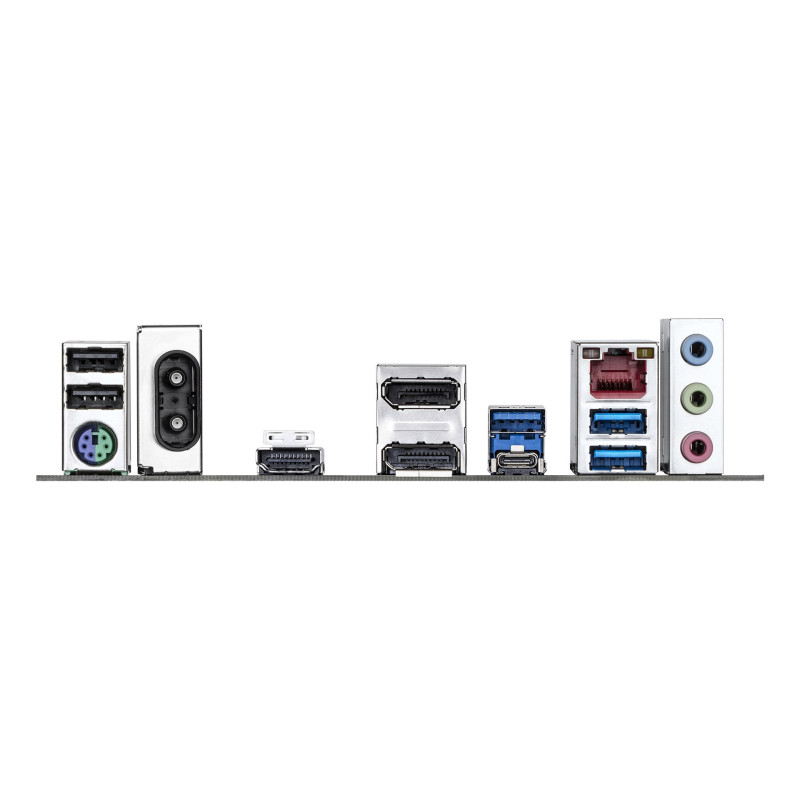

| DisplayPort version: | 1.2 |
| DisplayPort quantity: | 2 |
| Ethernet LAN (RJ-45) port: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| PS/2 port quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8125 |
| Top Wi-Fi standards: | Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Wi-Fi standard: | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| WLAN controller model: | Intel Wi-Fi 6E AX210 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| Number of M.2 (M) slot: | 2 |
| PCI Express x1 (Gen 3.x) slot: | 2 |
| PCI Express x16 (Gen 5.x) slot: | 1 |
| ACPI version: | 5.0 |
| BIOS memory size: | 128Mbit |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3g |
| Country of origin: | China |
| Lithium weight per battery: | 0.07g |
| Number of battery cells: | 1 |
| Package depth: | 268mm |
| Package height: | 68mm |
| Package weight: | 1200g |
| Package width: | 270mm |
| Products per shipping (inner) case: | 1pc(s) |
| Depth: | 244mm |
| Height: | 35mm |
| Width: | 244mm |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) |
| Screws included: | Yes |
| Warranty period: | 3year(s) |
| Weight: | 1100g |
| Model: | B760M DS3H WIFI6E GEN5 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.005103m³ |
| Unit Calculated Weight: | 1.1kg |
