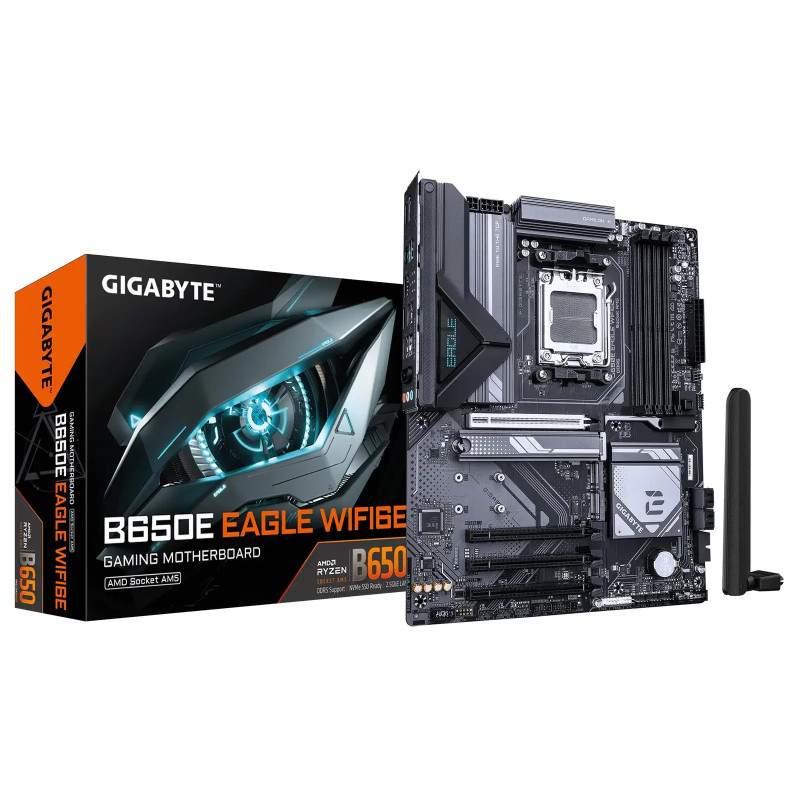

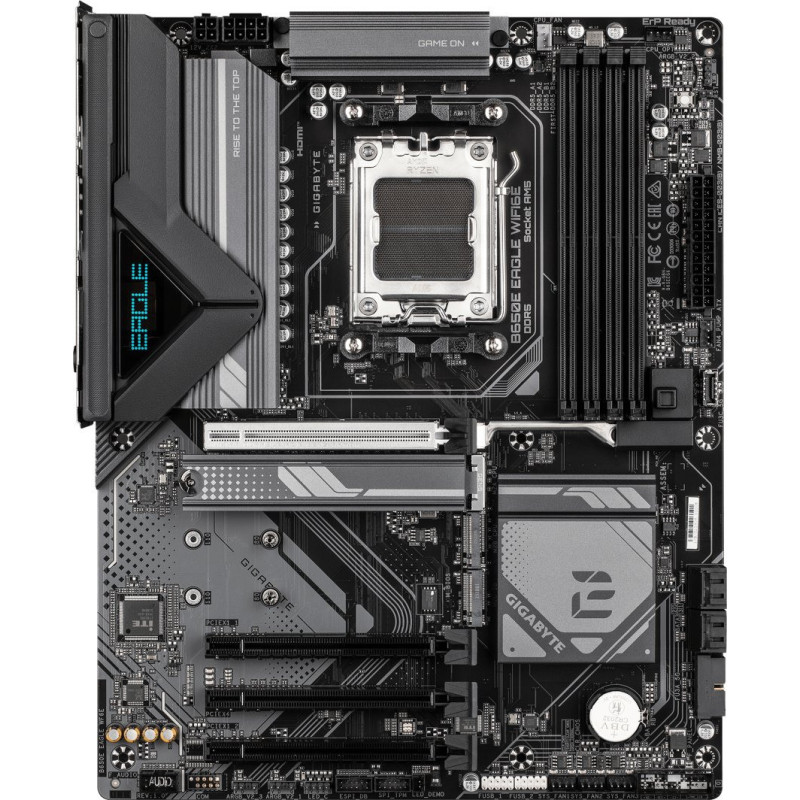

Motherboard Gigabyte B650E EAGLE WIFI6E

Gigabyte The B650E Eagle WF6E 1.0 motherboard is designed for AMD Ryzen processors with AM5 socket and B650E chipset. It provides PCIe 5.0 support, four DDR5 slots, high-speed M.2 NVMe connections and improved VRM cooling. The ATX form factor offers extensive expansion options for powerful systems.

Characteristics
Model: Gigabyte B650E Eagle WF6E 1.0
Device type: Motherboard
Processor socket: AMD AM5
Chipset: AMD B650E
Form factor: ATX

Memory
Type: DDR5
Slots: 4× DIMM
Mode: Dual Channel
Maximum capacity: 192 GB
Profiles: AMD EXPO / XMP
Frequencies: High OC DDR5 frequencies

Expansion
1× PCIe 5.0 x16
1× PCIe 4.0 x16 (x4)
1× PCIe 3.0 x1

Data storage
3× M.2:
- 1× PCIe 5.0 x4
- 2× PCIe 4.0 x4
4× SATA 6Gb/s
RAID: 0 / 1 / 10

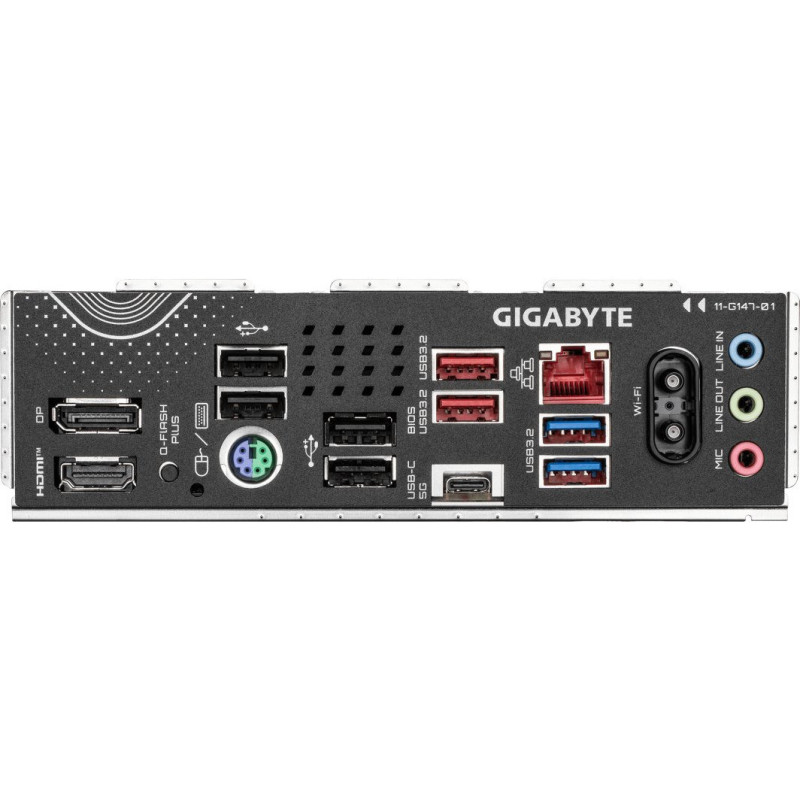

Rear I/O
USB 3.2 Gen2 Type-C
USB 3.2 Gen1
USB 2.0
HDMI
RJ-45 LAN
Audio jacks

Network and audio
LAN: 2.5 GbE
Audio: HD Audio

Cooling
VRM heatsinks
M.2 heatsink plates
Fan sockets: CPU_FAN, PUMP, SYS_FAN

Other options
RGB/ARGB headers
Reinforced PCIe and power connectors
Diagnostic LEDs
Updating BIOS without a CPU
Windows 11 support

Plate dimensions: 30.5 cm × 24.4 cm

Physical parameters
Weight: 1.10 kg
Gross weight: 1.95 kg
Package dimensions
Length, m: 0.3300
Height, m: 0.2800
Width, m: 0.0700
