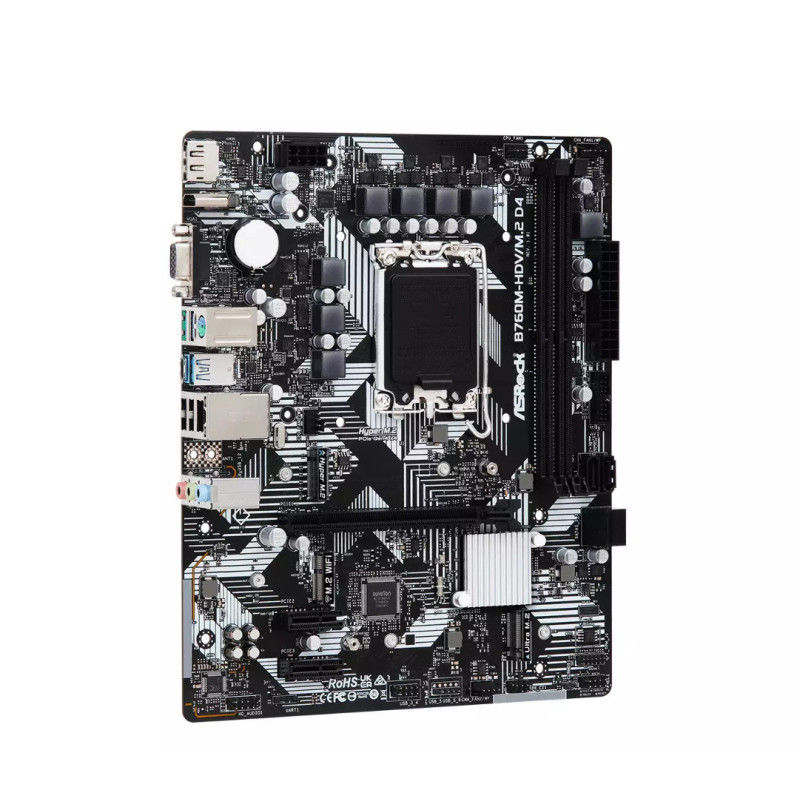

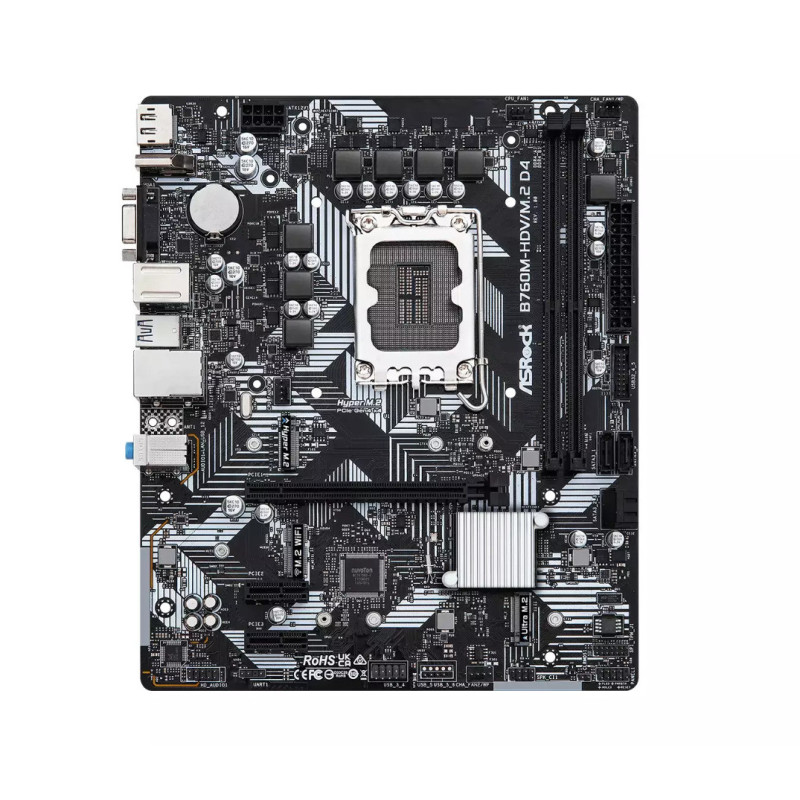

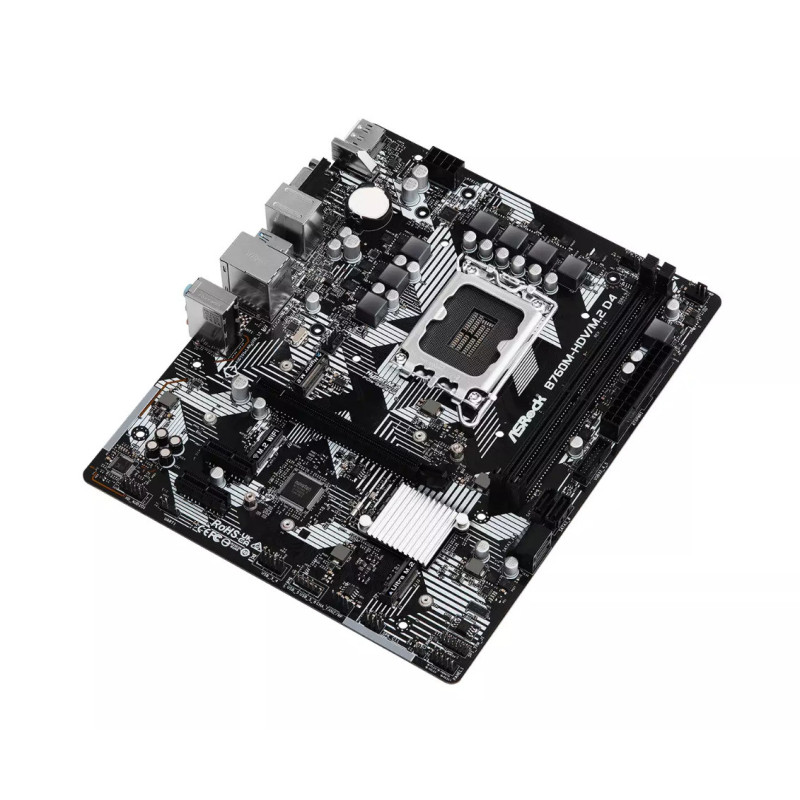

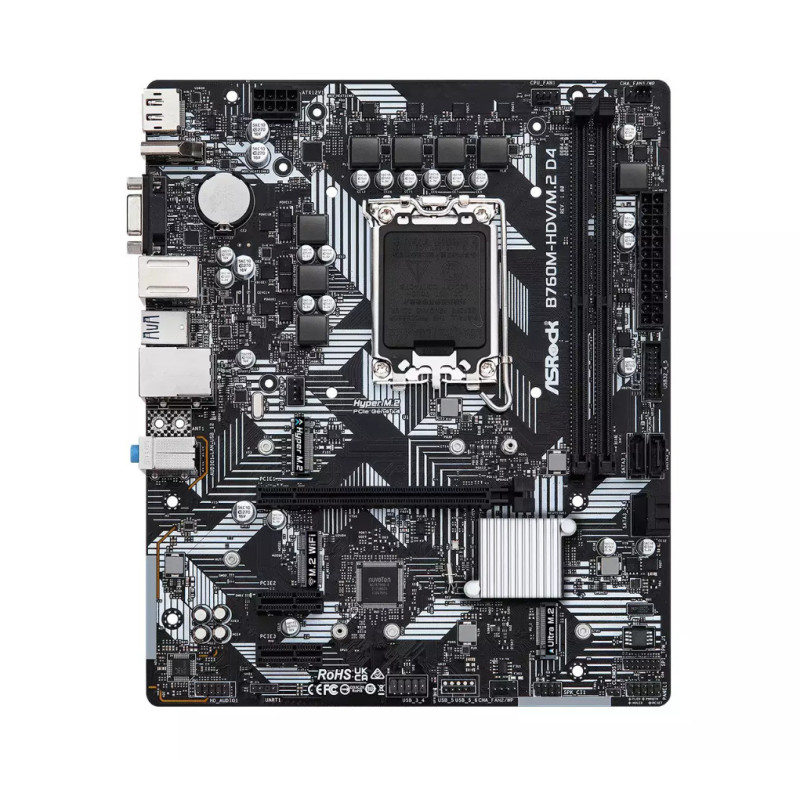

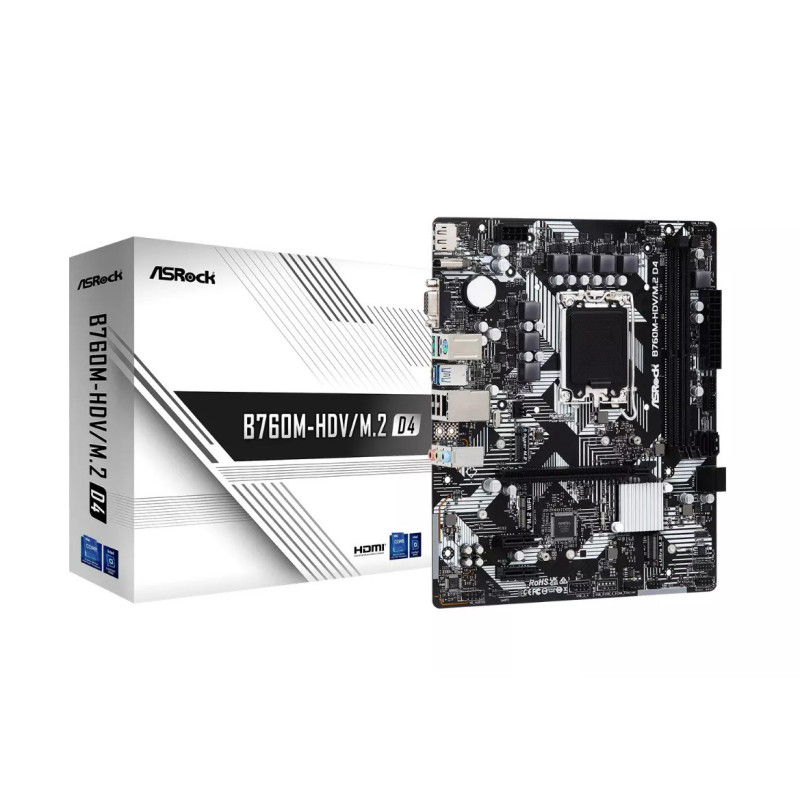

Motherboard B760M-HDV / M.2 D4 s1700 2DDR4 DP / HDMI mATX
Product reference:
3-4710483942020
Motherboard B760M-HDV/M.2 D4 s1700 2DDR4 DP/HDMI mATX
Motherboard B760M-HDV / M.2 D4 s1700 2DDR4 DP / HDMI mATX
Product reference:
3-4710483942020
Motherboard B760M-HDV/M.2 D4 s1700 2DDR4 DP/HDMI mATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

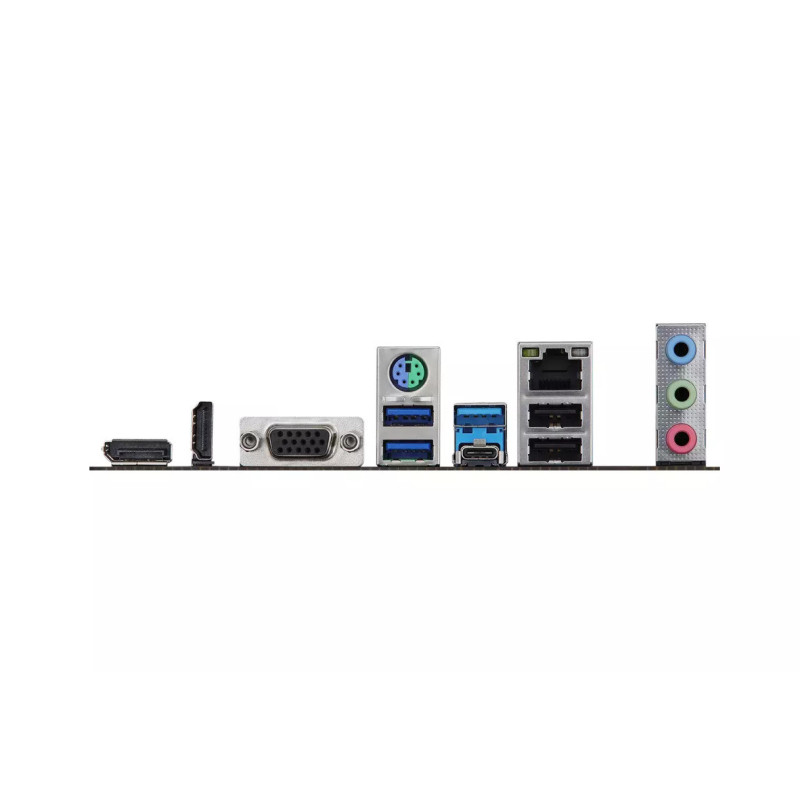

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
| Summary: | Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Vendor Homepage: | https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification |
| Category Code: | MBI |
| CnCode: | 84733020 |
| Unit Box Height: | 0.06 |
| Unit Box Length: | 0.28 |
| Unit Box Width: | 0.242 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1channels |
| Certification: | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Component for: | PC |
| Motherboard chipset: | Intel B760 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Windows operating systems supported: | Windows 10 Education x64/Windows 11 x64 |
| Compatible processor series: | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory: | 64GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Number of memory slots: | 2 |
| Supported memory clock speeds: | 3200/4400/5333MHz |
| Supported memory types: | DDR4-SDRAM |
| Unbuffered memory: | Yes |
| RAID levels: | 0/1/10/5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,SATA III |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel connector: | Yes |
| Number of SATA III connectors: | 4 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| BIOS memory size: | 128Mbit |
| BIOS type: | UEFI AMI |
| Depth: | 201mm |
| Width: | 244mm |
| Cables included: | SATA |
| Model: | B760M-HDV/M.2 D4 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.004066m³ |
| Unit Calculated Weight: | 0.76kg |
