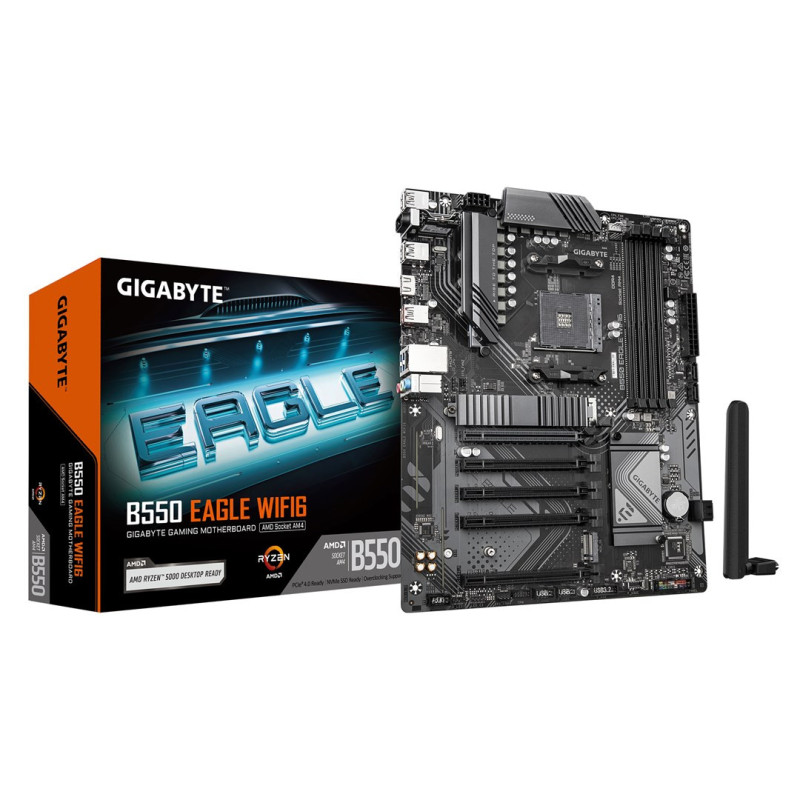

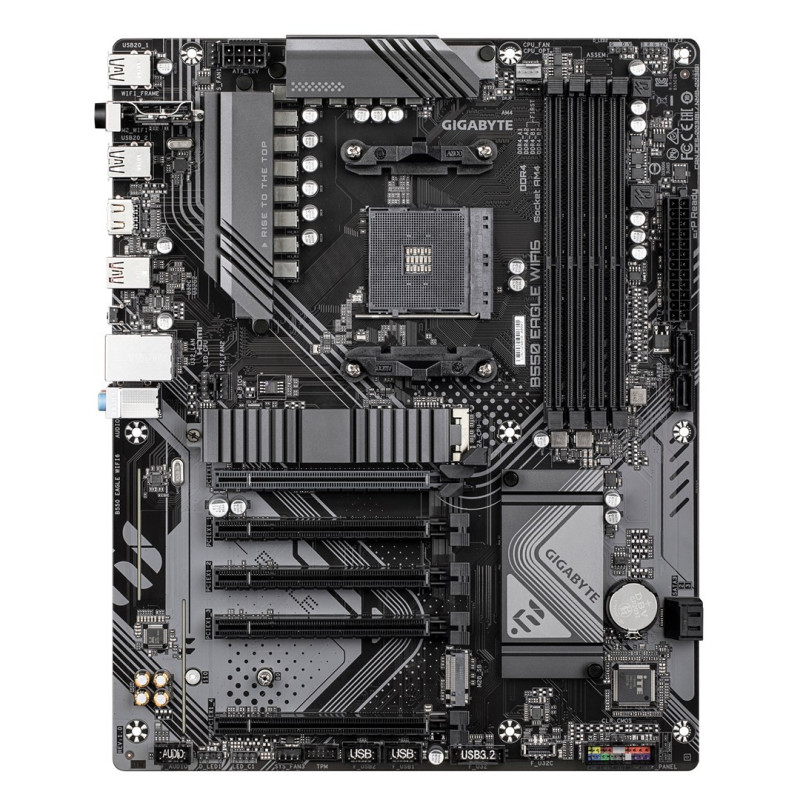

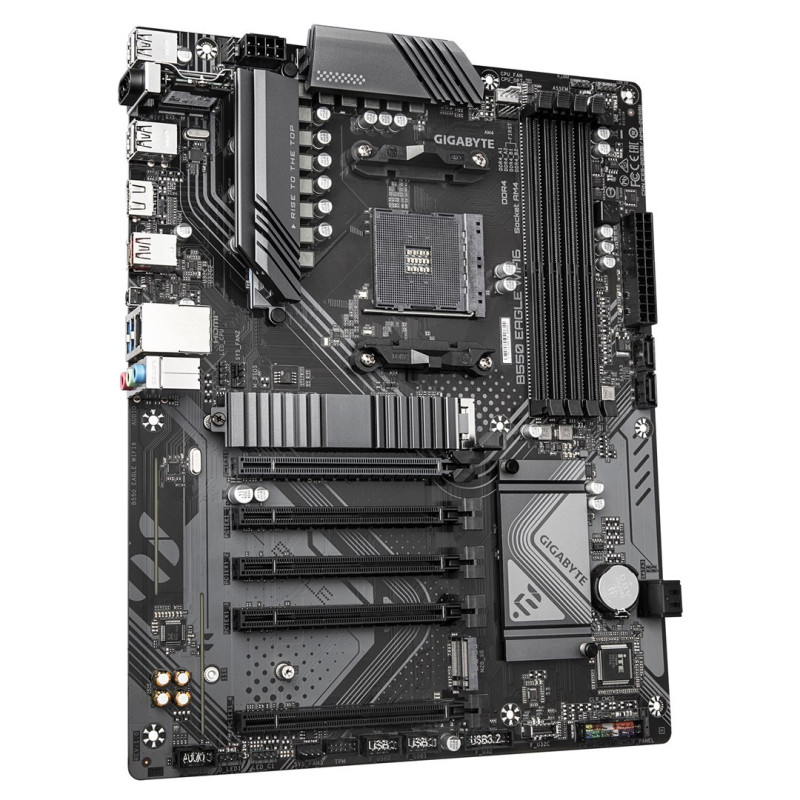

Motherboard B550 EAGLE WIFI6 AM4 4 DDR4
Product reference:
3-4719331868406
Motherboard B550 EAGLE WIFI6 AM4 4 DDR4
Motherboard B550 EAGLE WIFI6 AM4 4 DDR4
Product reference:
3-4719331868406
Motherboard B550 EAGLE WIFI6 AM4 4 DDR4
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Processor | |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series |
| Supported processor sockets | Socket AM4 |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
| Features | |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Product colour | Dark brown |
| Audio chip | Realtek ALC897 |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| PC health monitoring | Fan, Water cooling, Temperature, Voltage |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Cooling type | Passive |
| Memory | |
| ECC сompatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 3200, 2933, 2667, 2133, 2400 |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 3200 MHz |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Weight & dimensions | |
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Network | |
| LAN controller | Realtek RTL8111H |
| Bluetooth | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi standards | 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth version | 5.3 |
| WLAN controller model | Realtek RTL8851BE |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 5 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 3 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS jumper | Yes |
| Packaging data | |
| Package weight | 1.48 kg |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package width | 335 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Batteries included | Yes |
| Antenna included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID levels | 10, 1, 0 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |

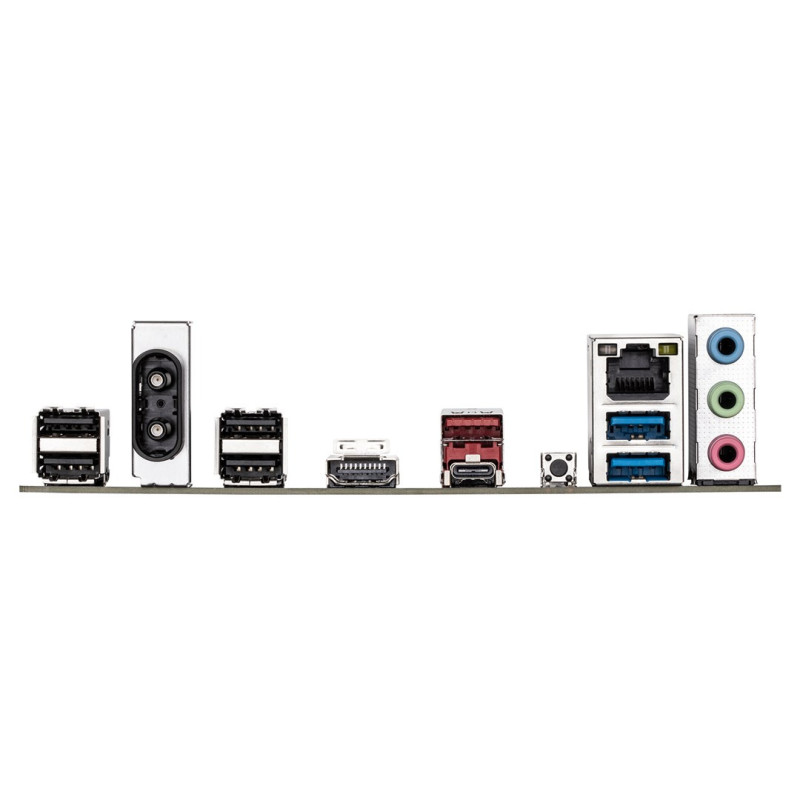

| Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| PCI Express x1 (Gen 3.x) slots | 4 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Battery | |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Other features | |
| Weight | 1.25 kg |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
