Motherboard Asus TUF GAMING A620M-PLUS WIFI

The ASUS TUF GAMING A620M-PLUS WIFI motherboard is designed for gaming and multipurpose systems based on the AMD AM5 platform. It uses the AMD A620 chipset and supports AMD Ryzen 7000 series processors. The board includes four DDR5 slots supporting up to 128 GB, PCIe 4.0, two M.2 connectors, and four SATA 6 Gb/s ports. Networking is provided by Realtek 2.5 Gb Ethernet and an integrated Wi-Fi 6 module with Bluetooth 5.3. Reinforced power design, ASUS TUF protection, and DIGI+ VRM technology ensure stable and long-term operation. The Micro-ATX form factor makes it suitable for compact cases while maintaining full functionality.

Specifications
Model: TUF GAMING A620M-PLUS WIFI
Type: Motherboard
Chipset: AMD A620
Socket: AM5
CPU Support: AMD Ryzen 7000 series
Form Factor: Micro-ATX (24.4 × 24.4 cm)
Memory: DDR5, 4 × DIMM, up to 128 GB
Memory Speed: up to 6400 MHz (OC)
Dual Channel: Yes
ECC Support: Yes (depends on CPU)
Video Outputs: 1 × HDMI 2.1 / 1 × DisplayPort 1.4
Max Resolution: up to 4096 × 2160 @ 60 Hz (HDMI)
Expansion Slots:
- 1 × PCIe 4.0 x16
- 2 × PCIe 3.0 x1
Storage: 2 × M.2 (PCIe 4.0 x4 / SATA) / 4 × SATA 6 Gb/s
RAID: RAID 0/1/10
Network: Realtek 2.5 Gb Ethernet / Wi-Fi 6 / Bluetooth 5.3
Audio: Realtek 7.1 Channel HD Audio (24-bit / 192 kHz)

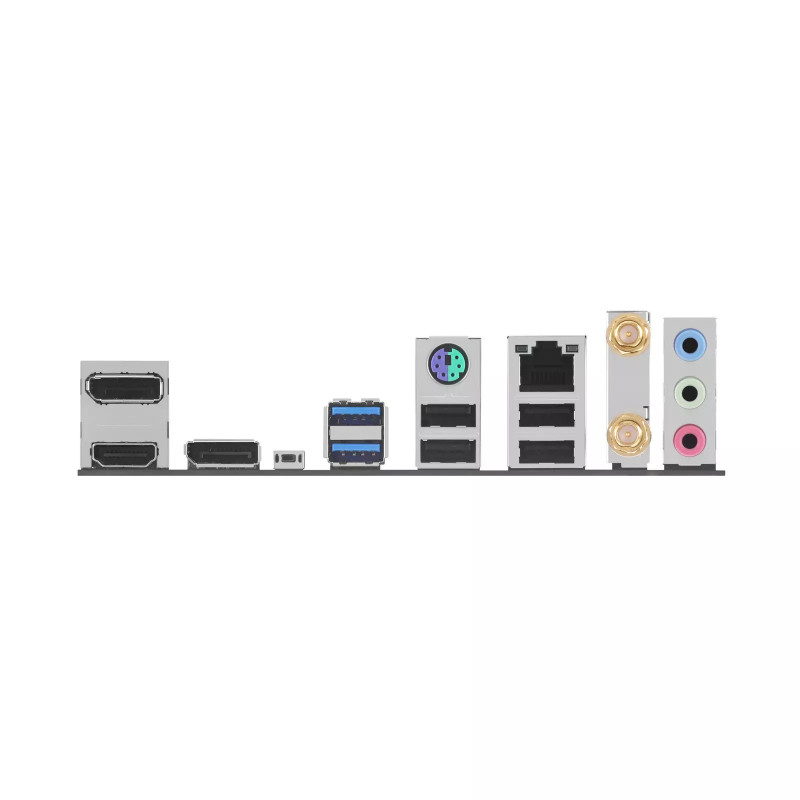

Rear I/O Ports:
- 1 × HDMI
- 1 × DisplayPort
- 2 × USB 3.2 Gen 2 Type-A
- 2 × USB 3.2 Gen 1 Type-A
- 4 × USB 2.0 Type-A
- 1 × RJ-45 LAN
- 3 × Audio Jacks
- 2 × Wi-Fi Antenna Connectors
- 1 × PS/2 Combo
Internal Connectors:
- 1 × 24-pin ATX Power
- 1 × 8-pin CPU Power
- 2 × USB 3.2 Gen 1 Header
- 2 × USB 2.0 Header
- 1 × Front Audio Header
- 1 × RGB Header
- 1 × Addressable RGB Header
- 1 × Clear CMOS
Technologies: ASUS TUF Components / DIGI+ VRM / SafeSlot Core+ / BIOS FlashBack / Armoury Crate / Fan Xpert 2+
BIOS: 256 Mbit UEFI AMI BIOS
OS: Windows 11 / 10 (64-bit)
Model Year: 2024
Purpose: Gaming and multipurpose PCs
Package Contents: Motherboard, Wi-Fi antenna, SATA cables, I/O shield, mounting kit, user manual

Physical Parameters
Weight: 0.70 kg
Gross Weight: 1.10 kg
Package Dimensions
Length, m: 0.33
Height, m: 0.27
Width, m: 0.07
