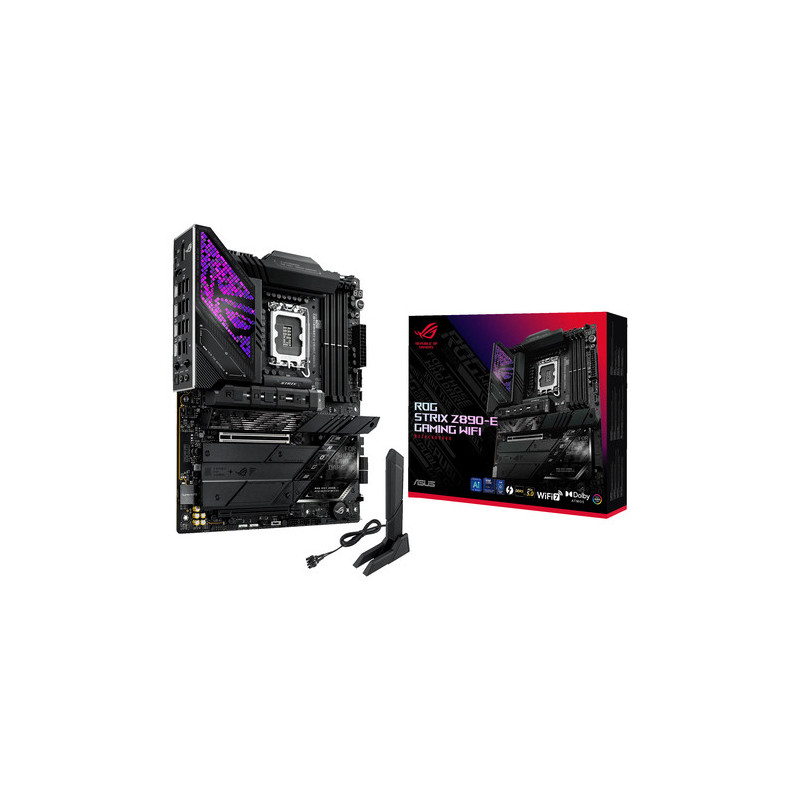

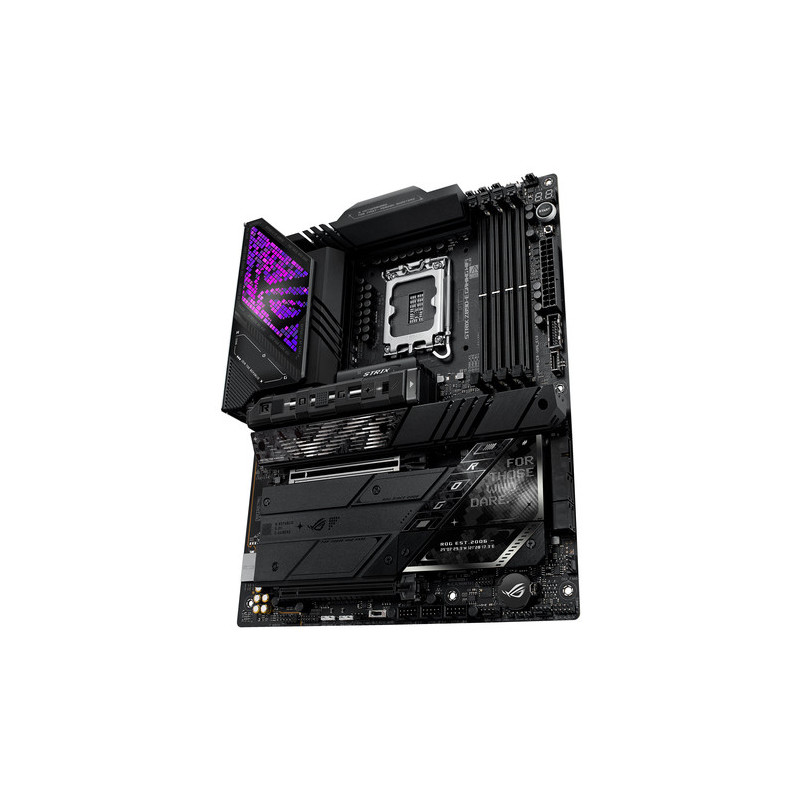

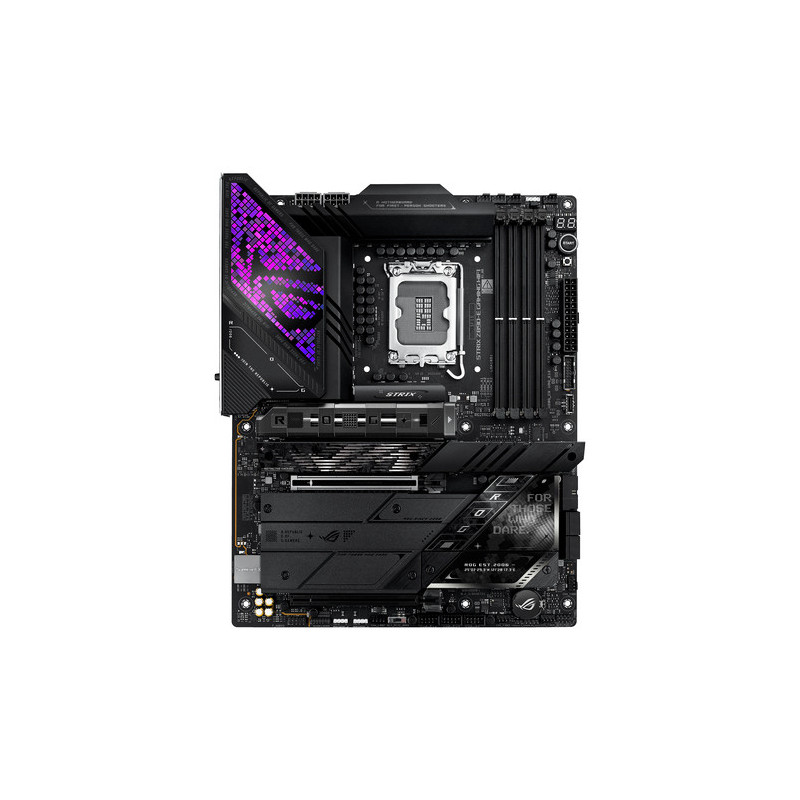

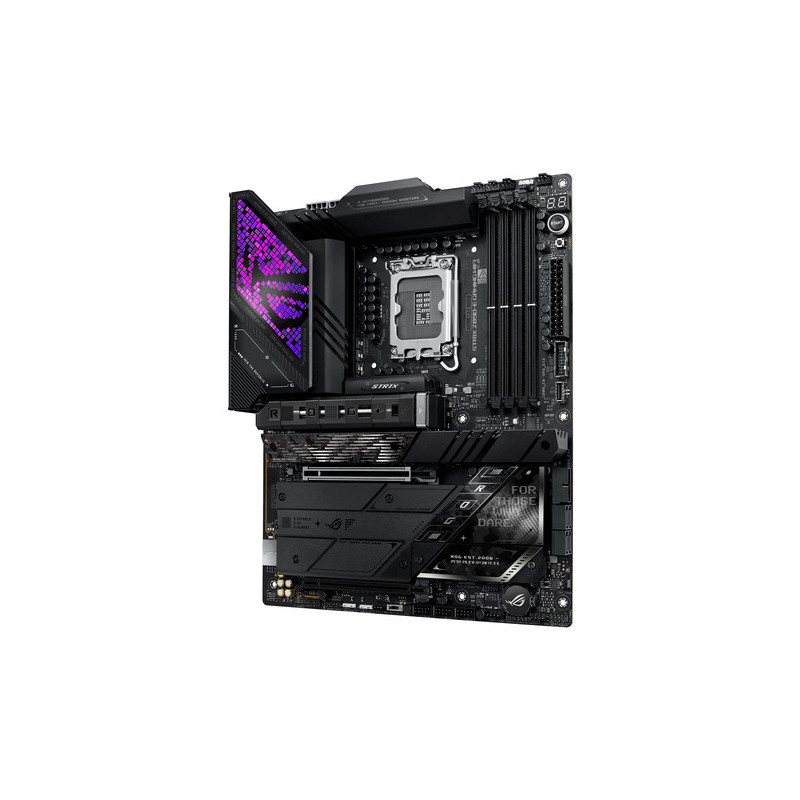

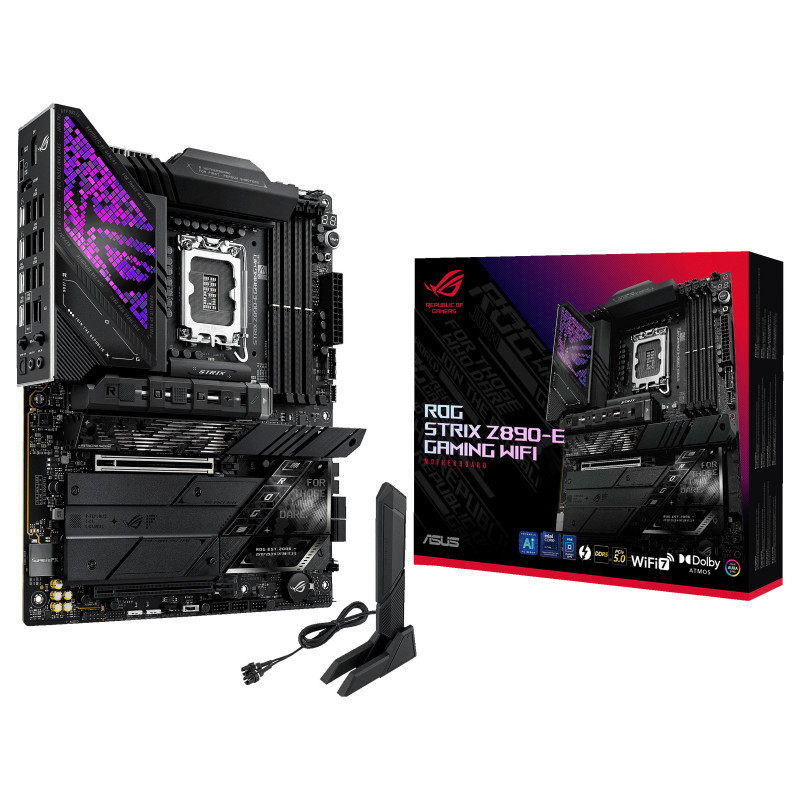

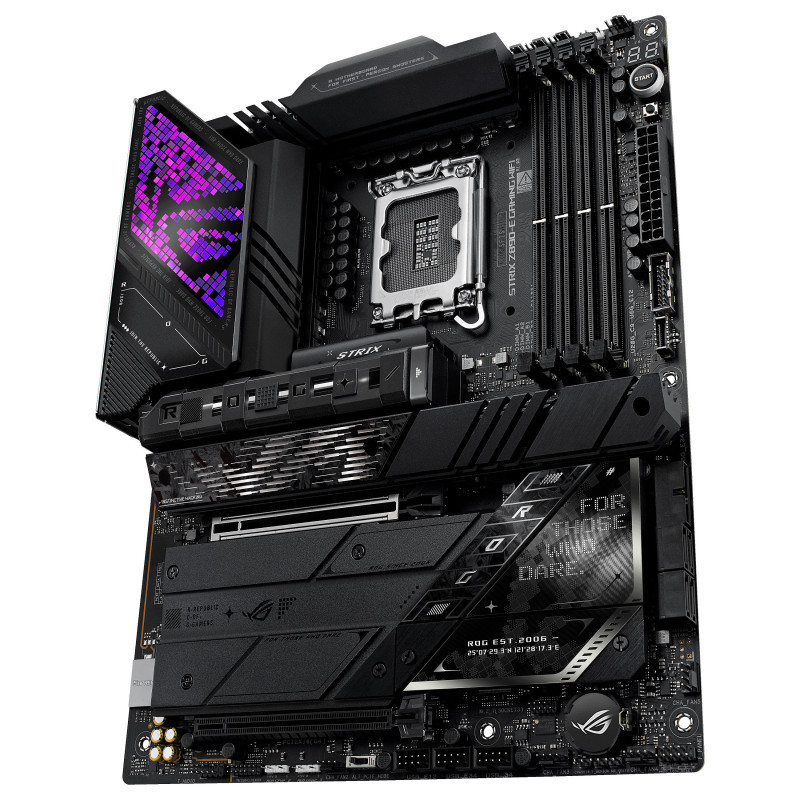

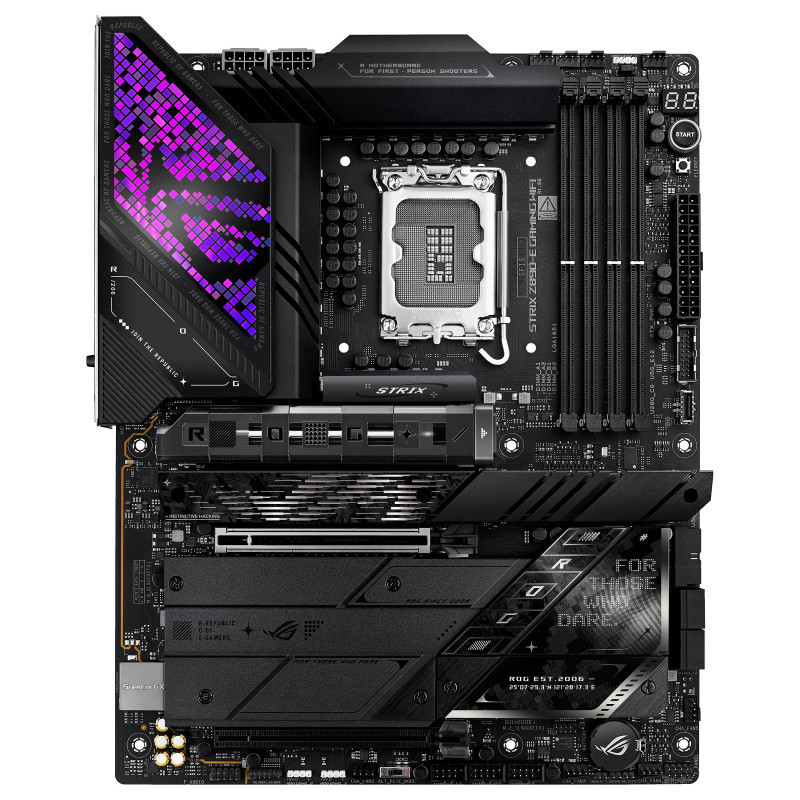

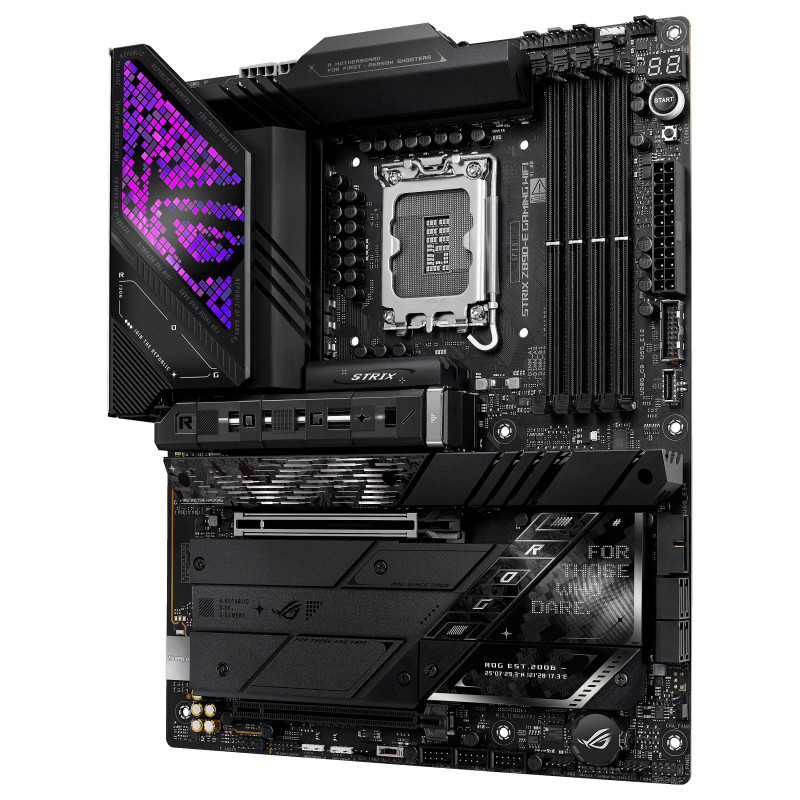

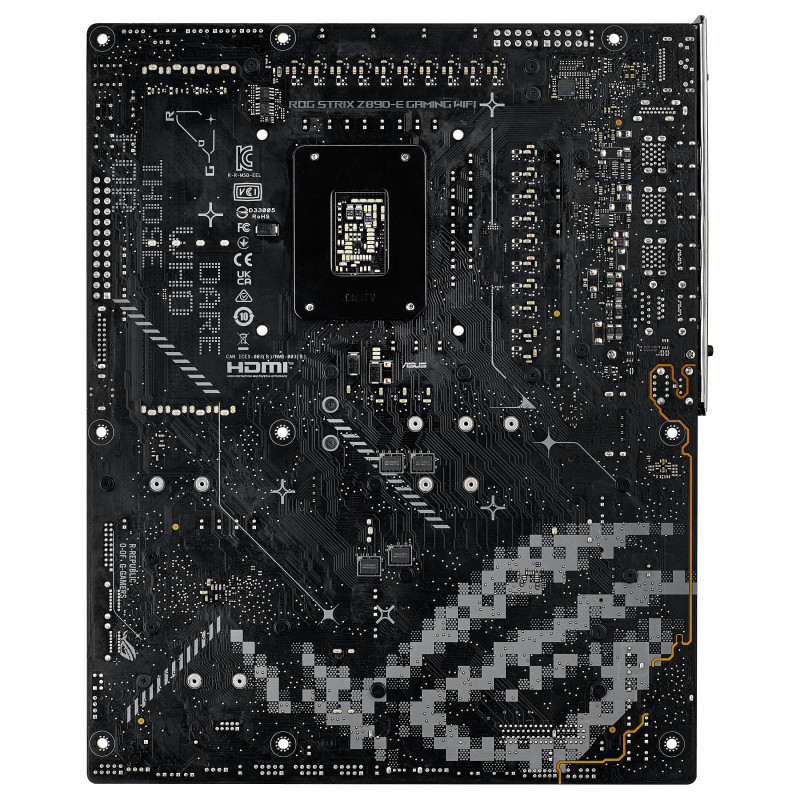

Motherboard Asus ROG STRIX Z890-E GAMING WIFI

* Aura Sync
* EZ PC DIY
* BIOS Q-Dashboard
* AI Networking II
* AI Cooling II
* AI Overclocking
* AI Advisor
Chipset: Intel® Z890
Format: ATX (305x244mm)
Processor support: Intel® Core™ Ultra (gen 2)
Processor socket: LGA1851
Remember:
* 4x DIMMs, max. 192GB, DDR5 8800+MT/s (OC), no ECC, no buffer DIMM (CUDIMM)
* dvojkanálová architecture memory
* supports Intel® Extreme Memory Profile (XMP)
* DIMM Flex
* NitroPath DRAM
* DIMM FIT
* ASUS Enhanced Memory Profile III (AEMP III)
Graphic outputs: the specification of the graphics may differ in different types of processors
* 1x DisplayPort 1.4
* 1x HDMI 2.1
* 2x Intel® Thunderbolt™ 4 (USB typ C®) supports video outputs DisplayPort a Thunderbolt™
Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - supports playback up to 32-bit/384 kHz on the front panel; Savitech SV3H712 AMP
Ethernet: 1x Realtek 5GbE
WLAN + Bluetooth: Wi-Fi 7 2x2 (802.11be) + Bluetooth® v5.4
Expansion slots:
* 1x PCIe 5.0 x16
* 1x PCIe 4.0 x16 (support mode x4)
RAID radic: Intel® Rapid Storage supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, slot M.2 z CPU supports iba RAID 0/1/5
Storage space:
It supports a total of 7 slots M.2 a 4 ports SATA 6Gb/s
* M.2_1 (Key M), typ 2242/2260/2280/22110 (socket PCIe 5.0 x4)
* M.2_2 (Key M), typ 2280 (socket PCIe 4.0 x4)
* M.2_3 (Key M), typ 2242/2260/2280 (socket PCIe 5.0 x4)
* M.2_4 (Key M), typ 2242/2260/2280 (socket PCIe 5.0 x4)
* M.2_5 (Key M), typ 2280 (socket PCIe 4.0 x4)
* M.2_6 (Key M), typ 2280 (socket PCIe 4.0 x4)
* M.2_7 (Key M), typ 2242/2260/2280 (socket PCIe 4.0 x4 a SATA)
* 4x SATA 6Gb/s
USB:
Rear USB (total 14 ports)
* 2x Thunderbolt™ 4 (2x USB type C®)
* 9x USB 10Gb/s (7x type A + 1x USB type C® + 1x USB type C® with up to 30W PD fast charging)
* 3x USB 5Gb/s (3x type A)
Predné USB (11 ports in total)
* 1x USB 20Gb/s (socket USB type C®)
* 2x USB 5Gb/s header support for 4 additional USB 5Gb/s ports
* 3x USB 2.0 header support for 6 additional USB 2.0 ports
Ports on the back panel:
* 2x Thunderbolt™ 4 (2x USB type C®)
* 9x USB 10Gb/s (7x type A + 1x USB type C® + 1x USB type C® with up to 30W PD fast charging)
* 3x USB 5Gb/s (3x type A)
* 1x DisplayPort
* 1x HDMI®
* 1x Wi-Fi module
* 1x RJ-45 Realtek 5Gb
* 2x plated audio connector
* 1x optical S/PDIF output
* 1x BIOS FlashBack™ button
* 1x Clear CMOS button
Internal ports:
Súvisiace s ventiladorom a chladením
* 1x 4pin CPU Fan header
* 1x 4pin CPU OPT Fan header
* 1x 4pin AIO Pump header
* 5x 4pin Chassis Fan headers
Power supply
* 1x 24pin main power connector
* 2x 8pin +12V CPU power connector
Storage related
* 7x M.2 slots (key M)
* 4x SATA 6Gb/s ports
USB
* 1x USB 20Gb/s (socket USB type C®)
* 2x USB 5Gb/s header support for 4 additional USB 5Gb/s ports
* 3x USB 2.0 header support for 6 additional USB 2.0 ports
Other
* 3x Addressable Gen 2 headers
* 1x Chassis Intrusion header
* 1x CPU Over voltage jumper
* 1x FlexKey button
* 1x Front Panel Audio header (F_AUDIO)
* 1x Start button
* 1x 10-1pin System Panel header
* 1x Thermal Sensor header
* 1x Thunderbolt™ (USB4®) header
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
Accessories
Cable:
* 2x SATA 6Gb/s cables
Additional cooling kit:
* 1x adhesive pad for M.2 22110
Variety:
* 1x ASUS WiFi Q-antenna
* 1x bundle of pull straps
* 1x pack of M.2 Q-Latch
* 2x M.2 Q-Slides
* 1x ROG keychain
* 1x ROG Strix stickers
* 7x M.2 pad
* 1x installation guide
Link to the manufacturer's website: https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-e-gaming-wifi/
