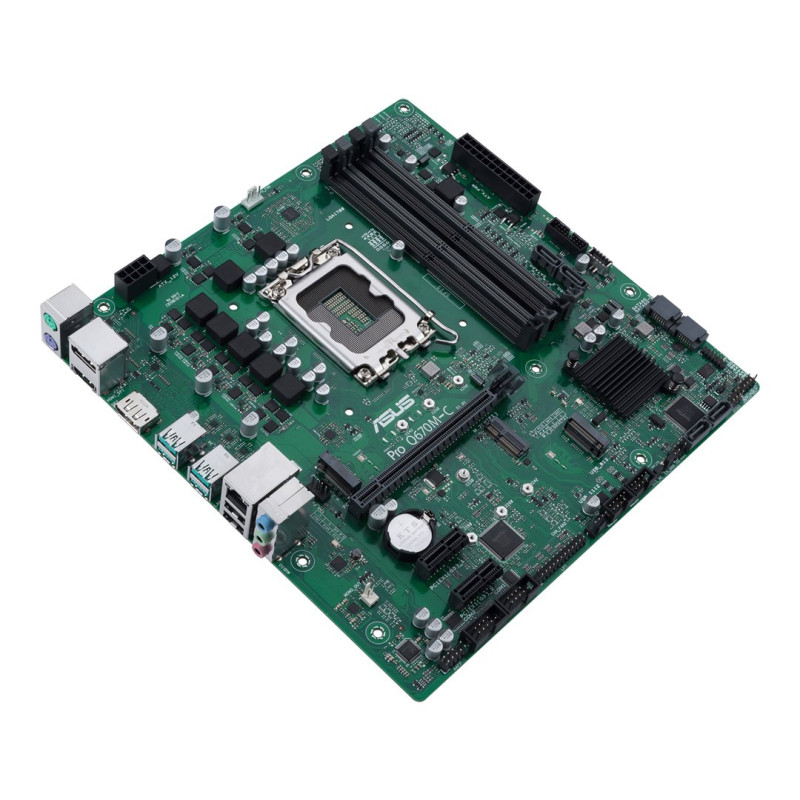

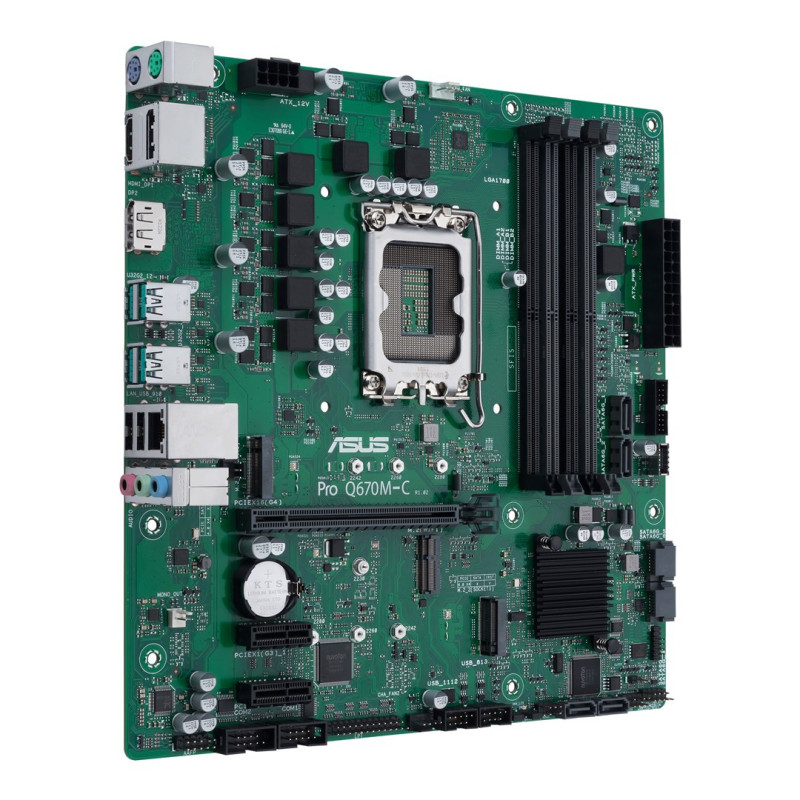

Motherboard Asus Pro Q670M-C-CSM

Intel Q670
Board format: mATX (24.4 cm x 24.4 cm)
Processor support: procesory Intel Core 12th generation, Pentium Gold a Celeron
Processor Socket: LGA 1700
Memory slots: 4 x DIMM, memory architecture Dual Channel
Memory support: DDR5 4800 MHz
Max. memory size: 128 GB
Memory type support: XMP
Graphic outputs: (depending on the processor)
*2 x DisplayPort 1.4
*1 x port HDMI 2.1
Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Network card: 1 x Intel I219LM 1Gb Ethernet
Expansion slots:
*1 x PCIe 4.0 x16 slot
*2 x PCIe 3.0 x1 sloty
RAID radic:
*NVMe RAID 0/1/5
*SATA RAID 0/1/5/10.
SATA: 6 x SATA 6Gb/s porty
M.2: 2 x M.2 sloty (Key M)
USB:
* Internal:
*1 x konektor USB 3.2 Gen 1 na prednom paneli (podporuje USB Type-C)
*1 x konektor USB 3.2 Gen 1 supports additional 2 ports USB 3.2 Gen 1
*2 x konektory USB 2.0 supports additional 4 USB ports 2.0
* External:
*4 x porty USB 3.2 Gen 2 (4 x Type-A)
*2 x porty USB 2.0 (2 x Type-A)
Internal ports:
* Fans and cooling
*1 x 4-pinový konektor fan CPU
*2 x 4-pinové konektory ventilátorov skrine
* Power supply
*1 x 24-pinový main napájácí connector
*1 x 8-pinový +12V napájácí connector
* Storage related
*2 x M.2 sloty (Key M)
*6 x SATA 6Gb/s porty
* USB
*1 x USB 3.2 Gen 1 konektor na prednom paneli (podporuje USB Type-C®)
*1 x konektor USB 3.2 Gen 1 supports additional 2 ports USB 3.2 Gen 1
*2 x konektory USB 2.0 support another 4 ports USB 2.0
* Variety
*1 x connector Clear CMOS
*1 x connector Chassis Intrude
*2 x connector COM port
*1 x connector audio na prednom paneli (AAFP)
*1 x connector COM debug
*1 x jumper DIS ME
*1 x connector LPT
*1 x connector mono output (with amplifier IC)
*1 x slot M.2 (Key E)
*1 x konektor reproducer
*1 x 10-1 konektor systémového panela

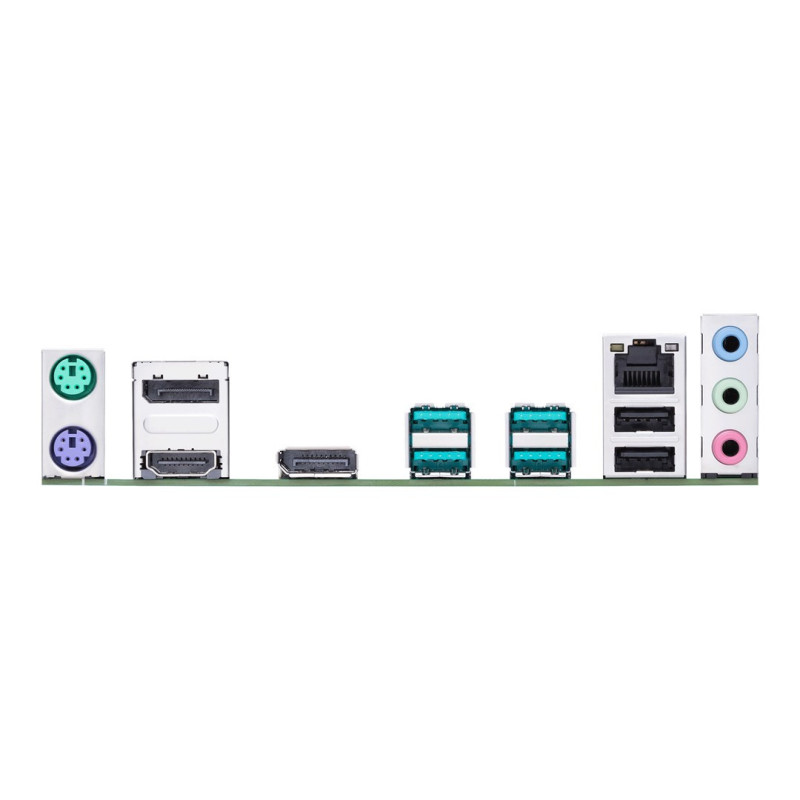

External ports:
*4 x porty USB 3.2 Gen 2 (4 x Type-A)
*2 x porty USB 2.0 (2 x Type-A)
*2 x DisplayPort
*1 x port HDMI
*3 x audio connector
*1 x Intel 1Gb Ethernet
*1 x port PS/2 pre keyboard (fialový)
*1 x port PS/2 pre myš (zelený)
BIOS: 256 Mb Flash ROM
