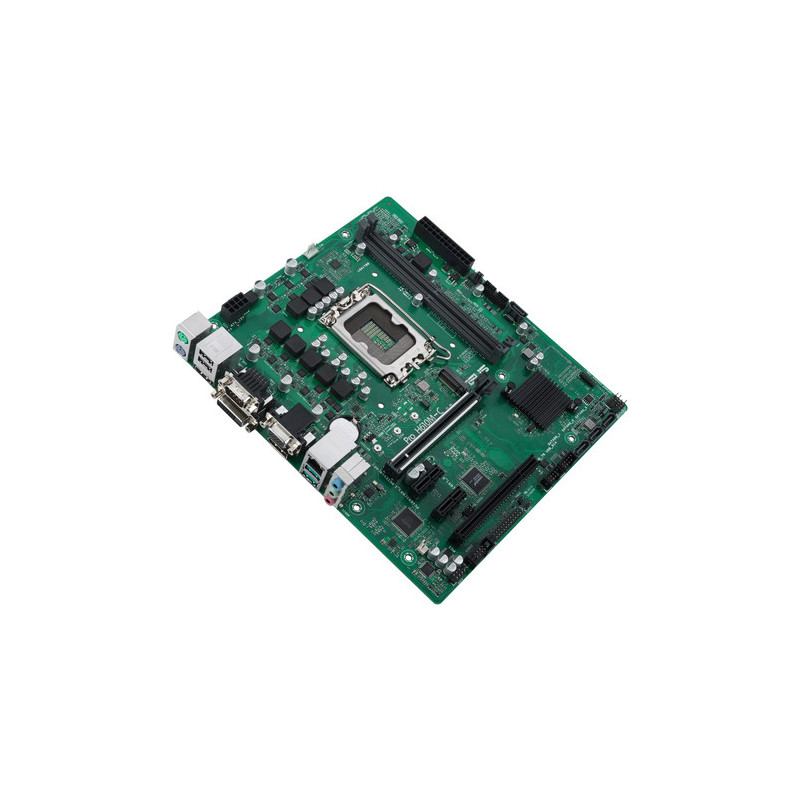

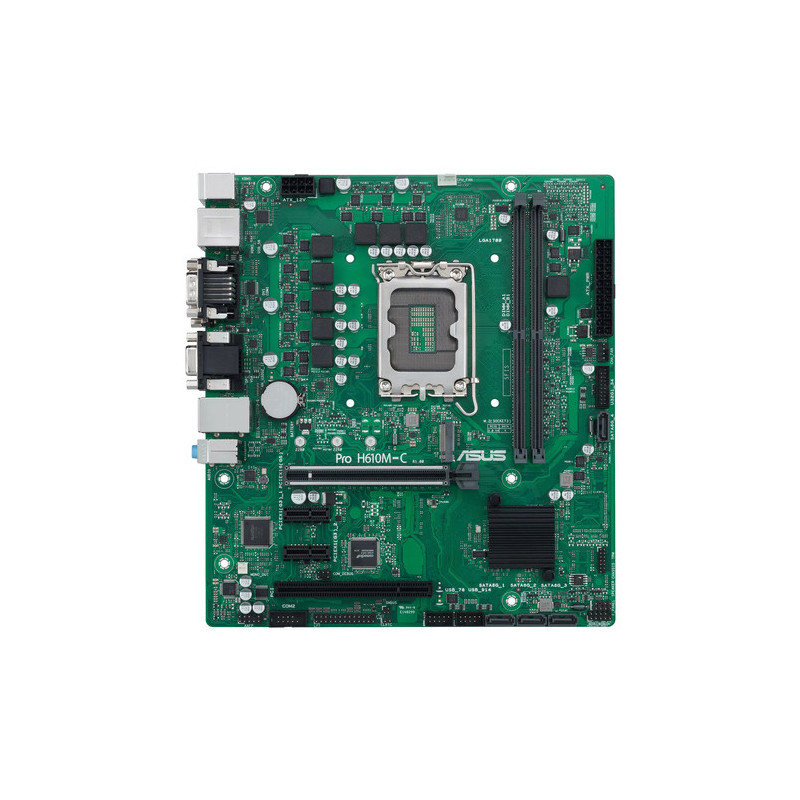

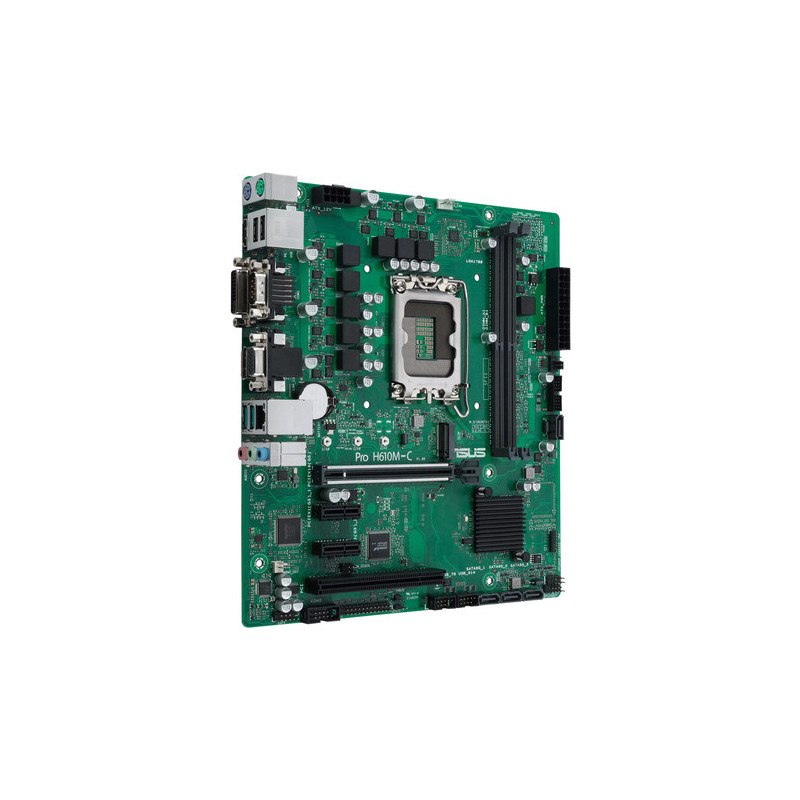

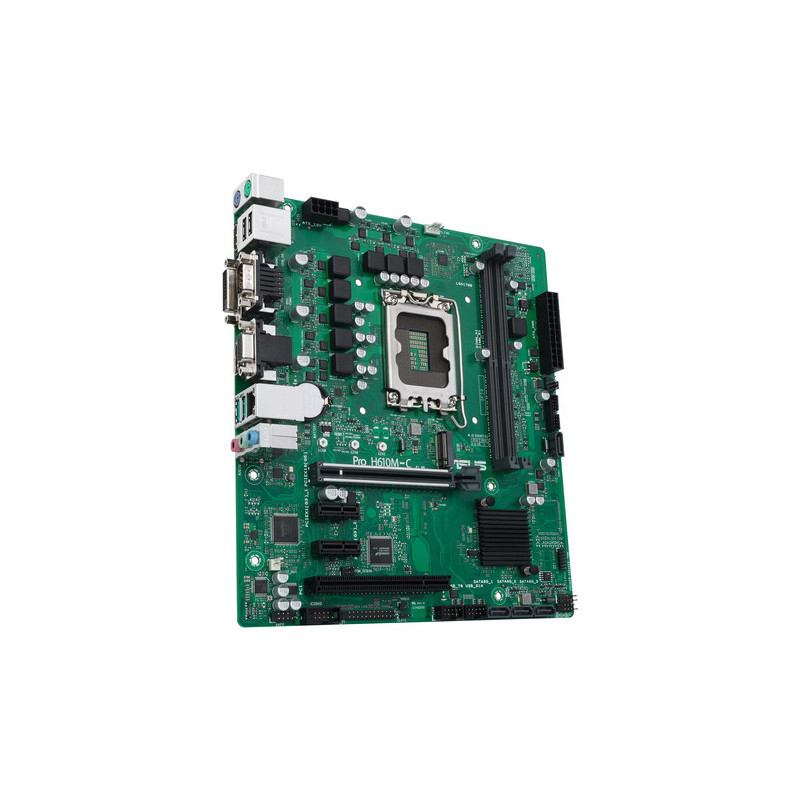

Motherboard Asus PRO H610M-C-CSM

ASUS CSM program: stable supply of basic desks, notice na konec zasvetnosti a IT software pro company basic desky
Chipset: Intel® H610
Dimensional format: mATX (244x220mm)
Processor support: 13 Gen Intel® Core™ 12 Gen Intel® Core™, Pentium® Gold a Celeron®
Processor socket: LGA1700
Remember:
* 2x DIMM, max. 64GB, DDR5 4800 Non-ECC, no buffering
* dvoukánálová architektura mémáci
* supports Intel® Extreme Memory Profile (XMP)
Graphic outputs:
* 1x DisplayPort 1.4
* 1x D-Sub
* 1x HDMI® 2.1
* 1x DVI-D
Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC - supports playback up to 24-bit/192kHz
Ethernet: 1x Intel® 1Gb Ethernet
WLAN + Bluetooth: no
Expansion slots:
* 1x PCIe 5.0 x16
* 2x PCIe 3.0 x1
* 1x PCI
Storage space:
in total supports 1 slot M.2 a 4 porty SATA 6Gb/s
* 1x M.2 (Key M), typ 2242/2260/2280 (supports PCIe 3.0 mode x4)
* 4x port SATA 6Gb/s
USB:
Zadní USB (total 4 ports)
* 2x USB 3.2 Gen 1 (2x typ-A)
* 2x USB 2.0 (2x typ-A)
Front USB (6 ports in total)
* 1x USB 3.2 Gen 1 header - support for additional 2 ports USB 3.2 Gen 1
* 2x USB 2.0 header - support for additional 4 ports USB 2.0
Ports on the rear panel:
* 2x USB 3.2 Gen 1 (2x typ-A)
* 2x USB 2.0 (2x typ-A)
* 1x DisplayPort
* 1x HDMI®
* 1x D-Sub
* 1x DVI-D
* 1x Intel® 1Gb Ethernet
* 3x audio jack
* 1x COM port_
* 2x PS/2 (1x fialový keyboard + 1x zelený myš)
Internal ports:
Související s ventiladorem a článjem
* 1x 4-pin CPU Fan header
* 1x 4-pin Chassis Fan headers
Napájání
* 1x 24-pin hlavní příží konektor
* 1x 8-pin +12V příší konektor
Související s for storage
* 1x M.2 slot (Key M)
* 4x SATA 6Gb/s port_
USB
* 1x USB 3.2 Gen 1 header - support for additional 2 ports USB 3.2 Gen 1
* 2x USB 2.0 header - support for additional 4 ports USB 2.0
Ostatní
* 1x Clear CMOS header
* 1x Chassis Intrude header
* 1x COM Port header
* 1x Front Panel Audio header (AAFP)
* 1x COM debug header
* 1x LPT header
* 1x Mono-out header (with Amp IC)
* 1x M.2 slot (Key E)
* 1x SMBUS header
* 1x Speaker header
* 1x SPI header (14-1pin)
* 1x 10-1pin System Panel header
BIOS: 128Mb Flash ROM
Accessories:
* 2x SATA 6Gb/s kabel
* 1x I/O plug
* 1x installation DVD
* 1x банение šružků pro M.2 SSD
* 1x ACC Express Activation Key Card
* 1x uživatelská poudská
Link to the manufacturer's website: https://www.asus.com/motherboards-components/motherboards/csm/pro-h610m-c-csm/
