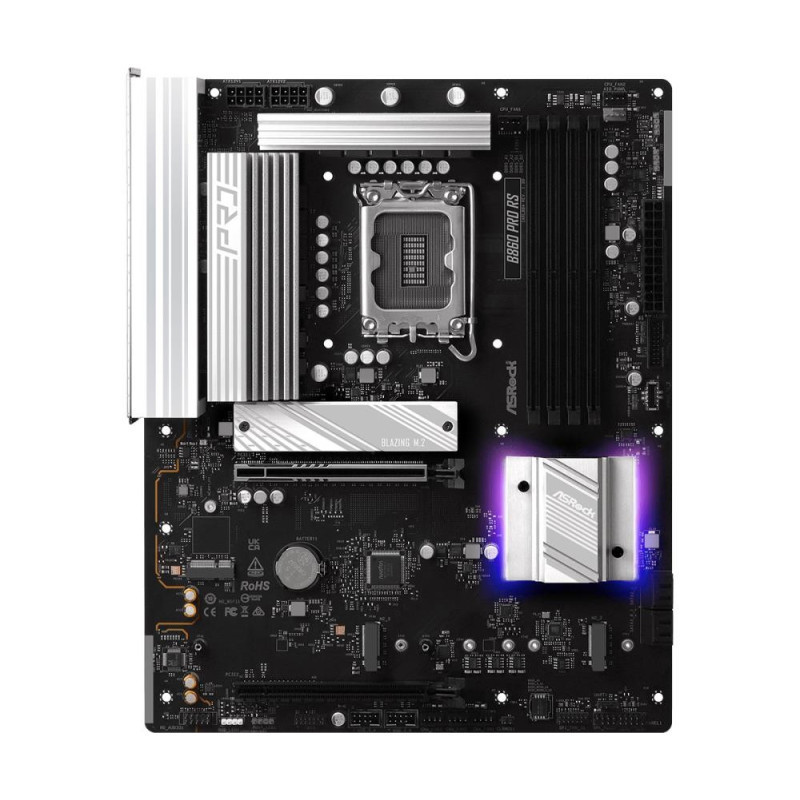

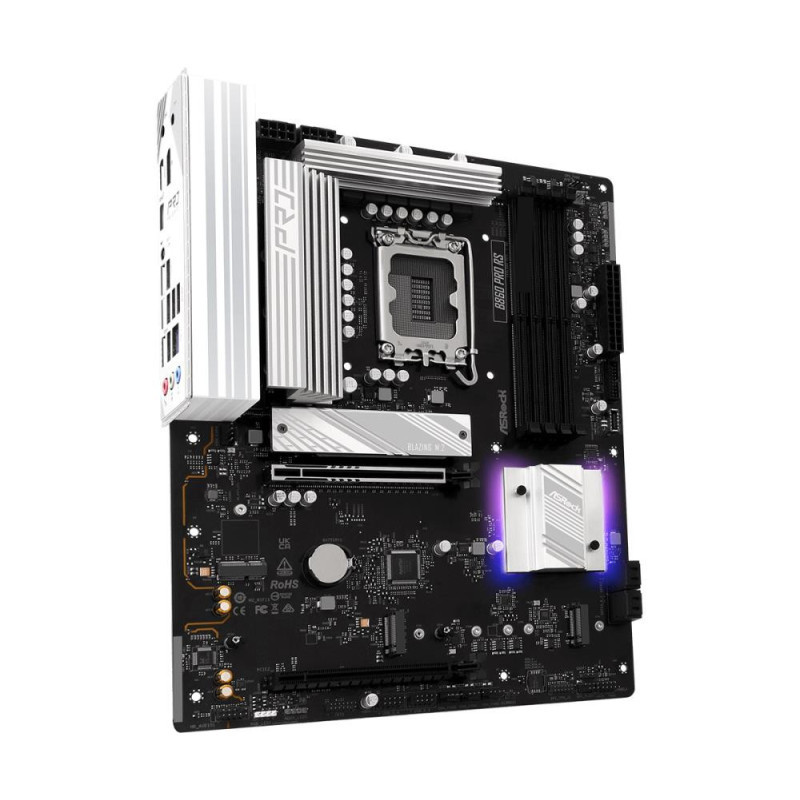

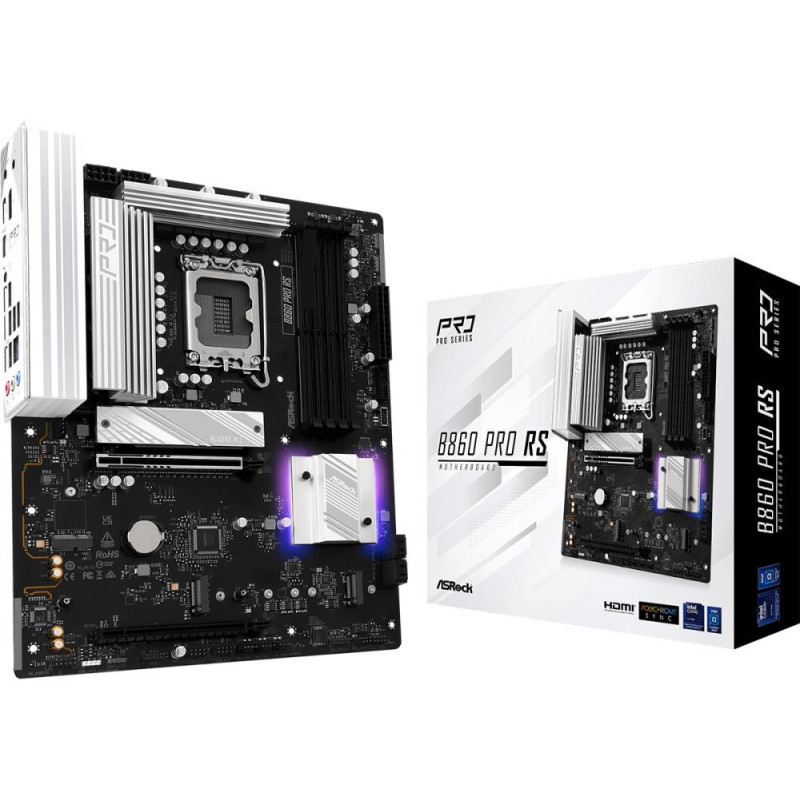

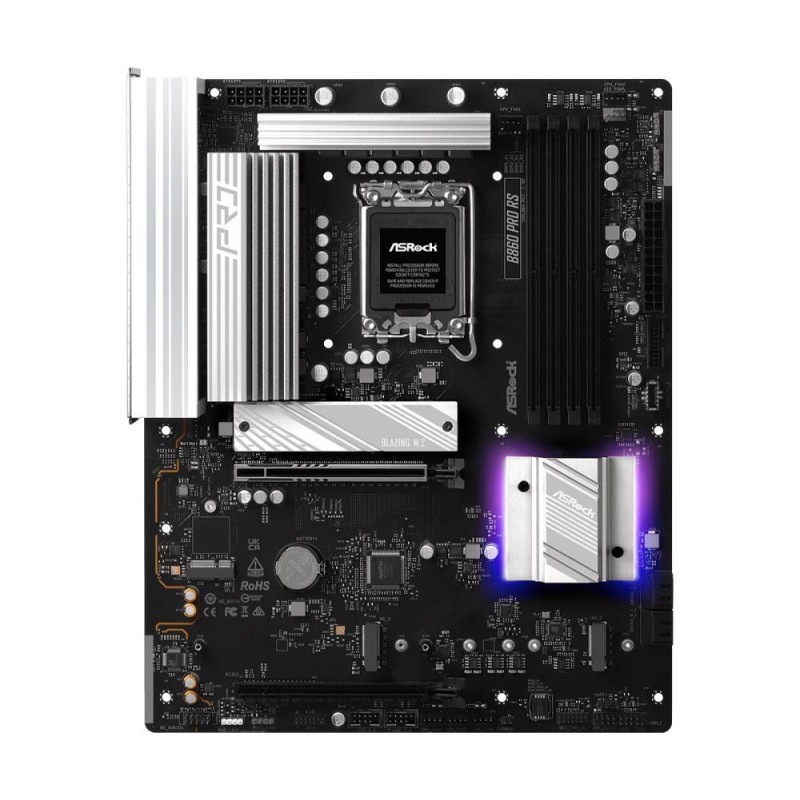

Motherboard - ASRock B860 Pro RS
Product reference:
3-4711581490222
Motherboard - ASRock B860 Pro RS
Motherboard - ASRock B860 Pro RS
Product reference:
3-4711581490222
Motherboard - ASRock B860 Pro RS
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA1851 |
| Features | |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset | Intel B860 |
| Operating system architecture | 64-bit |
| Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speed (max) | 8666MHz |
| Weight dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Network | |
| LAN controller | Dragon RTL8125BG |
| Bluetooth | From |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | From |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB Type-C port quantity | 1 |
| RGB LED pin header | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Storage controllers | |
| RAID rebuild | Yes |
| Supported RAID configurations | 0,1,5,10 |
| Rear panel I/O port | |
| DisplayPort quantity | 1 |
| HDMI port quantity | 1 |
| Ethernet LAN (RJ-45) port | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 6 |
| Line-in | Yes |
| Number of Wi-Fi antenna ports | 2 |
| MIC input | 1 |
| Number of USB 2.0 Type-A ports | 2 |
| USB 3.2 Gen 2x2 Type-C port quantity | 1 |
| Expansion slot | |
| PCI Express x16 (Gen 4.x) slot | 1 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| Safety warning | |
| Warnings | Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage. |
