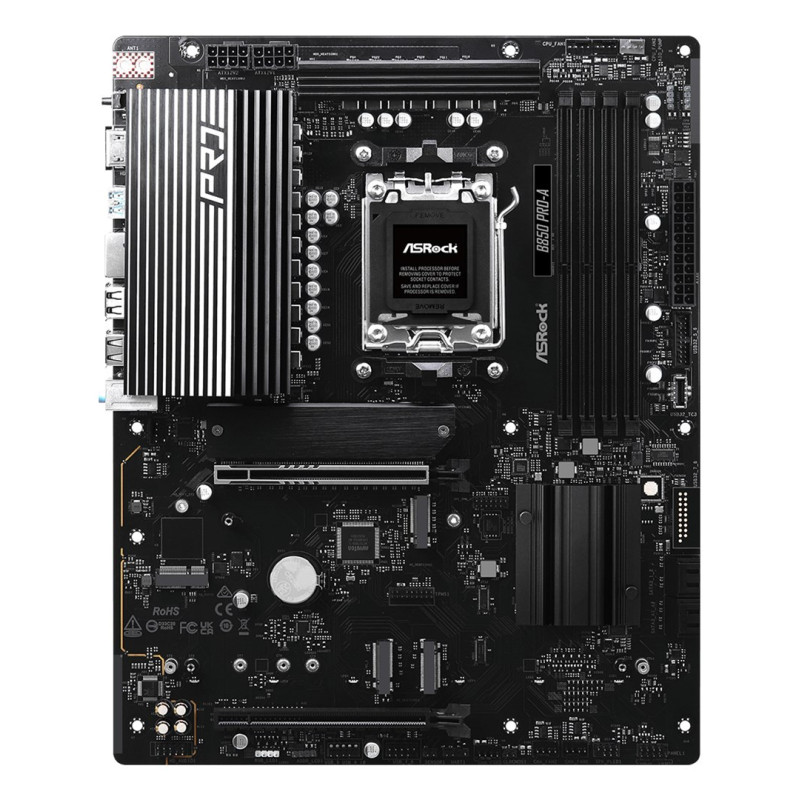

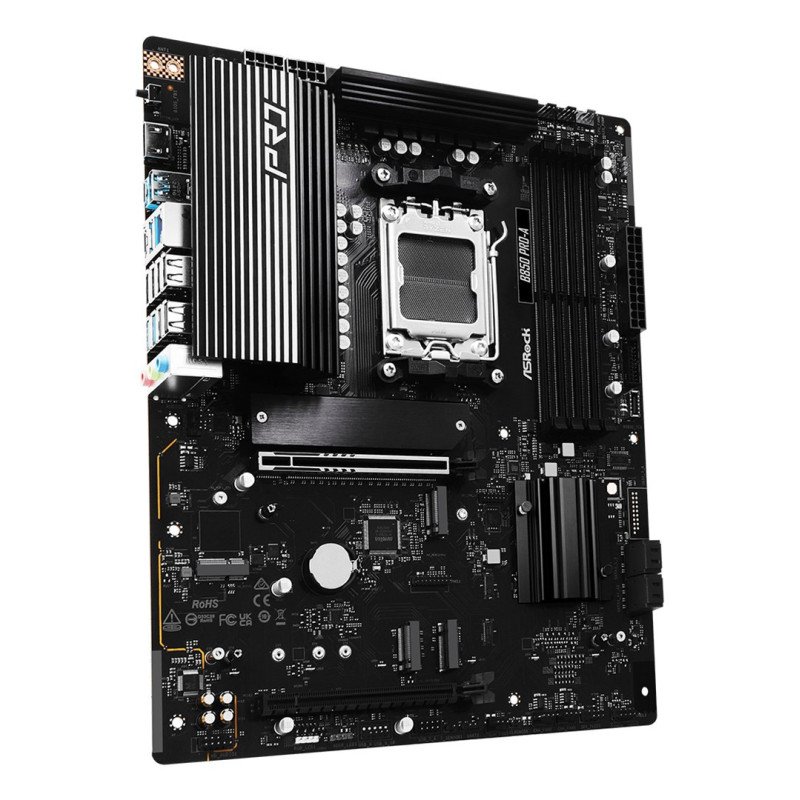

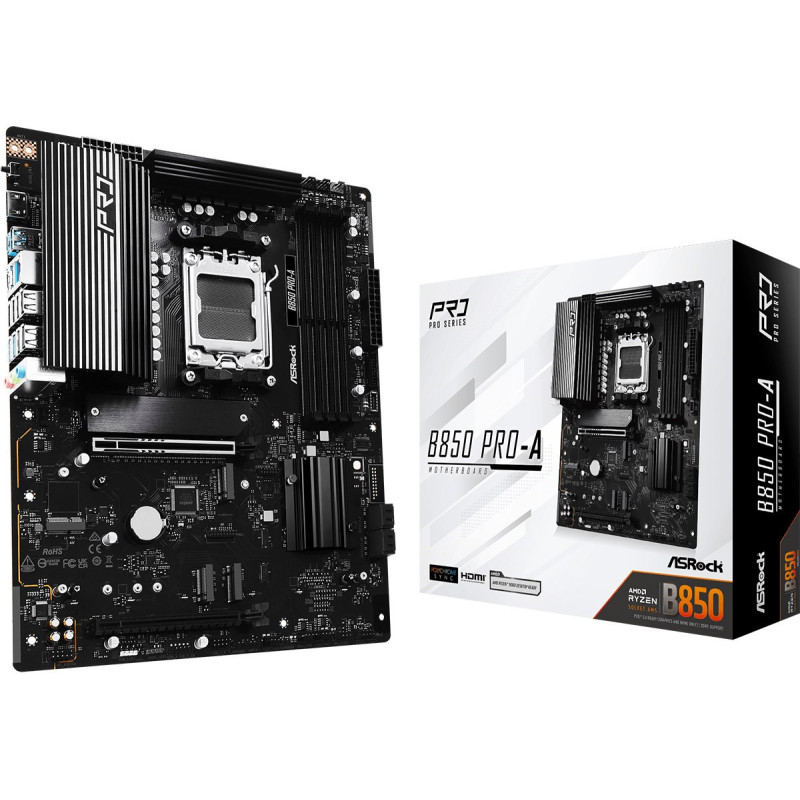

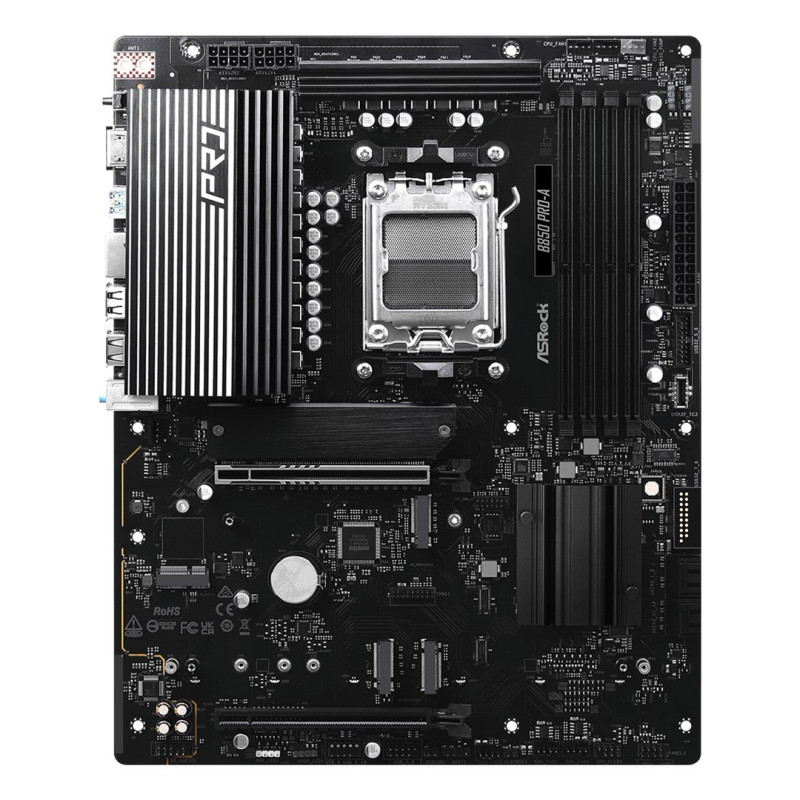

Motherboard ASRock B850 PRO-A
Product reference:
3-4711581490185
Motherboard ASRock B850 PRO-A
Motherboard ASRock B850 PRO-A
Product reference:
3-4711581490185
Motherboard ASRock B850 PRO-A
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Features | |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC897 |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Product colour | Black |
| Motherboard chipset family | AMD |
| Memory | |
| ECC compatibility | ECC Non-ECC |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Memory channels | Dual channel |
| Weight dimensions | |
| Width | 305mm |
| Depth | 244 mm |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | From |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Internal I/O | |
| 12V power connector | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of RGB LED pin headers | 4 |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Screws included | Yes |
| Cables included | SATA |
| Storage controllers | |
| RAID support | Yes |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 8 |
| Rear panel I/O port | |
| Line-in | Yes |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C port quantity | 1 |
| Headphone outputs | 3 |
| Ethernet LAN (RJ-45) port | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 6 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity | 1 |
| HDMI port quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 4 |
| Expansion slot | |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 largest key size | 2280 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 4.x) slot | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 4 |
| Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage. |
