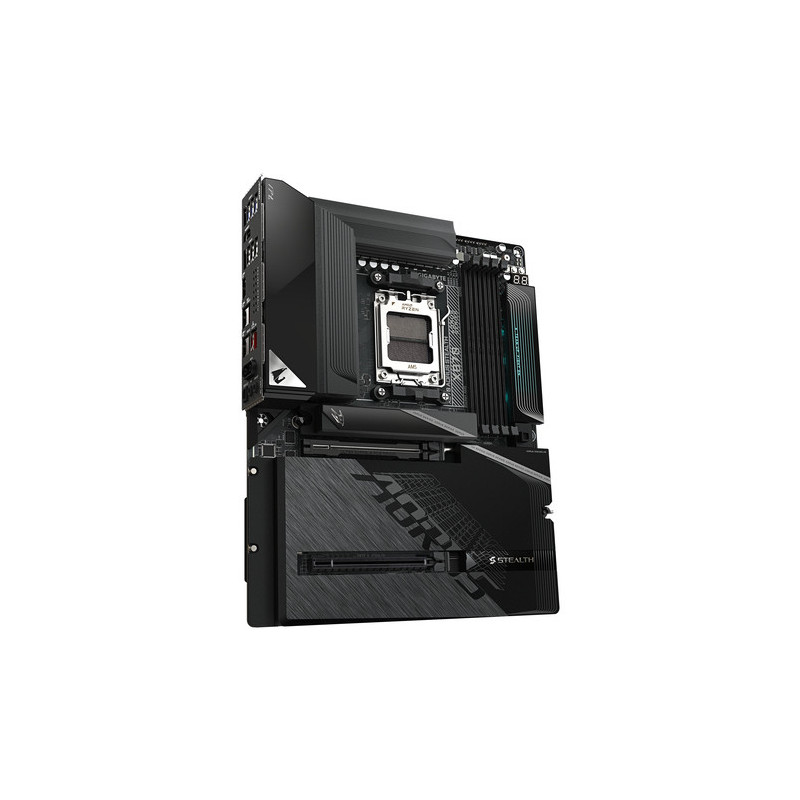

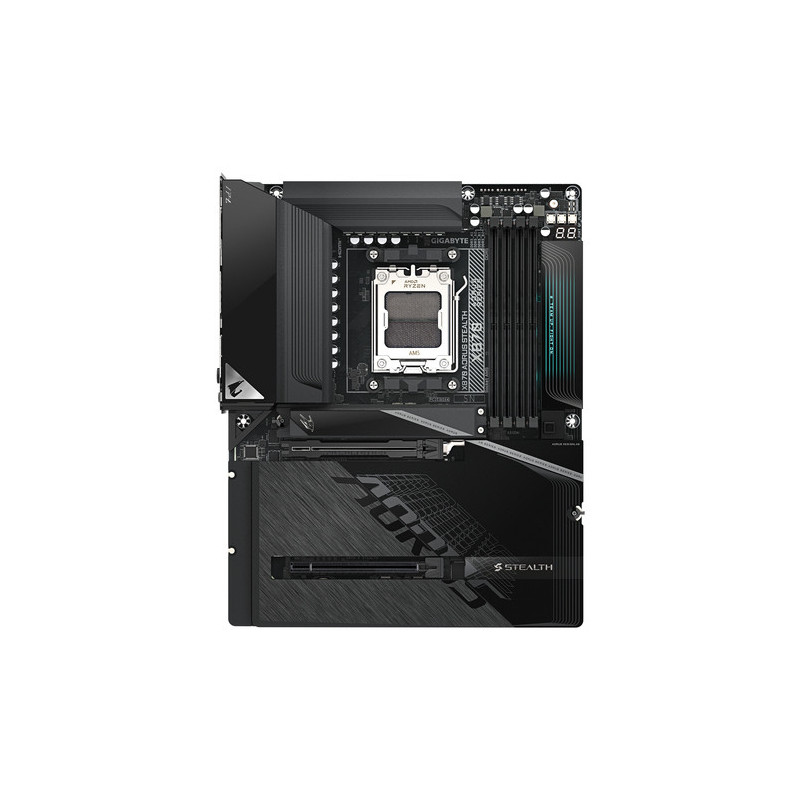

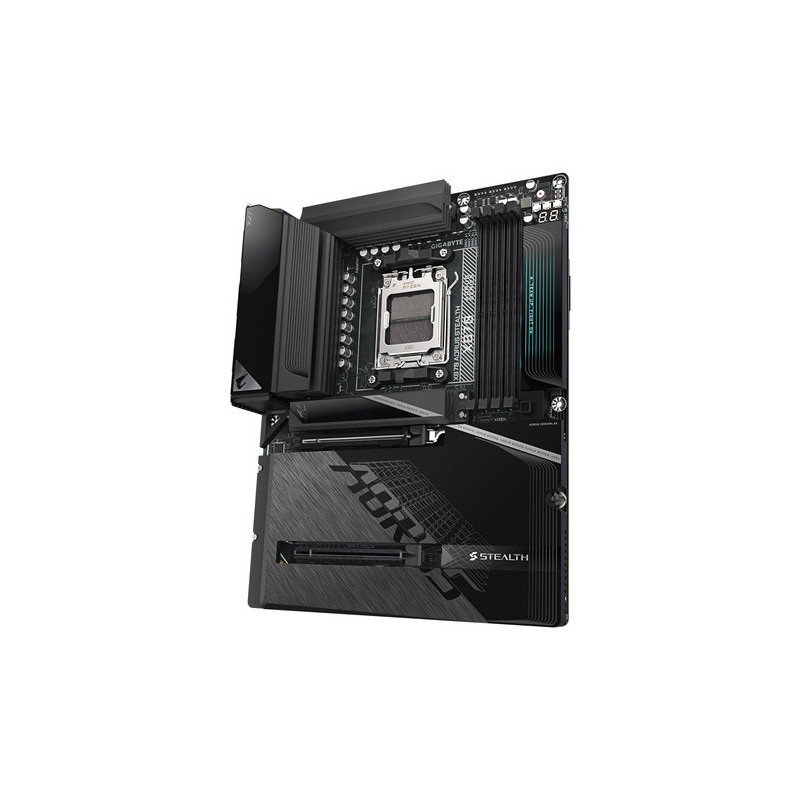

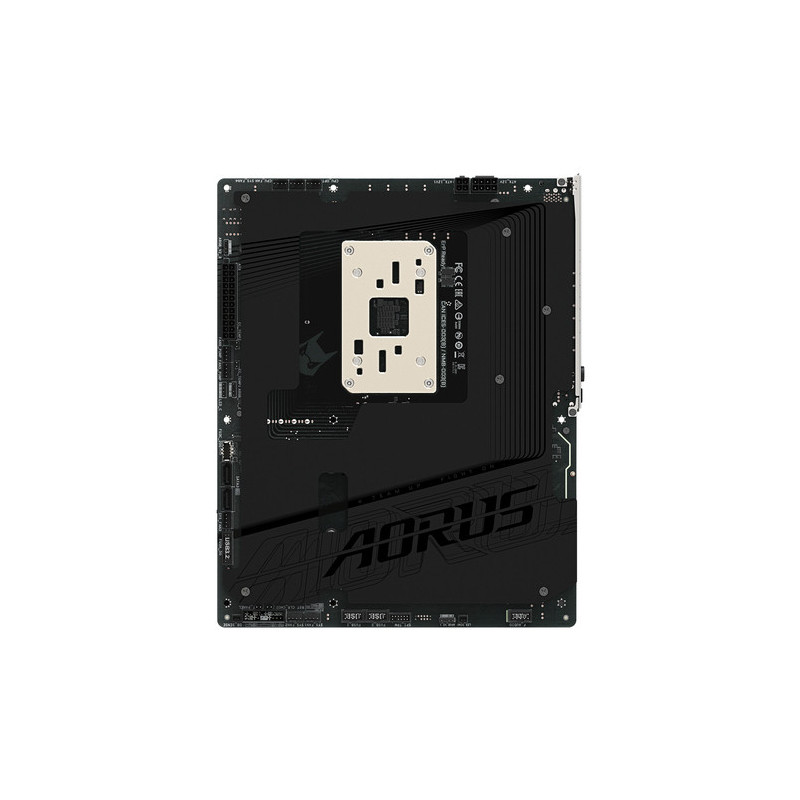

Mātesplate Gigabyte X870 AORUS STEALTH

AMD X870
Dimensional format: ATX (305x244 mm)
Processor support: 7th to 9th generation Ryzen
Processor socket: AM5
Remember:
*4x DIMM support up to 256GB, DDR5 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memajtové moduly
*Dvojkanálová architektur memjeto
*Podpora mejtových modulov AMD EXtended Profiles for Overclocking (AMD EXPO™) a Extreme Memory Profile (XMP)
Graphics ports:
*2x USB4® type C® with maximum resolution 3840x2160 pri 240 Hz - Support video output USB4 a DisplayPort, support for DisplayPort version 1.4 a HDR
*1x HDMI with maximum resolution 4096x2160 at 60 Hz - Support for HDMI version 2.1, HDCP 2.3 a HDR, support for native ports compatible with HDMI 2.1 TMDS
Sound card:
*Kodek Realtek® ALC1220_
*High Definition Audio
*2/4/5.1/7.1 kanalový
*Podpora S/PDIF out
Ethernet: Realtek® 5GbE LAN
WLAN + Bluetooth: Qualcomm® Wi-Fi 7 QCNCM865 (802.11a, b, g, n, ac, ax, be), support for frequency bands 2.4/5/6 GHz + Bluetooth 5.4
Expansion slots:
*1x PCI Express x16 supports PCIe 5.0 as standard x16 (PCIEX16)
*1x PCI Express x16 supports PCIe 4.0 and only x4 (PCIEX4)
RAID radic:
*RAID 0 a RAID 1 support for storage devices SATA
*RAID 0, RAID 1, RAID 5 a RAID 10 support for storage devices NVMe SSD
Storage space:
*1x M.2, M key typ 25110/22110/2580/2280 - support PCIe 5.0 x4/x2 SSD (M2A_CPU)
*1x M.2, M key typ 22110/2280 - support PCIe 5.0 x4/x2 SSD (M2B_CPU)
*2x M.2, M key typ 22110/2280 - support for PCIe 4.0 x4/x2 SSD (M2C_SB, M2D_SB)
*2x SATA 6Gb/s
USB:
Zadné USB
*2x USB4® Type-C®
*1x USB Type-C® supports USB 3.2 Gen 2
*2x USB 3.2 Gen 2 Type-A (červený)
*4x USB 3.2 Gen 1
*4x USB 2.0/1.1
Predné USB
*1x USB Type-C® header supports USB 3.2 Gen 2x2
*1x USB 3.2 Gen 1 header - support for additional 1 USB 3.2 Gen 1
*2x USB 2.0/1.1 header - support for additional 2 USB 2.0/1.1
Internal ports:
Napájanie
*1x 24pinový main napájácí konektor ATX_
*1x 8pinový napájácí connector ATX 12V
*1x 4pinový napájácí connector ATX 12V
Súvisiace s ventiladorom a chladením
*1x CPU fan header
*1x CPU fan/water cooling pump header
*4x system fan header
*2x system fan/water cooling pump header
Súvisiace s úložiskom
*4x M.2 slot (M key)
*2x SATA 6Gb/s port
USB
*1x USB Type-C® header
*1x USB 3.2 Gen 1 header
*2x USB 2.0/1.1 header
Ostatné
*3x adresovatelný RGB Gen2 LED strip header
*1x RGB LED strip header
*1x front panel header
*1x front panel audio header
*1x noise detection header
*1x Trusted Platform Module header (len pre module GC-TPM2.0 SPI V2)
*1x power button
*1x reset button
*1x reset jumper
*1x Clear CMOS jumper
*1x Q-Flash Plus button
*2x temperature sensor header
Ports on the rear panel:
*1x HDMI
*2x USB4® Type-C® (DisplayPort)
*1x USB Type-C® supports USB 3.2 Gen 2
*2x USB 3.2 Gen 2 Type-A (červený)
*4x USB 3.2 Gen 1
*4x USB 2.0/1.1
*1x RJ-45
*2x anténny konektor (2T2R)
*2x audio jack
*1x optický konektor S/PDIF out
BIOS: 1x 512Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/X870-AORUS-STEALTH
