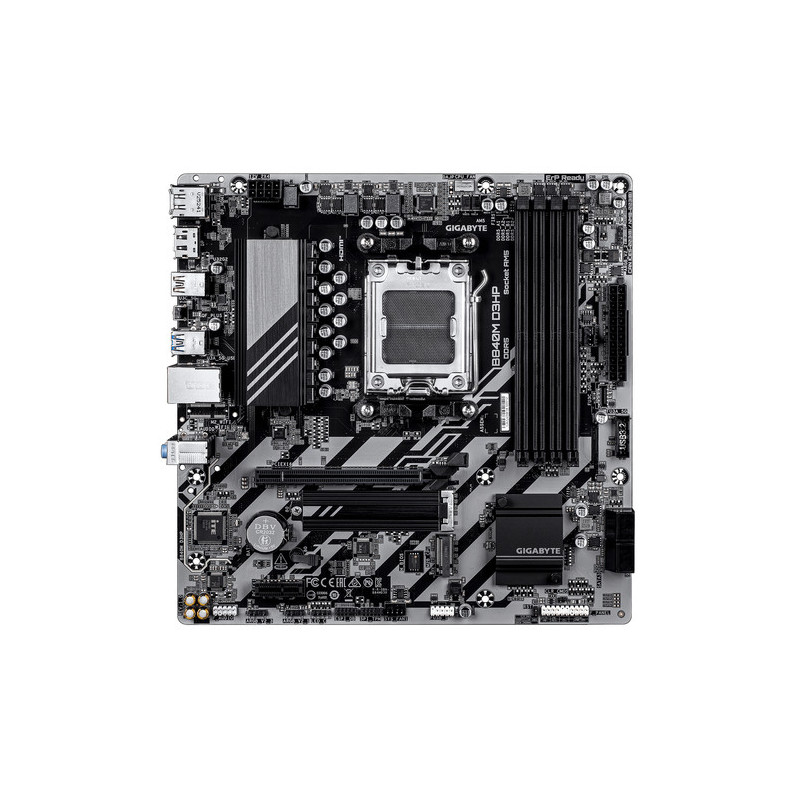

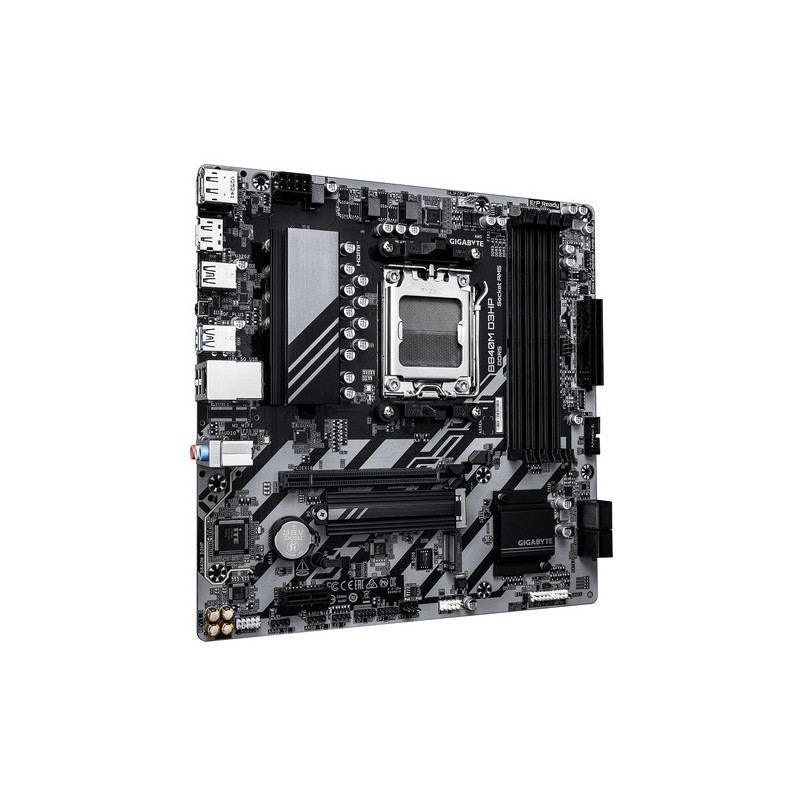

Mātesplate Gigabyte Gigabyte B840M D3HP (B840, AM5, mATX, DDR5)

AMD B840
Format: Micro ATX (244x244 mm)
Processor support: 7th to 9th generation Ryzen
Processor reliability: AM5
Remember:
*4x DIMM support up to 256GB, DDR5 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s memory moduly
*Dvojkanálová architektur memőtő
*Podpora mejővých modulov AMD EXtended Profiles for Overclocking (AMD EXPO™) a Extreme Memory Profile (XMP)
Graphics ports:
*1x HDMI with maximum resolution 4096x2160 at 60 Hz - Support for HDMI version 2.1 and HDCP 2.3, support for native ports compatible with HDMI 2.1 TMDS
*2x DisplayPort with maximum resolution 3840x2160 at 144 Hz - Support for DisplayPort version 1.4
Sound card:
*Kodek Realtek® Audio
*High Definition Audio
*2/4/5.1/7.1 kanalový
Ethernet: Realtek® GbE LAN
WLAN + Bluetooth: nie
Expansion slots:
*1x PCI Express x16 supports PCIe 4.0 a baží na x16 (PCIEX16)
*1x PCI Express x1 supports PCIe 3.0 and only x1
RAID radic:
*RAID 0, RAID 1 a RAID 10 support for storage devices SATA
*RAID 0, RAID 1, RAID 5 a RAID 10 support for storage devices NVMe SSD
Storage space:
*1x M.2, M key typ 2580/2280 - support PCIe 4.0 x4/x2 SSD (M2A_CPU)
*1x M.2, M key typ 2280 - support PCIe 4.0 x4/x2 SSD (M2B_CPU)
*4x SATA 6Gb/s
USB:
Zadné USB
*1x USB Type-C® supports USB 3.2 Gen 1
*1x USB 3.2 Gen 2 Type-A (červený)
*1x USB 3.2 Gen 1
*3x USB 2.0/1.1
Predné USB
*1x USB Type-C® header supporting USB 3.2 Gen 1
*1x USB 3.2 Gen 1 header - support for further echo 1 USB 3.2 Gen 1
*1x USB 2.0/1.1 header - support for further echo 1 USB 2.0/1.1
Internal ports:
Napájanie
*1x 24-pinový main napájácí konektor ATX_
*1x 8-pinový napájací konektor ATX 12V
Suvisiace s ventiladorom a chladením
*1x CPU fan header
*2x system fan header
Súvisiace s úložiskom
*2x M.2 slot (M key)
*4x SATA 6Gb/s port
USB
*1x USB Type-C® header
*1x USB 3.2 Gen 1 header
*1x USB 2.0/1.1 header
Ostatné
*3x addressable RGB Gen2 LED strip header
*1x RGB LED strip header
*1x front panel header
*1x front panel audio header
*1x Trusted Platform Module header (len pre module GC-TPM2.0 SPI V2)
*1x reset jumper
*1x Clear CMOS jumper

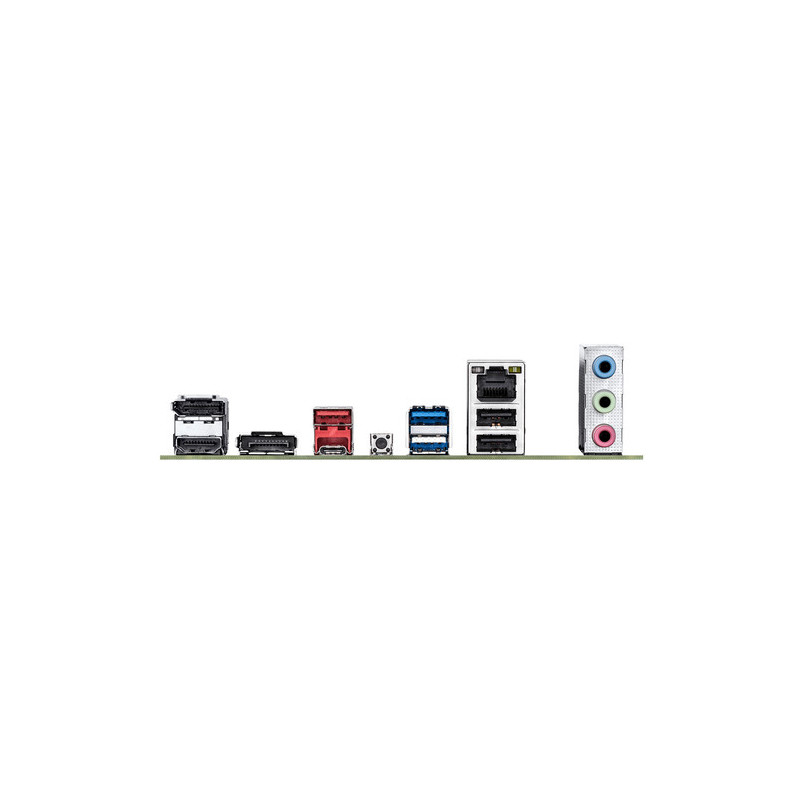

Ports on the rear panel:
*1x HDMI
*2x DisplayPort
*1x Q-Flash Plus button
*1x USB Type-C® s support USB 3.2 Gen 1
*1x USB 3.2 Gen 2 Type-A (červený)
*1x USB 3.2 Gen 1
*3x USB 2.0/1.1
*1x RJ-45_
*3x audio jack
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/B840M-D3HP
