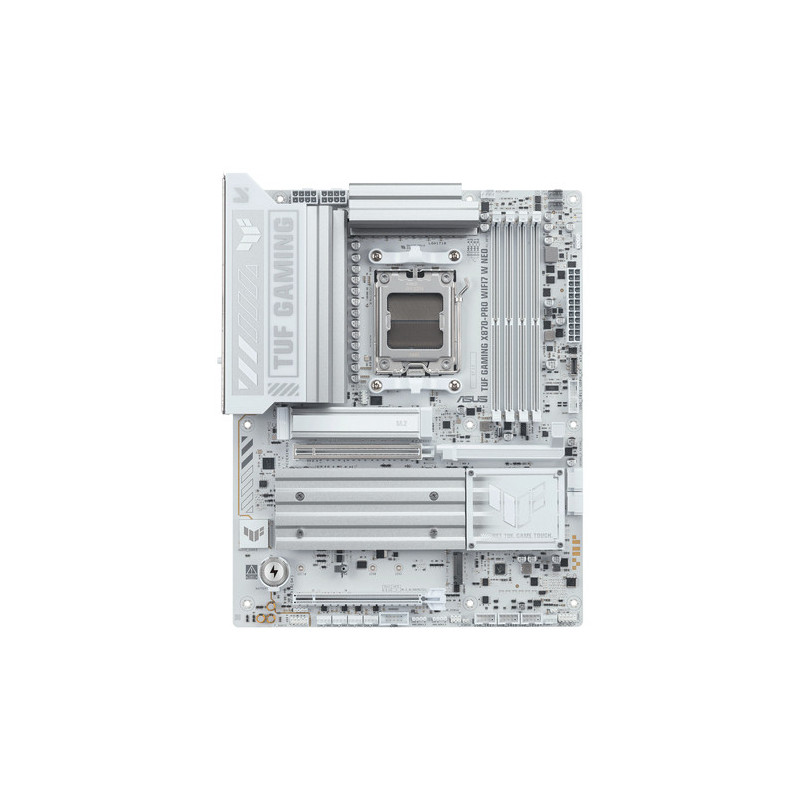

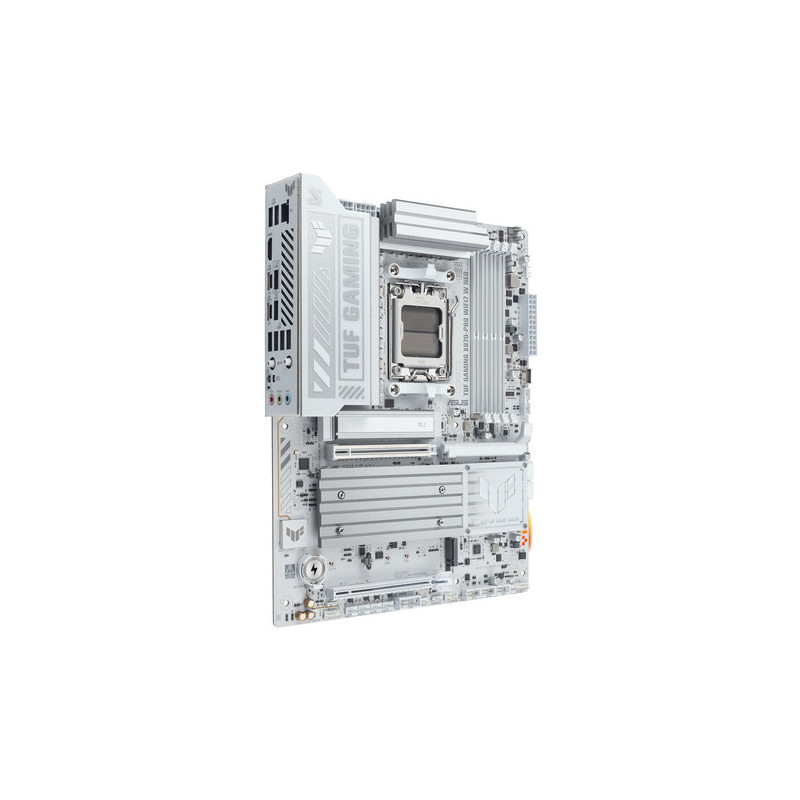

Motherboard Asus TUF GAMING X870-PRO WIFI7 W NEO

Pätica AMD Socket AM5 for desktop processors AMD Ryzen™ série 9000, 8000 a 7000
Chipset: AMD X870 Chipset
Remember: 4 x DIMM slots, max. 256 GB, DDR5
Graphic outputs:
1× port HDMI
2× port USB4® (40 Gb/s) with support for image output via USB Type-C
Expansion slots:
Procesory AMD Ryzen™ série 9000 a 7000
1× slot PCIe 5.0 ×16 (supports ×16 mode)
Procesory AMD Ryzen™ série 8000
1× slot PCIe 4.0 ×16 (support mode ×8/×4)
Chipset AMD X870
1× slot PCIe 4.0 ×16 (support mode ×4)
Storage: Total supports 4× sloty M.2 a 2× porty SATA 6 Gb/s
RAID support: AMD RAIDXpert2 Technology
Ethernet: 1 x Realtek® 5Gb Ethernet, TUF LANGuard
Bluetooth connection:
Wi-Fi 7 (Realtek® RTL8922AE)
2×2 Wi-Fi 7* (802.11be)
Support for frequency bands 2.4/5/6 GHz
Support bandwidth 160 MHz for Wi-Fi 7
Bluetooth® v5.4 (podpora LE Audio)
USB:
Zadné USB (total 10 ports)
2× USB4® (40 Gb/s) (2× USB Type-C®)
3× USB 10 Gb/s (3× Type-A)
4× USB 5 Gb/s (4× Type-A)
1× USB 2.0 (1× Type-A)
Predné USB (9 ports in total)
1× USB 20 Gb/s connector (support USB Type-C® with fast charging up to 30 W PD/PPS)
1× USB 5 Gb/s header, supports 2 additional USB 5 Gb/s ports
3× USB 2.0 headers, supports 6 additional USB 2.0 ports
Audio: Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance probe for front and back outputs for headphones
Internal audio amplifier to increase sound quality and headphones for speakers
Support: detection of connectors, multi-streaming, replacement of connectors on the front panel
High quality stereo output with SNR 120 dB and recording with SNR 113 dB (Line-in)
Support for playback until 32-Bit/192 kHz
Audio funktione
-Audio tienenie
-Prémiové audio kondensatory
-Vyhradené audio PCB layers
-Audio kryt
-Unikátny de-pop podrod
Rear panel I/O ports:
2 x USB4® (40Gbps) porty (2 x USB Type-C®)
3 x USB 10Gbps porty (3 x Type-A)
4 x USB 5Gbps porty (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI™ port_
1 x Wi-Fi module
1 x Realtek® 5Gb Ethernet port
3 x Audio jacky
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O ports:
Chladenie
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headery
1 x W_PUMP+ header
Napájanie
1 x 24-pin Main Power konektor
2 x 8-pin +12V CPU Power konektory
Úložisko
4 x M.2 sloty (Key M)
2 x SATA 6Gb/s porty
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS fast charging)
1 x USB 5Gbps header supports 2 additional USB 5Gbps porty
3 x USB 2.0 headery supports 6 additional USB 2.0 portov
Rôzne
3 x Addressable RGB Gen 2 headery
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
BIOS: 64MB (512Mb) Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor
Refer to the official website:
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870-pro-wifi7-w-neo/
