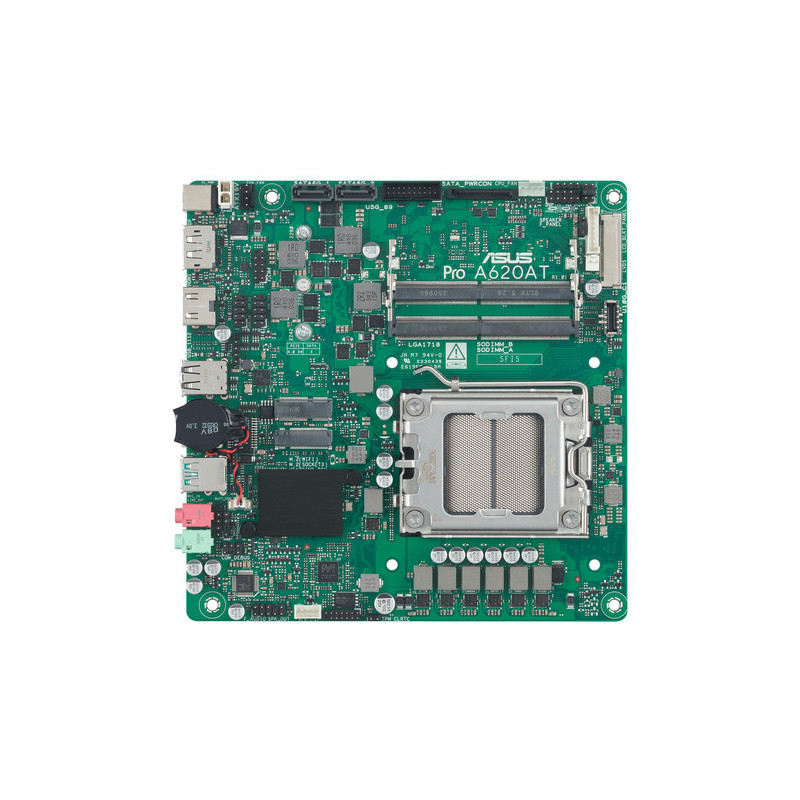

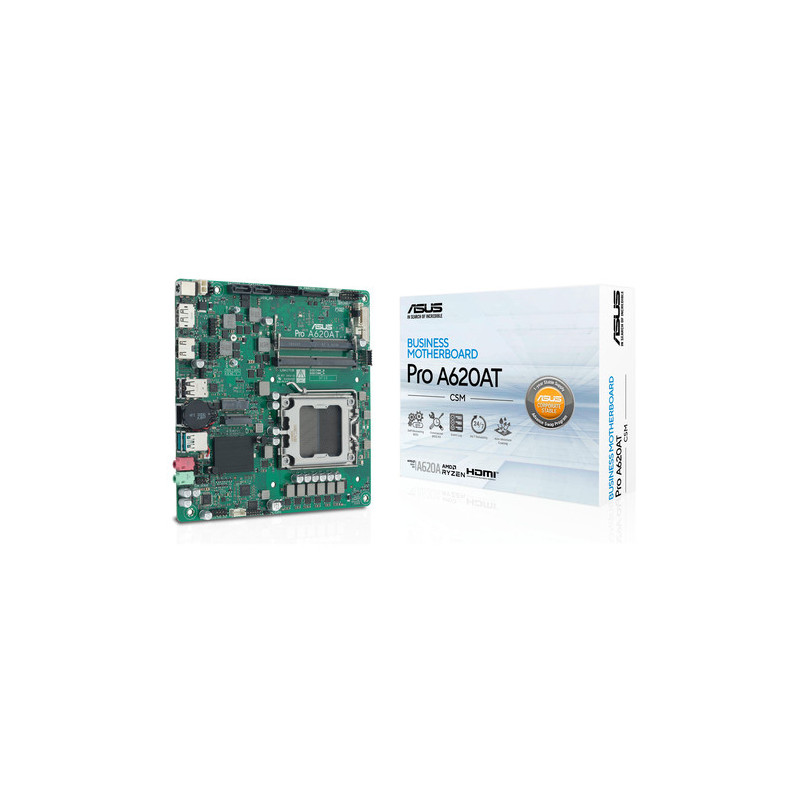

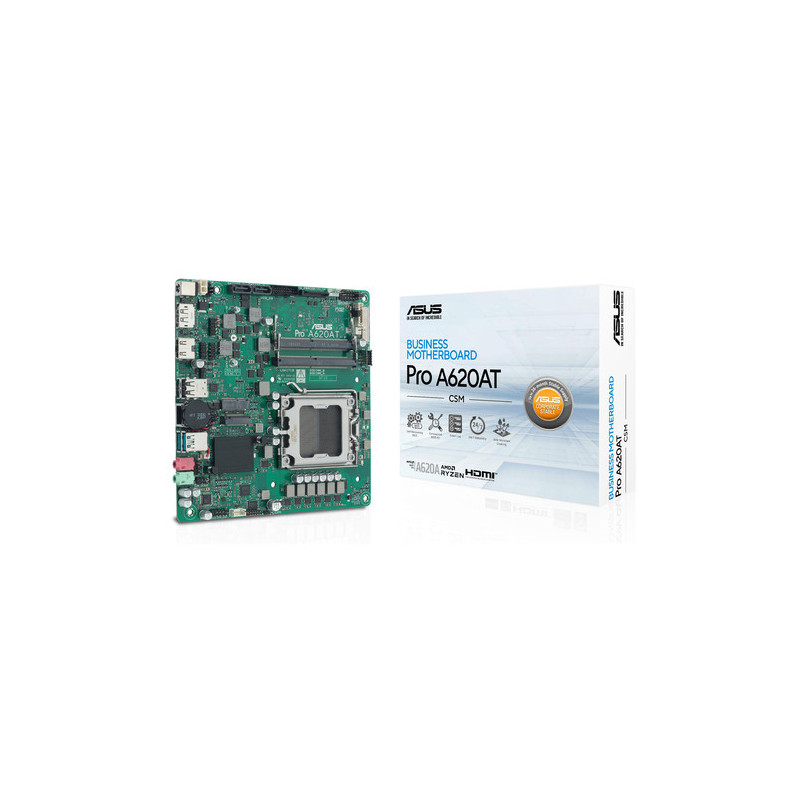

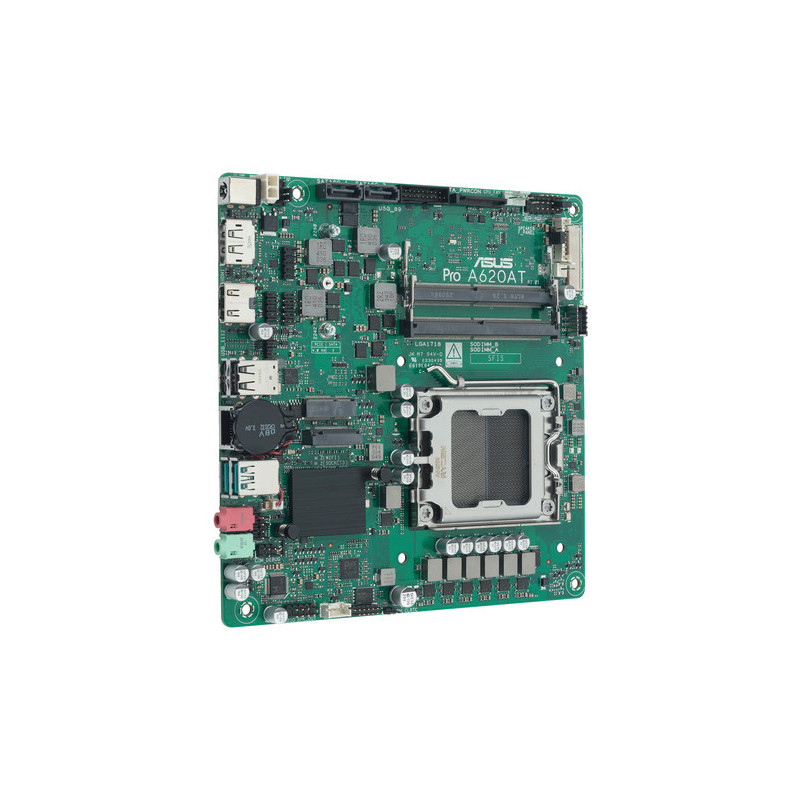

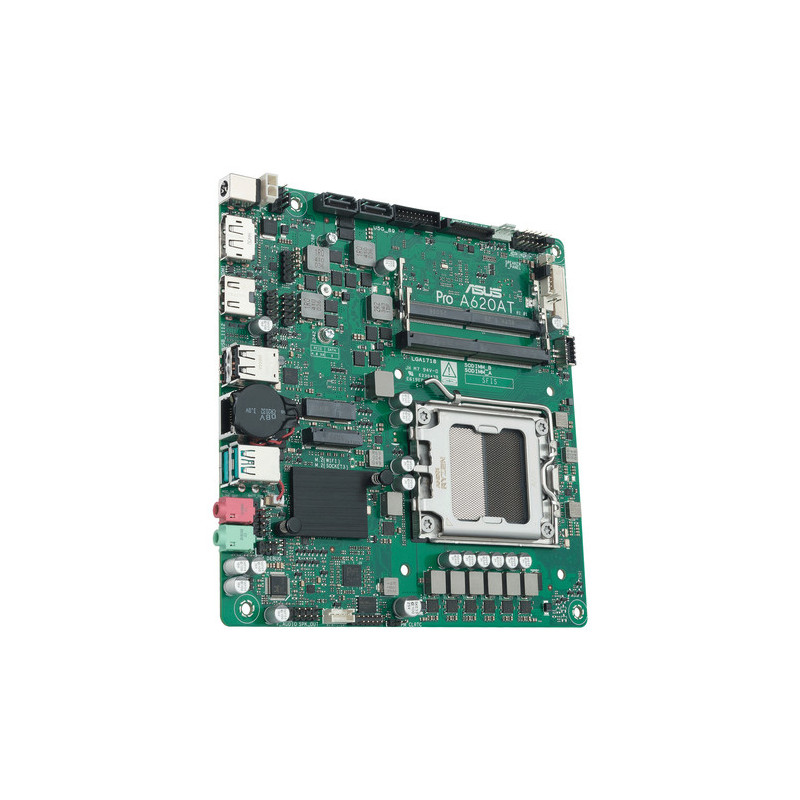

Motherboard Asus PRO A620AT-CSM

AMD A620A Chipset
Dimensional format: Thin Mini-ITX Form Factor, 6.7"x 6.7" (17.0cm x 17.0cm)
Processor support: AMD Socket AM5 pro stolní procesory AMD Ryzen™ series 9000 a 8000 a 7000
Processor socket: AM5
Remember:
*2 x sloty SO-DIMM, max. 128 GB, DDR5, ECC a Non-ECC, nevyrovnáná památú
*Dvoukanálová architektura pámát
*ASUS Enhanced Memory Profile (AEMP)
Graphic outputs:
*1 x DisplayPort
*1 x port HDMI
*1 x connector LVDS
Sound card:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Ethernet:
1 x RTL8111EPV-CG Ethernet(DASH LAN)
ASUS LANGuard
WLAN + Bluetooth:
M.2 slot only (Key E, CNVi PCIe)
Storage space:
Total supports 1 x slot M.2 a 2 x porty SATA 6 Gb/s
Čipová sada AMD A620A
*Slot M.2_1 (Key M), typ 2242/2260/2280 (supports PCIe 4.0 mode x4)
*2 x porty SATA 6 Gb/s
USB:
Zadní USB (Total 4 ports)
*2 x USB 10Gbps port (2 x Type-A)
*2 x USB 2.0 port (2 x Type-A)
Přední USB (Total 8 ports)
*1 x USB 10Gbps konektor (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 port
*1 x USB 2.0 header support 1 additional USB 2.0 port
-USB Type-C® power delivery output: max. 5V/3A
Ports on the rear panel:
*2 x USB 10Gbps port (2 x Type-A)
*2 x USB 2.0 port (2 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x RTL8111EPV-CG Ethernet (DASH LAN)
*2 x Audio jacks
*1 x DC power connector (support 19V)
Internal ports:
Fan header
*1 x 4-pin CPU Fan header
*1 x 4-pin Chassis Fan header
Napajání
*1 x 2-pin +19V power konektor
*1 x SATA power konektor
Úložiště
*1 x M.2 slot (Key M)
*2 x SATA 6Gb/s port
USB
*1 x USB 10Gbps konektor(supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
*1 x USB 2.0 header supports 1 additional USB 2.0 port
AIO System Related
*1 x Stereo Speaker header
*1 x DMIC header
Flat Panel Display Related
*1 x Backlight Inverter Voltage Selection header
*1 x FPD Brightness header
*1 x Panel Voltage Selection header
*1 x Panel Off header
Ostatní
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x COM Debug header
*1 x LVDS connector
*1 x M.2 slot (Key E)
*1 x Speaker header
*1 x SPI TPM header (14-1 pin)
*1 x 10-1 pin Front Panel System header
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
Accessories:
*2 x SATA 6Gb/s kabel
*1 x SATA power cable
*2 x I/O shield
*1 x Activation card ACC Express
*1 x Startup guide
