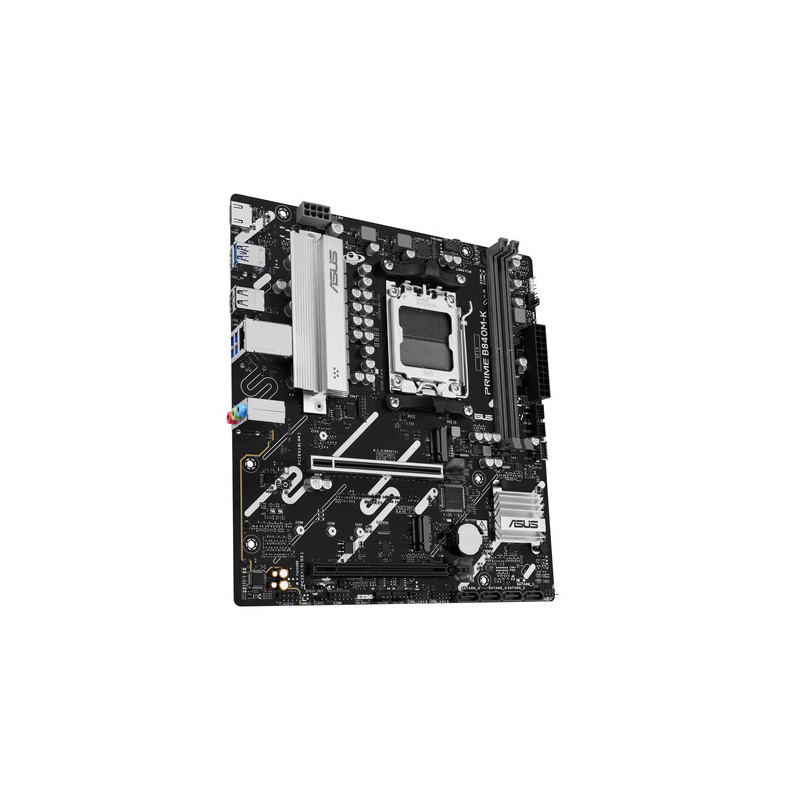

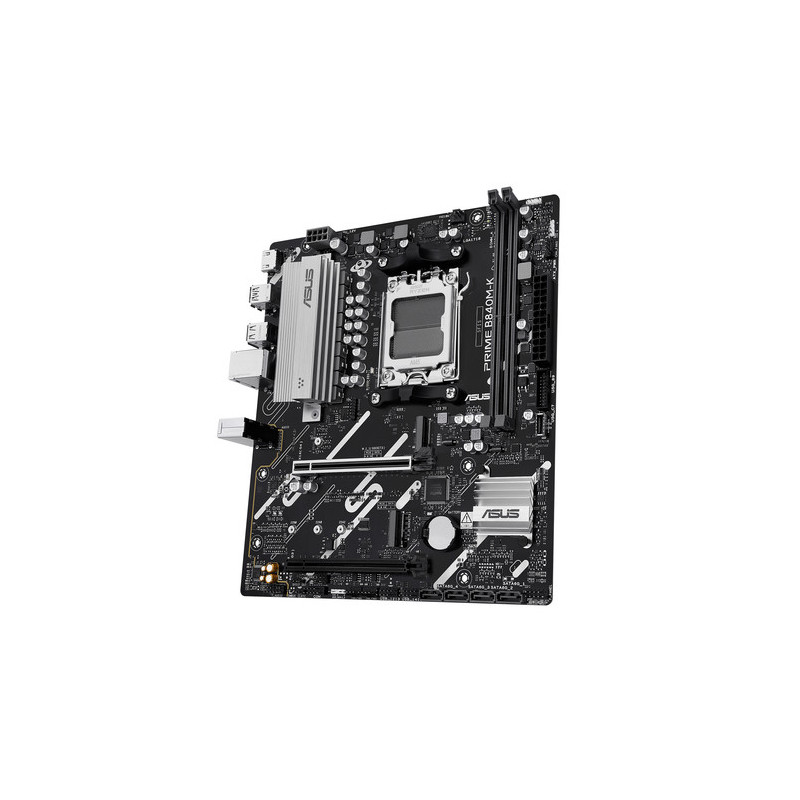

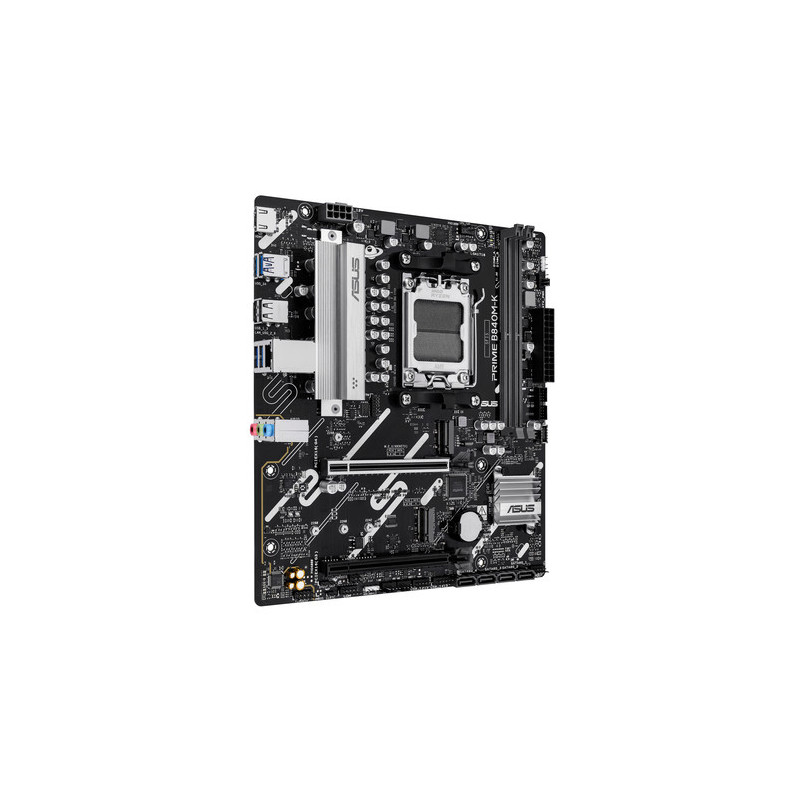

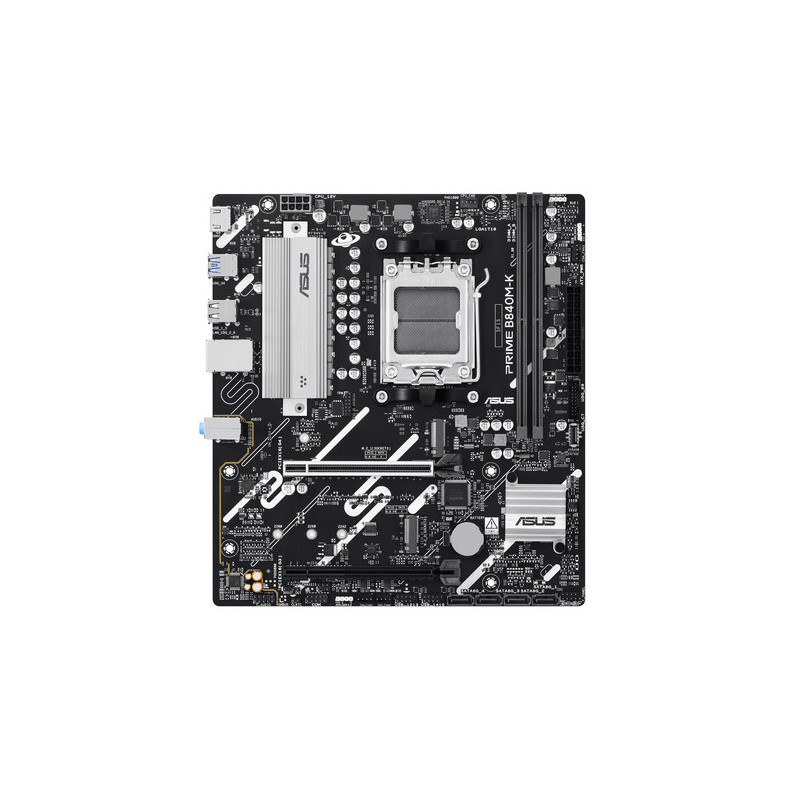

Motherboard Asus B840M-K
Product reference:
3-4711636435048
Motherboard Asus B840M-K
Motherboard Asus B840M-K
Product reference:
3-4711636435048
Motherboard Asus B840M-K
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Windows operating systems supported | Windows 11, Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B840 |
| Motherboard form factor | micro ATX |
| Memory | |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Memory slot type | DIMMs |
| Maximum internal memory | 128GB |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| ECC compatibility | ECC Non-ECC |
| Weight dimensions | |
| Depth | 221 mm |
| Width | 244 mm |
| Network | |
| Top Wi-Fi standard | Not available |
| Wi-Fi | From |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Internal I/O | |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
| Number of COM connectors | 1 |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Number of RGB LED pin headers | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| Number of chassis fan connectors | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging data | |
| Package weight | 1.02 kg |
| Package width | 270mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 5, 10, 1, 0 |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD SSD |
| Number of HDDs supported | 4 |
| Rear panel I/O port | |
| Ethernet LAN (RJ-45) port | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 4 |
| HDMI port quantity | 1 |
| Expansion slot | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slot | 1 |
| PCI Express x16 (Gen 3.x) slot | 1 |
