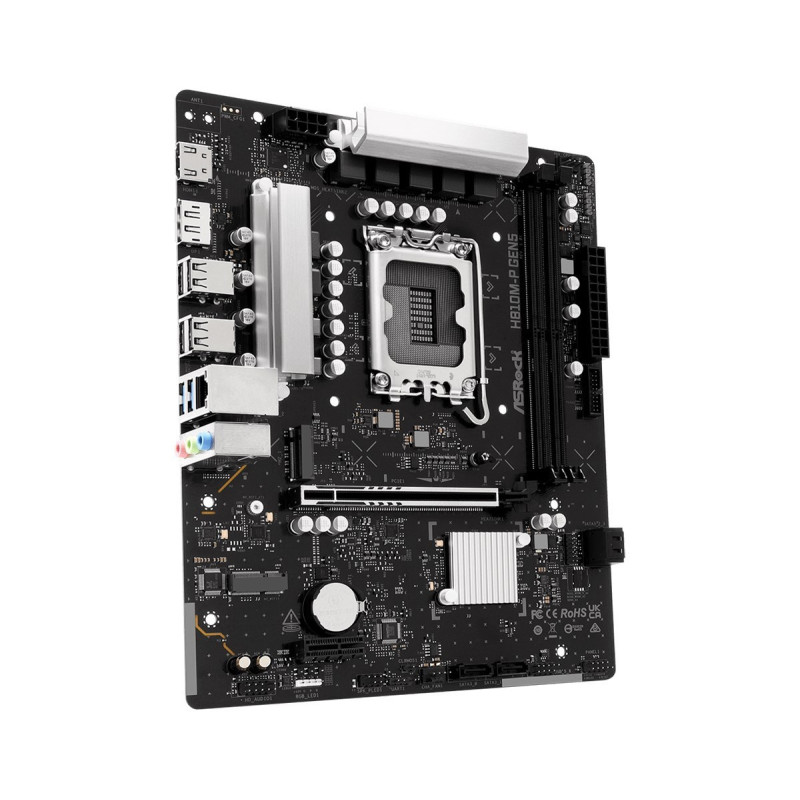

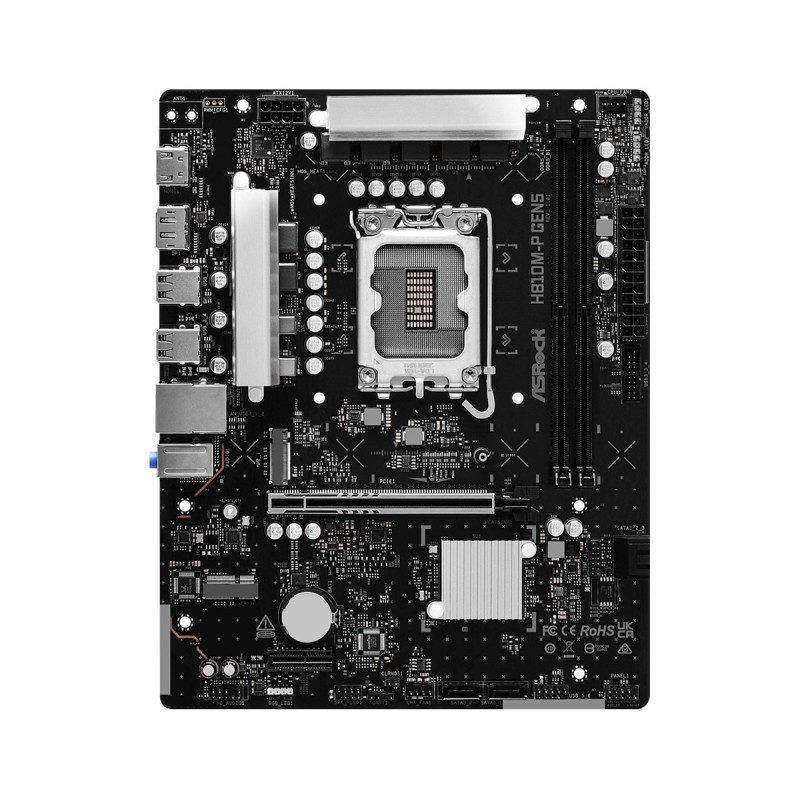

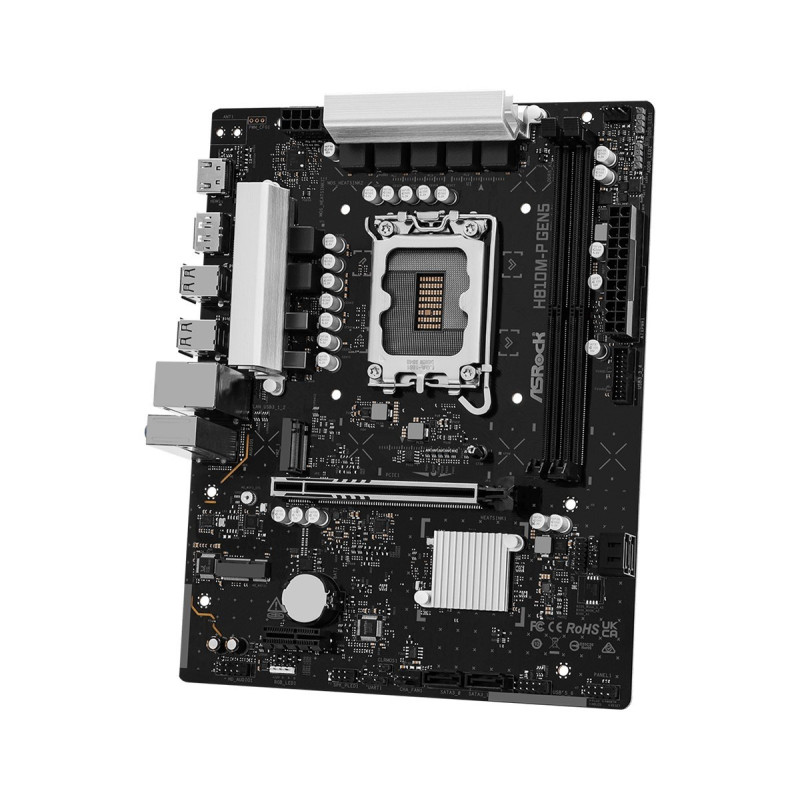

Mātesplate ASRock H810M-P GEN5
Product reference:
3-4711581494206
Mātesplate ASRock H810M-P GEN5
Mātesplate ASRock H810M-P GEN5
Product reference:
3-4711581494206
Mātesplate ASRock H810M-P GEN5
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Graphics | |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| HDCP version | 2.3 |
| Features | |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset | Intel H810 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Memory | |
| Unbuffered memory | Yes |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| Supported memory clock speed (max) | 6400MHz |
| ECC compatibility | Non-ECC |
| Maximum internal memory | 128GB |
| Number of memory slots | 2 |
| Weight dimensions | |
| Depth | 193 mm |
| Width | 244 mm |
| Network | |
| LAN controller | Realtek RTL8111H |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of chassis fan connectors | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Storage controllers | |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Rear panel I/O port | |
| HDMI version | 2.1 |
| DisplayPort quantity | 1 |
| Line-in | From |
| Ethernet LAN (RJ-45) port | 1 |
| USB 2.0 ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 2 |
| HDMI port quantity | 1 |
| Headphone outputs | 1 |
| Expansion slot | |
| PCI Express x1 (Gen 4.x) slot | 1 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| Number of M.2 (M) slots | 1 |
