Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, STRIXX870E-HGAMWIFI7
Product reference:
3-4711636167208
Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|STRIXX870E-HGAMWIFI7
Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, STRIXX870E-HGAMWIFI7
Product reference:
3-4711636167208
Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|STRIXX870E-HGAMWIFI7
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days

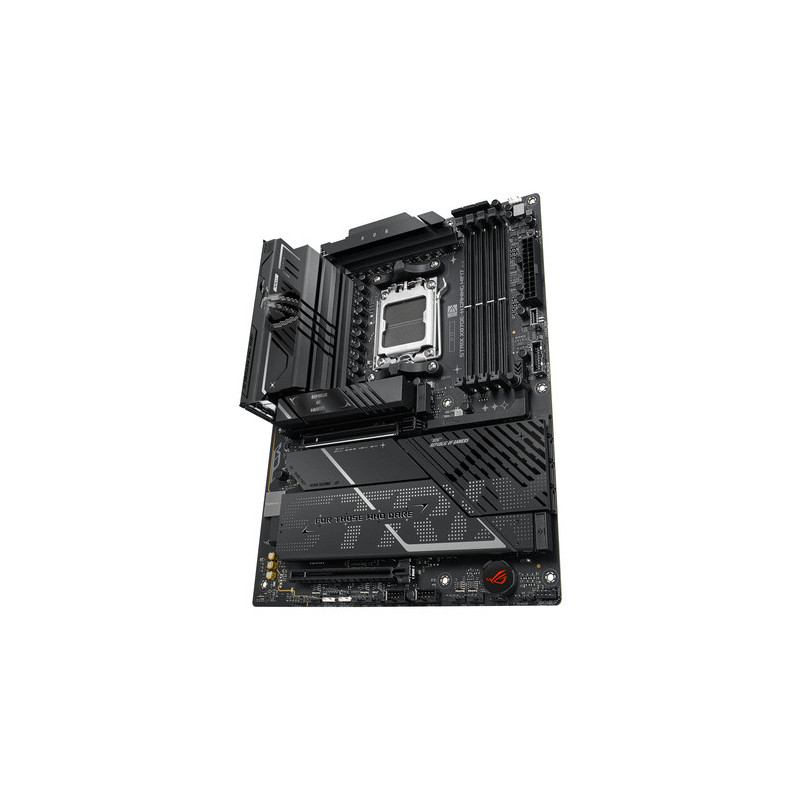

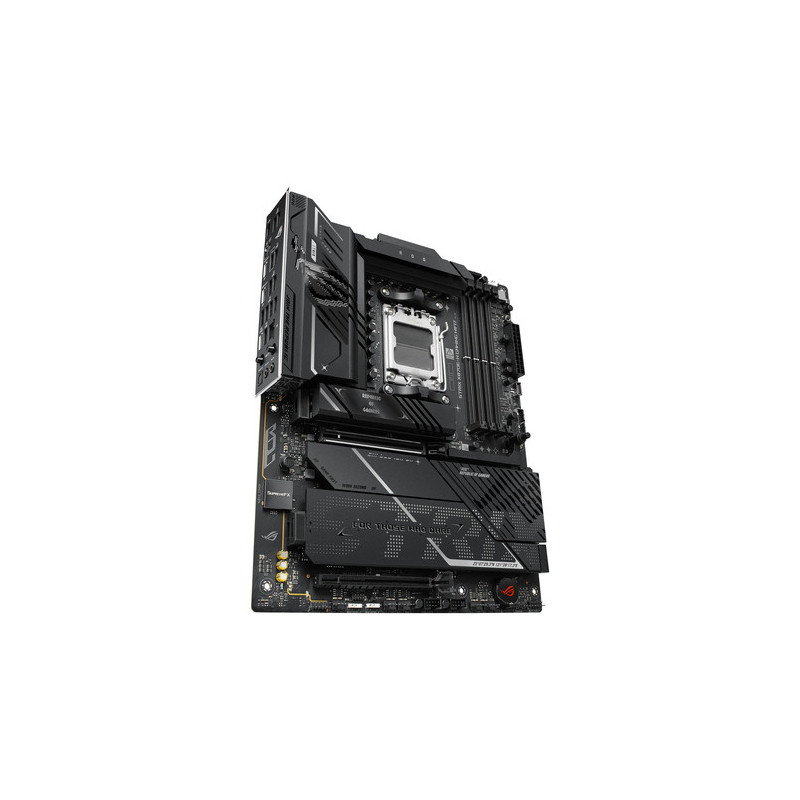

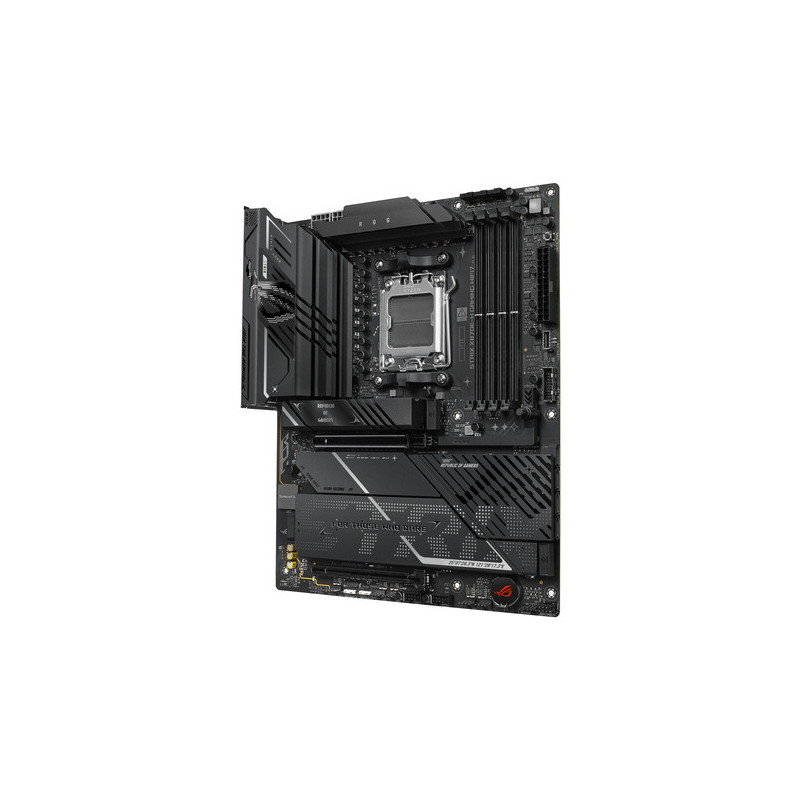

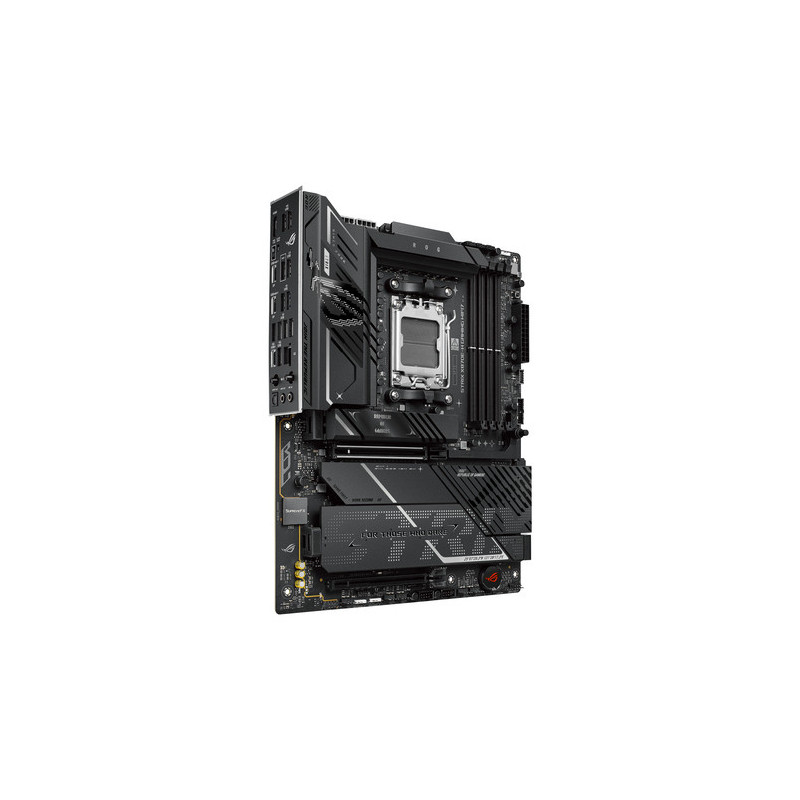

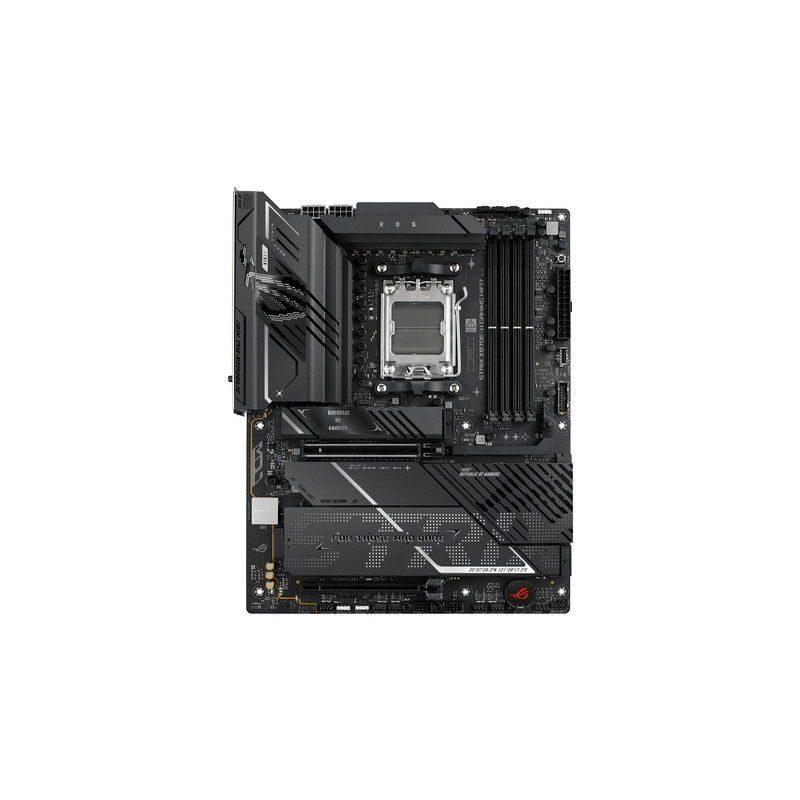

ROG STRIX X870E-H GAMING WIFI7
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slot, dual USB4® Type-C port, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
| Summary: | ASUS ROG STRIX X870E-H GAMING WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD |
| Vendor Homepage: | https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-h-gaming-wifi7/ |
| Category Code: | MBA |
| CnCode: | 84733020 |
| Unit Box Height: | 0.07 |
| Unit Box Length: | 0.275 |
| Unit Box Width: | 0.36 |
| Audio chip: | Realtek ALC1220P |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Motherboard chipset: | AMD X870E |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Product colour: | Black |
| Windows operating systems supported: | Windows 11 |
| Compatible processor series: | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Supported processor sockets: | Socket AM5 |
| ECC compatibility: | Non-ECC |
| Maximum internal memory: | 256GB |
| Memory channels: | Dual channel |
| Memory slot type: | DIMMs |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Unbuffered memory: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 8 |
| RAID levels: | 0/1/10/5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,SATA III |
| Supported storage drive types: | HDD SSD |
| On-board graphics card: | From |
| Parallel processing technology support: | Not supported |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 5 |
| Number of RGB LED pin headers: | 3 |
| Number of SATA III connectors: | 4 |
| Number of temperature sensor headers: | 1 |
| RGB LED pin header: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Ethernet LAN (RJ-45) port: | 1 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| S/PDIF out port: | Yes |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity: | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity: | 1 |
| USB4 Gen 3x2 ports quantity: | 2 |
| WiFi-AP antenna jack: | 1 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Top Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 22110 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 2280 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 4th M.2 largest key size: | 2280 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 4.x) slot: | 1 |
| PCI Express x16 (Gen 5.x) slot: | 1 |
| BIOS memory size: | 256Mbit |
| BIOS type: | UEFI AMI |
| Package depth: | 273mm |
| Package height: | 68mm |
| Package weight: | 2071g |
| Package width: | 353mm |
| Depth: | 244mm |
| Width: | 305mm |
| Antenna included: | Yes |
| Cables included: | SATA |
| Model: | ROG STRIX X870E-H GAMING WIFI7 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 4 |
| Unit Calculated Volume: | 0.008186m³ |
| Unit Calculated Weight: | 2.56kg |
