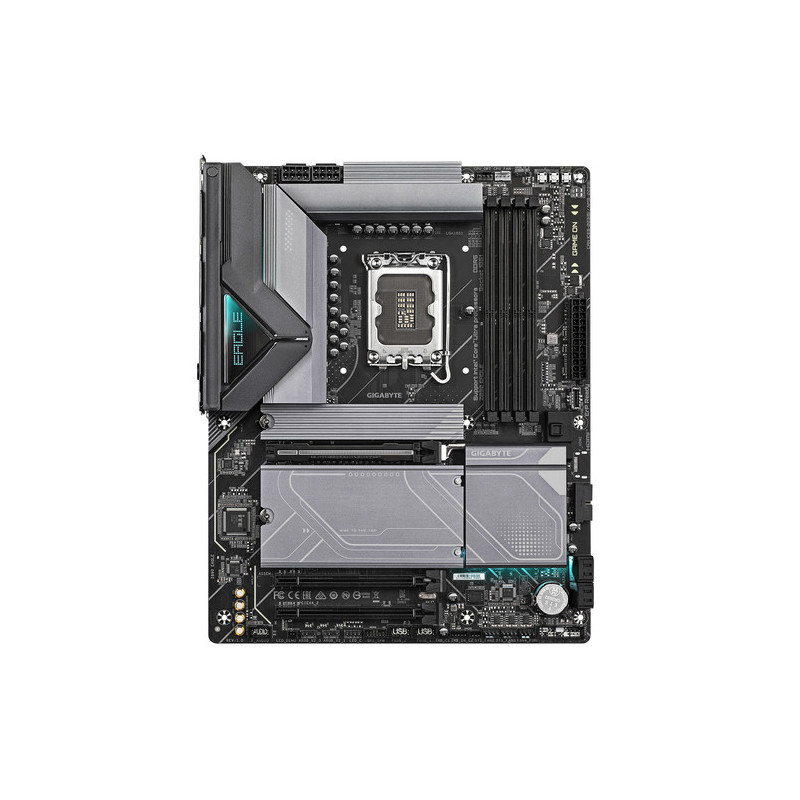

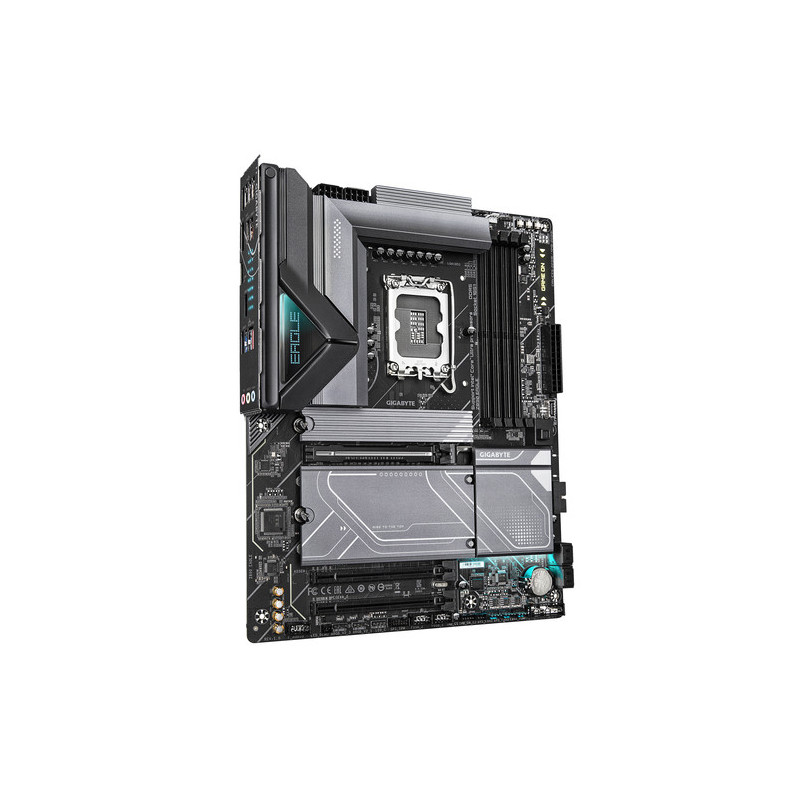

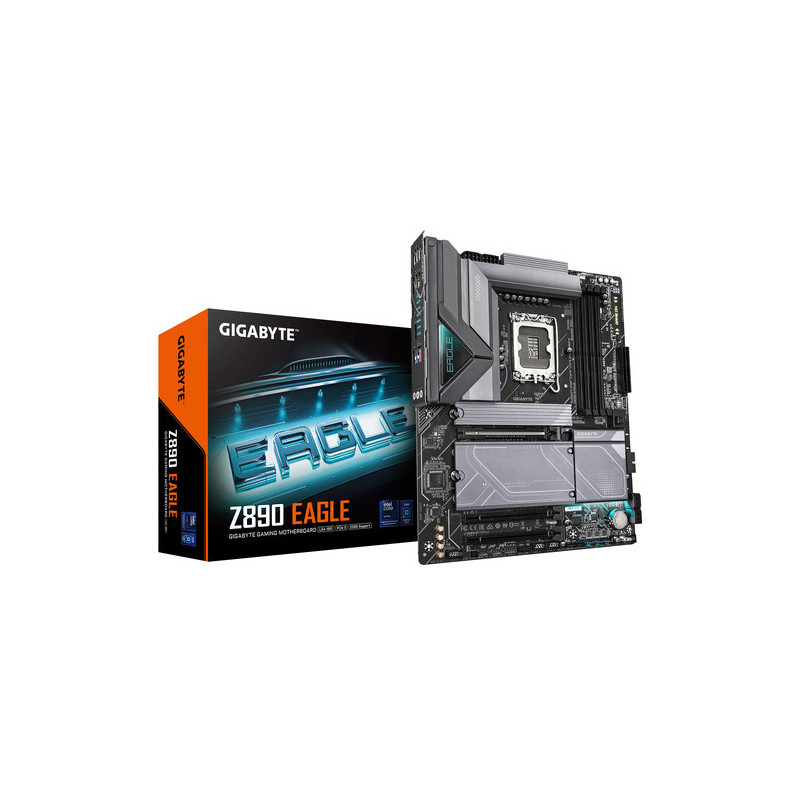

Motherboard Z890 EAGLE s1851 4DDR5 DP / TB4 ATX

Intel® Z890 Express
Dimensional format: ATX (305x244mm)
Processor support: Intel® Core™ Ultra
Processor socket: LGA1851
Remember:
* 4x DIMM socket supporting up to 256GB (capacity 64 GB single DIMM), DDR5 8800(OC) / 8600(OC) / 8400(OC) / 8266(OC) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600( OC) / 7400 (OC) / 7200 (OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600MT/s máchátové moduly
* dvojkanálová architektur máchátí
* podpora máchátových modulyExtreme Memory Profile (XMP)
Graphic outputs:
* 1x USB4® USB Type-C® port, supporting video outputs USB4 a DisplayPort a maximum resolution 3840x2160 144 Hz
* 1x DisplayPort with maximum resolution 3840 x 2160 at 144 Hz - Support for DisplayPort 2.1 version
Sound card:
* Codek Realtek® Audio
* High Definition Audio
* 2/4/5.1/7.1 channel
Ethernet: Realtek® 2.5 GbE LAN
Expansion slots:
* 1x PCI Express x16 supports PCIe 5.0 standard x16 (PCIEX16)
* 2x PCI Express x16 supports PCIe 4.0 standard x4 (PCIEX4_1/2)
Storage space:
totally supports 4 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2, M key typ 25110/22110/2580/2280 - support PCIe 5.0 x4/x2 SSD (M2A_CPU)
* 1x M.2, M key typ 22110/2280 - support PCIe 4.0 x4/x2 SSD (M2B_CPU)
* 1x M.2, M key, typ 22110/2280 - support PCIe 4.0 x4/x2 SSD (M2Q_SB)
* 1x M.2, M key, typ 22110/2280 - support SATA a PCIe 4.0 x4/x2 SSD (M2M_SB)
* 4x port SATA 6Gb/s_
RAID radic: podpora RAID 0/1/5/10 for internal devices NVMe SSD and for internal devices SATA
USB:
Zadné USB (10 ports in total)
* 1x USB4® USB Type-C®
* 2x USB 3.2 Gen 2 typ-A (červené)
* 3x USB 3.2 Gen 1
* 4x USB 2.0/1.1
Predné USB (celkom 7 portov)
* 1x USB typ-C® connector - support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header - support additional 1 USB 3.2 Gen 1
* 2x USB 2.0/1.1 header - support additional 2 USB 2.0/1.1

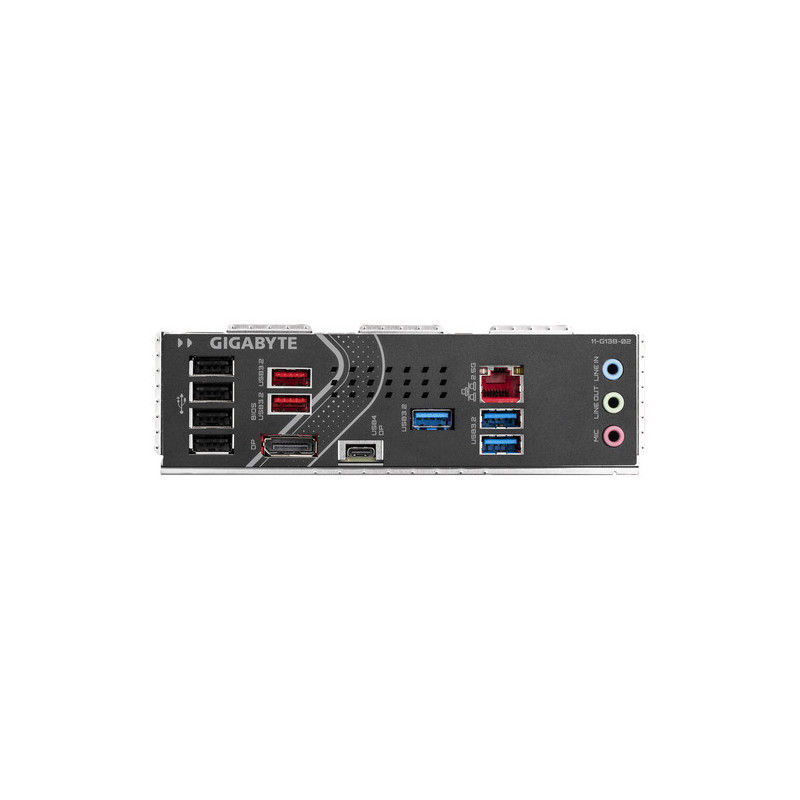

Ports on the rear panel:
* 1x USB4® USB Type-C®
* 2x USB 3.2 Gen 2 typ-A (červené)
* 3x USB 3.2 Gen 1
* 4x USB 2.0/1.1
* 2x anténny konektor (2T2R)
* 1x RJ-45
* 3x audio jack
* 1x DisplayPort
Internal ports:
Power supply
* 1x 24-pin ATX main power supply connector
* 2x 8-pin ATX 12V napájací konektor
Súvisiace s ventiláriom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 3x system fan headers
* 1x system fan/water cooling pump header
Súvisiace s úložiskom
* 4x M.2 slot (Key M)
* 4x SATA 6Gb/s port
USB
* 1x USB typ-C® connector - support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0/1.1 header
Other
* 3x addressable RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (iba pre module GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x Q-Flash button Plus
* 1x power button
* 1x reset button
* 1x reset jumper
* 1x Clear CMOS jumper
* 2x connector for additional card Thunderbolt™ (for additional card GIGABYTE Thunderbolt™ 5 card)
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/Z890-EAGLE#kf
