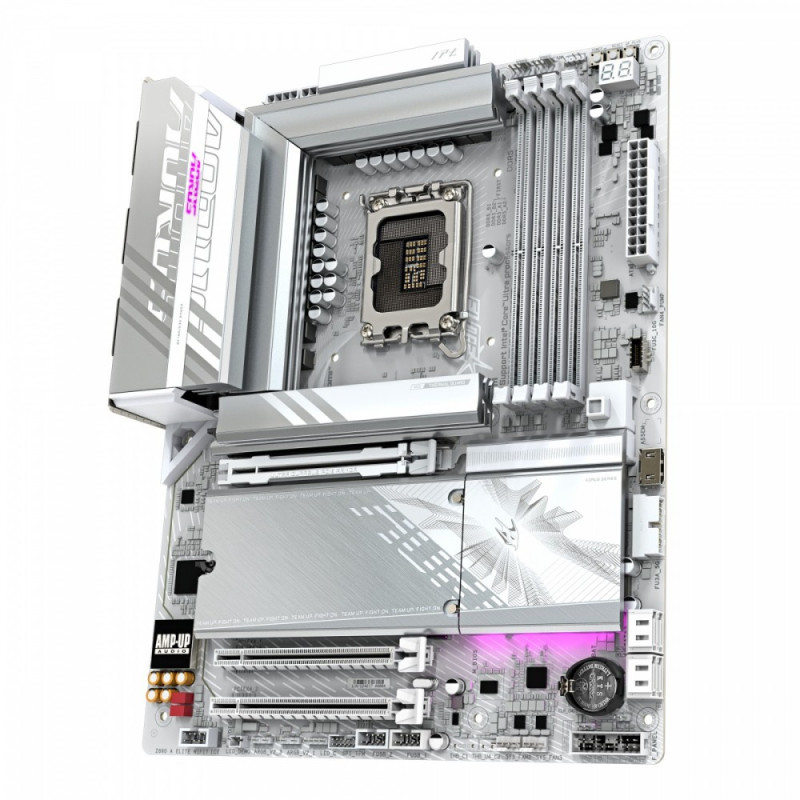

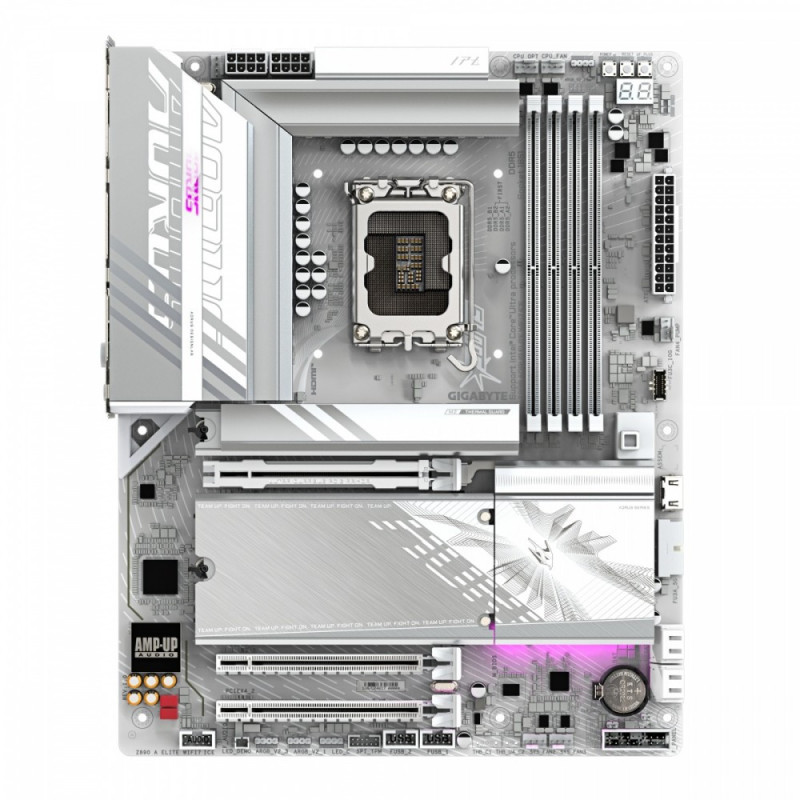

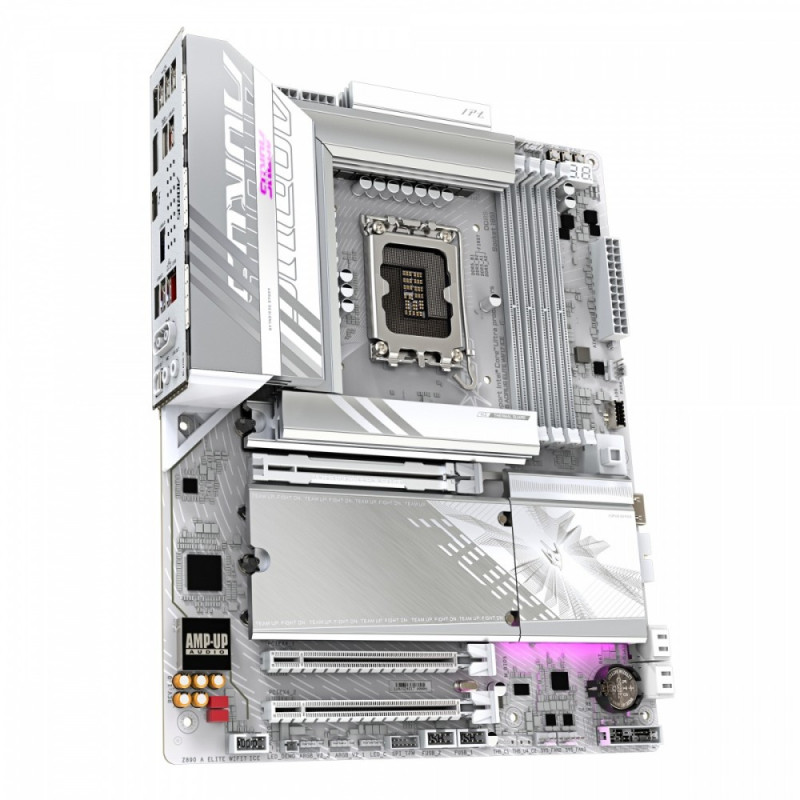

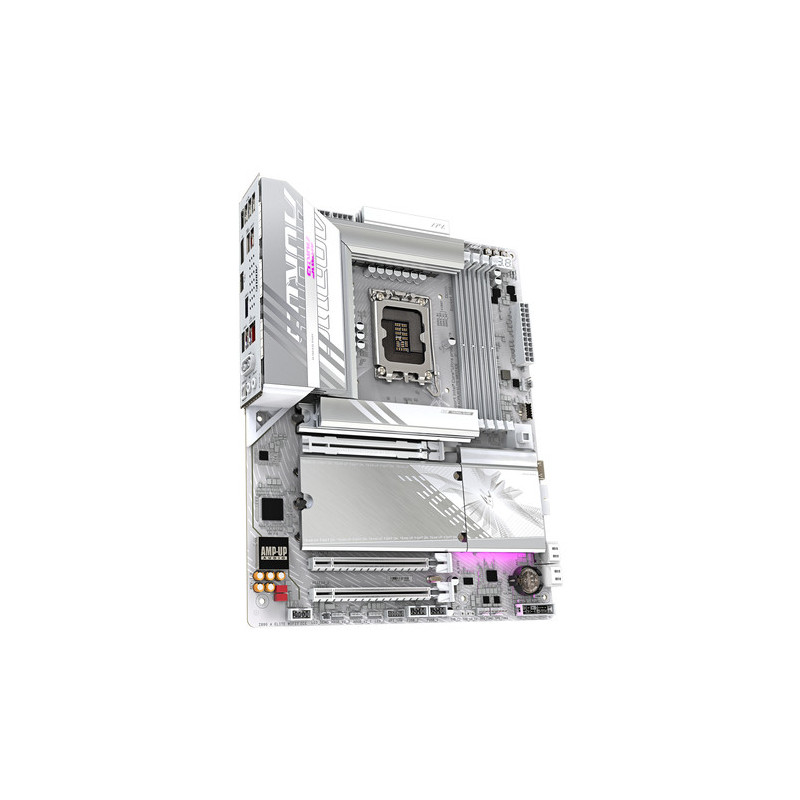

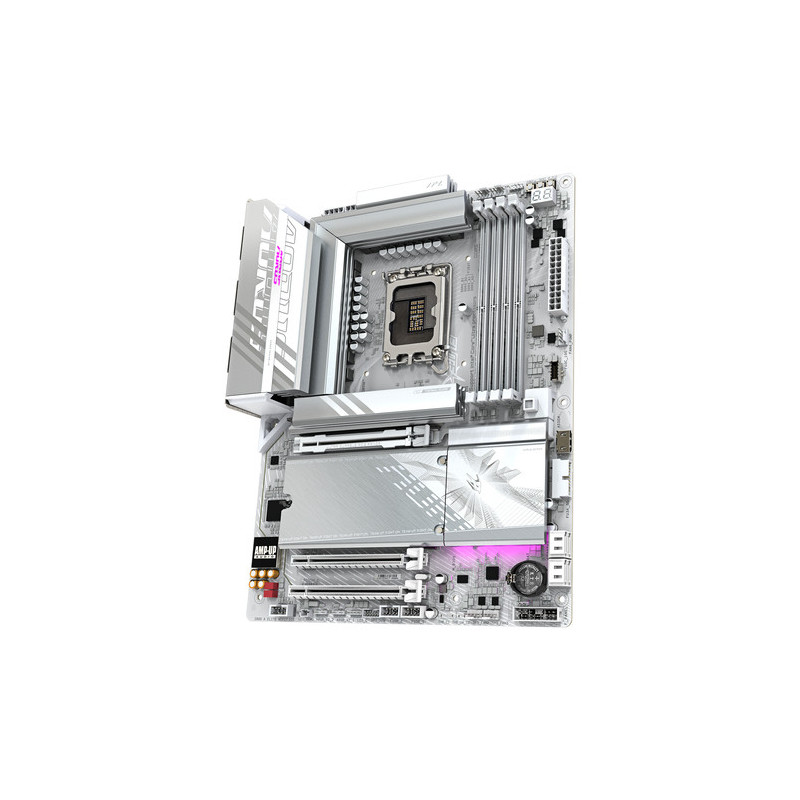

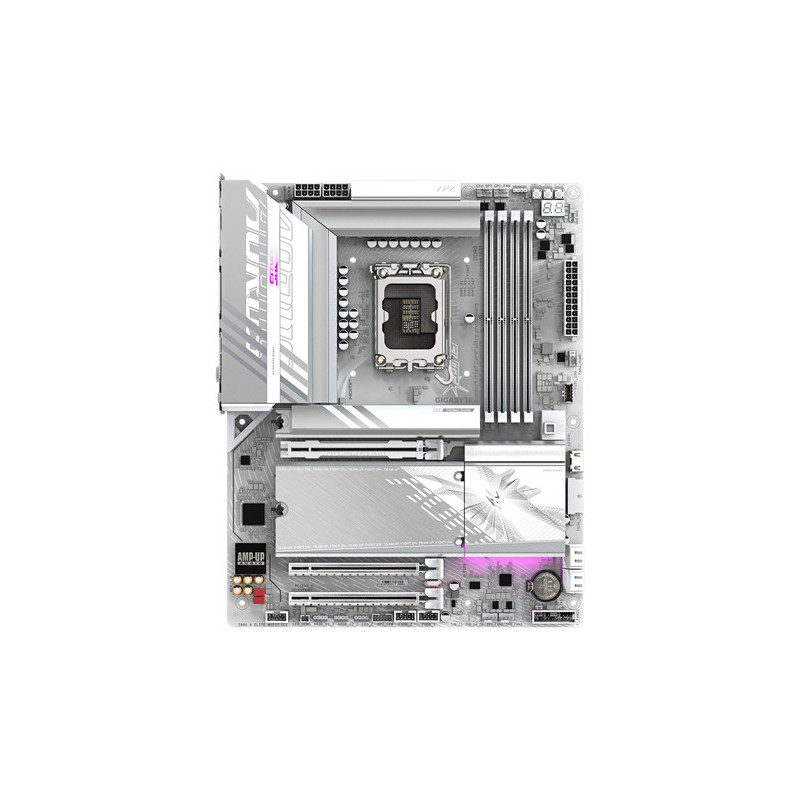

GIGABYTE Z890 AORUS ELITE WIFI7 ICE / LGA 1851 / ATX

Intel® Z890 Express
Format: ATX (305x244mm)
Processor support: Intel® Core™ Ultra
Processor reliability: LGA1851
Remember:
* 4x DIMM support up to 256GB (64 GB capacity per DIMM), DDR5 9200(OC) / 9066(OC) / 8933(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8266(OC) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules
* dvojkanálová architecture memory
* podpora memory modules Extreme Memory Profile (XMP)
_ Graphic outputs:
* 1x predný port HDMI with maximum resolution 1920 x 1080 at 30 Hz - Support for HDMI 1.4 version
* 1x Intel® Thunderbolt™ 4 (USB4® USB Type-C® port), supporting video outputs DisplayPort a Thunderbolt™
* 1x DisplayPort with maximum resolution 4096 x 2304 at 60 Hz - Support for DisplayPort 2.1 and HDCP 2.3
Sound card:
* Kodek Realtek® ALC1220
* High Definition Audio
* 2/4/5.1/7.1 kanal
* S/PDIF output support
Ethernet: Realtek® 2.5 GbE LAN
WLAN + Bluetooth:
* MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) (802.11a, b, g, n, ac, ax, be), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.4_
* Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) (802.11a, b, g, n, ac, ax, be), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.4
Expansion slots:
* 1x PCI Express x16 supports PCIe 5.0 standard x16 (PCIEX16)
* 2x PCI Express x16 supports PCIe 4.0 standard x4 (PCIEX4_1,PCIEX4_2)
Storage space:
supports a total of 4 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2, M key typ 25110/22110/2580/2280 - support PCIe 5.0 x4/x2 SSD (M2A_CPU)
* 1x M.2, M key typ 22110/2280 - support PCIe 4.0 x4/x2 SSD (M2B_CPU)
* 1x M.2, M key, typ 25110/22110/2580/2280 - support PCIe 4.0 x4/x2 SSD (M2Q_SB)
* 1x M.2, M key, typ 22110/2280 - support SATA a PCIe 4.0 x4 SSD (M2M_SB)
* 4x port SATA 6Gb/s
RAID radic: podpora RAID 0/1/5/10 for internal devices NVMe SSD and for internal devices SATA
USB:
Zadné USB (total 10 ports)
* 1x Intel® Thunderbolt™ 4 (USB Type-C® port)
* 2x USB 3.2 Gen 2 typ-A (červené)
* 3x USB 3.2 Gen 1
* 4x USB 2.0/1.1
Predné USB (total 7 portov)
* 1x USB typ-C® connector - support for USB 3.2 Gen 2x2
* 1x USB 3.2 Gen 1 header - support for additional 1 USB 3.2 Gen 1
* 2x USB 2.0/1.1 header - support for additional 2 USB 2.0/1.1

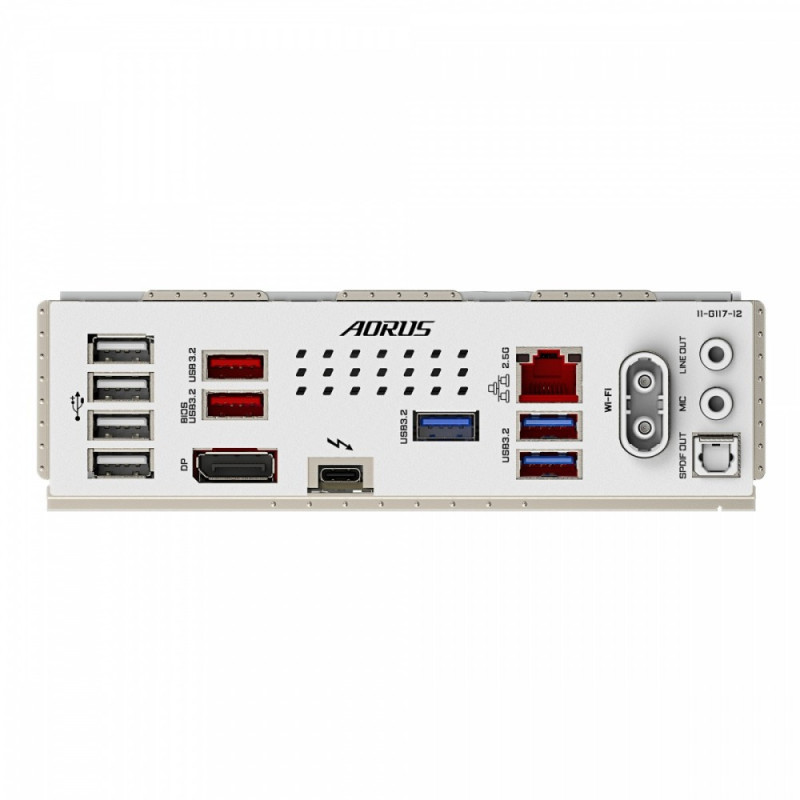

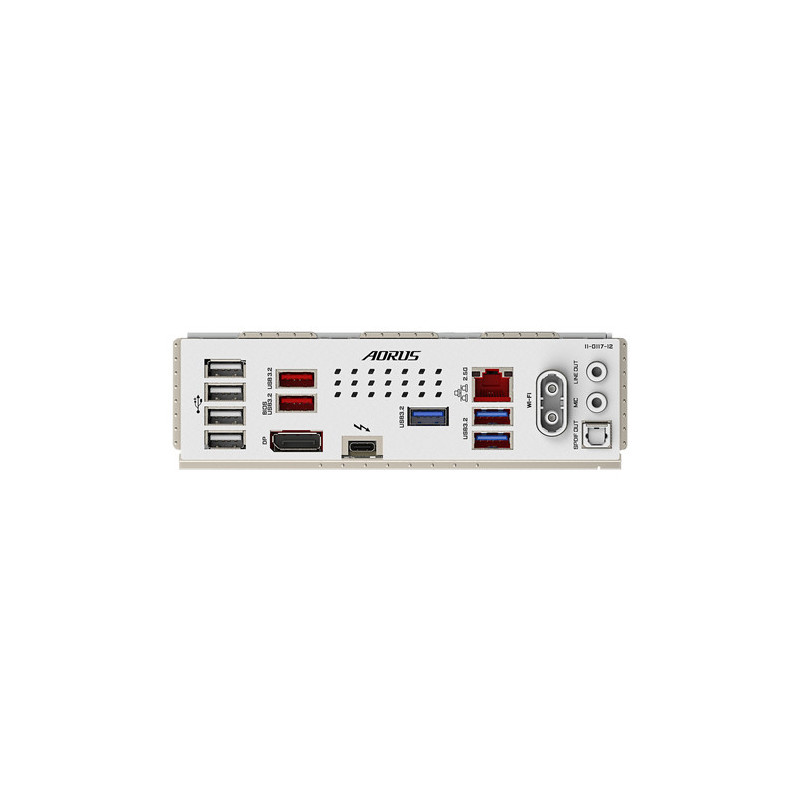

Ports on the rear panel:
* 1x Intel® Thunderbolt™ 4 (USB Type-C® port)
* 2x USB 3.2 Gen 2 typ-A (red)
* 3x USB 3.2 Gen 1
* 4x USB 2.0/1.1
* 2x anténny konektor (2T2R)
* 1x RJ-45
* 1x optický konektor S/PDIF Out
* 2x audio jack
* 1x DisplayPort
Internal ports:
Napájanie
* 1x 24-pin ATX main power connector
* 2x 8-pin ATX 12V napájací konektor
Súvisiace s ventiláriom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 3x system fan headers
* 1x system fan/water cooling pump header
Súvisiace s úložiskom
* 4x M.2 slot (Key M)
* 4x SATA 6Gb/s port
USB
* 1x USB typ-C® connector - support USB 3.2 Gen 2x2
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0/1.1 header
Ostatné
* 3x addressable RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (iba pre modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x HDMI port
* 1x Q-Flash Plus button
* 1x power button
* 1x reset button
* 1x reset jumper
* 1x Clear CMOS jumper
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.cz/motherboards/Z890-AORUS-ELITE-WIFI7-ICE/Key-Features
