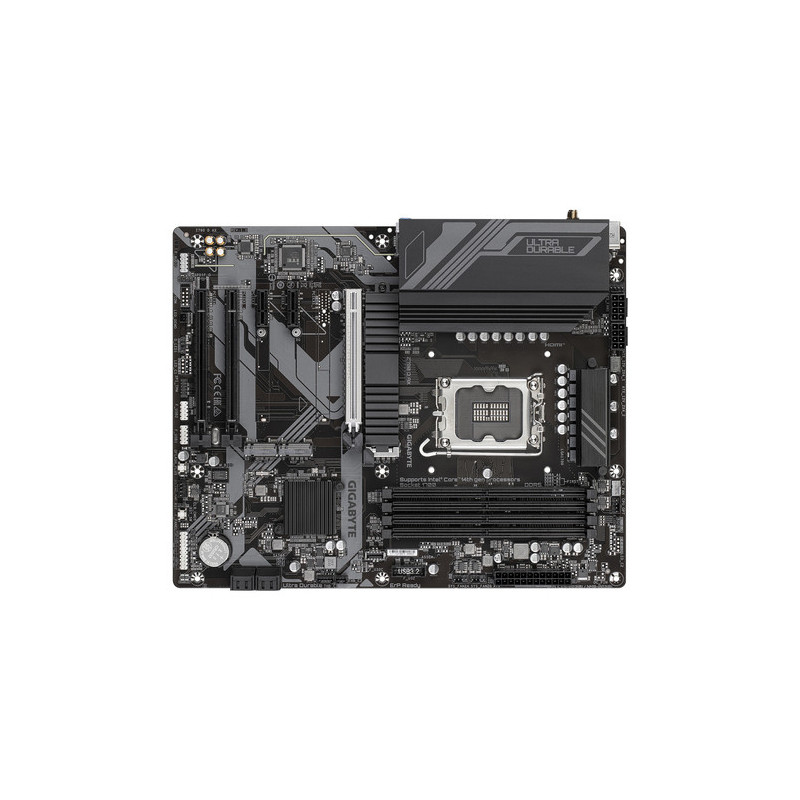

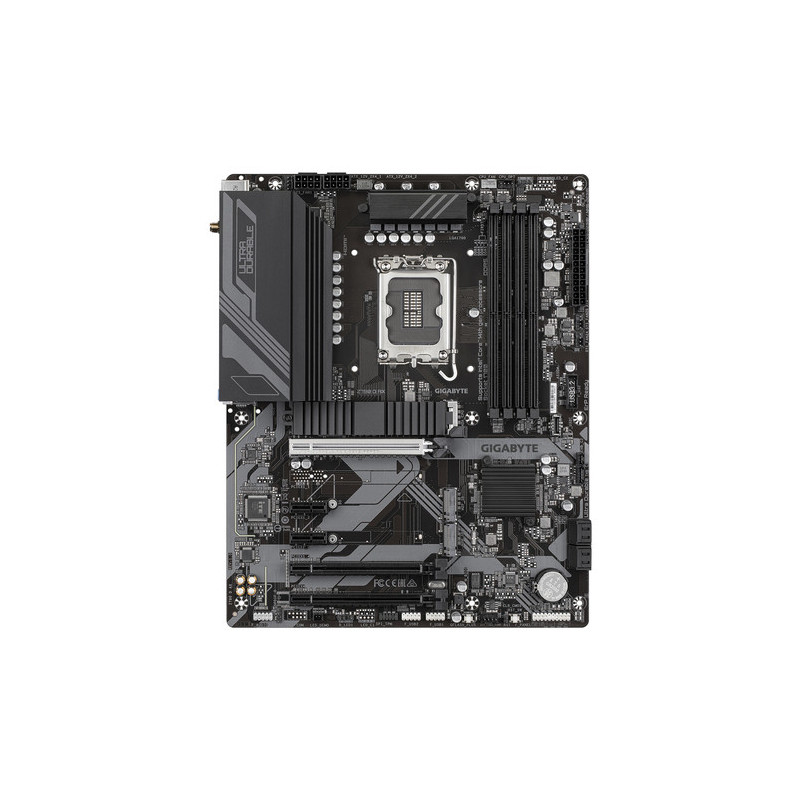

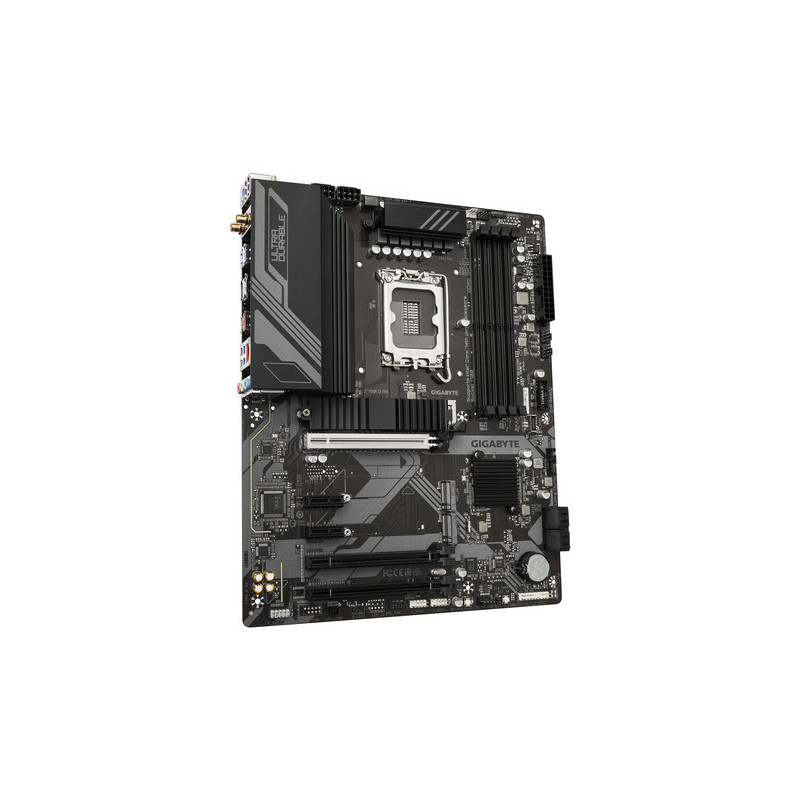

Mainboard GIGABYTE Z790 D AX DDR5 ATX WiFi 6E PCIe 5.0 USB-C
Product reference:
3-4719331860592
Mainboard GIGABYTE Z790 D AX DDR5 ATX WiFi 6E PCIe 5.0 USB-C
Mainboard GIGABYTE Z790 D AX DDR5 ATX WiFi 6E PCIe 5.0 USB-C
Product reference:
3-4719331860592
Mainboard GIGABYTE Z790 D AX DDR5 ATX WiFi 6E PCIe 5.0 USB-C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

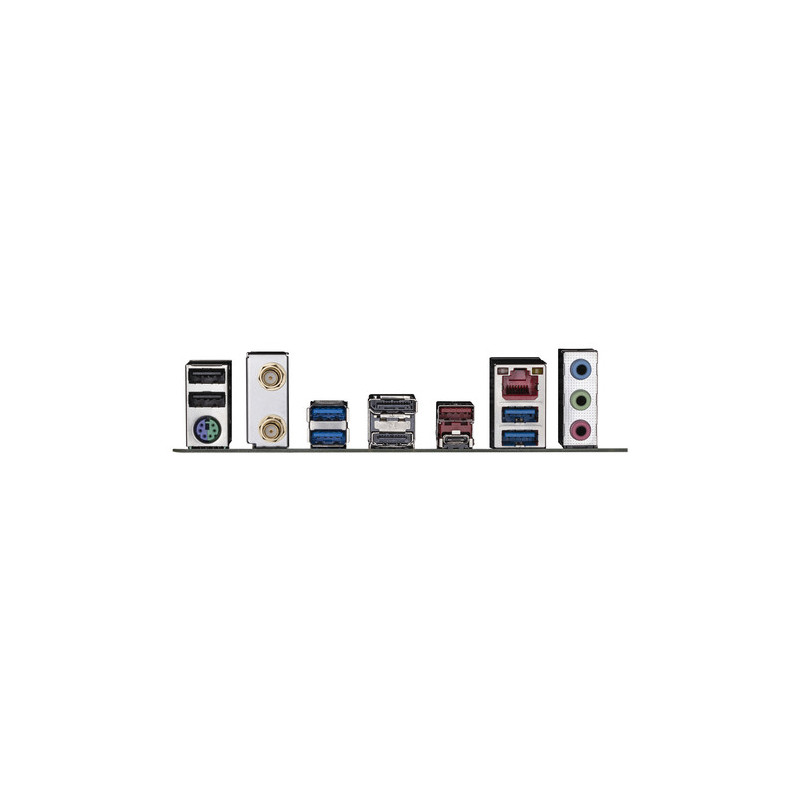

- Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Summary: | GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C |
| Vendor Homepage: | https://www.gigabyte.com |
| Category Code: | MBI |
| CnCode: | 84733020 |
| Unit Box Height: | 0.08 |
| Unit Box Length: | 0.33 |
| Unit Box Width: | 0.27 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Motherboard chipset: | Intel Z790 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| PC health monitoring: | Fan/Temperature/Voltage/Water cooling |
| Power source type: | ATX |
| Product colour: | Brown |
| Windows operating systems supported: | Windows 10 x64/Windows 11 x64 |
| Compatible processor series: | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Maximum internal memory supported by processor: | 192GB |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| ECC сompatibility: | ECC & Non-ECC |
| Maximum internal memory: | 192GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 7600MHz |
| Supported memory clock speeds: | 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600MHz |
| Supported memory module capacities: | 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB |
| Supported memory types: | DDR5-SDRAM |
| Unbuffered memory: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| RAID levels: | 0/1/10/5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,SATA III |
| Supported storage drive types: | HDD & SSD |
| DirectX version: | 12.0 |
| Discrete graphics support: | Yes |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2304pixels |
| Parallel processing technology support: | Not supported |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Number of EATX power connectors: | 2 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| Thunderbolt headers: | 2 |
| Total number of SATA connectors: | 4 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| DisplayPort version: | 1.2 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 1 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| S/PDIF out port: | Yes |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| USB connector type: | USB Type-A/USB Type-C |
| WiFi-AP antenna jack: | 2 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8125 |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Wi-Fi standards: | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| WLAN controller model: | Intel Wi-Fi 6E AX211 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| ACPI version: | 5.0 |
| BIOS memory size: | 256Mbit |
| BIOS type: | UEFI AMI |
| Clear CMOS button: | Yes |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3g |
| Country of origin: | China |
| Lithium weight per battery: | 0.07g |
| Number of battery cells: | 1 |
| Package depth: | 270mm |
| Package height: | 80mm |
| Package weight: | 1842.5g |
| Package width: | 335mm |
| Products per shipping (inner) case: | 1pc(s) |
| Depth: | 244mm |
| Height: | 35mm |
| Width: | 305mm |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Cables included: | SATA |
| Warranty period: | 3year(s) |
| Model: | Z790 D AX (rev. 1.0) |
| Units per Shipping Box: | 8 |
| Unit Calculated Volume: | 0.0099253m³ |
| Unit Calculated Weight: | 1.85625kg |
