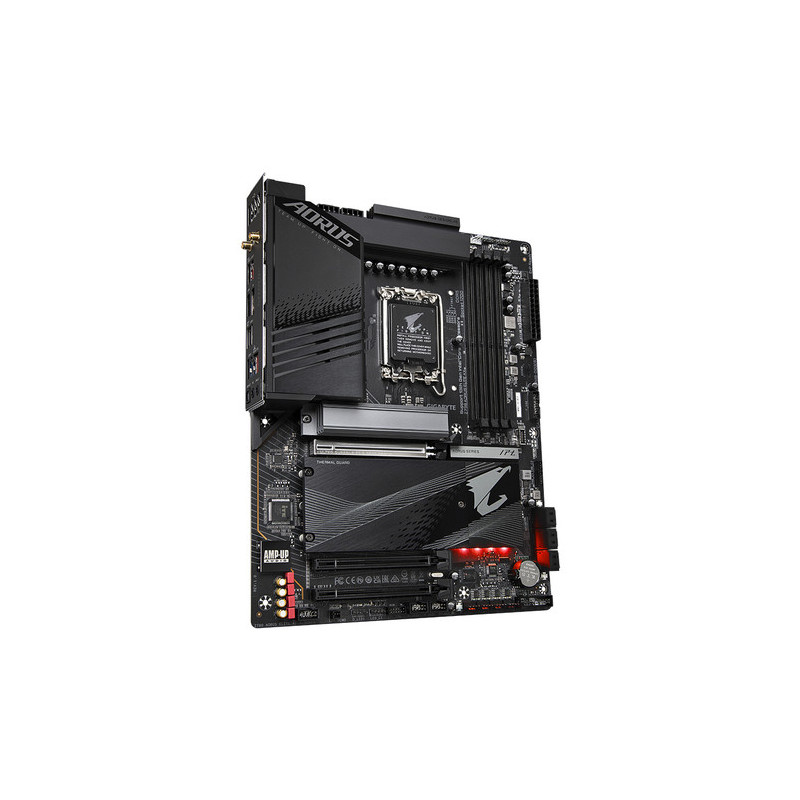

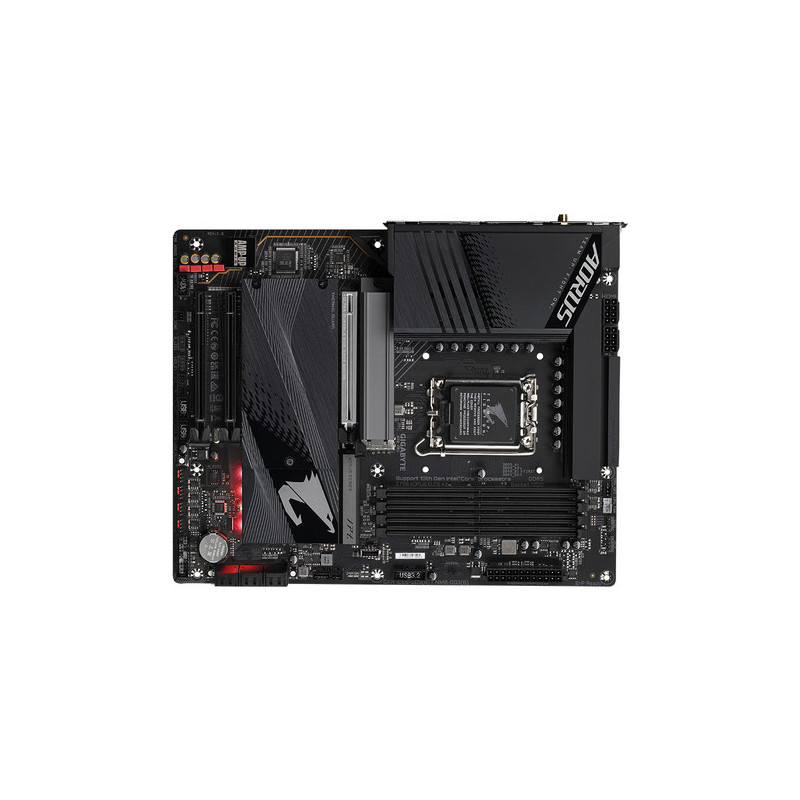

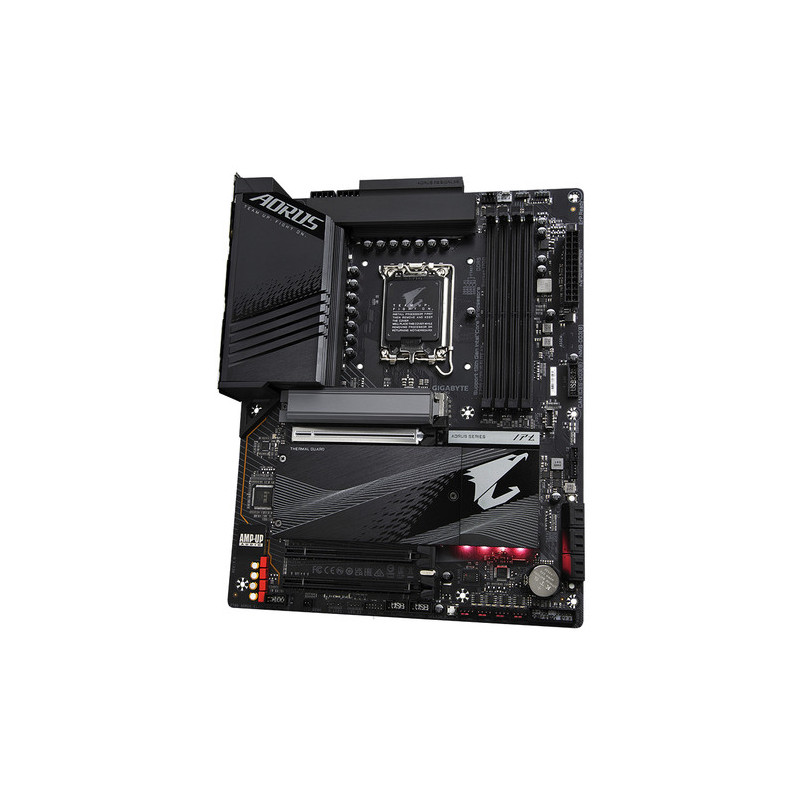

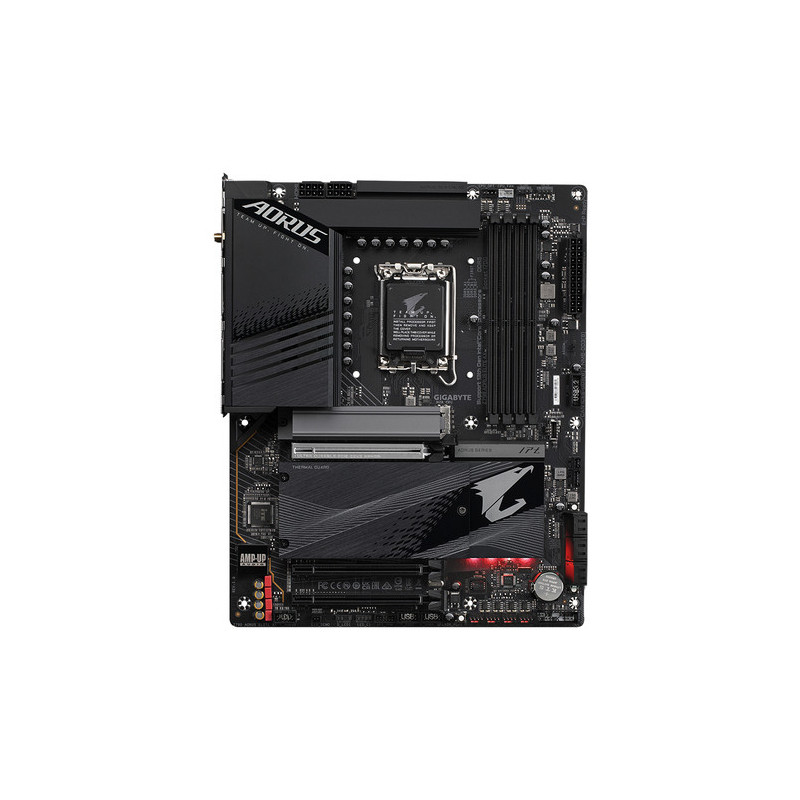

Gigabyte Z790 AORUS ELITE AX
Product reference:
3-4719331849467
Gigabyte Z790 AORUS ELITE AX
Gigabyte Z790 AORUS ELITE AX
Product reference:
3-4719331849467
Gigabyte Z790 AORUS ELITE AX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
| Technical details | |
|---|---|
| Warranty period | 3 years |
| Processor | |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum internal memory supported by the processor | 192GB |
| Processor manufacturer | Intel |
| Graphics | |
| Parallel processing technology support | CrossFire |
| On-board graphics card | From |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Features | |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PC health monitoring | Fan, Water cooling, Voltage, Temperature |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel Z790 |
| Product colour | Black |
| Memory | |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7600MHz |
| ECC compatibility | ECC Non-ECC |
| Memory channels | Dual channel |
| Supported memory clock speeds | 6600, 6000, 4000, 4800, 5200, 6200, 6800, 6400 MHz, 7600, 7400, 5600, 7200, 7000, 5800, 5400 |
| Maximum internal memory | 192GB |
| Unbuffered memory | Yes |
| Weight dimensions | |
| Width | 305mm |
| Depth | 244 mm |
| Height | 35mm |
| Network | |
| Wi-Fi standard | 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Internal I/O | |
| TPM connector | Yes |
| CPU fan connector | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| Front panel connector | Yes |
| Total number of SATA connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Thunderbolt headers | 2 |
| USB 2.0 connectors | 2 |
| BIOS | |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Packaging data | |
| Package height | 80mm |
| Package depth | 270mm |
| Package width | 335 mm |
| Package weight | 2.32 kg |
| Packaging content | |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Batteries included | Yes |
| Storage controllers | |
| Number of HDDs supported | 6 |
| RAID levels | 0, 1, 10, 5 |
| RAID support | Yes |
| Number of storage drives supported | 10 |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Rear panel I/O port | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 3 |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN (RJ-45) port | 1 |
| Headphone outputs | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 2 |
| HDMI port quantity | 1 |
| HDMI version | 2.0 |
| USB 3.2 Gen 2x2 Type-C port quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-C |
| S/PDIF out port | Yes |
| DisplayPort quantity | 1 |
| Expansion slot | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 slot | 3 |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 years |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Safety warning | |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary garbage bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply. |
