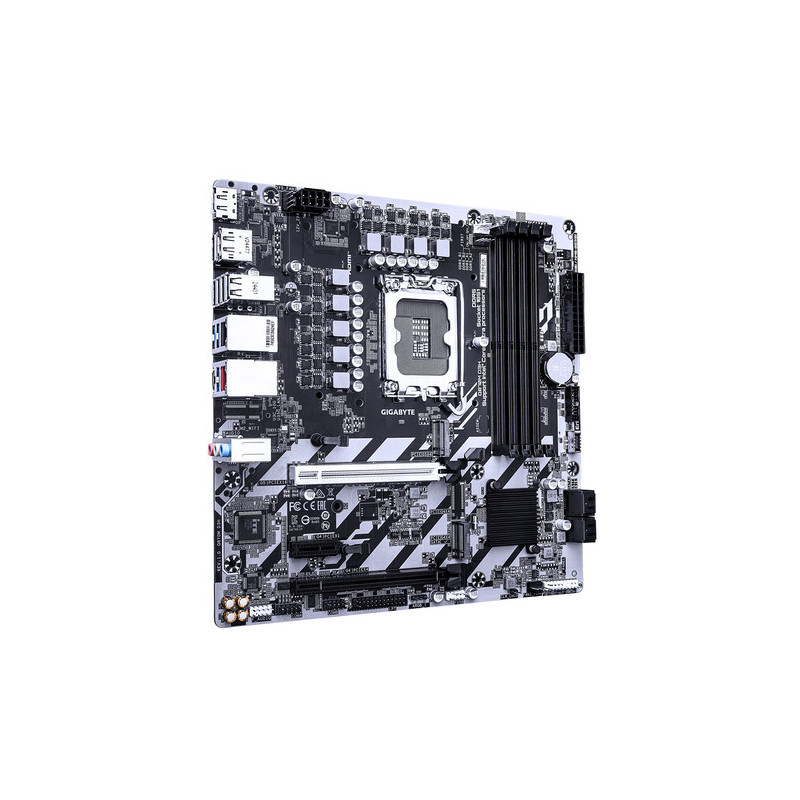

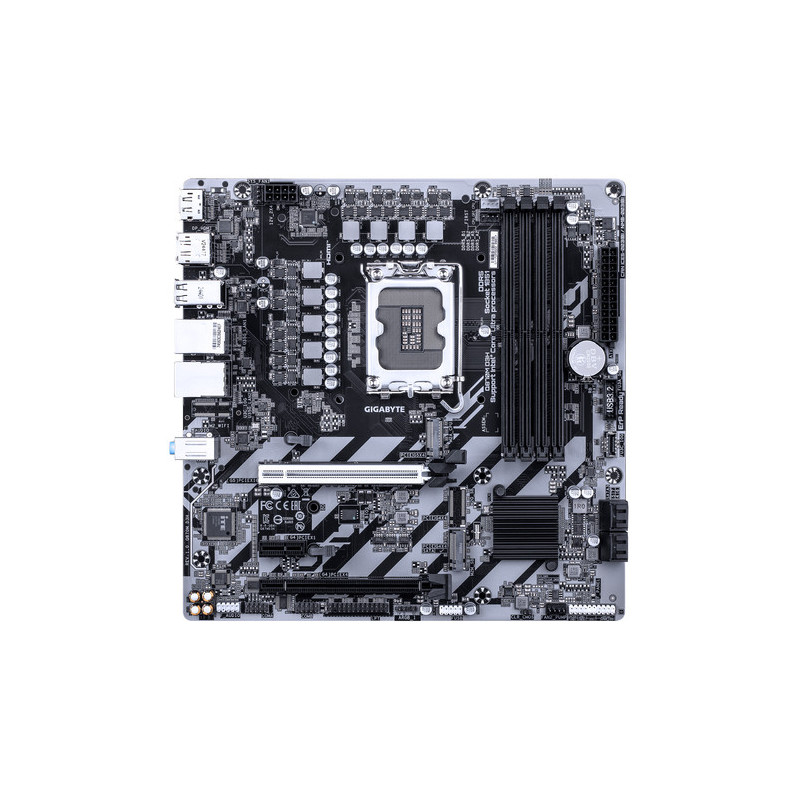

GIGABYTE Q870M D3H / LGA 1851 / mATX

* D5 Bionic Corsa
* EZ-Latch
Chipset: Intel® Q870 Express
Size format: Micro ATX (244x244mm)
Processor support: Intel® Core™ Ultra
Processor socket: LGA1851
Remember:
* 4x DIMM support up to 256GB, DDR5_
Memory module support DDR5 9066(OC)/8800(OC)/8600(OC)/8400(OC)/8266(OC)/8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/5600MT/s_
* dvojkanálová architecture мемеция
* podpora мечевтовых modulov Extreme Memory Profile (XMP)
Graphic outputs: graphic specifications may vary depending on support CPU
* 1x HDMI® 2.1
* 2x DisplayPort 2.1
Sound card: codec Realtek 7.1 Surround Sound High Definition Audio
Ethernet: Intel® GbE LAN (1 Gb/s/100 Gb/s/10 Mb/s) LAN1, Realtek® 2,5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) LAN2_
WLAN + Bluetooth: nie
Expansion slots:
* 1x PCI Express x16 support PCIe 5.0 x16 (PCIEX16)
* 1x PCI Express x16 support PCIe 4.0 x4 (PCIEX4)
* 1x PCI Express x1 support PCIe 4.0 x1 (PCIEX1)
Storage space:
in total supports 2 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2, M key, typ 2280 - support PCIe 4.0 x4/x2 SSD (M2A_CPU)
* 1x M.2, M key, typ 2280 - support SATA a PCIe 4.0 x4/x2 SSD (M2M_SB)
* 4x port SATA 6Gb/s
RAID radic: support for RAID 0/1/5/10 for storage devices SATA
USB:
Zadné USB (total 8 ports)
* 3x USB 3.2 Gen 1
* 4x USB 2.0/1.1
* 1x USB-C® s support USB 3.2 Gen 2
Predné USB (total 5 ports)
* 1x USB typ-C® header s support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header - support for additional 2 ports USB 3.2 Gen 1
* 1x USB 2.0/1.1 header - support for additional 2 ports USB 2.0/1.1

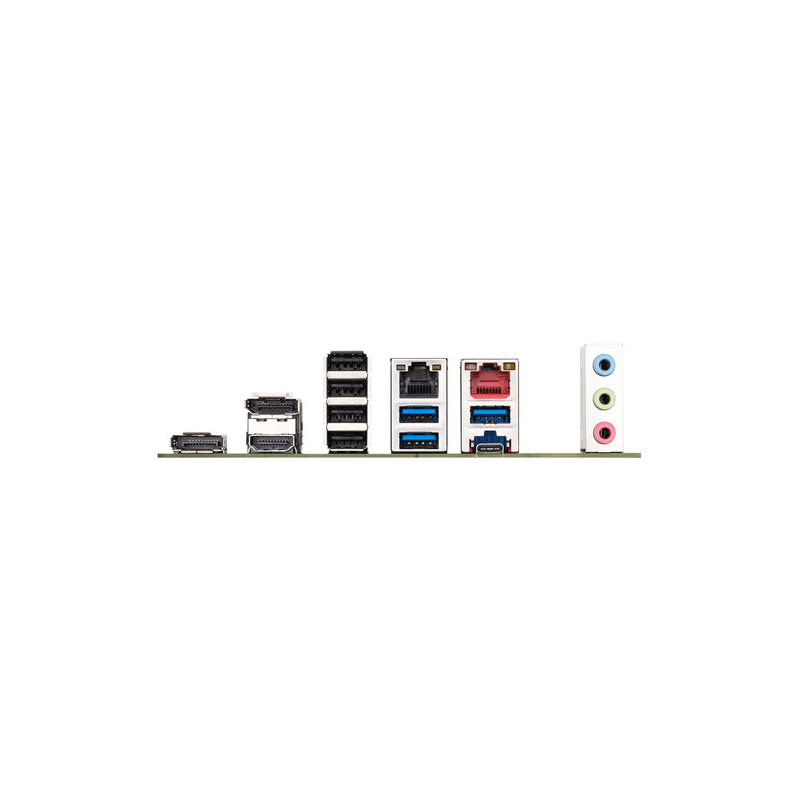

Ports on the rear panel:
* 3x USB 3.2 Gen 1
* 4x USB 2.0/1.1
* 1x USB-C® supports USB 3.2 Gen 2
* 2x DisplayPort
* 1x HDMI
* 2x RJ-45_
* 3x audio jack
Internal ports:
Napájanie
* 1x 24-pin ATX main power supply connector
* 1x 8-pin ATX 12V napájací konektor
Súvisiace s ventiláriom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 1x system fan header
* 1x system fan/water cooling pump header
Súvisiace s úložiskom
* 2x M.2 slot (Key M)
* 4x SATA 6Gb/s port
USB
* 1x USB typ-C® header supports USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header
* 1x USB 2.0/1.1 header
Ostatné
* 1x adresovatelný RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 2x serial port header
* 1x parallel port header
* 1x Clear CMOS jumper
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/Q870M-D3H#kf
