GIGABYTE H810M H / LGA 1851 / mATX
Product reference:
3-4719331869540
GIGABYTE H810M H/LGA 1851/mATX
GIGABYTE H810M H / LGA 1851 / mATX
Product reference:
3-4719331869540
GIGABYTE H810M H/LGA 1851/mATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

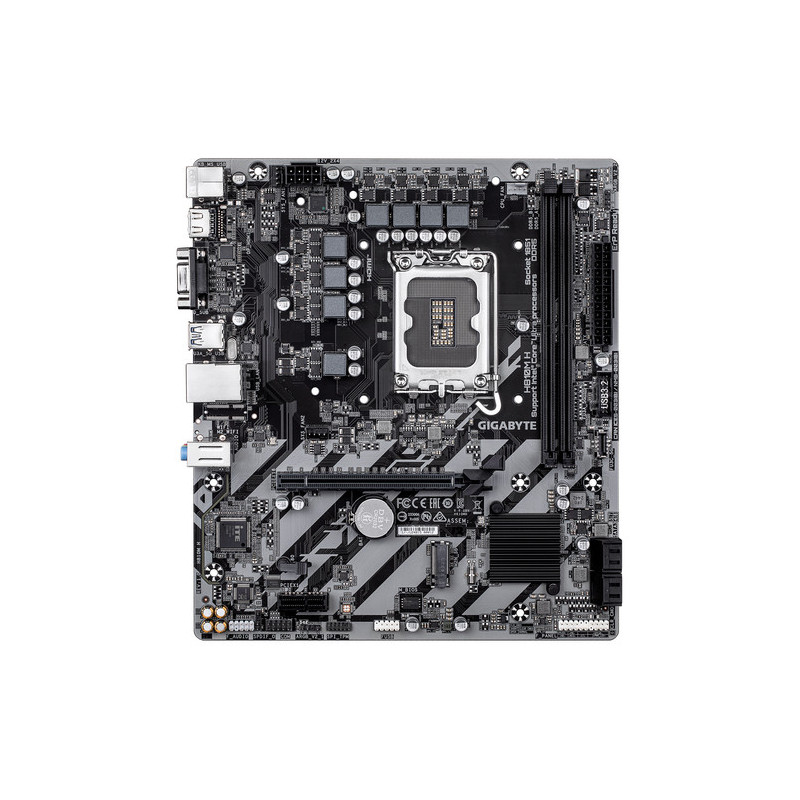

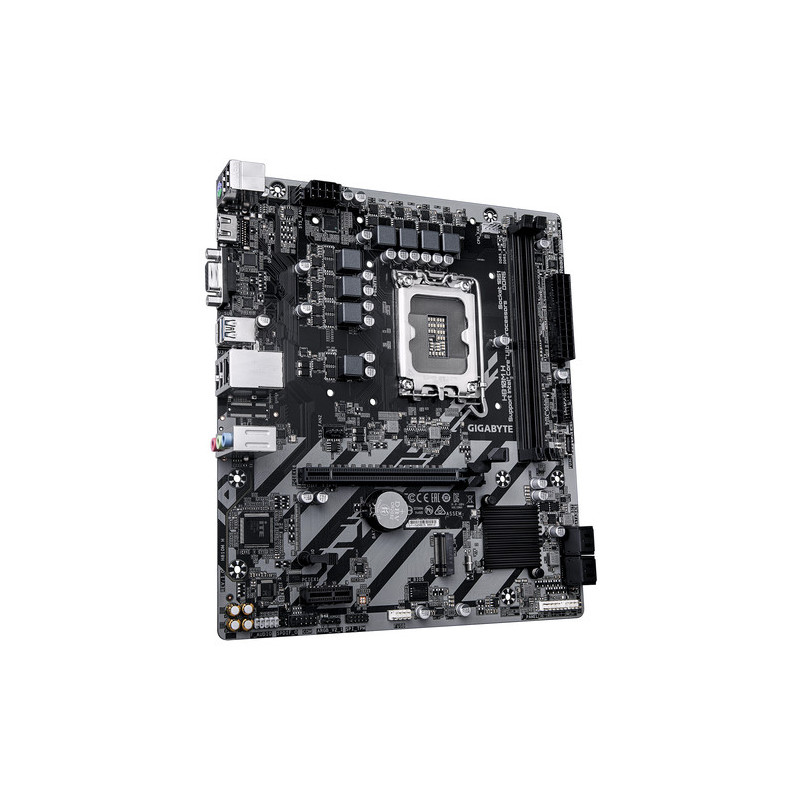

GIGABYTE H810M H
Chipset:
Intel® H810 Express
Size format: Micro ATX (244x215mm)
Processor support: Intel® Core™ Ultra
Processor socket: LGA1851
Remember:
* 2x DIMM socket supporting up to 128GB, DDR5 6400/5600 MT/s memory modules
* dvojkanálová architektur memčetria
* support máchátových modulov Extreme Memory Profile (XMP)
Graphic outputs:
* 1x HDMI port with maximum resolution 4096 x 2160 pri 60 Hz - Support for HDMI 2.1 version a HDCP 2.3
* 1x D-Sub port with maximum rozlíšením 1920 x 1200 pri 60 Hz
Sound card:
* Kodek Realtek® Audio
* High Definition Audio
* 2/4/5.1/7.1 kanal
* S/PDIF output support
Ethernet: Realtek® GbE LAN
Expansion slots:
* 1x PCI Express x16 supports PCIe 4.0 lane x16 (PCIEX16)
* 1x PCI Express x1 supports PCIe 3.0 lane x1 (PCIEX1)
Storage space:
in total supports 1 slot M.2 a 4 porty SATA 6Gb/s
* 1x M.2, M key typ 2280 - support PCIe 4.0 x4/x2 SSD
* 4x port SATA 6Gb/s
RAID radic: support for RAID 0/1/5/10 for storage devices SATA
USB:
Zadné USB (total 6 ports)
* 1x USB 3.2 Gen 1
* 5x USB 2.0/1.1
Predné USB (total 5 ports)
* 1x USB typ-C® connector - support USB 3.2 Gen 1
* 1x USB 3.2 Gen 1 header - support additional 1 USB 3.2 Gen 1
* 1x USB 2.0/1.1 header - support next echo 1 USB 2.0/1.1

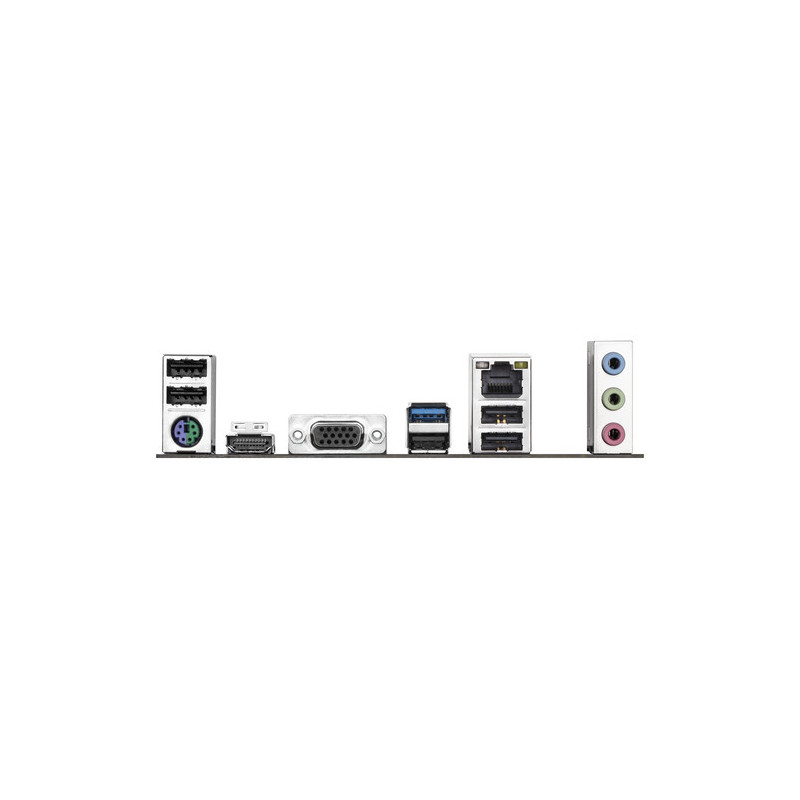

Ports on the rear panel:
* 1x USB 3.2 Gen 1
* 5x USB 2.0/1.1
* 1x PS/2_
* 1x HDMI
* 1x D-Sub
* 1x RJ-45_
* 3x audio jack
Internal ports:
Napájanie
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V napájací konektor
Súvisiace s ventiladorom a chladením
* 1x CPU fan header
* 2x system fan headers
Súvisiace s úložiskom
* 1x M.2 slot (Key M)
* 4x SATA 6Gb/s port_
USB
* 1x USB typ-C® connector - support USB 3.2 Gen 1
* 1x USB 3.2 Gen 1 header
* 1x USB 2.0/1.1 header
Ostatné
* 2x addressable RGB Gen2 LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (iba pre module GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x serial port header
* 1x S/PDIf Out header
* 1x Clear CMOS jumper
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/H810M-H#kf
| Graphic outputs | |
|---|---|
| HDMI connector | Yes |
| DVI connector | No |
| VGA connector (D-Sub) | Yes |
| Model design | |
| Model | GIGABYTE H810M H |
| Motherboard size | micro ATX |
| Processor and memory | |
| Maximum frequency base | 6400 |
| Pamäť - total number of slots | 2 |
| Memory - maximum size (GB) | 128 |
| Pätice | LGA 1851 |
| ECC memory support | No |
| Memory type | No |
| Chip set | |
| Chip set | H810 |
| Chipset manufacturer | Intel |
| Interior equipment | |
| COM port (internal) | No |
| external SATA interface | No |
| Connector for ARGB LED | Yes |
| Connector for RGB LED | 1 |
| M.2 v mode PCIe 3.0 x4 | No |
| PCIe 4.0 x16 | No |
| PCIe 5.0 x16 | Yes |
| Number of SATA 6 Gb/s connectors | No |
| Number of slots M.2 | 1 |
| Number of PCI slots | 4 |
| Pochet slotov PCIe x1 | 1 |
| Pochet slotov PCIe x16 | 1 |
| Port LPT (internal) | No |
| RAID controller | Yes |
| Rozšíritélní bzádováčí jazyk | Yes |
| ThunderBolt (internal) | No |
| USB Type C (internal) | No |
| TPM header | Yes |
| Outdoor accessories | |
| Bluetooth | No |
| COM port (external) | 1 |
| Ethernet - speed | 1 Gb |
| Number of LAN ports | No |
| Number of USB 2.0 ports (external) | 5 |
| Počet portov USB 3.x (externých) | 1 |
| Number of USB Type C ports (external) | No |
| Port LPT (external) | DDR5 |
| SPDIF output | Yes |
| Network card type | Realtek |
| Wi-Fi | Yes |
