GIGABYTE H610M D3W / LGA 1700 / mATX
Product reference:
3-4719331877804
GIGABYTE H610M D3W/LGA 1700/mATX
GIGABYTE H610M D3W / LGA 1700 / mATX
Product reference:
3-4719331877804
GIGABYTE H610M D3W/LGA 1700/mATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

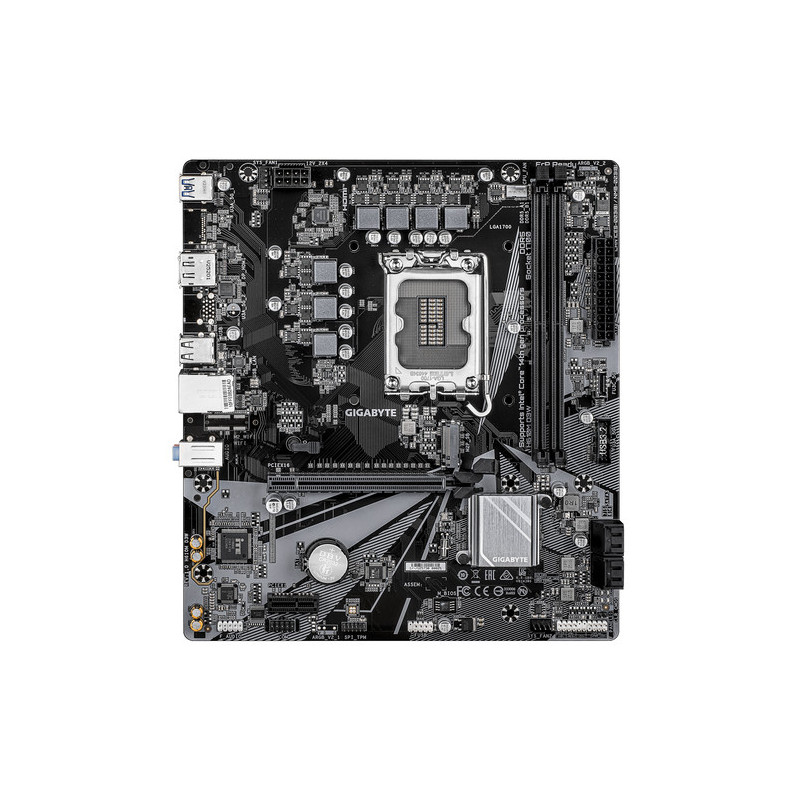

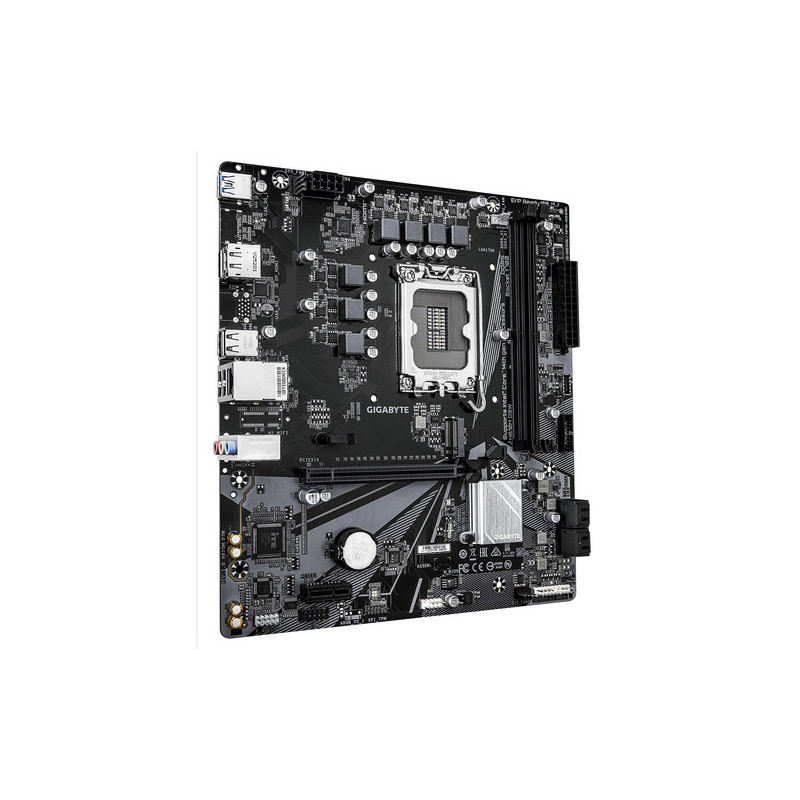

GIGABYTE H610M D3W
*Smart Fan 6
Chipset: Intel® H610 Express
Size format: Micro ATX (244x220mm)
Processor support: 14th, 13th a 12th generation Intel® Core™, Pentium® Gold a Celeron®
Processor socket: LGA1700
Remember:
*2x DIMM socket supporting up to 128GB, DDR5 5600/5200/4800/4400 MT/s
*dvojkanálová architektur máčetní
*podpora mejátových modulov Extreme Memory Profile (XMP)
Graphic outputs: support for Intel® HD Graphics (graphics specifications may differ for different types of processors)
*1x HDMI® 2.1
*1x DisplayPort 1.2
Sound card: codec Realtek 7.1 Surround Sound High Definition Audio
Ethernet: Realtek® GbE LAN
WLAN + Bluetooth: nie
Expansion slots:
*1x PCI Express x16 Support PCIe 4.0 x16
*1x PCI Express x1 support PCIe 3.0 x1
Storage space:
in total supports 1 slot M.2 a 4 porty SATA 6Gb/s
*1x M.2, M key, typ 2280 - support PCIe 3.0 x4/x2 SSD
*4x port SATA 6Gb/s
USB:
Zadné USB (total 5 ports)
*1x USB 3.2 Gen 1
*4x USB 2.0/1.1
Predné USB (celkovo 5 portov)
*1x konektor USB-C® - support USB 3.2 Gen 1
*1x header USB 3.2 Gen 1 - support for additional 2 ports USB 3.2 Gen 1
*1x header USB 2.0/1.1 - support for additional 2 ports USB 2.0/1.1

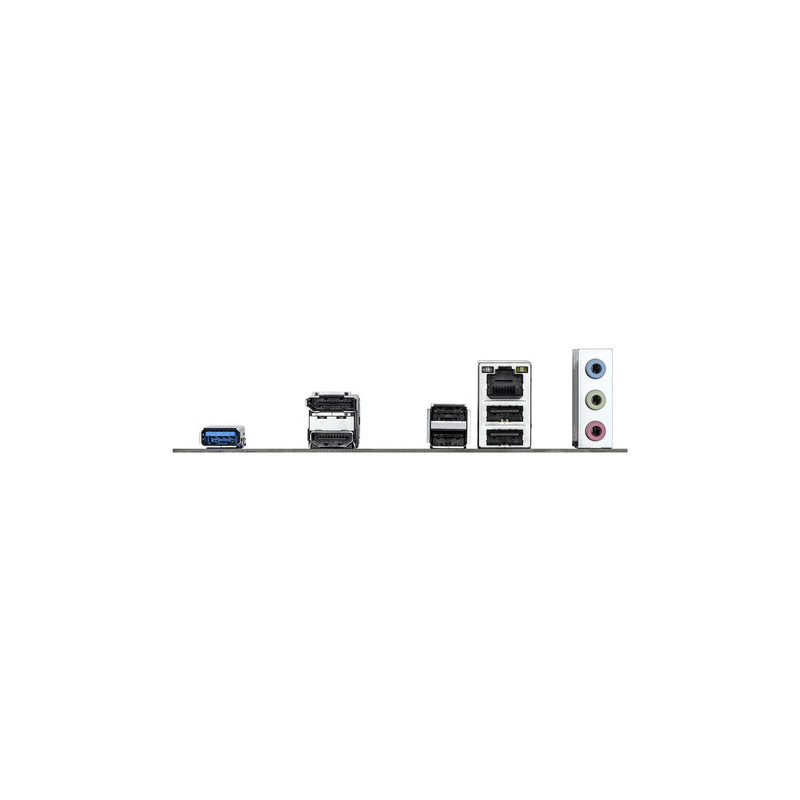

Ports on the rear panel:
*1x DisplayPort
*1x HDMI
*1x USB 3.2 Gen 1
*4x USB 2.0/1.1
*1x RJ-45_
*3x audio konektor
Internal ports:
Napájanie
*1x 24pinový ATX main napájácí konektor
*1x 8pinový ATX 12V napajácí konektor
Súvisiace s ventiladorom a chladením
*1x CPU fan header
*2x system fan header
Súvisiace s úložiskom
*1x M.2 slot (Key M)
*4x SATA 6Gb/s port
USB
*1x USB-C® connector USB 3.2 Gen 1
*1x header USB 3.2 Gen 1
*1x header USB 2.0/1.1
Ostatné
*2x addressable RGB Gen2 LED strip header
*1x front panel header
*1x front panel audio header
*1x Trusted Platform Module header (iba pre module GC-TPM2.0 SPI V2)
*1x serial port header
*1x Clear CMOS jumper
BIOS: 1x 128Mb flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0)
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/H610M-D3W-rev-11/sp#sp
| Graphic outputs | |
|---|---|
| DisplayPort / miniDisplayPort | Yes |
| HDMI connector | Yes |
| DVI connector | No |
| Model design | |
| Model | GIGABYTE H610M D3W |
| To revise | Yes |
| Motherboard size | micro ATX |
| Processor and memory | |
| Maximum frequency base | 5600 |
| Pamäť - total number of slots | 2 |
| Memory - maximum size (GB) | 128 |
| Pätice | LGA 1700 |
| Processor generation support | DDR5 |
| ECC memory support | No |
| Memory type | Yes |
| Chip set | |
| Chip set | H610 |
| Chipset manufacturer | Intel |
| Interior equipment | |
| COM port (internal) | No |
| Connector for ARGB LED | 1 |
| Number of SATA 6 Gb/s connectors | 1 |
| Number of USB 2.0 connectors (internal) | 1 |
| Pochet konektorov USB 3.x (internal) | No |
| Number of slots M.2 | 1 |
| Number of PCI slots | 4 |
| Pochet slotov PCIe x1 | 1 |
| Pochet slotov PCIe x16 | 1 |
| vPro support | No |
| Port LPT (internal) | No |
| RAID controller | No |
| Rozšíritélní bzádováčí jazyk | Yes |
| ThunderBolt (internal) | No |
| USB Type C (internal) | No |
| TPM header | Yes |
| Outdoor accessories | |
| Bluetooth | No |
| COM port (external) | 12. 13. a 14. gen. Intel |
| Ethernet - speed | 1 Gb |
| Number of LAN ports | Yes |
| Number of USB 2.0 ports (external) | 4 |
| Počet portov USB 3.x (externých) | 1 |
| Number of USB Type C ports (external) | No |
| Port LPT (external) | 1 |
| Network card type | Realtek |
| Wi-Fi | rev 1.x |
