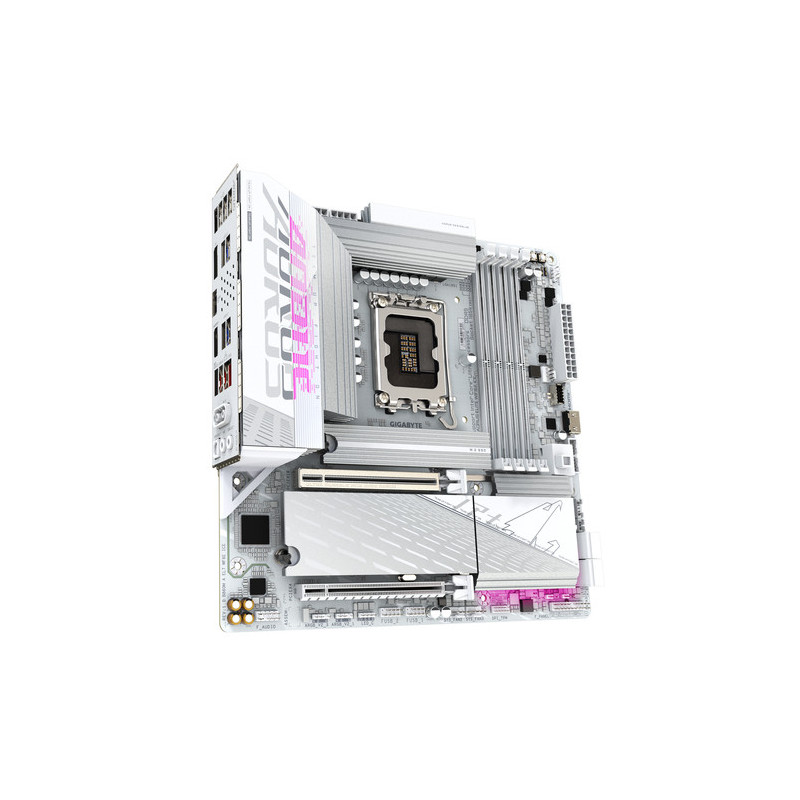

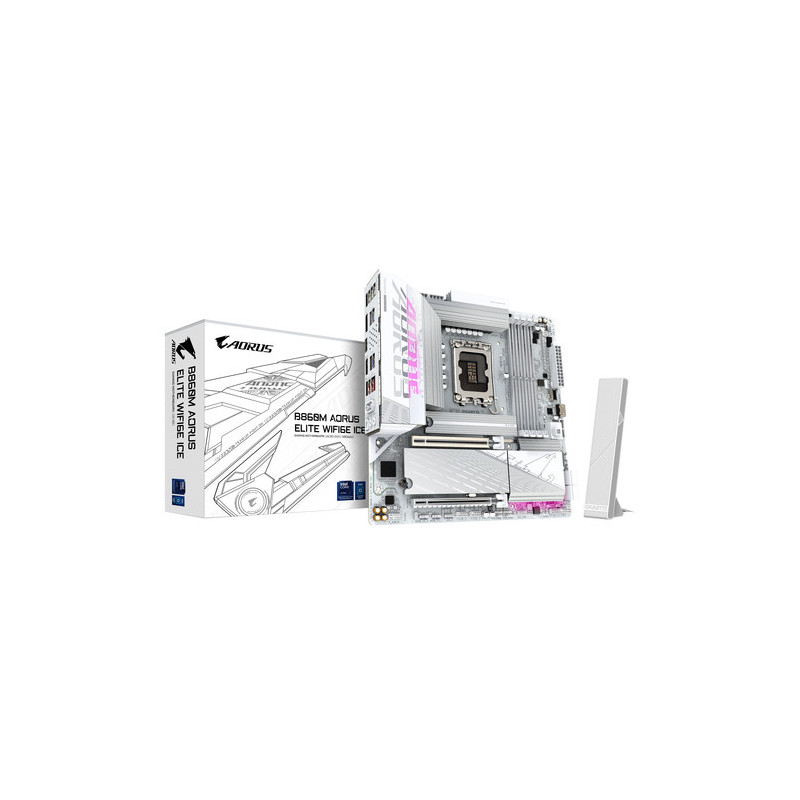

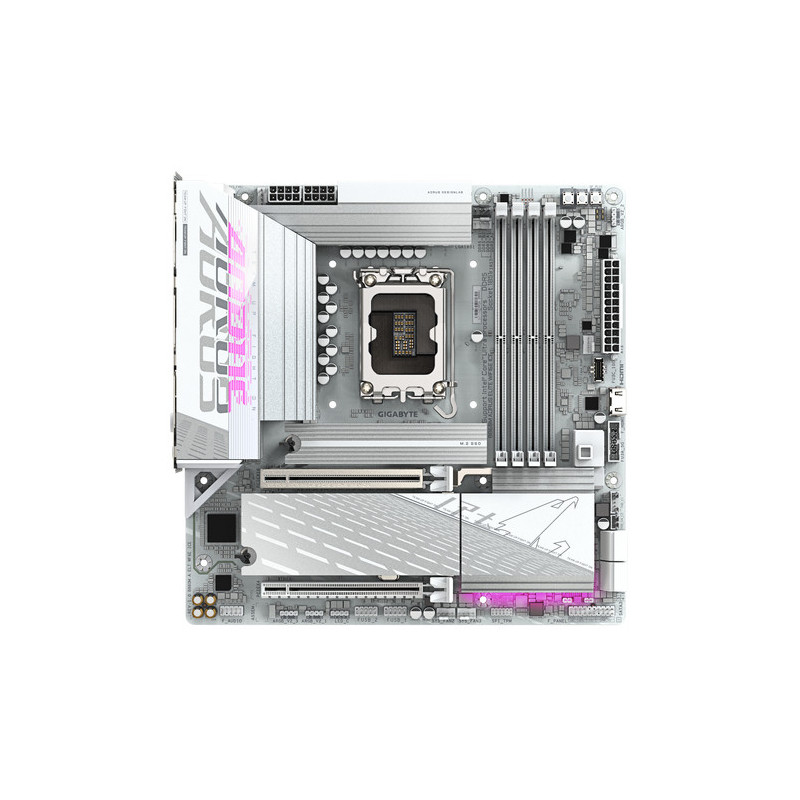

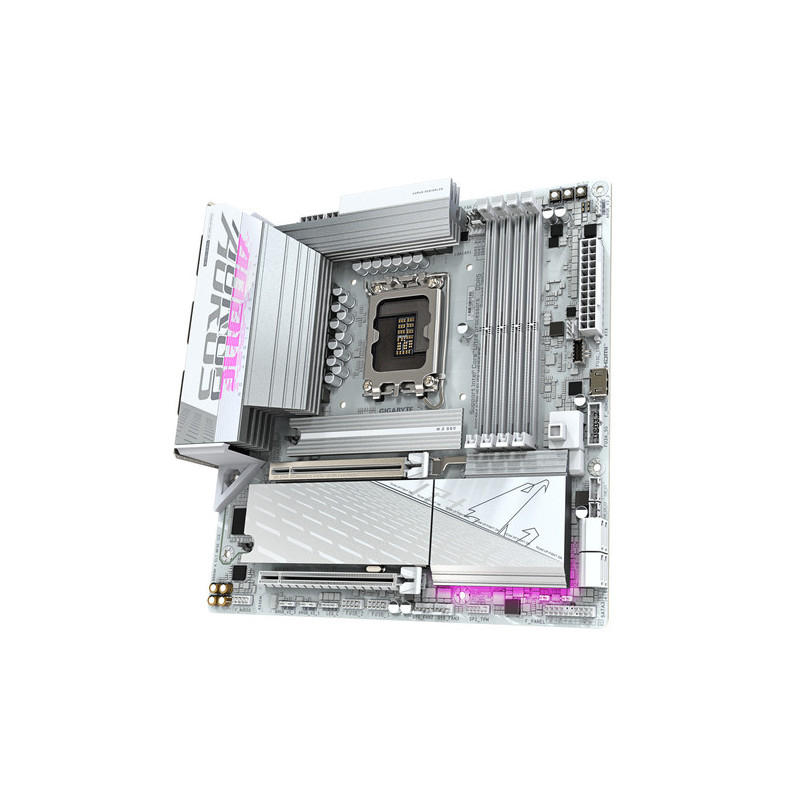

GIGABYTE B860M AORUS ELITE WIFI6E ICE / LGA 1851 / mATX

Intel® B860 Express
Size format: Micro ATX (244x244mm)
Processor support: Intel® Core™ Ultra
Processor socket: LGA1851
Remember:
* 4x DIMM support up to 256GB, DDR5 9200(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8266(OC) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 5600 MT/s máchátové moduly
* dvojkanálová architektur máchátó
* podpora máchátových modulov Extreme Memory Profile (XMP)
Graphic outputs:
* 1x USB4® Type-C®, supporting video outputs USB4 a DisplayPort with maximum resolution 3840x2160 144 Hz - Support for DisplayPort version 2.1
* 1x DisplayPort with maximum resolution 3840 x 2160 at 144 Hz - Support for version DisplayPort 2.1
* 1x HDMI with maximum resolution 4096 x 2160 at 60 Hz - Support for version HDMI 2.1 a HDCP 2.3
* 1x predný HDMI port with maximum resolution 1920 x 1080 at 30 Hz - Support for HDMI 1.4 version
Sound card:
* Codek Realtek® Audio
* High Definition Audio
* 2/4/5.1/7.1 kanal
* Support S/PDIF out
Ethernet: Realtek® 2.5 GbE LAN
WLAN + Bluetooth:
* Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) (802.11 a, b, g, n, ac, ax), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.3
* Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) (802.11 a, b, g, n, ac, ax), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.3
Expansion slots:
* 1x PCI Express x16 supports PCIe 5.0 standard x16 (PCIEX16)
* 1x PCI Express x16 supports PCIe 4.0 standard x4 (PCIEX4)
Storage space:
in total supports 3 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2, M key typ 2280 - support PCIe 5.0 x4/x2 SSD (M2A_CPU)
* 1x M.2, M key typ 2580/2280 - support PCIe 4.0 x4/x2 SSD (M2Q_SB)
* 1x M.2, M key typ 25110/22110/2580/2280 - support PCIe 4.0 x4/x2 SSD (M2N_SB)
* 4x port SATA 6Gb/s_
RAID radic: support for RAID 0/1/5/10 for storage devices SATA
USB:
Zadné USB (11 ports in total)
* 1x USB4® Type-C®
* 2x USB 3.2 Gen 2 (red)
* 4x USB 3.2 Gen 1
* 4x USB 2.0/1.1
Predné USB (7 ports in total)
* 1x USB typ-C® header - support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header - support next 1 USB 3.2 Gen 1
* 2x USB 2.0/1.1 header - support next 2 USB 2.0/1.1

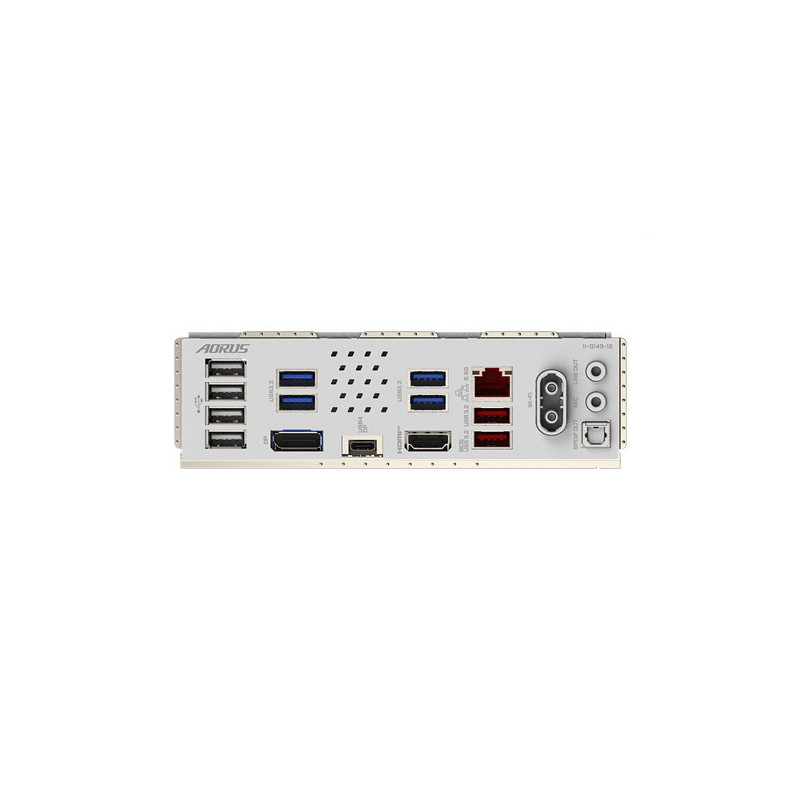

Ports on the rear panel:
* 1x USB4® Type-C®
* 4x USB 3.2 Gen 1
* 2x USB 3.2 Gen 2 (červený)
* 4x USB 2.0/1.1
* 1x HDMI
* 1x DisplayPort
* 2x antenna connector (2T2R)
* 1x RJ-45
* 2x audio jack
* 1x optický konektor S/PDIF out
Internal ports:
Napájanie
* 1x 24-pin ATX main power connector
* 2x 8-pin ATX 12V napájací konektor
Súvisiace s ventiláriom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 3x system fan header
* 1x system fan/water cooling pump header
Súvisiace s úložiskom
* 3x M.2 slot
* 4x SATA 6Gb/s port
USB
* 1x USB typ-C® header - support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0/1.1 header
Other
* 3x addressable RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (iba pre module GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x Clear CMOS jumper
* 1x Q-Flash Plus button
* 1x reset jumper
* 1x HDMI
* 1x napájacie button
* 1x resetovacie button
* 2x konektor pre pridavnú card Thunderbolt™
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.cz/motherboards/B860M-AORUS-ELITE-WIFI6E-ICE/Key-Features
