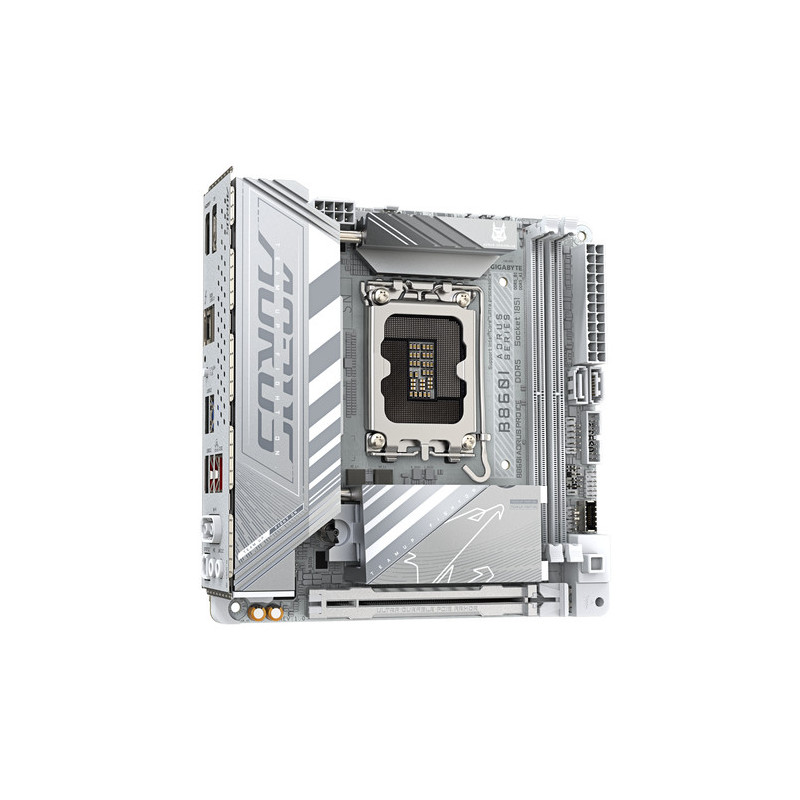

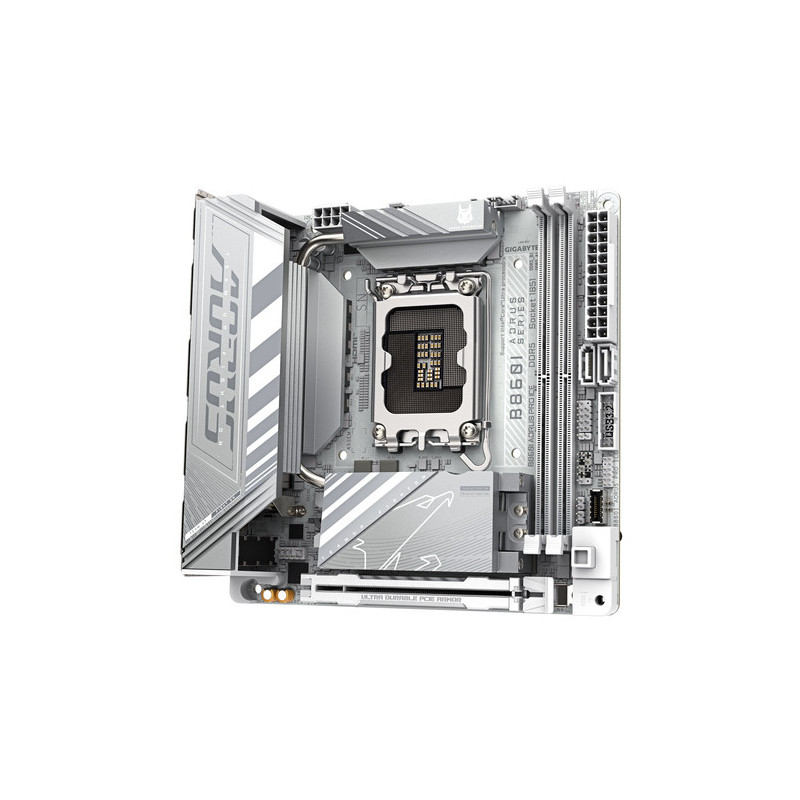

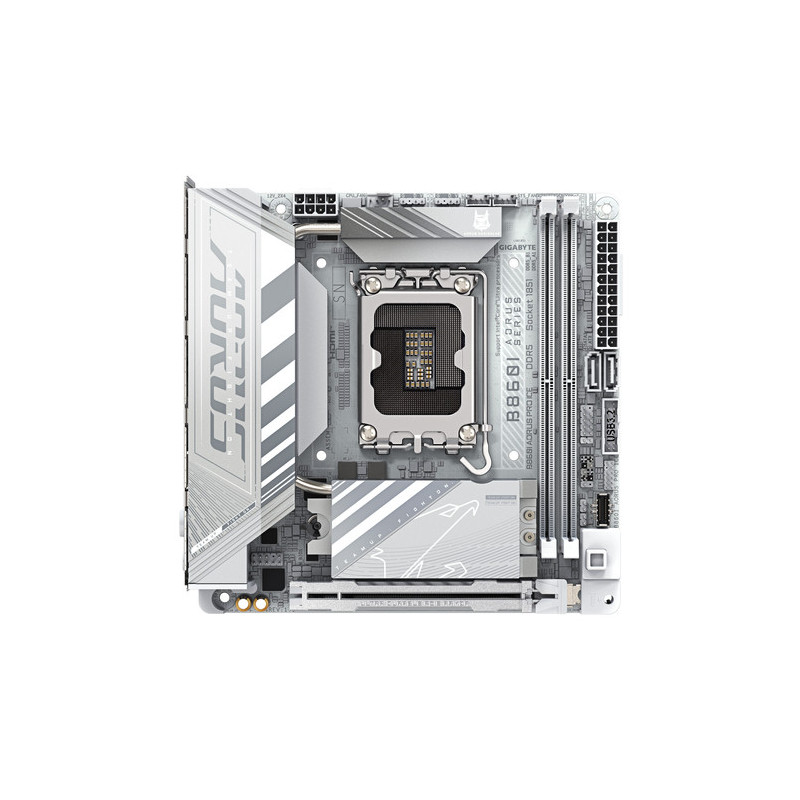

GIGABYTE B860I AORUS PRO ICE / LGA 1851 / mITX

Intel® B860 Express
Format: Mini-ITX (170x170 mm)
Processor support: Intel® Core™ Ultra
Processor reliability: LGA1851
Remember:
* 2x DIMM slots supporting up to 128 GB, DDR5 9200(OC)/8800(OC)/8600(OC)/8400(OC)/8266(OC)/8200(OC)/8000(OC)/7950(OC)/7900 (OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/5600 MT/s memory modules
* Dvojkanálová memoryová architecture
* Support for extreme memory profile modules (XMP)
Graphic outputs:
* 1x Intel® Thunderbolt™ 4 (USB4® Type-C®), support for video outputs DisplayPort a Thunderbolt™ with maximum resolution 5120 x 2880 @ 60 Hz - Support DisplayPort verzie 2.1 a HDCP 2.3
* 1x DisplayPort with maximum resolution 3840 x 2160 @ 144 Hz - Support DisplayPort verzie 2.1 a HDCP 2.3
* 1x HDMI with maximum resolution 4096 x 2160 @ 60 Hz - Support HDMI verzie 2.1 a HDCP 2.3
Sound card:
* Realtek® Audio Codec
* High Definition Audio
* 2/4/5.1/7.1 channels
* Support S/PDIF out
Ethernet: Realtek® 2.5GbE LAN
WLAN + Bluetooth:
* Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) (802.11 a, b, g, n, ac, ax, be), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.4
* MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) (802.11 a, b, g, n, ac, ax, be), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.4
Expansion slots:
* 1x PCI Express x16 supports PCIe 5.0 a beží na x16
Storage space:
Total supports 2 M.2 sloty a 2 SATA 6 Gb/s ports
* 1x M.2, M key typ 2280 - support for PCIe 5.0 x4/x2 SSD (M2A_CPU)
* 1x M.2 on the back of the motherboard, M key typ 2280 - support for PCIe 4.0 x4/x2 SSD (M2Q_SB)
* 2x SATA 6 Gb/s ports
RAID radic: Support for RAID 0/1 for SATA devices
USB:
Rear USB (6 ports total)
* 1x USB4® Type-C®
* 3x USB 3.2 Gen 2 (red)
* 2x USB 3.2 Gen 1
Front USB (5 ports total)
* 1x USB Type-C® header - support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header - support for additional 1 USB 3.2 Gen 1
* 1x USB 2.0/1.1 header - support for additional 1 USB 2.0/1.1

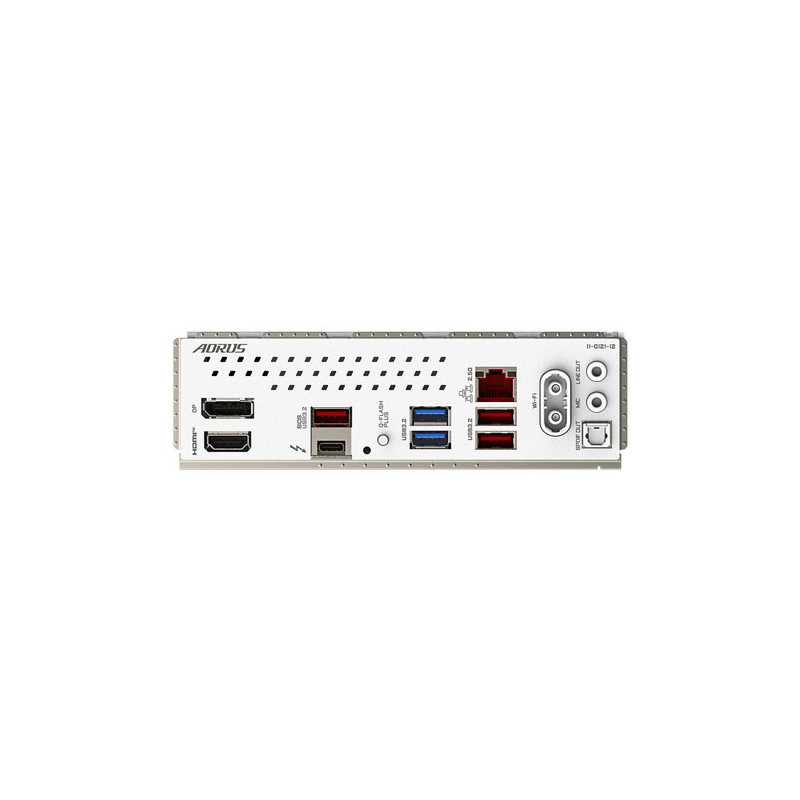

Ports on the rear panel:
* 1x Intel® Thunderbolt™ 4* (USB4® Type-C®)
* 3x USB 3.2 Gen 2 (red)
* 2x USB 3.2 Gen 1
* 1x HDMI
* 1x DisplayPort
* 1x Q-Flash Plus button
* 1x RJ-45
* 2x audio jacks
* 2x antenna connector (2T2R)
* 1x optical connector S/PDIF Out
Internal ports:
Power supply
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
Súvisiace s ventiladorom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 1x system fan header
Storage related
* 2x M.2 slots
* 2x SATA 6 Gb/s ports
USB
* 1x USB Type-C® header - support USB 3.2 Gen 2
* 1x USB 3.2 Gen 1 header
* 1x USB 2.0/1.1 header
Other
* 2x addressable RGB Gen2 LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (len pre modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x Clear CMOS jumper
* 1x reset jumper
* 1x speaker header
BIOS: 1x 256 Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www. gigabyte .com/Motherboard/B860I-AORUS-PRO-ICE#kf
