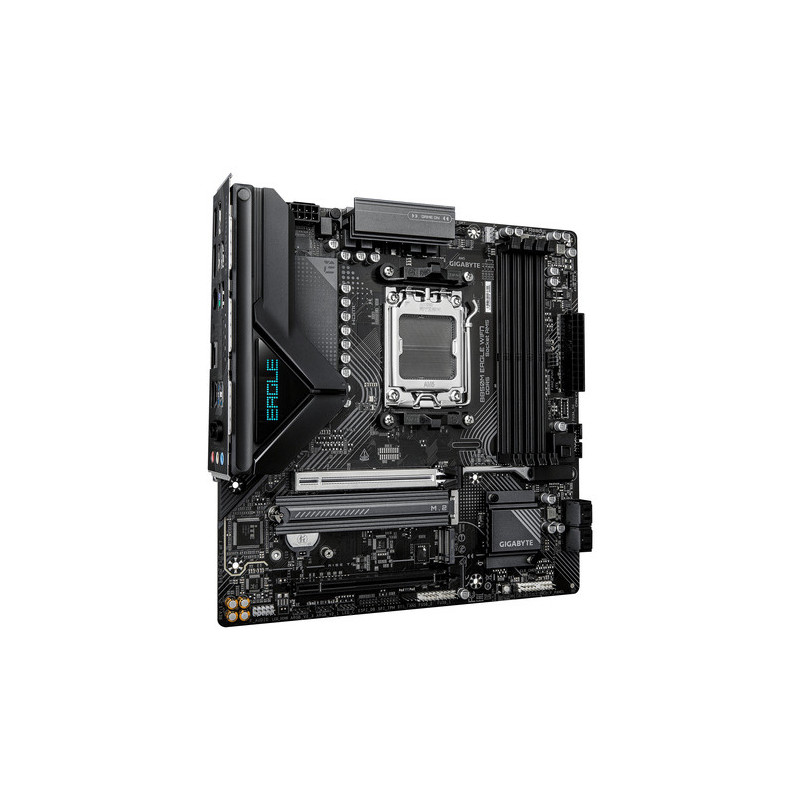

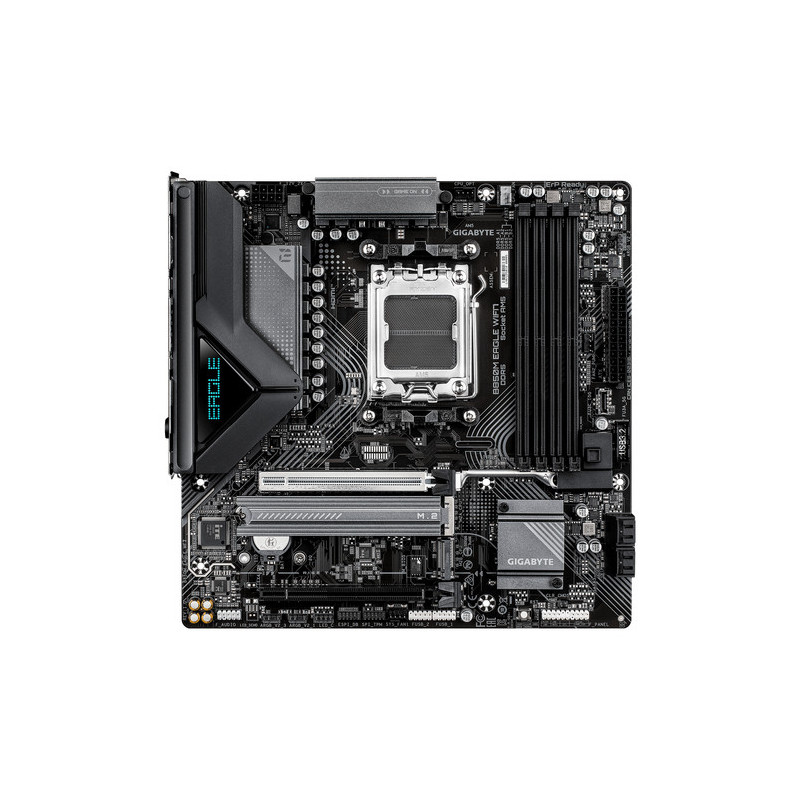

Gigabyte B850M Eagle WiFi7 (B850,AM5,mATX,DDR5)

AMD B850
Dimensional format: Micro ATX (244x244 mm)
Processor support: 7th to 9th generation Ryzen
Processor socket: AM5
Remember:
*4x DIMM support up to 256GB, DDR5 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s máchátové moduly
*Dvojkanálová architektur achmátí
*Podpora máchátových modulov AMD EXtended Profiles for Overclocking (AMD EXPO™) a Extreme Memory Profile (XMP)
Graphics ports:
*1x HDMI with maximum resolution 4096x2160 at 60 Hz - Support for HDMI version 2.1, HDCP 2.3 a HDR, support for native ports compatible with HDMI 2.1 TMDS
*2x DisplayPort with maximum resolution 3840x2160 at 144 Hz - Support for DisplayPort version 1.4
Sound card:
*Kodek Realtek® Audio
*High Definition Audio
*2/4/5.1/7.1 kanalový
Ethernet: Realtek® 2,5GbE LAN
WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE (802.11a, b, g, n, ac, ax), support for frequency bands 2.4/5/6 GHz + Bluetooth 5.4
Expansion slots:
*1x PCI Express x16 supports PCIe 5.0 a bus x16 (PCIEX16)
*1x PCI Express x16 supports PCIe 3.0 and only x4 (PCIEX4)
RAID radic:
*RAID 0, RAID 1 a RAID 10 support for storage devices SATA
*RAID 0, RAID 1, RAID 5 a RAID 10 support for storage devices NVMe SSD
Storage space:
*1x M.2, M key typ 25110/22110/2580/2280 - support PCIe 5.0 x4/x2 SSD (M2A_CPU)
*1x M.2, M key typ 22110/2280 - support PCIe 4.0 x4/x2 SSD (M2B_CPU)
*4x SATA 6Gb/s
USB:
Zadné USB
*1x USB Type-C® supports USB 3.2 Gen 2
*1x USB 3.2 Gen 2 Type-A (červený)
*2x USB 3.2 Gen 1
*4x USB 2.0/1.1
Predné USB
*1x USB Type-C® header supporting USB 3.2 Gen 2
*1x USB 3.2 Gen 1 header - support for additional 1 USB 3.2 Gen 1
*2x USB 2.0/1.1 header - support for additional 2 USB 2.0/1.1
Internal ports:
Napájanie
*1x 24-pinový main napájácí konektor ATX_
*1x 8-pinový napájací konektor ATX 12V
Súvisiace s ventiladorom a chladením
*1x CPU fan header
*1x CPU fan/water cooling pump header
*1x system fan header
*1x system fan/water cooling pump header
Súvisiace s úložiskom
*2x M.2 slot (M key)
*4x SATA 6Gb/s port
USB
*1x USB Type-C® header
*1x USB 3.2 Gen 1 header
*2x USB 2.0/1.1 header
Ostatné
*3x addressable RGB Gen2 LED strip header
*1x RGB LED strip header
*1x front panel header
*1x front panel audio header
*1x Trusted Platform Module header (only pre module GC-TPM2.0 SPI V2)
*1x reset button
*1x reset jumper
*1x Clear CMOS jumper

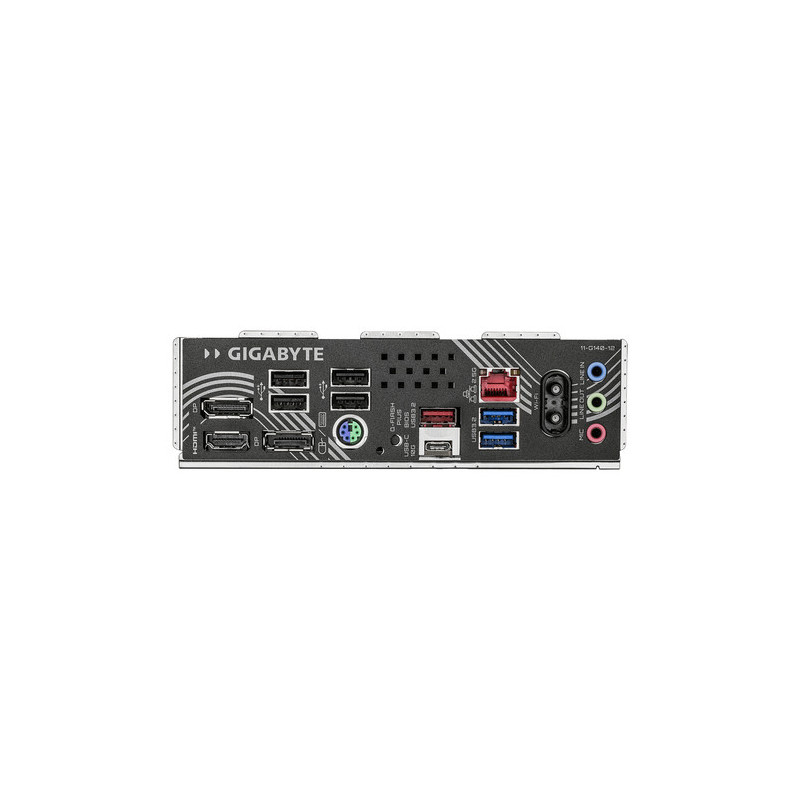

Ports on the rear panel:
*1x HDMI
*2x DisplayPort
*1x button Q-Flash Plus
*1x PS/2 keyboard/mouse
*1x USB Type-C® s support USB 3.2 Gen 2
*1x USB 3.2 Gen 2 Type-A (červený)
*2x USB 3.2 Gen 1
*4x USB 2.0/1.1
*1x RJ-45_
*2x anténny konektor (2T2R)
*3x audio jack
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/B850M-EAGLE-WIFI7
