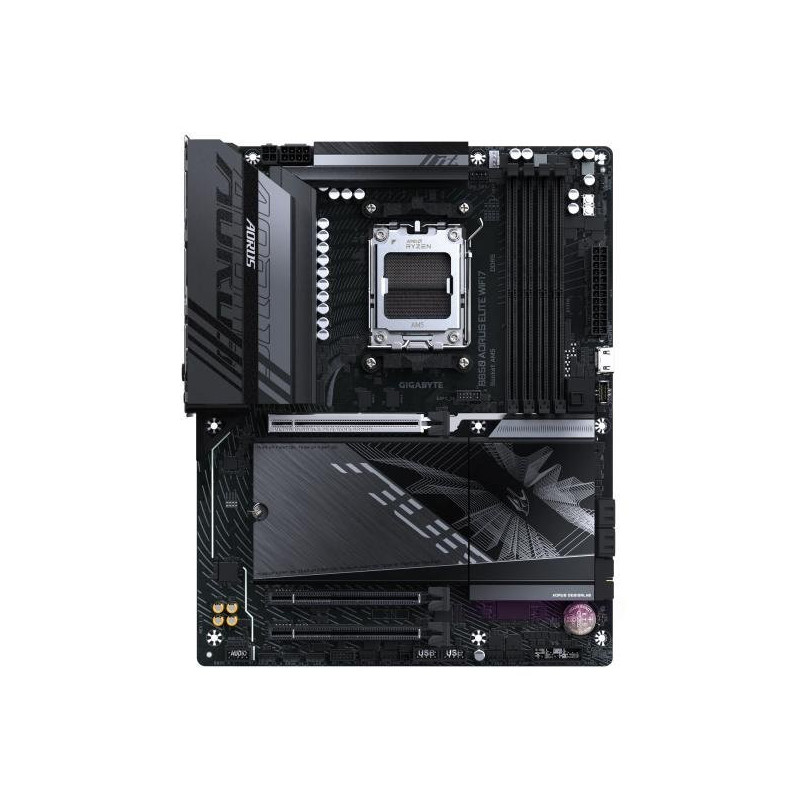

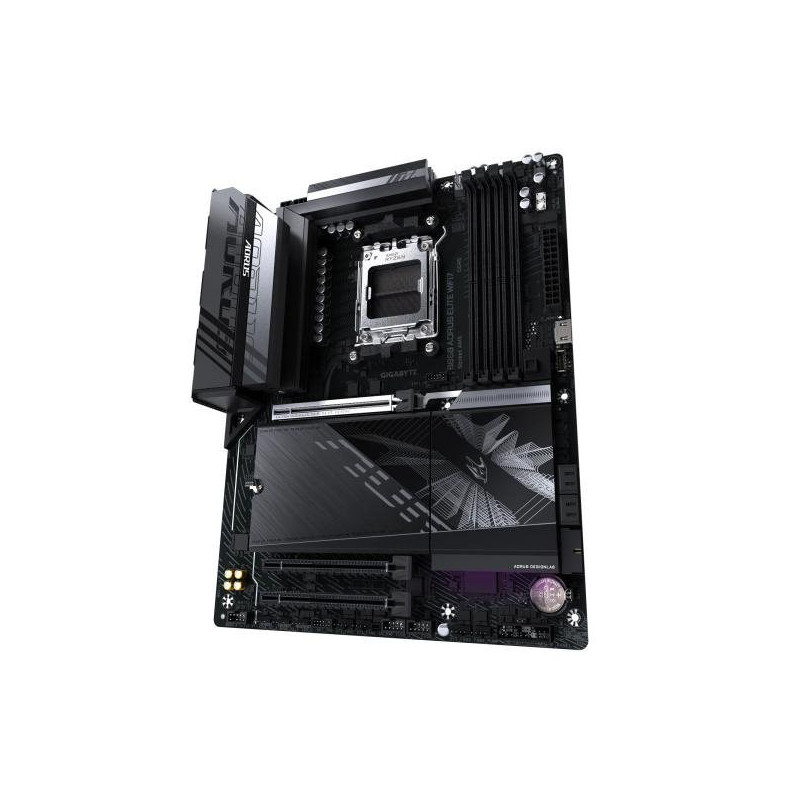

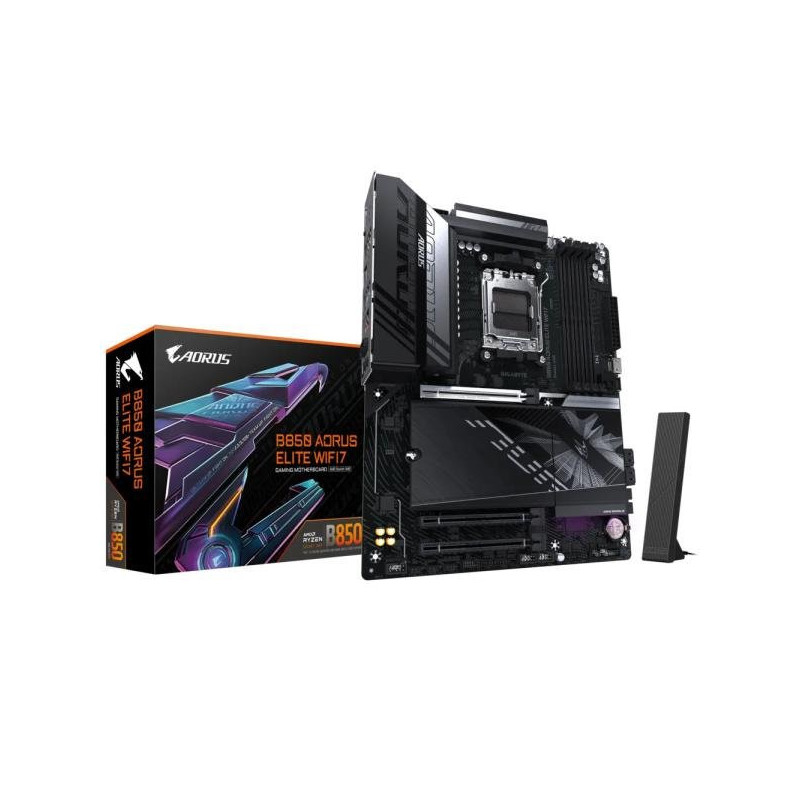

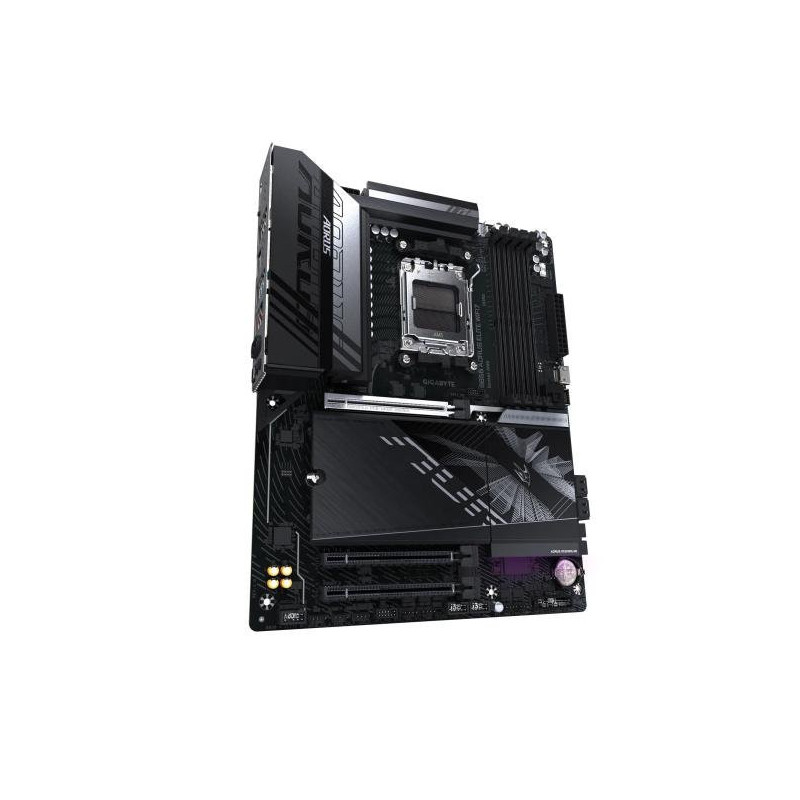

Gigabyte B850 A Elite WF7 Motherboard AMD AM5 / B850 / DDR5 4×DIMM / ATX / Wi-Fi 7 / 2.5 GbE

Gigabyte The B850 A Elite WF7 motherboard is designed for AMD Ryzen processors with AM5 socket and is equipped with the B850 chipset. It supports high-frequency DDR5 memory, PCIe 5.0 M.2 connections, reinforced PCIe slots, and modern network connections, including Wi-Fi 7 and 2.5 GbE. Large VRM heatsinks ensure stable operation under load. The ATX format allows you to build powerful gaming or workstations.

Characteristics
Model: Gigabyte B850 A Elite WF7
Device type: Motherboard
Processor socket: AMD AM5
Chipset: AMD B850
Form factor: ATX

Memory
Type: DDR5
Slots: 4× DIMM
Mode: Dual Channel
Maximum capacity: 192 GB
Frequencies: up to 8200 MT/s (OC)
Profiles: AMD EXPO / XMP

Expansion
1× PCIe 5.0 x16
1× PCIe 4.0 x16 (x4)
1× PCIe 3.0 x1

Data storage
3× M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4)
4× SATA 6Gb/s
RAID 0 / 1 / 10

Network and wireless connections
LAN: 2.5 GbE
Wi-Fi 7
Bluetooth

Audio
HD Audio
Standard 3.5 mm jacks

Rear I/O
USB Type-C
USB 3.2 Gen2
USB 3.2 Gen1
USB 2.0
HDMI
RJ-45
Audio jacks

Cooling and construction
Large VRM heatsinks
M.2 radiators
CPU_FAN, PUMP, SYS_FAN sockets
Reinforced PCIe slots

Additional options
Updating BIOS without a CPU
TPM support
Windows 11 support

Plate dimensions: 30.5 cm × 24.4 cm

Physical parameters
Weight: 1.20 kg
Gross weight: 2.05 kg
Package dimensions
Length, m: 0.3300
Height, m: 0.2800
Width, m: 0.0700
