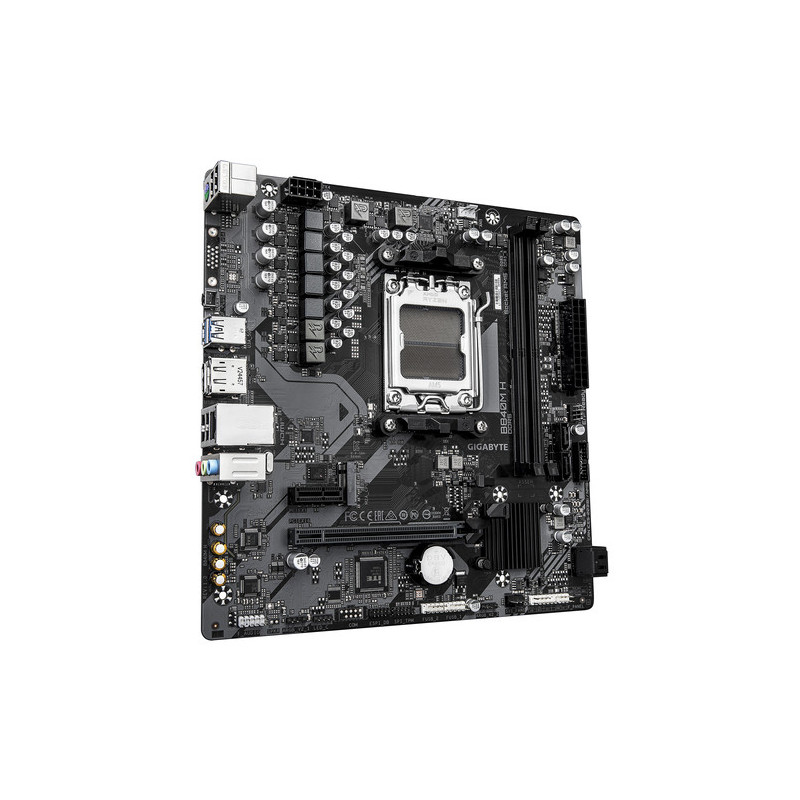

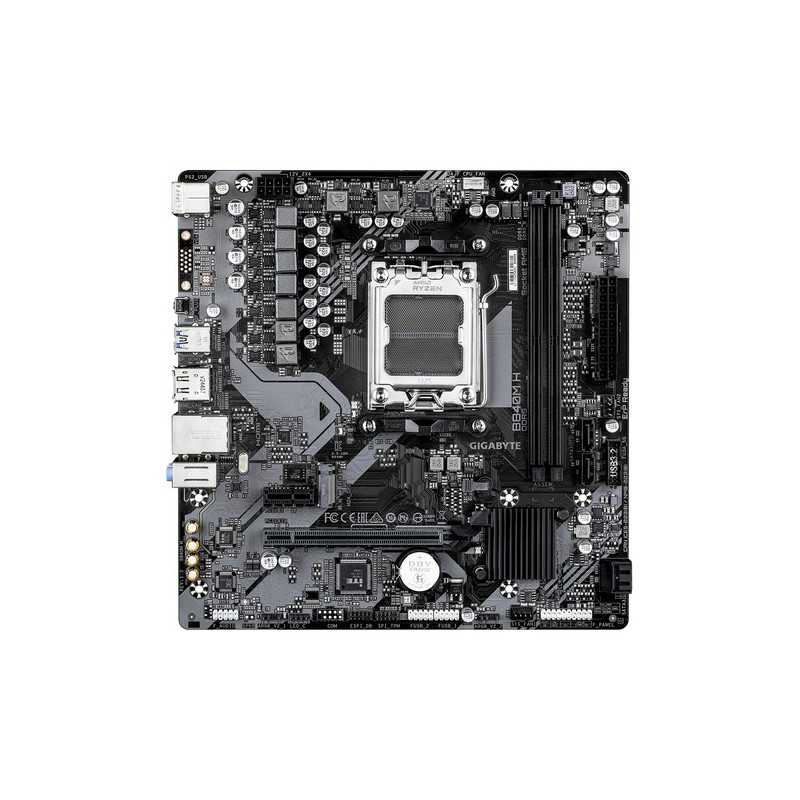

GIGABYTE B840M H mātesplate AMD B840 AM5 ligzda micro ATX

AMD B840
Dimensional format: Micro ATX (230x225 mm)
Processor support: 7th to 9th gen Ryzen
Processor socket: AM5
Remember:
*2x DIMM socket supporting up to 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
*Dvojkanálová architektur memčiat
*Podpora mejtových modulov AMD EXtended Profiles for Overclocking (AMD EXPO™) a Extreme Memory Profile (XMP)
Graphics ports:
*1x HDMI with maximum resolution 4096x2160 at 60 Hz - Support for HDMI version 2.1 and HDCP 2.3, support for native ports compatible with HDMI 2.1 TMDS
*1x DisplayPort with maximum resolution 3840x2160 at 144 Hz - Support for DisplayPort version 1.4
Sound card:
*Kodek Realtek® Audio
*High Definition Audio
*2/4/5.1/7.1 kanalový
Ethernet: Realtek® GbE LAN
WLAN + Bluetooth: nie
Expansion slots:
*1x PCI Express x16 supports PCIe 4.0 standard x16
*1x PCI Express x1 supports PCIe 3.0 a baží na x1
RAID radic:
*RAID 0, RAID 1 a RAID 10 support for storage devices SATA
*RAID 0, RAID 1, RAID 5 a RAID 10 support for storage devices NVMe SSD
Storage space:
*1x M.2, M key typ 2580/2280 - support PCIe 4.0 x4/x2 SSD
*4x SATA 6Gb/s
USB:
Zadné USB
*2x USB 3.2 Gen 1
*4x USB 2.0/1.1
Predné USB
*1x USB 3.2 Gen 1 header - support for next 1 USB 3.2 Gen 1
*2x USB 2.0/1.1 header - support for additional 2 USB 2.0/1.1
Internal ports:
Napájanie
*1x 24-pinový main napájácí konektor ATX_
*1x 8-pinový napájácí konektor ATX 12V
Suvisiace s ventiladorom a chladením
*1x CPU fan header
*2x system fan header
Súvisiace s úložiskom
*1x M.2 slot (M key)
*4x SATA 6Gb/s port
USB
*1x USB 3.2 Gen 1 header
*2x USB 2.0/1.1 header
Other
*2x addressable RGB Gen2 LED strip header
*1x RGB LED strip header
*1x front panel header
*1x front panel audio header
*1x Trusted Platform Module header (len pre modul GC-TPM2.0 SPI V2)
*1x reset jumper
*1x Clear CMOS jumper

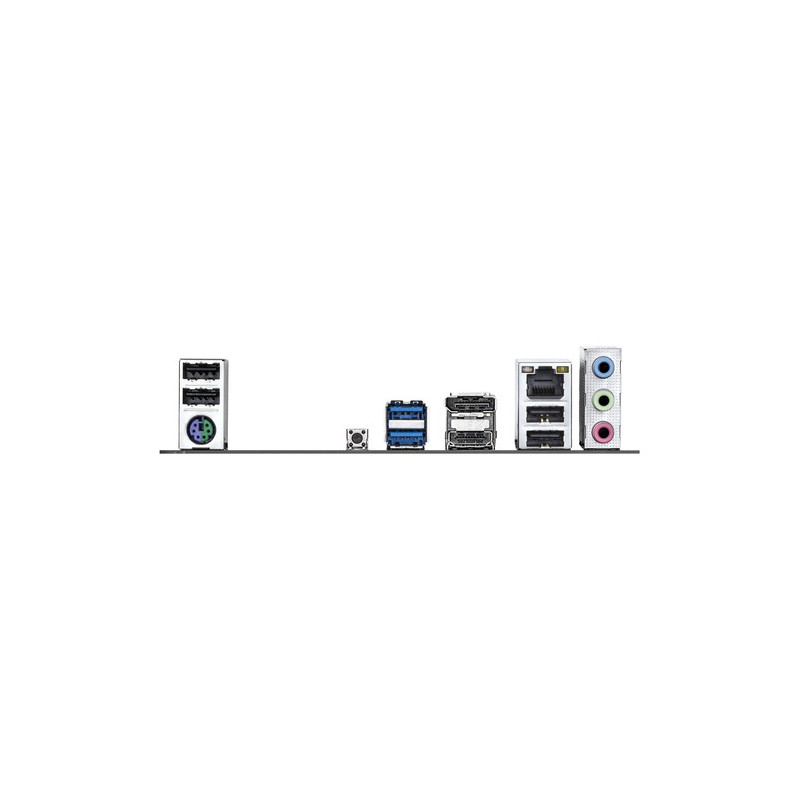

Ports on the rear panel:
*1x PS/2 keyboard/mouse
*1x HDMI
*1x DisplayPort
*1x Q-Flash Plus button
*2x USB 3.2 Gen 1
*4x USB 2.0/1.1
*1x RJ-45
*3x audio jack
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/B840M-H
