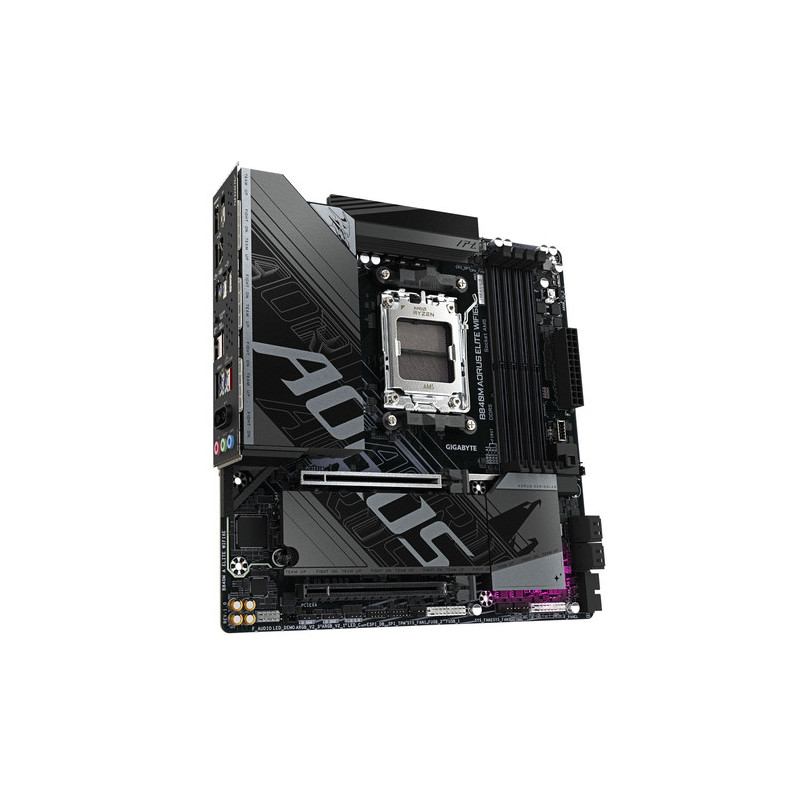

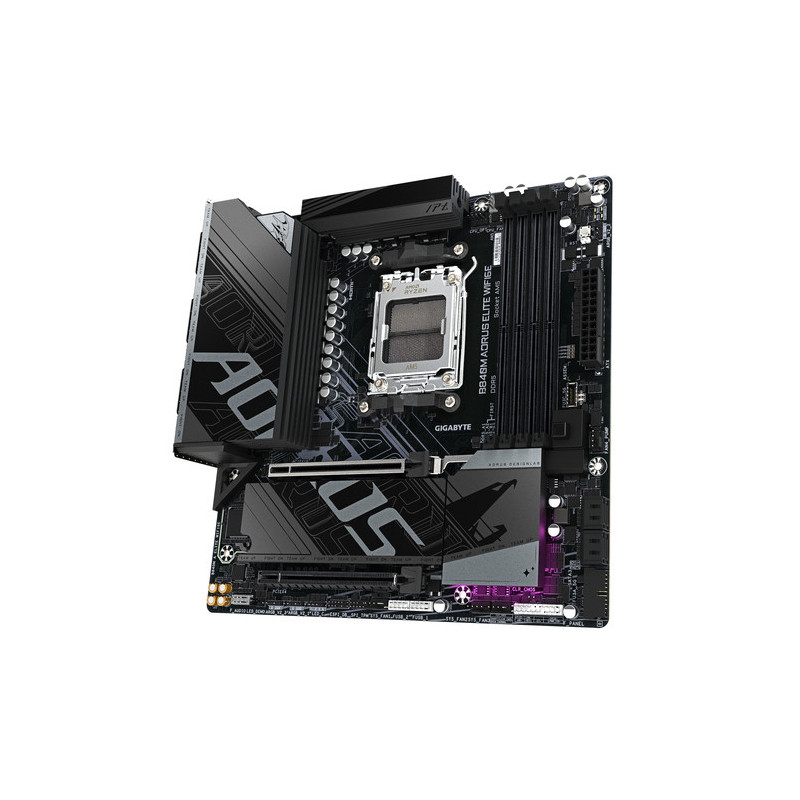

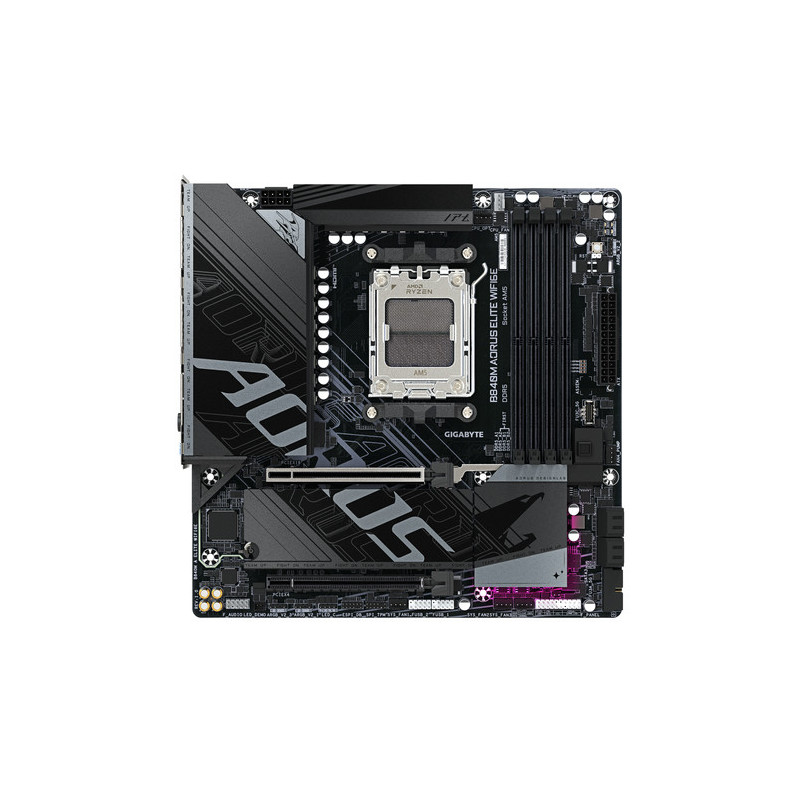

Motherboard Gigabyte B840M AORUS ELITE WIFI6E

AMD B840
Format: Micro ATX (244x244 mm)
Processor support: AMD Ryzen™ 7th to 9th generation
Processor reliability: AM5
Remember:
* 4x DIMM supports up to 256 GB, DDR5 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) /5200 / 4800 / 4400 MT/s májátové moduly
* dvojkanálová architektur mágátí
* podpora májátových modulov Extreme Memory Profile (XMP) a AMD EXTended Profiles (AMD EXPO™)
Graphic outputs:
* 1x HDMI port with maximum resolution 4096 x 2160 pri 60 Hz - Support version HDMI 2.1, HDCP 2.3 a HDR
* 1x DisplayPort with maximum resolution 3840 x 2160 pri 144 Hz - Support version DisplayPort 1.4 a HDR
Sound card:
* Codek Realtek® Audio
* High Definition Audio
* 2/4/5.1/7.1 channel
Ethernet: Realtek® 2,5GbE LAN
WLAN + Bluetooth:
* Realtek® Wi-Fi 6E RTL8852CE (802.11 a, b, g, n, ac, ax), support for frequency bands 2.4/5/6 GHz + Bluetooth v5.3_
Expansion slots:
* 1x PCI Express x16 supports PCIe 4.0 standard x16 (PCIEX16)
* 1x PCI Express x16 supports PCIe 3.0 standard x4 (PCIEX4)
Storage space:
in total supports 2 sloty M.2 a 4 porty SATA 6 Gb/s
* 1x M.2, M key typ 2580/2280 - support PCIe 4.0 x4/x2 SSD (M2A_CPU)
* 1x M.2, M key typ 22110/2280 - support PCIe 4.0 x4/x2 SSD (M2B_CPU)
* 4x port SATA 6 Gb/s
RAID radic:
* RAID 0/1/10 support for SATA devices
* RAID 0/1/5/10 support for NVMe SSD devices
USB:
Zadné USB (8 ports in total)
* 1x USB® Typ-C® - support USB 3.2 Gen 1
* 2x USB 3.2 Gen 1
* 1x USB 3.2 Gen 2 (červený)
* 4x USB 2.0/1.1
Predné USB (7 ports in total)
* 1x USB Typ-C® header - support for USB 3.2 Gen 1
* 1x USB 3.2 Gen 1 header - support for additional 1 USB 3.2 Gen 1
* 2x USB 2.0/1.1 header - support for additional 2 USB 2.0/1.1

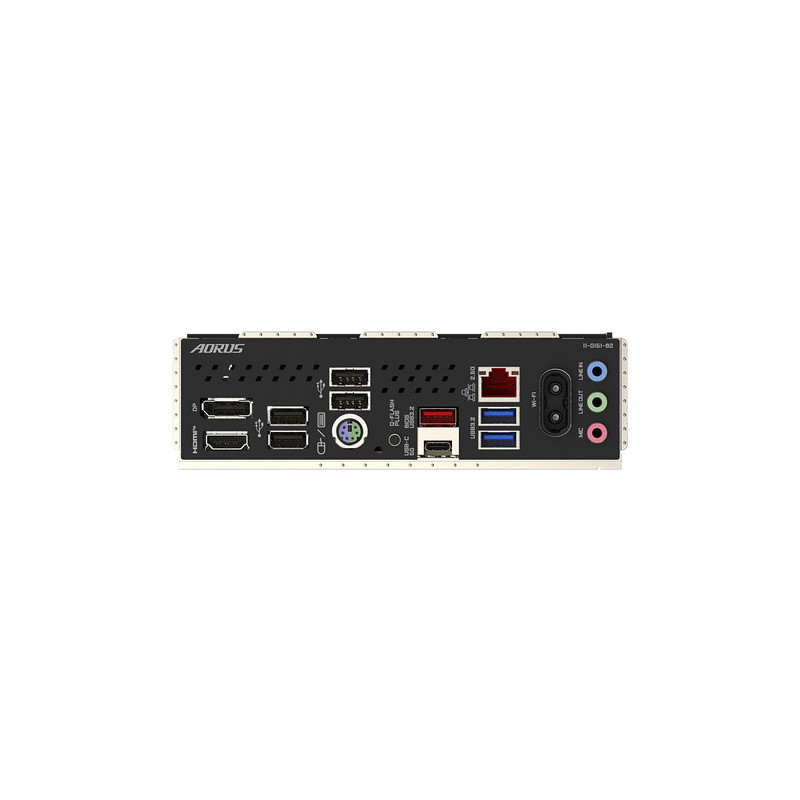

Ports on the rear panel:
* 1x USB® Typ-C® - support USB 3.2 Gen 1
* 2x USB 3.2 Gen 1
* 1x USB 3.2 Gen 2 (červený)
* 4x USB 2.0/1.1
* 1x DisplayPort
* 1x HDMI
* 1x PS/2
* 1x RJ-45
* 2x antenna connector (2T2R)
* 3x audio jack
* 1x Q-Flash Plus button
Internal ports:
Napájanie
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V napájací konektor
Súvisiace s ventiláriom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 3x system fan headers
* 1x system fan/water cooling pump header
Súvisiace s úložiskom
* 2x M.2 slot (Key M)
* 4x SATA 6 Gb/s port
USB
* 1x USB Typ-C® header
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0/1.1 header
Ostatné
* 3x adresovatelný RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (iba pre modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
* 1x resetovacie button
* 1x reset jumper
* 1x Clear CMOS jumper
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/B840M-AORUS-ELITE-WIFI6E#kf
