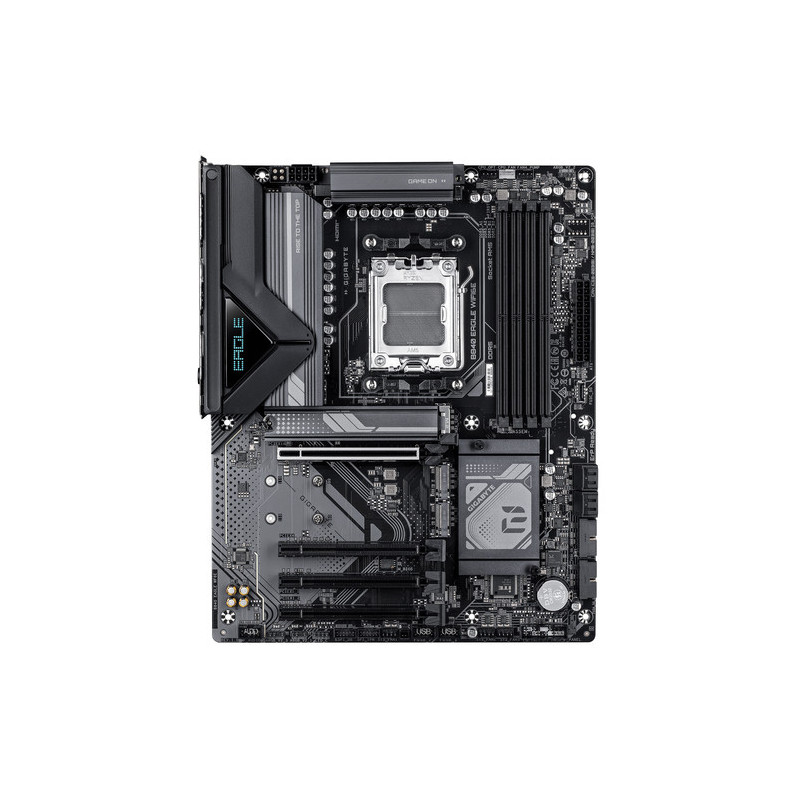

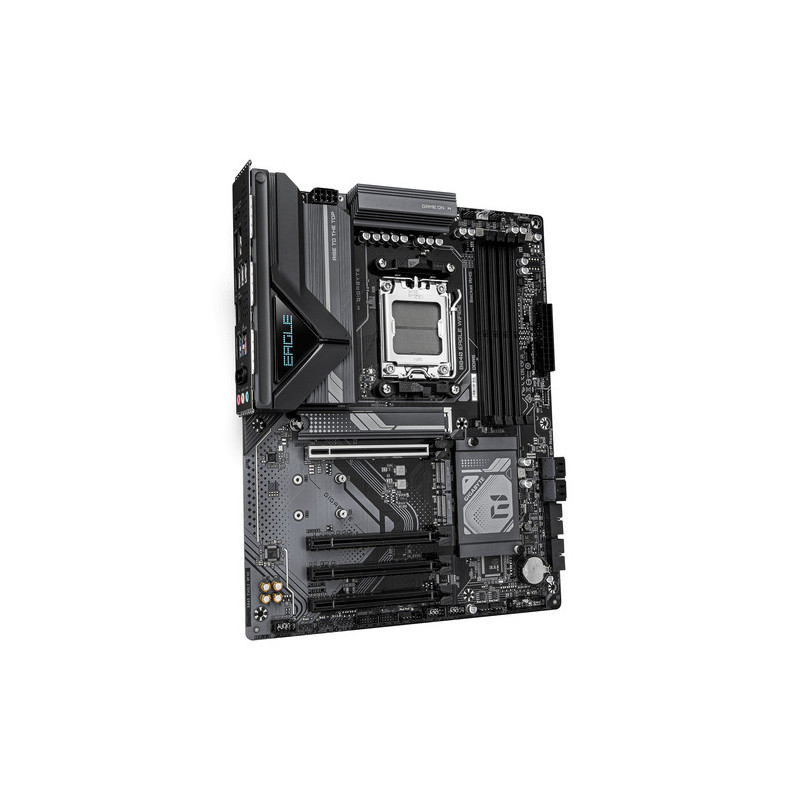

Gigabyte B840 EAGLE WF6E

* Q-Flash Plus
* X3D Turbo Mode
* EZ-Latch Plus/Click
* WIFI EZ-Plug
Chipset: AMD B840
Size format: ATX (305x244mm)
Processor support: AMD Ryzen™ rady 9000/8000/7000
Processor reliability: AM5
Remember:
* 4x DIMM support up to 256GB, DDR5 8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5200/4800/4400MT/s memory modules
* dvojkanálová architecture memory
* support for AMD EXtended Profiles for Overclocking (AMD EXPO™) a podpora majátových modulov Extreme Memory Profile (XMP)
Graphic outputs: graphic specifications may vary depending on support CPU
* 1x DisplayPort 1.4
* 1x HDMI 2.1
Sound card: codec Realtek®, 7.1 Surround Sound High Definition Audio
Ethernet: Realtek® 2.5 GbE LAN
WLAN + Bluetooth: Realtek® Wi-Fi 6E RTL8852CE + BT 5.3
Expansion slots:
* 1x PCI Express x16 (PCIEX16)
* 1x PCI Express x16 x4 (PCIEX4)
* 2x PCI Express x16 no x1 (PCIEX1_1, PCIEX1_2)
RAID radic: support for RAID 0/1/(5)/10 for storage devices NVMe SSD a RAID 0/1/10 for storage devices SATA
Storage space:
supports a total of 3 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2 (M2A_CPU), Socket 3, M Key, typ 25110/22110/2580/2280 SSD
* 1x M.2 (M2B_CPU), Socket 3, M Key, typ 25110/22110/2580/2280 SSD
* 1x M.2 (M2C_SB), Socket 3, M Key, typ 25110/22110/25110/2280 PCIe 3.0 x4/x2 SSD
* 4x SATA 6Gb/s
USB:
Zadné USB (total 8 ports)
* 1x USB3.2 Gen 2 typ C
* 1x USB3.2 Gen 2 typ A (červený)
* 2x USB3.2 Gen 1 typ A
* 4x USB 2.0/1.1
Predné USB (total 9 portov)
* 1x USB typ C® konektor - support USB 3.2 Gen 1
* 2x USB 3.2 Gen 1 header - support for additional 4 ports USB 3.2 Gen 1
* 2x USB 2.0/1.1 header - support for additional 4 ports USB 2.0/1.1

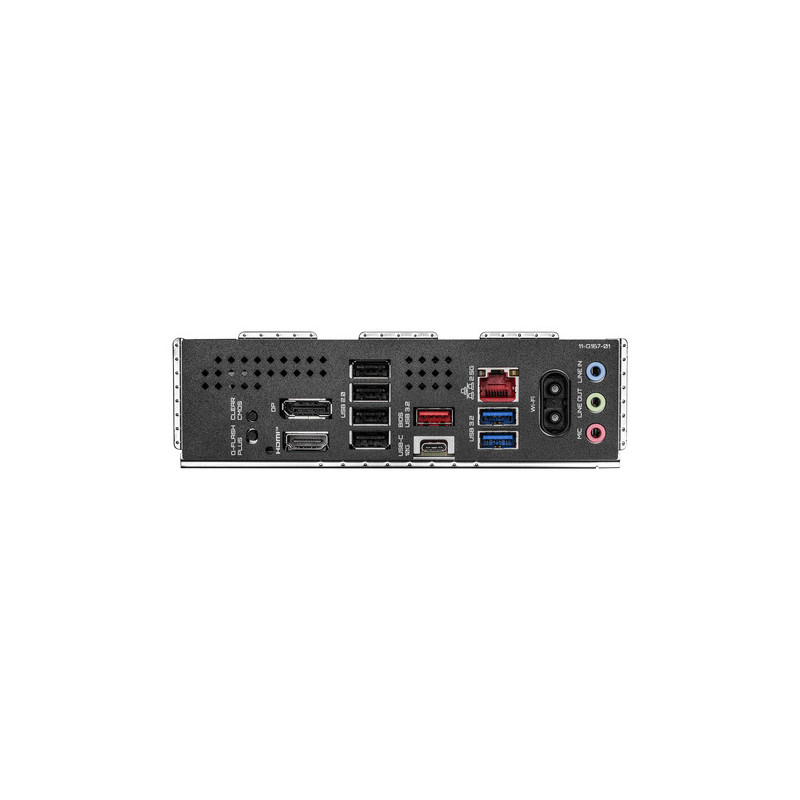

Ports on the rear panel:
* 1x button Q-Flash Plus
* 1x button Clear CMOS
* 1x DisplayPort
* 1x HDMI
* 1x USB-C® s support USB 3.2 Gen 2
* 1x USB 3.2 Gen 2 (červený)
* 2x USB 3.2 Gen 1
* 4x USB 2.0/1.1
* 1x RJ-45
* 2x antenna connector (2T2R)
* 3x audio konektor
Internal ports:
Napájanie
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V napájácí konektor
* 1x 4-pin ATX 12V napájácí konektor
Suvisiace s ventiladorom chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 3x system fan header
* 1x system fan/water cooling pump header
Súvisiace s úložiskom
* 3x M.2 slot (Key M)
* 4x SATA 6Gb/s port_
USB
* 1x konektor USB typ-C® s podporou USB 3.2 Gen 2x2
* 2x USB 3.2 Gen 1 header
* 2x USB 2.0 header
Ostatné
* 3x addressable RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x Trusted Platform Module header (iba pre modul GC-TPM2.0 SPI V2)
* 1x reset jumper
* 1x Clear CMOS jumper
BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/B840-EAGLE-WIFI6E#kf
