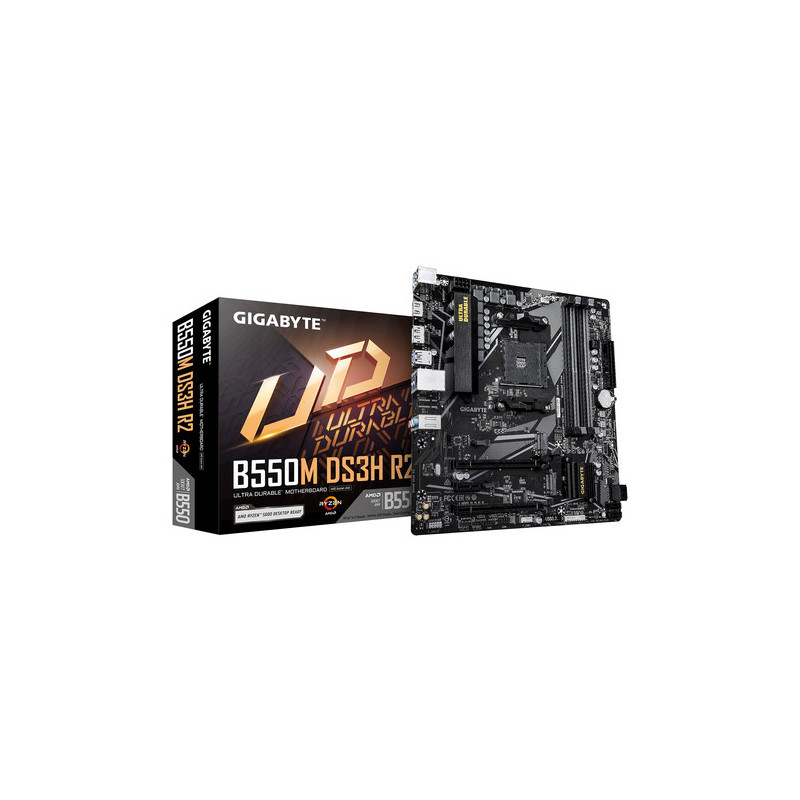

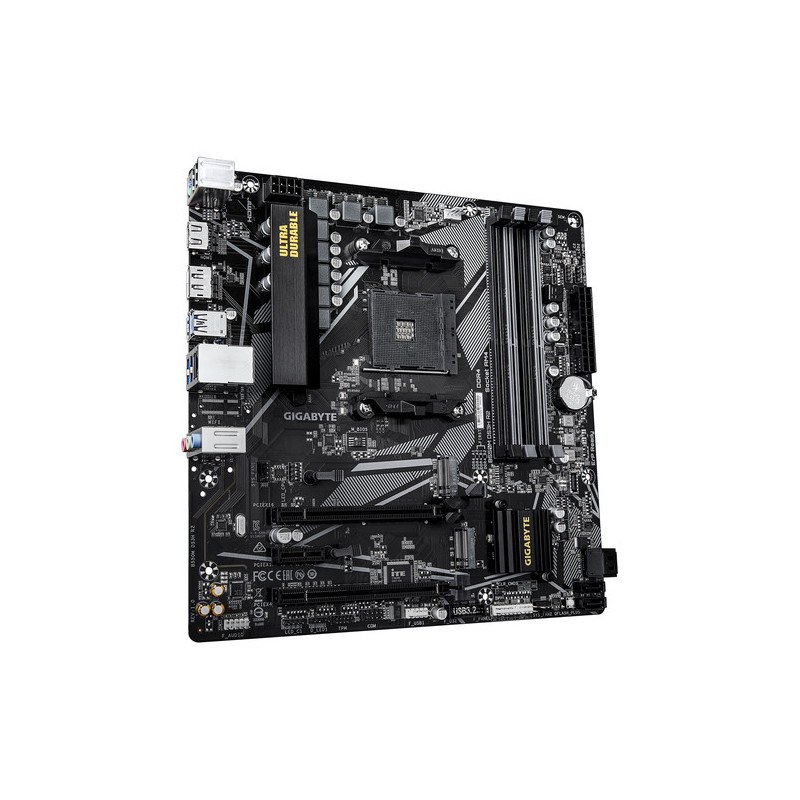

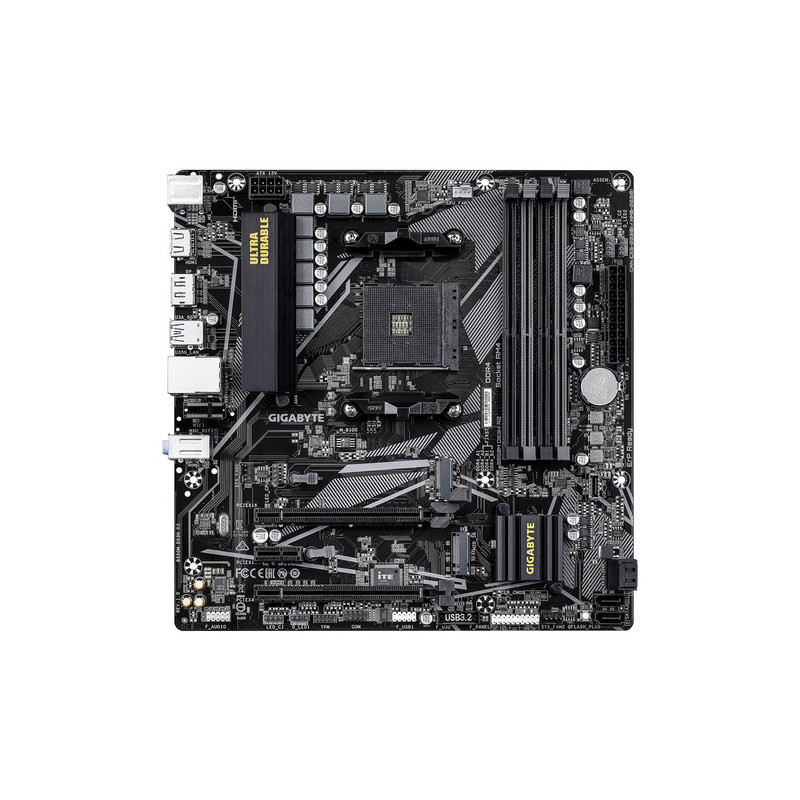

GIGABYTE B550M DS3H R2 / AM4 / mATX
Product reference:
3-4719331870454
GIGABYTE B550M DS3H R2/AM4/mATX
GIGABYTE B550M DS3H R2 / AM4 / mATX
Product reference:
3-4719331870454
GIGABYTE B550M DS3H R2/AM4/mATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM4：Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
- Digital 5+3 phases VRM solution
- Dual Channel DDR4: 4*DIMMs
- EZ-Latch：PCIe slot with Quick Release Design
- Ultra-Fast Storage: 2*M.2 slot, including PCIe 4.0 x1
- Efficient Thermal: VRM Thermal Armor Advanced
- Fast Networking: GbE LAN
- Extended Connectivity: HDMI, Displayport
- PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card Better Heat dissipation effect
| Summary: | GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (OC), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
| Vendor Homepage: | https://www.gigabyte.com/ |
| Category Code: | MBA |
| CnCode: | 84733020 |
| Unit Box Height: | 0.055 |
| Unit Box Length: | 0.265 |
| Unit Box Width: | 0.265 |
| Audio chip: | Realtek ALC1220-VB |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Cooling type: | Passive |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| PC health monitoring: | Fan/Temperature/Voltage |
| Power source type: | ATX |
| Product colour: | Dark brown |
| Windows operating systems supported: | Windows 10 x64/Windows 11 x64 |
| Compatible processor series: | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Supported processor sockets: | Socket AM4 |
| ECC compatibility: | ECC Non-ECC |
| Maximum internal memory: | 128GB |
| Maximum internal memory per slot: | 32GB |
| Memory channels: | Dual channel |
| Memory slot type: | DIMMs |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 4733MHz |
| Supported memory clock speeds: | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733MHz |
| Supported memory types: | DDR4-SDRAM |
| Unbuffered memory: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| RAID levels: | 0/1/10 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2,PCI Express 3.0,PCI Express 4.0,SATA III |
| Supported storage drive types: | HDD SSD |
| DirectX version: | 12.0 |
| HDCP: | Yes |
| Maximum resolution: | 5120 x 2880pixels |
| Parallel processing technology support: | Not supported |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 2 |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| Number of RGB LED pin headers: | 5 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| Serial port headers: | 1 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| DisplayPort version: | 1.4 |
| DisplayPort quantity: | 1 |
| Ethernet LAN (RJ-45) port: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| PS/2 port quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity: | 4 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | From |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 3.0 |
| 2nd M.2 largest key size: | 2280 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 3.x) slot: | 1 |
| PCI Express x16 (Gen 3.x) slot: | 1 |
| PCI Express x16 (Gen 4.x) slot: | 1 |
| ACPI version: | 5.0 |
| BIOS memory size: | 128Mbit |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3g |
| Lithium weight per battery: | 0.07g |
| Number of battery cells: | 1 |
| Package depth: | 265mm |
| Package height: | 54mm |
| Package weight: | 947g |
| Package width: | 265mm |
| Products per shipping (inner) case: | 1pc(s) |
| Depth: | 244mm |
| Height: | 35mm |
| Width: | 244mm |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included: | Yes |
| Warranty period: | 3year(s) |
| Weight: | 870g |
| Model: | B550M DS3H R2 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 10 |
| Unit Calculated Volume: | 0.004628m³ |
| Unit Calculated Weight: | 0.955kg |
