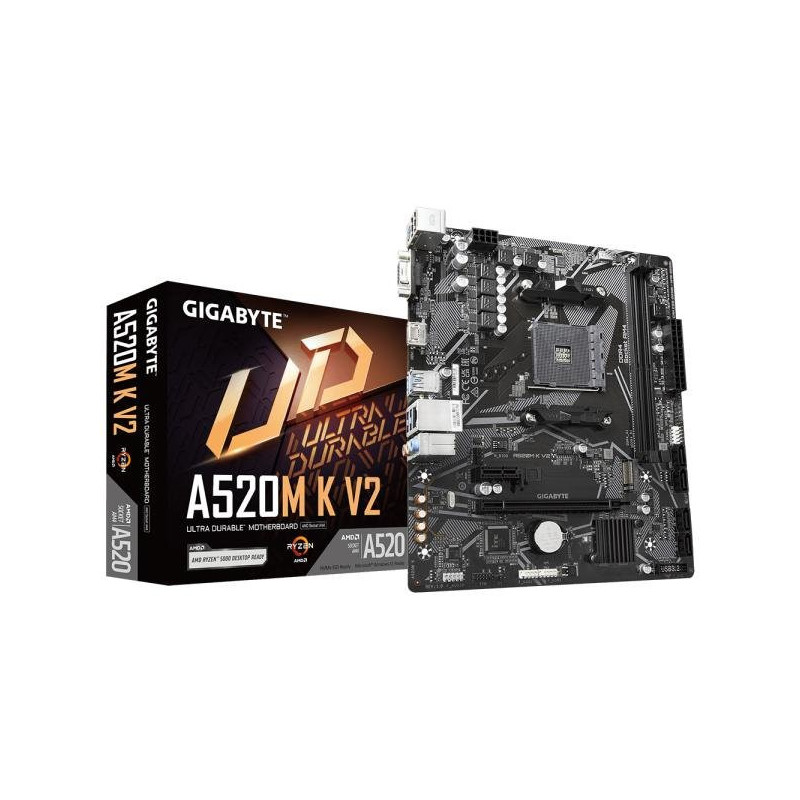

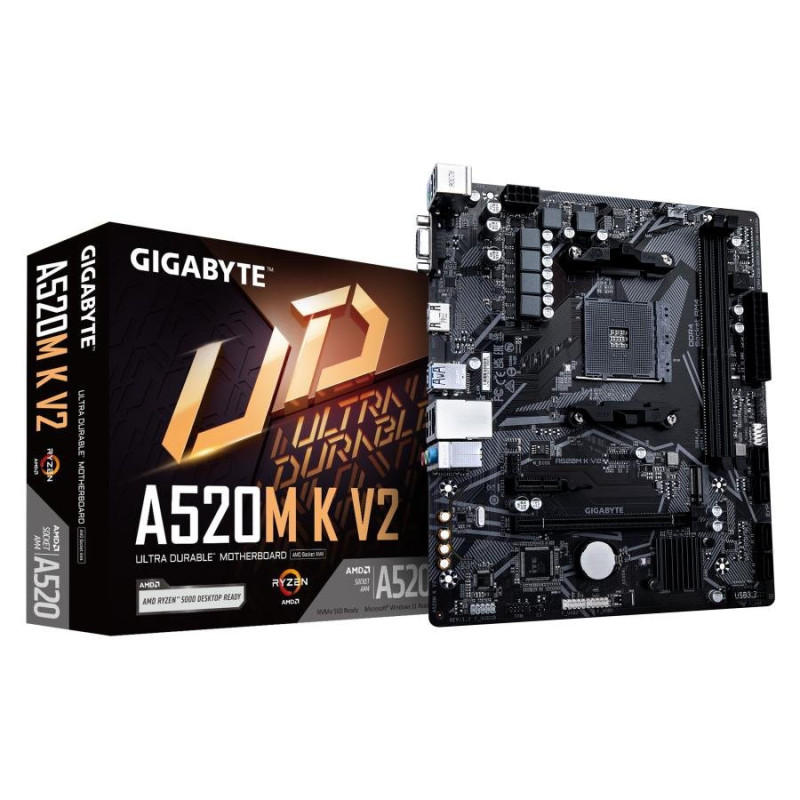

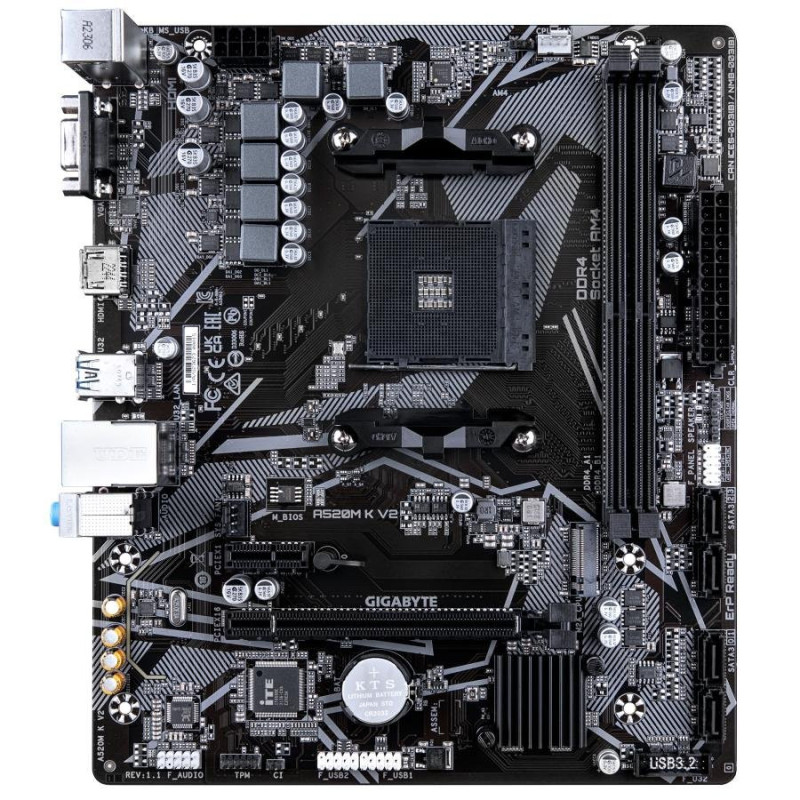

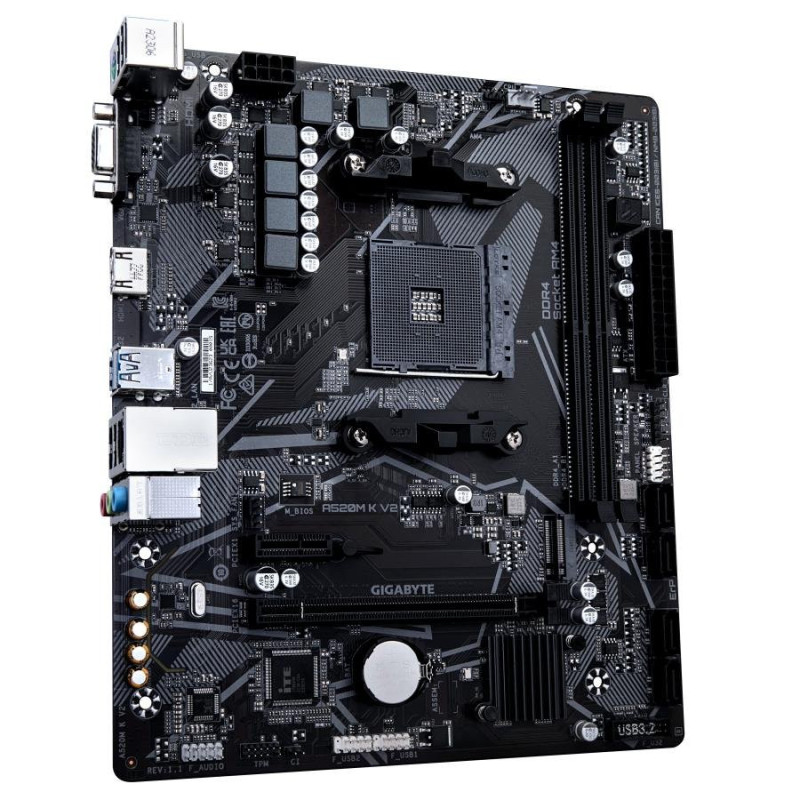

Gigabyte A520M K V2, mATX, AMD AM4, A520, DDR4, 5100 Mhz, USB 3.2 Gen 1, M.2, GbE LAN

•


  Motherboard form factor: Micro ATX





•


  Chipset: AMD A520





•


  Component: PC (Computer)





•


  Audio channels: 7.1





•


  PC Health Monitoring: FAN, Temperature, Voltage





•


  Supported Windows OS: Windows 10 x64, Windows 11 x64





•


  Chipset family: AMD




Processor

•


  CPU manufacturer: AMD





•


  CPU socket: AM4




Memory

•


  Memory slots: 2





•


  Max. memory: 64 GB





•


  Supported memory types: DDR4-SDRAM





•


  Supported memory speeds: 2133 - 5100 MHz





•


  Memory channels: Dual





•


  Unbuffered memory: Yes





•


  Memory slot type: DIMM





•


  Max memory frequency: 5100 MHz





•


  ECC compatibility: ECC & non-ECC




Expansion slots

•


  PCI Express x16 slots: 1





•


  PCI Express x1 slots: 1





•


  M.2 (M) slots: 1




Graphics

•


  Max. resolution: 4096 x 2160





•


  Parallel processing support: Not supported





•


  HDCP: Yes




Networking

•


  Ethernet/LAN: Yes





•


  Wi-Fi: No





•


  Ethernet interface: Gigabit Ethernet




Internal I/O

•


  USB 2.0: 2





•


  CPU fan connector: Yes





•


  ATX power connector: Yes





•


  Switch connector: Yes





•


  Front panel audio: Yes





•


  TPM connector: Yes





•


  EPS 8-pin: Yes





•


  USB 3.2 Gen 1 (3.1 Gen 1): 1





•


  SATA III: 4





•


  USB 3.2 Gen 2 (3.1 Gen 2): 0





•


  Front panel connector: Yes





•


  12V power connector: Yes

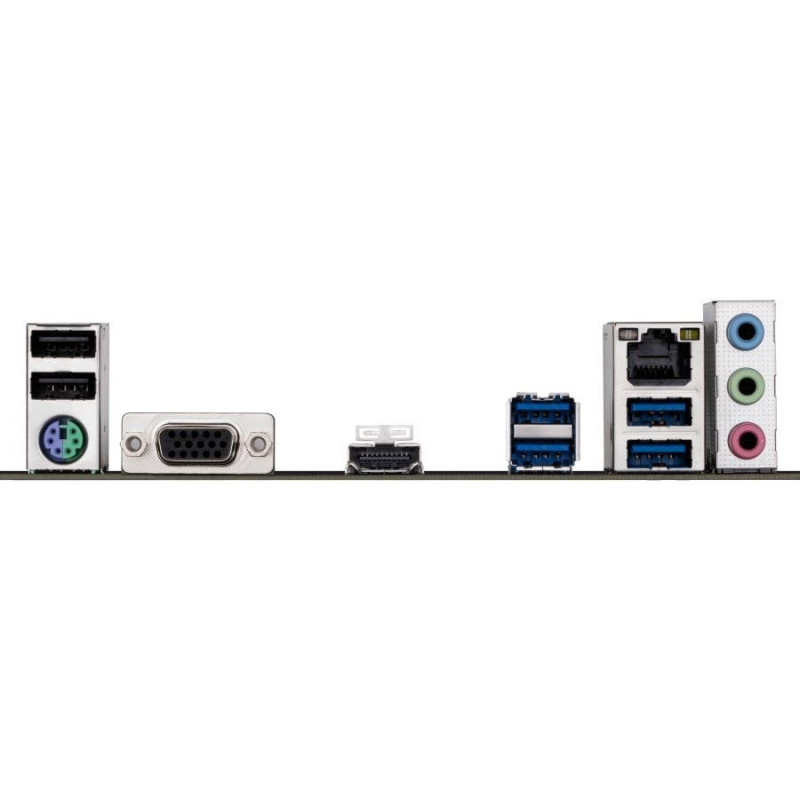

Rear I/O

•


  PS/2 ports: 1





•


  USB Type-A: Yes





•


  USB 2.0 ports: 2





•


  Ethernet LAN (RJ-45): 1





•


  Headphone outputs: 3





•


  Mic/Line out: Yes





•


  VGA (D-Sub): 1





•


  DVI-D: 0





•


  HDMI: 1





•


  HDMI version: 2.1





•


  USB 3.2 Gen 1 Type-A: 4





•


  USB 3.2 Gen 1 Type-C: 0





•


  USB 3.2 Gen 2 Type-A: 0





•


  USB 3.2 Gen 2 Type-C: 0




Storage controllers

•


  RAID levels: 1, 10





•


  Supported disk types: HDD & SSD





•


  RAID support: Yes





•


  Supported storage drives: 5





•


  Supported interfaces: M.2, SATA III




Technical details

•


  Warranty: 3 years




BIOS

•


  BIOS memory: 128 Mbit





•


  BIOS type: UEFI AMI





•


  ACPI version: 5.0





•


  CMOS reset jumper: Yes





•


  DMI version: 2.7





•


  SMBIOS version: 2.7




Weight & dimensions

•


  Width: 233 mm





•


  Depth: 198 mm





•


  Height: 35 mm





•


  Package weight: 675 g




Package contents

•


  Included software: Norton Internet Security





•


  Cables included: SATA





•


  Battery included: Yes




Package information

•


  Package depth: 235 mm





•


  Package height: 52 mm





•


  Package width: 265 mm




Battery

•


  Battery technology: Lithium-Manganese Dioxide (LiMnO2)





•


  Battery type: CR2032





•


  Cells: 1





•


  Battery weight: 3 g





•


  Lithium weight per battery: 0.07 g




Logistics

•


  Country of origin: China





•


  Quantity per transport box: 1 pc
