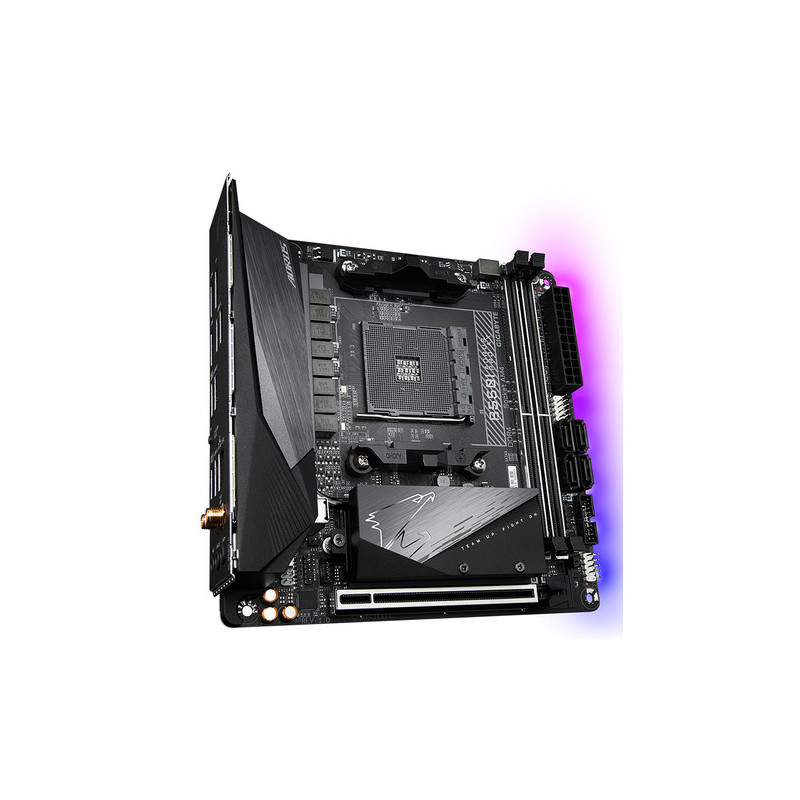

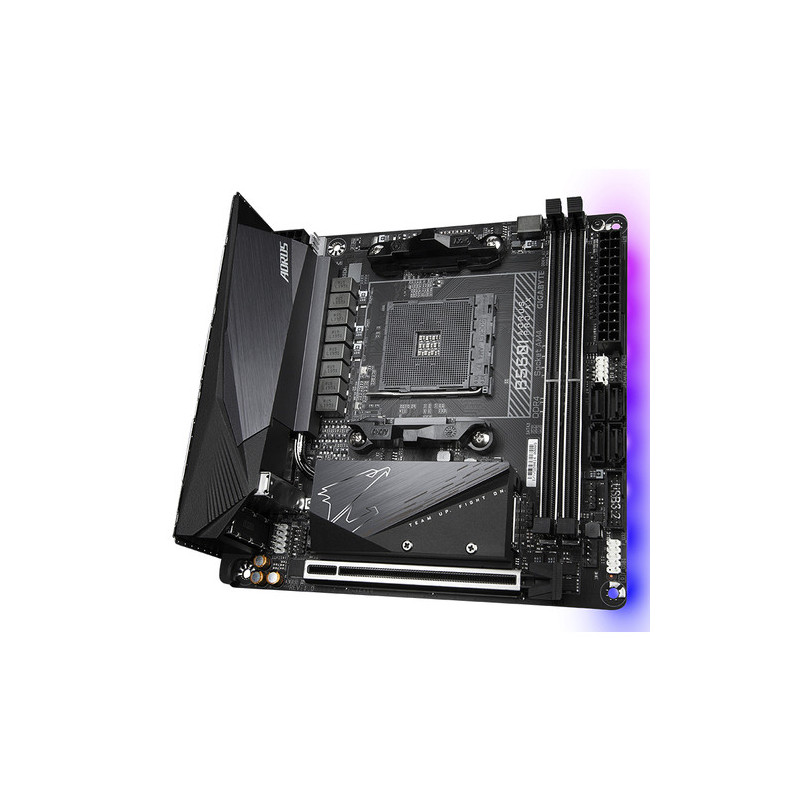

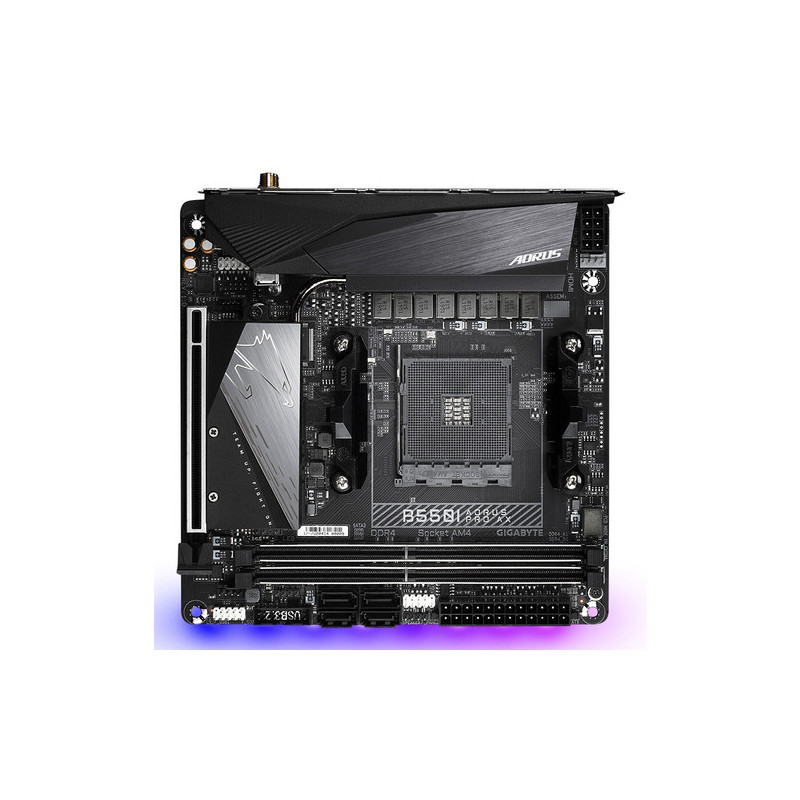

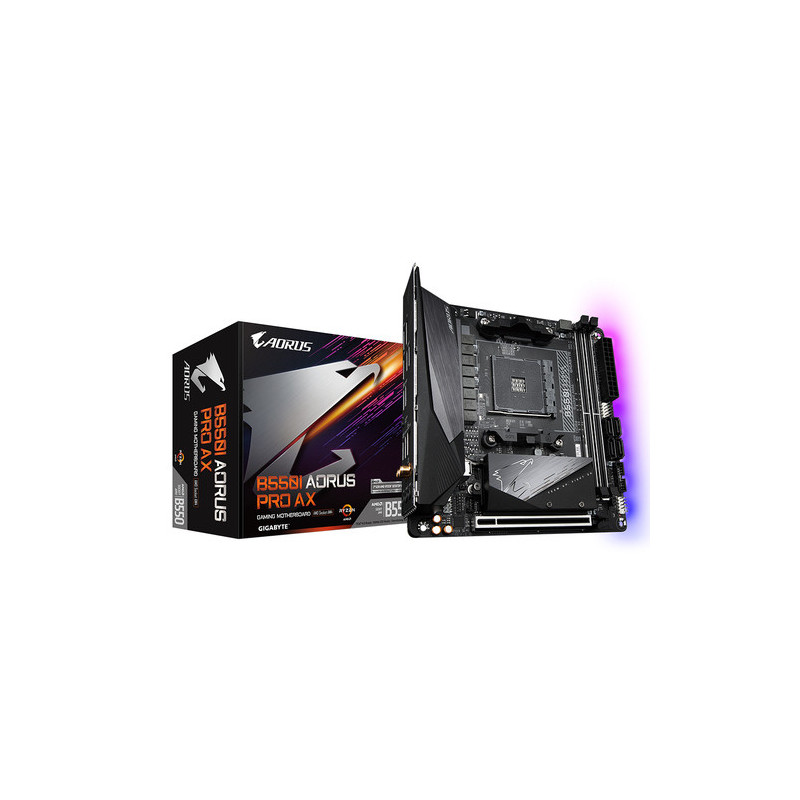

Motherboard GIGABYTE B550I AORUS PRO AX, B550, AM4, Mini-ITX

AMD B550
Dimensions: Format Mini-ITX (170 mm x 170 mm)
Processor support: processors AMD Ryzen™ 3rd generation/ processors AMD Ryzen™ new generation with integrated graphics card Radeon™
Processor Socket: AM4
Memory slots: 2x DDR4 DIMM
Support of memory modules:
*Procesory AMD Ryzen™ 3rd generation: Podpora majteovéch modulov DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz majteové moduly
Max. size of operating memory: 64 GB
Memory type support: DDR4
*Dvojkanálová architektur szmětí
*Podpora szmětových modulov ECC Un-buffered DIMM 1Rx8/2Rx8
*Podpora szmětových modulov non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
*Podpora majátových modulov s profilom XMP (Extreme Memory Profile)
Graphic outputs: Integrated in processors AMD Ryzen™ new generation with graphics adapters Radeon™
*1x DisplayPort supporting maximum resolution 5120 x 2880 @ 60 Hz
*2x HDMI port supporting maximum resolution 4096x2160@60 Hz
Sound card:
*Kodek Realtek® ALC1220-VB
Network card:
*Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
*Intel® Wi-Fi 6 AX200
*Bluetooth 5
Expansion slots:
*1x slot PCI Express x16 (PCIEX16)
RAID radic: 0, 1, 10
SATA:
*4x Konektor SATA 6 Gb/s
M.2:
*1x konektor M.2 (M2A_CPU), integrated v processor, supporting SSD typu 2260/2280 so socketom 3, M key
*1x konektor M.2 (M2B_SB) on the back of the base board, integrated in the chipset, supporting SSD type 2260/2280 with socket 3 a key M
USB:
* rear USB ports (6 total)
*1x port USB 3.2 Gen 2 Type-C™
*1x port USB 3.2 Gen 2 Type-A (red)
*4x port USB 3.2 Gen 1
* front USB ports (4 total)
*2x port USB 3.2 Gen 1
*2x port USB 2.0/1.1
Internal ports:
*1x 24-pinový main connector ATX
*1x 8-pinový connector ATX 12V
*1x connector for fan and processor cooler
*2x connector for system fan
*1x connector for connecting tapes with addresses LED
*1x connector for RGB LED_
*4x connector SATA 6Gb/s_
*2x connector M.2 Socket 3
*1x connector for the button on LED na front panel
*1x connector for audio na front panel
*1x connector for reproducer
*1x internal connector USB 3.2 Gen 1
*1x internal connector USB 2.0/1.1
*1x connector for Trusted Platform Module (TPM) (2x 6 pins, iba pre modul GC-TPM2.0_S)
*1x prepojka Clear CMOS

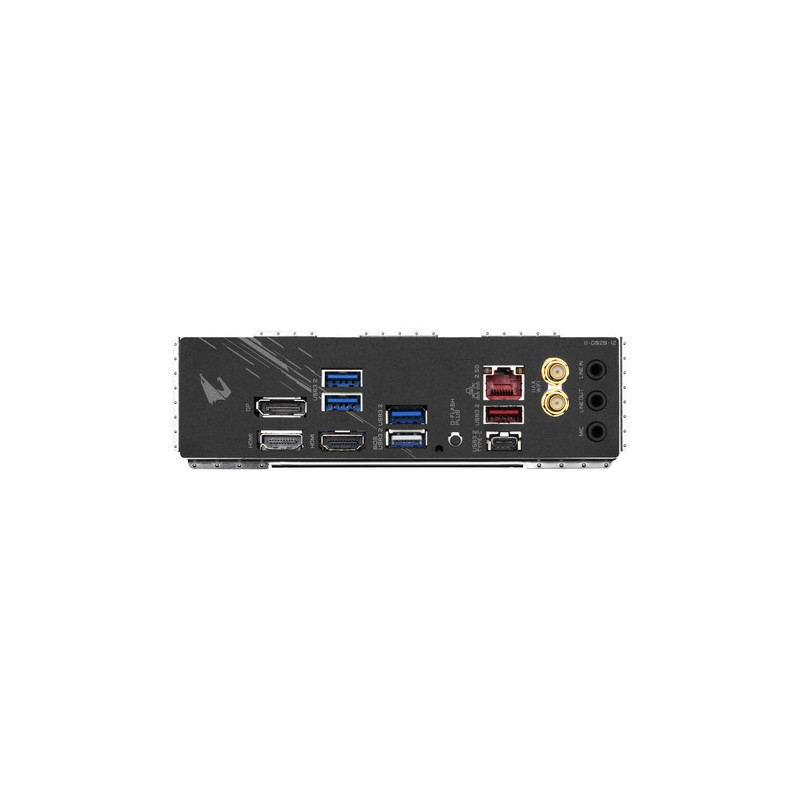

External ports:
*1x DisplayPort
*2x port HDMI
*1x port USB 3.2 Gen 2 Type-A (červený)
*4x port USB 3.2 Gen 1
*1x port USB Type-C™ support USB 3.2 Gen 2
*1x button Q-Flash Plus
*1x port RJ-45
*2x anténny konektor SMA (2T2R)
*3x audio connector
BIOS: 1x 256 Mbit flash
Manufacturer's website: http://www.gigabyte.cz/products/page/mb/B550I-AORUS-PRO-AX-rev-10
