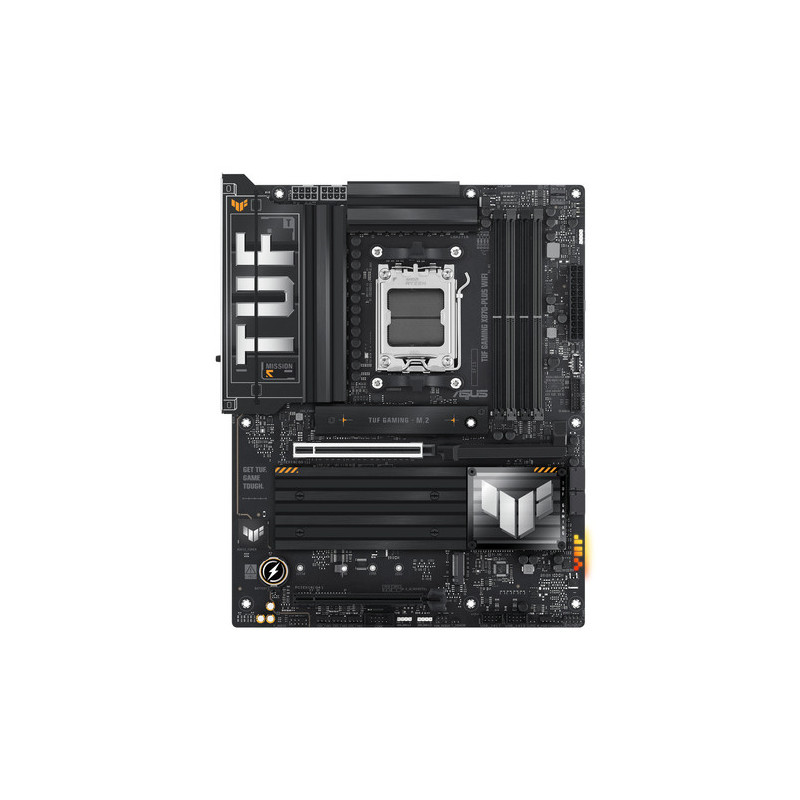

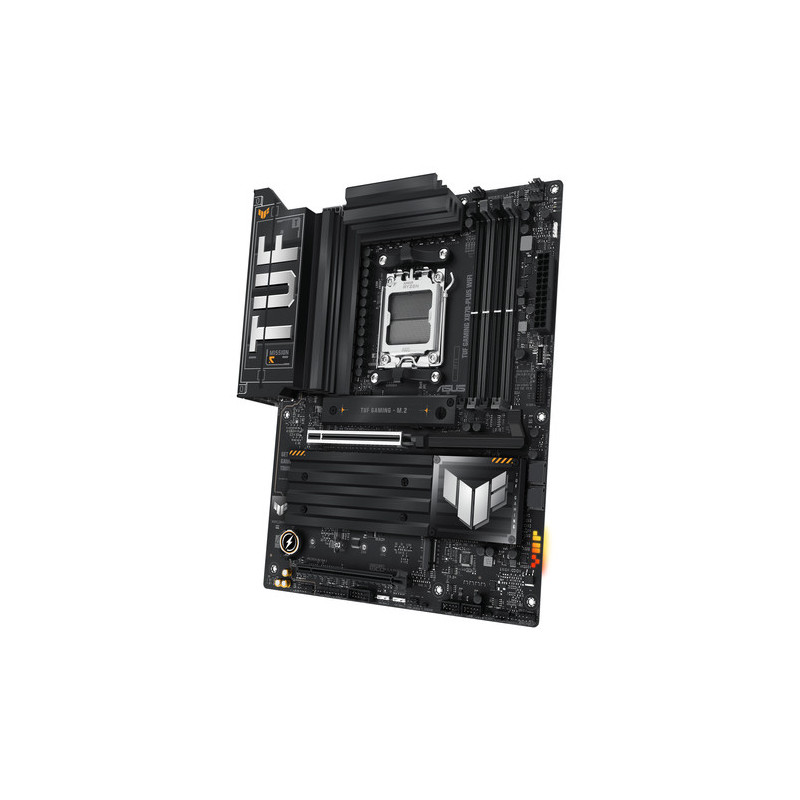

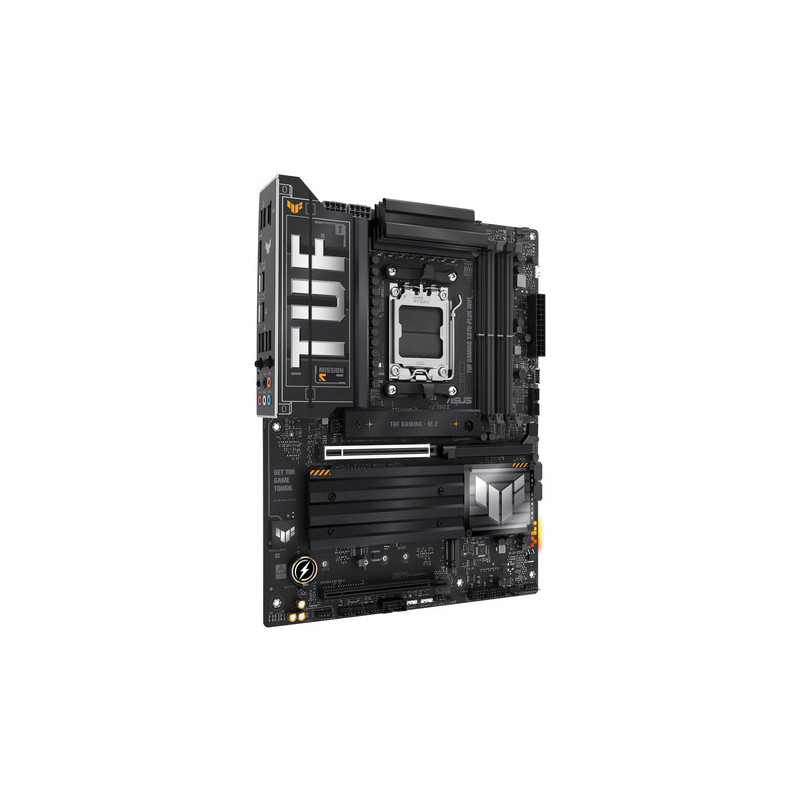

ASUS TUF Gaming X870-PLUS WIFI

* AI Overclocking
* AI Cooling II
* AI Networking II
* Aura Sync RGB lighting
Chipset: AMD X870
Dimensional format: ATX 305x244mm
Processor support: AMD Ryzen™ 9000 8000 7000 series
Processor socket: AM5
Remember:
* 4x DIMMs, max. 192GB, DDR5 supports up to 8000+MT/s (OC) memory modules
* ECC and Non-ECC
* dvoukanálová architektura mámí
* supports AMD EXtended Profiles for Overclocking (EXPO™)
* ASUS Enhanced Memory Profile (AEMP)
Graphics ports: The graphics can be different for different types of CPUs
* 1x HDMI® 2.1
* 2x USB4® (40Gbps)
Sound card: Realtek ALC1220P 7.1 Surround Sound High Definition Audio
- supports: detecting jacks, Multi-streaming, changing the order of jacks on the front panel
- high-quality 120 dB SNR stereo playback with 113 dB SNR input (Line-in)
- supports playback up to 32-bit/192kHz
Ethernet: 1x Realtek 2.5GbE, ASUS LANGuard
WLAN + Bluetooth: 2x2 Wi-Fi 7 (802.11be), supports frequency band 2.4/5/6 GHz + Bluetooth v5.4 (Wi-Fi 7 bandwidth 160 MHz, transmission speed up to 2.9 Gb/s)
Expansion slots:
* series 9000+7000 1x PCIe 5.0 x16 (supports x16 mode)
* series 8000 1x PCIe 4.0 x16 (supports x8/x4 mode)
* 1x PCIe 4.0 x16 (supports x4 mode)
RAID controller: AMD RAIDXpert2 Technology supports yak PCIe RAID 0/1/5 (pause CPU AMD Ryzen™ 9000 series)/10, tak SATA RAID 0/1
Storage space:
total supports 4 sloty M.2 a 2 porty SATA 6Gb/s
Desktop processors AMD Ryzen™ series 9000 and 7000
* 1x M.2_1 (Key M), typ 2280 (supports PCIe 5.0 x4 mode)
* 1x M.2_2 (Key M), typ 2280 (supports PCIe 5.0 x4 mode)
Desktop processors AMD Ryzen™ 8000 series
* 1x M.2_1 (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
* 1x M.2_2 not supported
AMD X870 chipset
* 1x M.2_3 (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
* 1x M.2_4 (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
* 2x SATA 6 Gb/s ports
USB:
Rear USB (total 10 ports)
* 2x USB4® 40Gb/s (2x USB typ-C®)
* 3x USB 10Gb/s (3x type-A)
* 4x USB 5Gb/s (4x type-A)
* 1x USB 2.0 (1x type-A)
Front USB (7 ports in total)
* 1x USB 20Gb/s (support USB typ-C® s up to 30W PD Fast-charge)
* 1x USB 5Gb/s header (support for another 2 USB 5Gb/s)
* 2x USB 2.0 header (supports another 4 USB 2.0)
Internal ports:
Související s ventiláriom a článizém
* 1x 4-pin CPU header fan
* 1x 4-pin CPU OPT header fan
* 1x 4-pin AIO header pump
* 4x 4-pin header chassis fan
* 1x header W_PUMP+
Power supply
* 1x 24-pin main power connector
* 2x 8-pin +12V power connector
Repository related
* 4x M.2 slots (Key M)
* 2x SATA 6Gb/s ports
USB
* 1x USB 20Gb/s (support USB typ-C® s up to 30W PD Fast-charge)
* 1x USB 5Gb/s header (support for another 2 USB 5Gb/s)
* 2x USB 2.0 header (supports another 4 USB 2.0)
Others
* 3x addressable Gen 2 header
* 1x Clear CMOS header
* 1x Chassis Intrusion header
* 1x COM Port header
* 1x Front Panel Audio header (F_AUDIO)
* 1x 10-1 pin Front System Panel header
* 1x Thermal Sensor header
Ports on the rear panel:
* 2x USB4® 40Gb/s (2x USB typ-C®)
* 3x USB 10Gb/s (3x type-A)
* 4x USB 5Gb/s (4x type-A)
* 1x USB 2.0 (1x type-A)
* 1x HDMI™
* 1x Wi-Fi module
* 1x Realtek 2.5Gb Ethernet
* 5x 3.5mm audio connectors
* 1x BIOS FlashBack™ button
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
Accessories:
* 2x SATA 6Gb/s cables
* 1x ASUS Wi-Fi Q-antenna
* 1x package of screws for M.2 SSD
* 1x TUF GAMING sticker
* 2x packs of M.2 pads
* 1x user manual
Link to the manufacturer's website: https://www. asus .com/cz/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870-plus-wifi/
