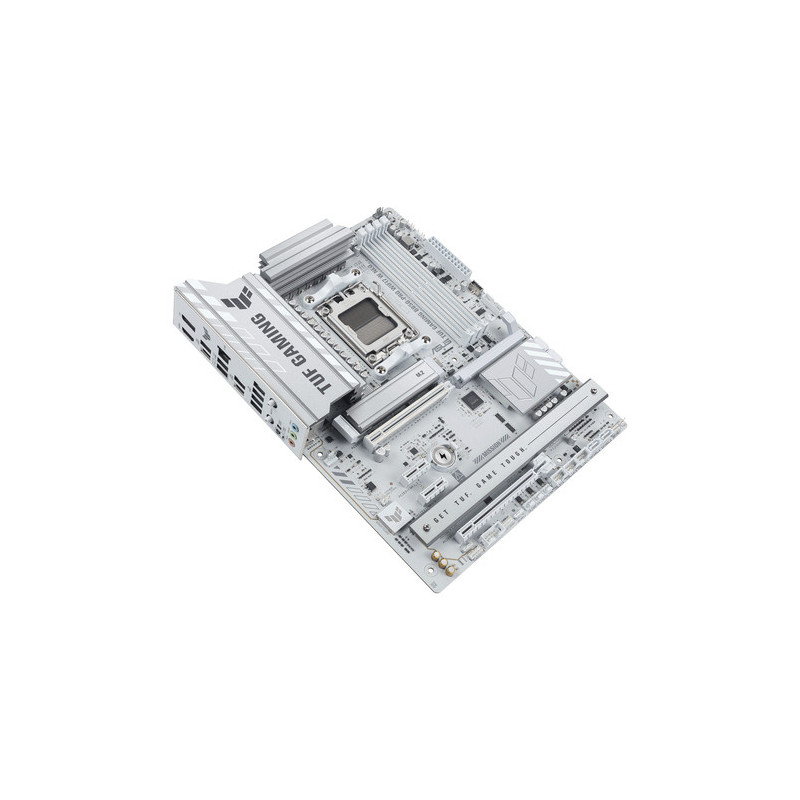

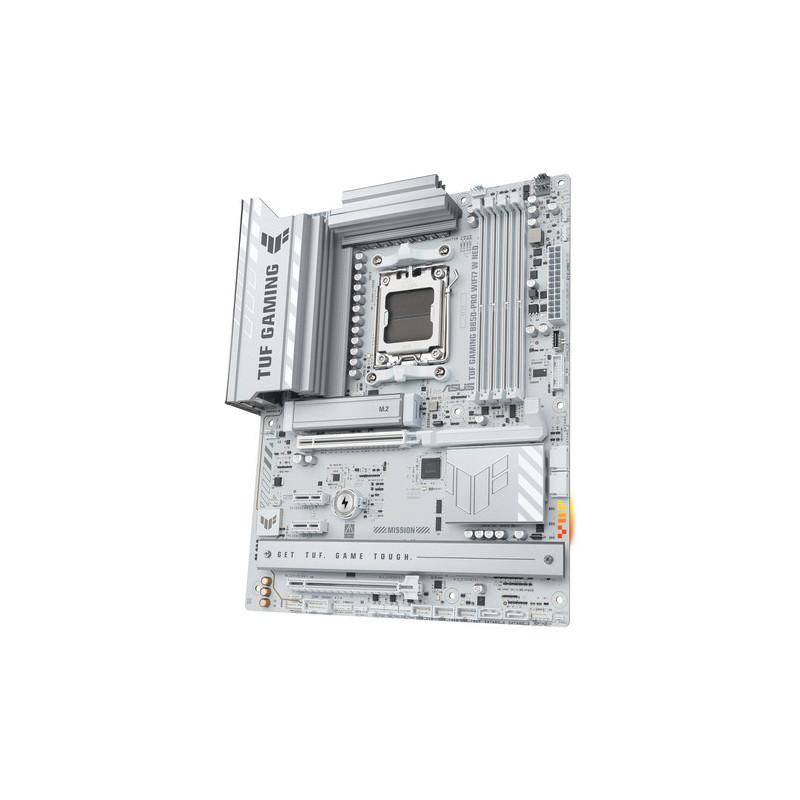

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX

Pätica AMD Socket AM5 for stolné procesory AMD Ryzen™ radu 9000, 8000 a 7000.
Chipset: Čipová sada AMD B850
Remember: 4 x DIMM slots, max. 256GB, DDR5
Graphic outputs:
1 x DisplayPort
1 x HDMI™ port_
Expansion slots:
Stolné procesory AMD Ryzen™ radu 9000 a 7000
1× slot PCIe 5.0 x16 (support mode x16)
Stolné procesory AMD Ryzen™ radu 8000
1× slot PCIe 4.0 x16 (podporuje regime x8/x4)
Čipová sada AMD B850
1× slot PCIe 4.0 x16 (supports mode x4)
2× slot PCIe 4.0 x1_
Storage: 3x M.2 slot a 4x SATA 6GB/s port
RAID support: Technology AMD RAIDXpert2
Ethernet: 1 x Realtek® 2,5Gb Ethernet, TUF LANGuard
Bluetooth wireless connection:
Wi-Fi 7 (Realtek® RTL8922AE)
2×2 Wi-Fi 7* (802.11be)
Support frequency band 2.4 / 5 / 6 GHz
Support Wi-Fi 7 to 160 MHz
Bluetooth® v5.4 (podporuje LE Audio)
USB:
Zadné USB (10 ports in total)
4× USB 10 Gb/s (2× Type-A + 2× USB Type-C®)
4× USB 5 Gb/s (4× Type-A)
2× USB 2.0 (2× Type-A)
Predné USB (9 ports in total)
1× konektor USB 20 Gb/s (supports USB Type-C®)
1× internal connector USB 5 Gb/s for 2 additional USB 5 Gb/s porty
3× internal connectors USB 2.0 for 6 additional USB 2.0 ports
Sound: Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Rear panel I/O ports:
4 x USB 10Gbps porty (2 x Type-A + 2 x USB Type-C®)
4 x USB 5Gbps porty (4 x Type-A)
2 x USB 2.0 porty (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek® 2,5Gb Ethernet port
3 x Audio jacky
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O connectors:
Chladenie
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headery
Napájanie
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Ulagadán
3 x M.2 sloty (Key M)
4 x SATA 6Gb/s porty
USB
1 x USB 20Gbps konektor (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USBs 2.0 portov
Rôzne
3 x Addressable RGB Gen 2 headery
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
BIOS: 64MB (512Mb) Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor
Refer to the official website:
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-pro-wifi7-w-neo/
