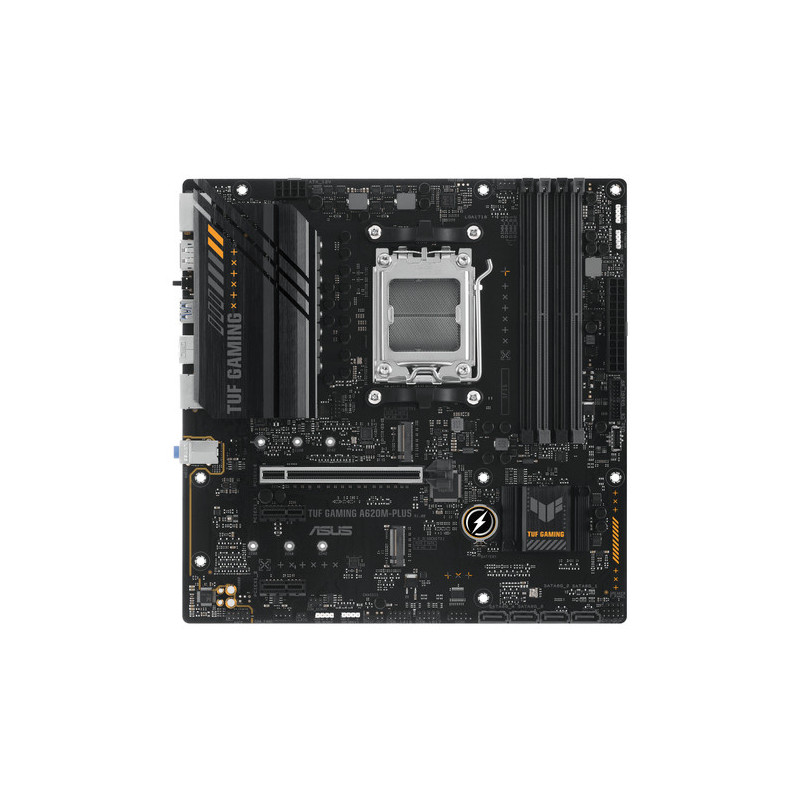

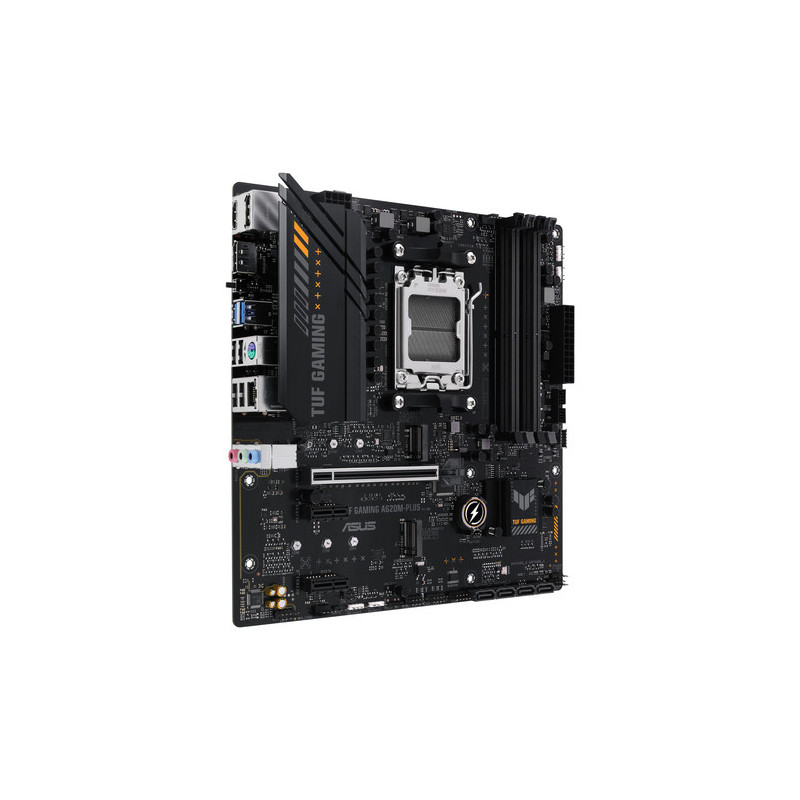

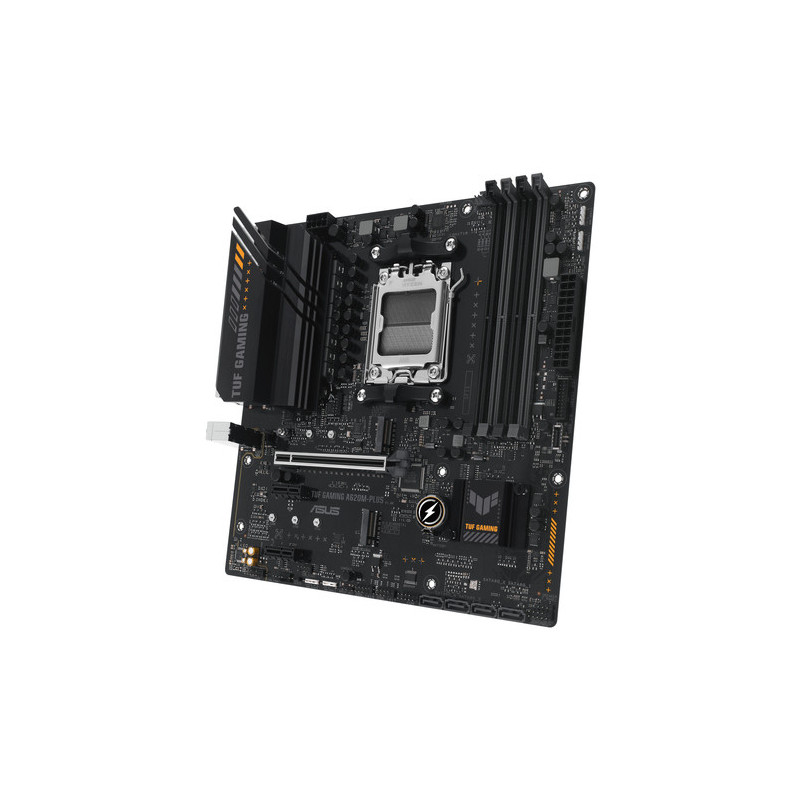

ASUS TUF GAMING A620M-PLUS / AM5 / mATX

AMD A620
Dimensional format: Micro-ATX (244x244 mm)
Processor support: AMD Ryzen™ 7000 series
Processor Socket: AM5
Remember:
* 4x DIMM slots, max. 128 GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC a no ECC, no buffer
* dvojkanálová architecture memory
* supports AMD EXtended Profiles for Overclocking (EXPO™)
* OptiMem II
Graphic outputs:
* 2x DisplayPort 1.4
* 1x HDMI® 2.1
Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC - supports playback up to 24-bit/192kHz
Ethernet: 1x Realtek 2.5 Gb
WLAN + Bluetooth: No
Expansion slots:
* 1x PCIe 4.0 x16
* 2x PCIe 3.0 x1
RAID radic: AMD RAID Xpert2 technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
Storage space:
in total supports 2 sloty M.2 a 4 porty SATA 6 Gb/s
* 1x M.2_1 (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
* 1x M.2_2 (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
* 4x SATA 6Gb/s
USB:
Rear USB (total 6 ports)
* 2x USB 3.2 Gen 1 5G (2x type A)
* 4x USB 2.0 (4x type A)
Front USB (total 7 ports)
* 1x konektor USB 3.2 Gen 1 (support USB typu C®)
* 1x konektor USB 3.2 Gen 1 - support for 2 additional USB 3.2 Gen 1 ports
* 2x USB 2.0 connector - support for additional 4 USB 2.0 ports
Ports on the back panel:
* 2x USB 3.2 Gen 1 5G (2x type A)
* 4x USB 2.0 (4x type A)
* 2x DisplayPort
* 1x HDMI®
* 1x Realtek 2.5Gb ethernet
* 3x audio connectors
* 1x BIOS FlashBack™ button
* 1x combined PS/2 for keyboard and mouse
Internal ports:
Súvisiace s ventiladorom a chladením
* 1x 4-pinový konektor fan CPU
* 2x 4-pinový konektor fan screen
Power supply
* 1x 24-pin main power connector
* 1x 8-pin +12V power connector
Storage related
* 2x M.2 slots (Key M)
* 4x SATA 6 Gb/s ports
USB
* 1x konektor USB 3.2 Gen 1 (support USB typu C®)
* 1x USB 3.2 Gen 1 connector - support for additional 2 USB 3.2 Gen 1 ports
* 2x USB 2.0 connector - support for another 4 USB 2.0 ports
Other
* 3x addressable Gen 2 connector
* 1x Aura RGB connector
* 1x Clear CMOS connector
* 1x COM port connector
* 1x konektor predného audio panel (AAFP)
* 1x S/PDIF Out connector
* 1x speaker connector
* 1x 10-1 pin connector on the system panel
BIOS: 256 MB Flash ROM, UEFI AMI BIOS
Accessories:
* 2x SATA 6 Gb/s cables
* 1x I/O cover
* 1x TUF gaming sticker
* 1x package screws to M.2 SSD
* 1x TUF certification card
* 1x user manual
