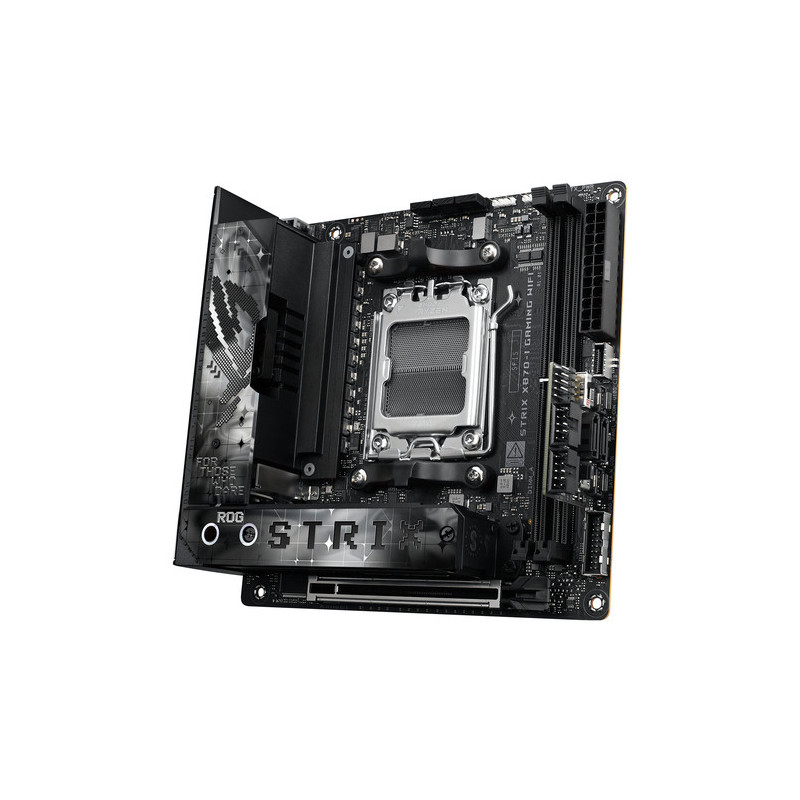

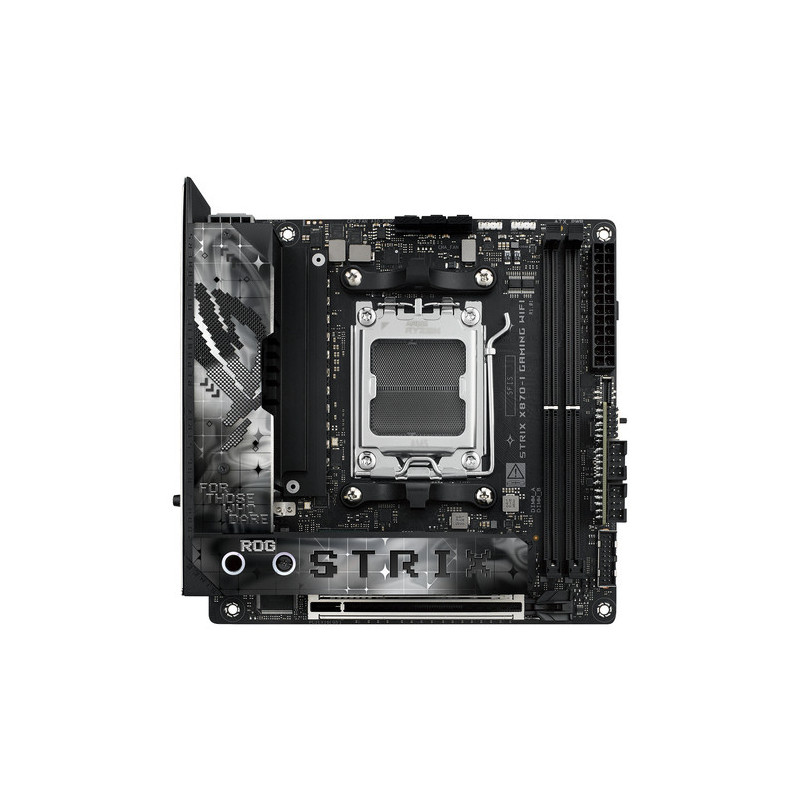

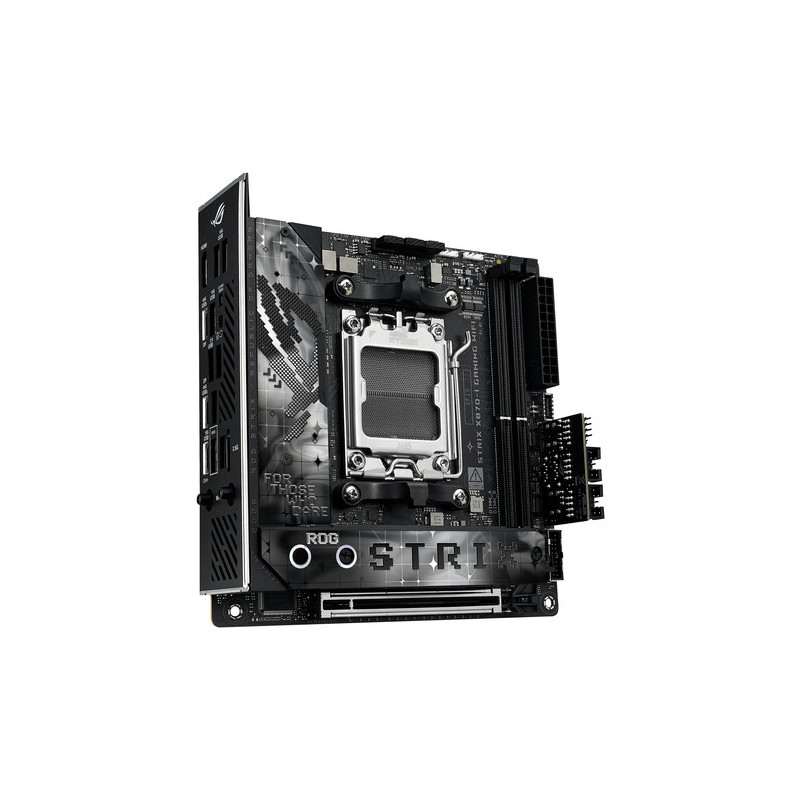

ASUS ROG STRIX X870-I GAMING WIFI AMD X870 socket AM5 mini ITX motherboard

* AI Overclocking
* AI Cooling II
* AI Networking II
* Aura Sync RGB lighting
* immersive sound: external sound solution ROG Strix Hive II with ESS™ SABER 9260Q converter and Dolby Atmos® technology
Chipset: AMD X870
Dimensional format: Mini-ITX 170x170mm
Processor support: AMD Ryzen™ 9000 8000 7000 series
Processor socket: AM5
Remember:
* 2x DIMMs, max. 96GB, DDR5 supports up to 8400+MT/s (OC) 9000 series processors, up to 8600+MT/s (OC) 8000 series processors, up to 8000+MT/s (OC) 7000 series processors
* ECC and Non-ECC
* dvoukanálová architektura mámí
* supports AMD EXtended Profiles for Overclocking (EXPO™)
* ASUS Enhanced Memory Profile (AEMP)
Graphics ports: The graphics can be different for different types of CPUs
* 1x HDMI® 2.1
* 2x USB4® (40Gbps)
Sound card: ROG Strix Hive II Audio (ESS® SABRE9260Q DAC, ROG Hyper-Grounding)
Ethernet: 1x Intel® 2.5GbE, ASUS LANGuard
WLAN + Bluetooth: 2x2 Wi-Fi 7 (802.11be), supports frequency band 2.4/5/6 GHz + Bluetooth v5.4 (Wi-Fi 7 bandwidth 320 MHz, transmission speed up to 6.5 Gb/s)
Expansion slots:
* series 9000+7000 1x PCIe 5.0 x16
* series 8000 1x PCIe 4.0 x16 (supports x8/x4 modes)
RAID controller: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
Storage space:
total supports 2 sloty M.2 a 2 porty SATA 6Gb/s
Desktop processors AMD Ryzen™ series 9000 and 7000
* 1x M.2_1 (Key M), typ 2280 (supports PCIe 5.0 x4 mode)
Desktop processors AMD Ryzen™ 8000 series
* 1x M.2_1 (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
AMD X870 chipset
* 1x M.2_2 (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4)
* 2x SATA 6 Gb/s ports
USB:
Rear USB (total 10 ports)
* 2x USB4® 40Gb/s (2x USB typ-C®)
* 5x USB 10Gb/s (4x type-A + 1x USB type-C®)
* 3x USB 2.0 (3x type-A)
Front USB (3 ports total)
* 1x USB 10Gb/s connector (support USB typ-C®)
* 1x USB 5Gb/s header (support for another 2 USB 5Gb/s)
ROG STRIX HIVE II (total 2 ports)
* 2x USB 10Gb/s (1x type-A + 1x USB type-C®)
ROG FPS card (total 3 ports)
* 2x USB 2.0 connector (supports another 3 USB 2.0)
Internal ports:
Související s ventiláriom a článizém
* 1x 4-pin CPU header fan
* 1x 4-pin AIO header pump
* 1x 4-pin header chassis fan
Power supply
* 1x 24-pin main power connector
* 1x 8-pin +12V power connector
Repository related
* 2x M.2 slots (Key M)
* 2x SATA 6Gb/s port (ROG FPS Card)
USB
* 1x USB 10Gb/s connector (support USB typ-C®)
* 1x USB 5Gb/s header (support for another 2 USB 5Gb/s)
Others
* 2x addressable Gen 2 header
* 1x 2-pin Power Button header
* 1x Thermal Sensor header
* 2x konektor USB typ-C® for ROG FPS card installation
ROG FPS card
* 2x SATA 6Gb/s
* 1x CPU Over Voltage jumper
* 1x Front Panel header
* 1x Alteration PCIe Mode switch
* 2x USB 2.0 header (supports another 3 USB 2.0)
Ports on the rear panel:
* 2x USB4® 40Gb/s (2x USB typ-C®)
* 5x USB 10Gb/s (4x typ-A + 1x USB typ-C®, 1 port supports ROG STRIX HIVE II)
* 3x USB 2.0 (2x type-A)
* 1x HDMI™
* 1x Wi-Fi module
* 1x Intel® 2.5Gb Ethernet
* 1x BIOS FlashBack™ button
* 1x Clear CMOS button
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
Accessories:
* 2x SATA 6Gb/s cables
* 1x rozbočovačí kabel ROG USB 2.0
* 1x Panel cable
* 1x ROG FPS card
* 1x ROG STRIX HIVE II
* 1x power cable USB typ-C®
* 1x ASUS Wi-Fi Q-antenna
* 1x set of cable ties
* 1x M.2 Q-Latch package
* 1x ROG key fob
* 1x ROG Strix sticker
* 1x pack of M.2 pads
* 1x user manual
