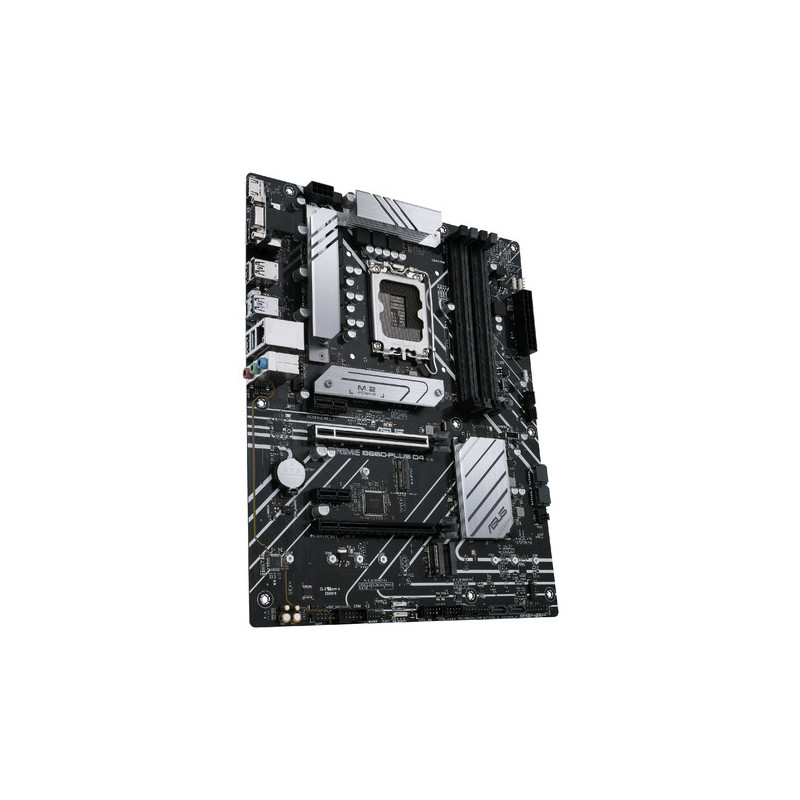

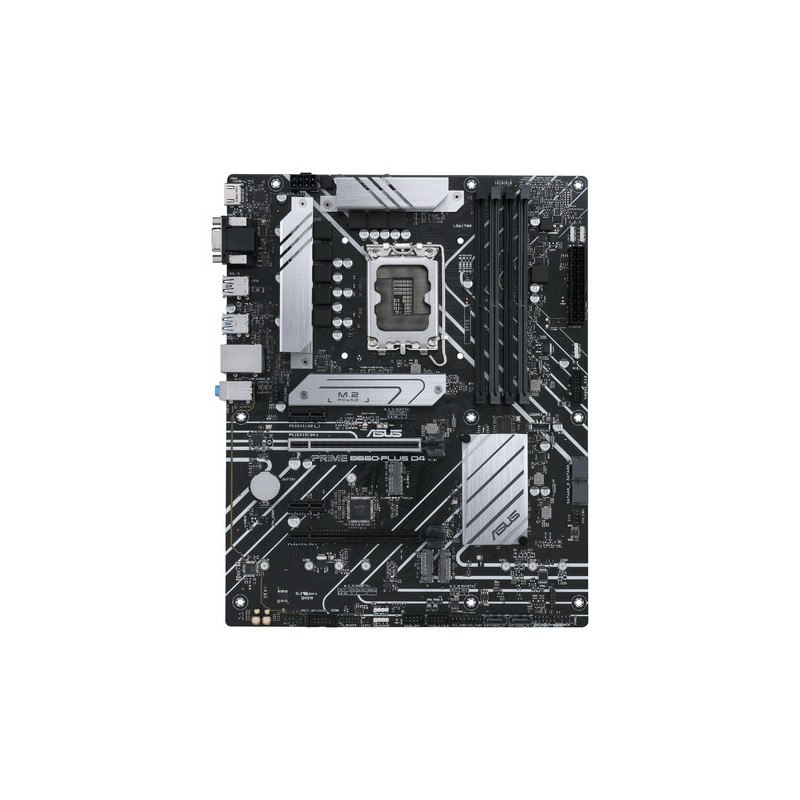

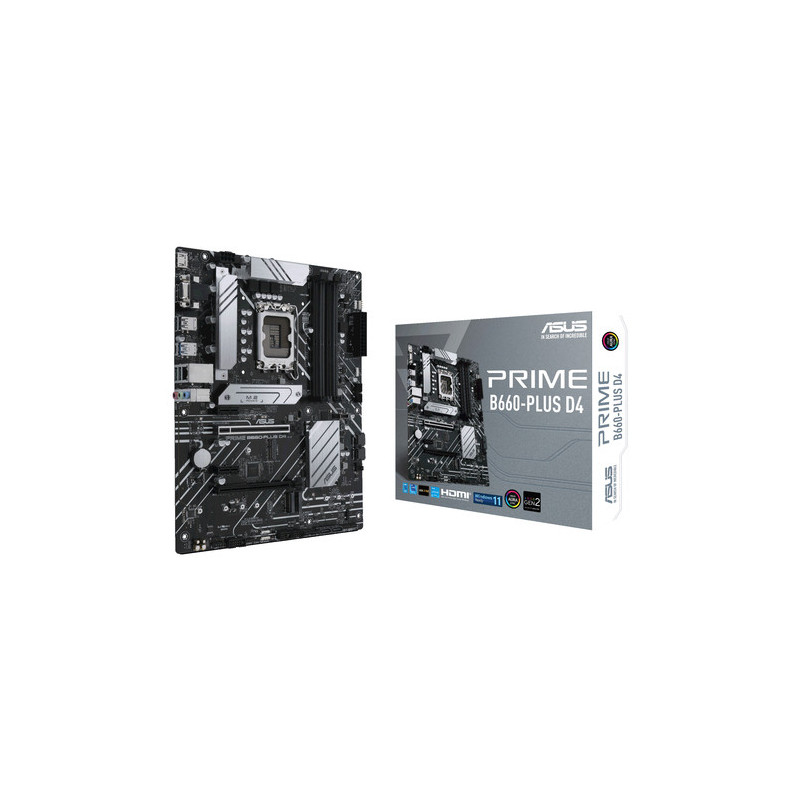

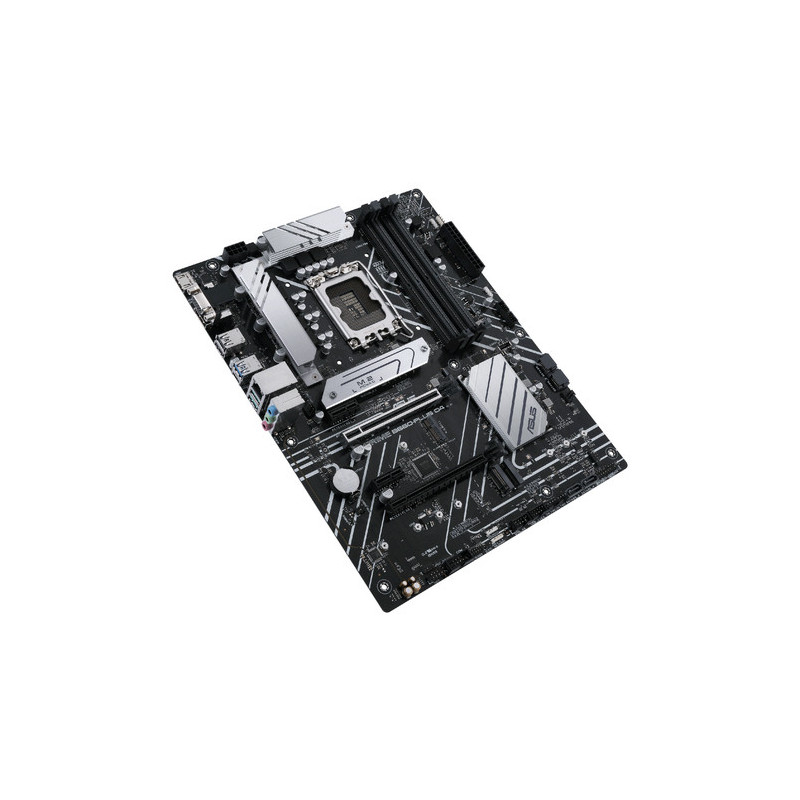

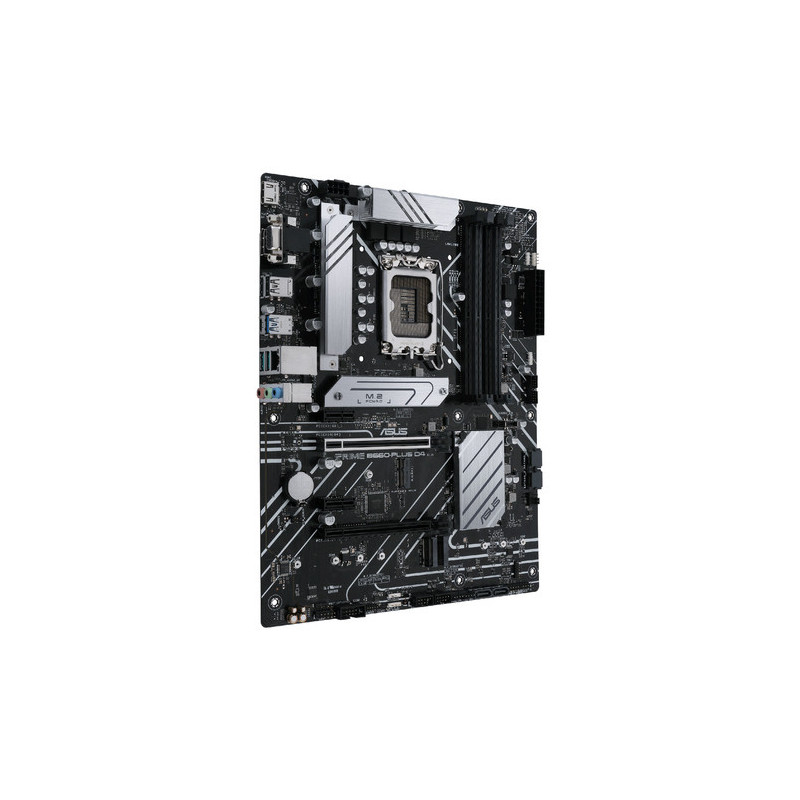

Asus Prime B660-Plus D4 Motherboard
Product reference:
3-4711081523017
Asus Prime B660-Plus D4 Motherboard
Asus Prime B660-Plus D4 Motherboard
Product reference:
3-4711081523017
Asus Prime B660-Plus D4 Motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Features | |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B660 |
| Memory | |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3400, 3866, 3000, 3466, 2400, 2800, 5066, 2666, 4266, 4600, 4000, 4800, 3333, 2133, 2933, 3600 MHz, 3733, 4400, 5000 |
| Maximum internal memory | 128 GB |
| ECC сompatibility | Non-ECC |
| Unbuffered memory | Yes |
| Weight & dimensions | |
| Height | 53 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Internal I/O | |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Front panel connector | Yes |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 3 |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Thunderbolt headers | 1 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| BIOS | |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| Storage controllers | |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 1, 10, 0, 5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Headphone outputs | 3 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Other features | |
| Weight | 891 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Safety warning | |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply. |
