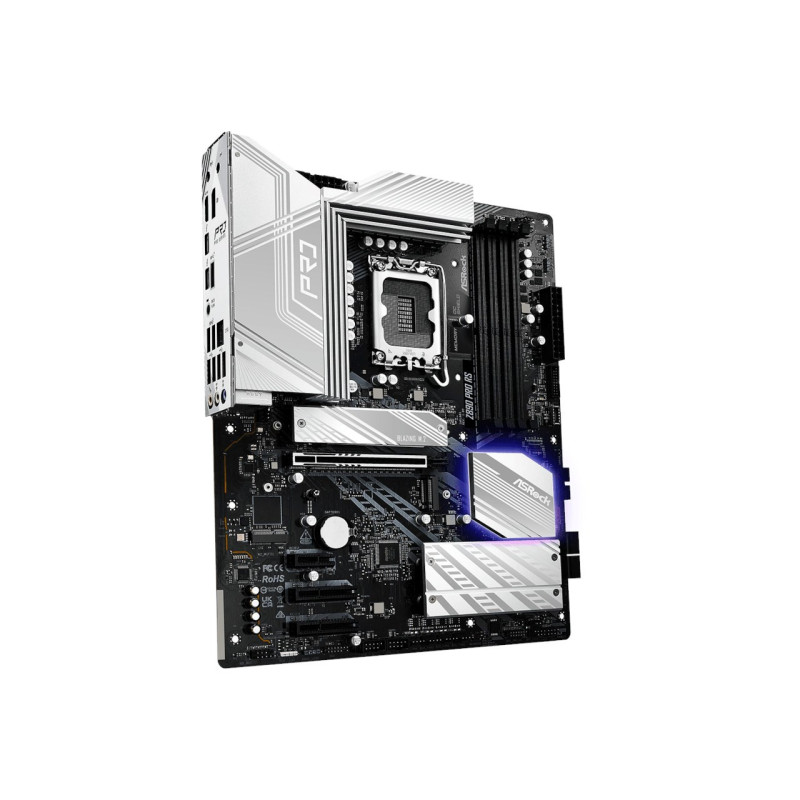

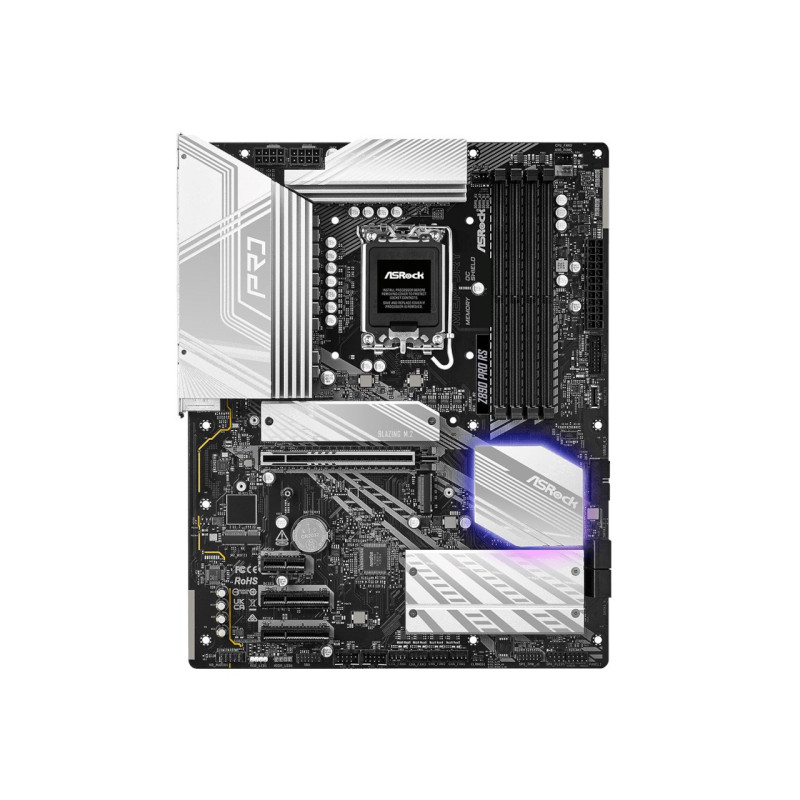

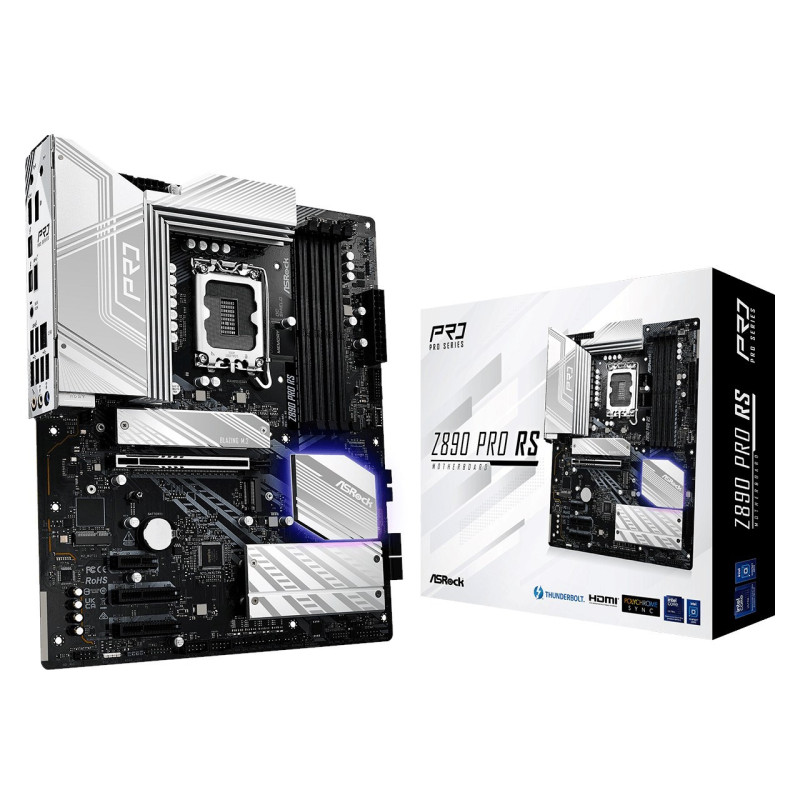

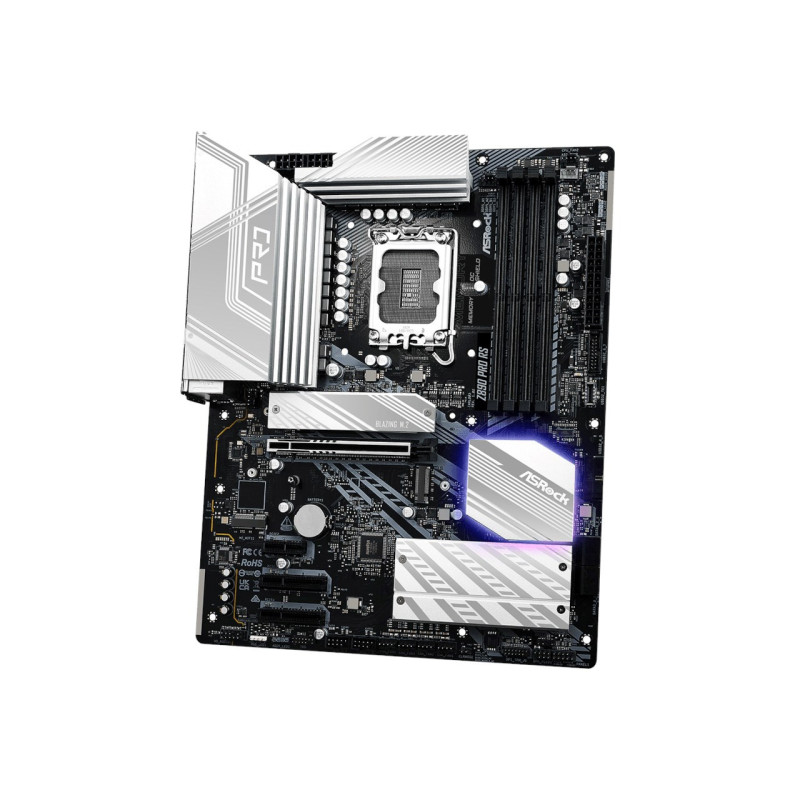

ASRock Z890 Pro RS - Motherboard
Product reference:
3-4710483947452
ASRock Z890 Pro RS - Motherboard
ASRock Z890 Pro RS - Motherboard
Product reference:
3-4710483947452
ASRock Z890 Pro RS - Motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Features | |
| Audio chip | Realtek ALC897 |
| Windows operating systems supported | Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Operating system architecture | 64-bit |
| Memory | |
| Supported memory clock speed (max) | 9066 MHz |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Supported memory types | DDR5 non-ECC |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Maximum internal memory | 256GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Internal I/O | |
| CPU fan connector | 2 |
| ATX Power connector (24-pin) | Yes |
| 8-pin power connector 12 V | 2 |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2x2 Type-C port quantity | 1 |
| Addressable LED connectors | 3 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| SPI TPM socket | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| AIO pump fan connector | 1 |
| LED and speaker power socket | 1 |
| Chassis fan connector (4-pin) | 5 |
| BIOS | |
| BIOS type | UEFI AMI |
| Storage controllers | |
| Supported storage drive interfaces | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |
| Rear panel I/O port | |
| Line out | Yes |
| USB 2.0 connectors | 4 |
| Ethernet LAN (RJ-45) port | 1 |
| Thunderbolt 4 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 1 |
| MIC input | 1 |
| Number of USB 3.2 Gen 1 ports | 2 |
| HDMI port quantity | 1 |
| Speaker output | 1 |
| Flashback BIOS button | Yes |
| External antenna connector | Yes, x 2 |
| DisplayPort 1.4 | 1 |
| Expansion slot | |
| PCI Express x16 (Gen 5.x) slot | 1 |
