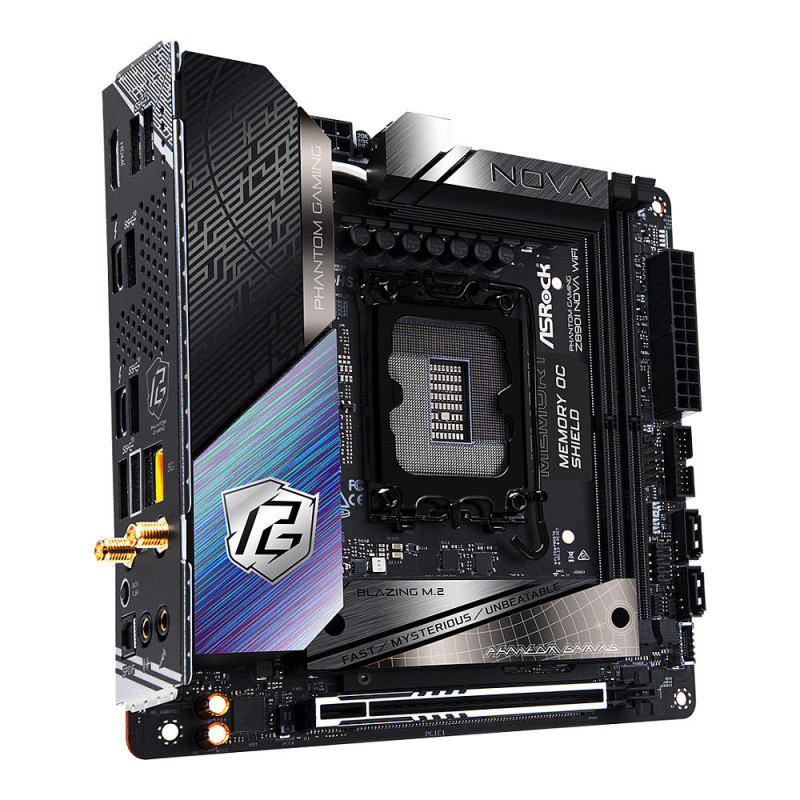

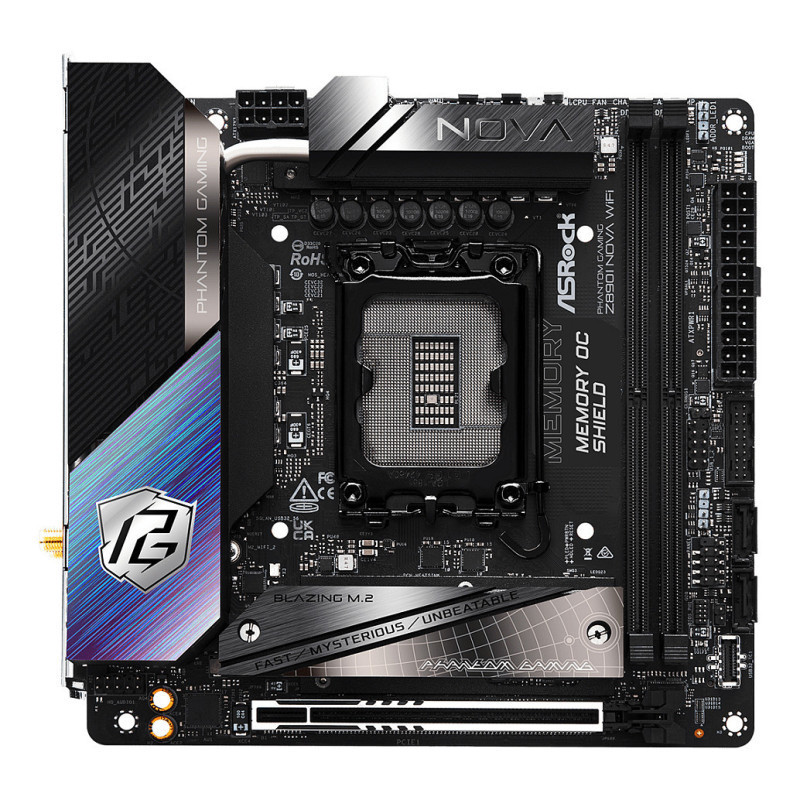

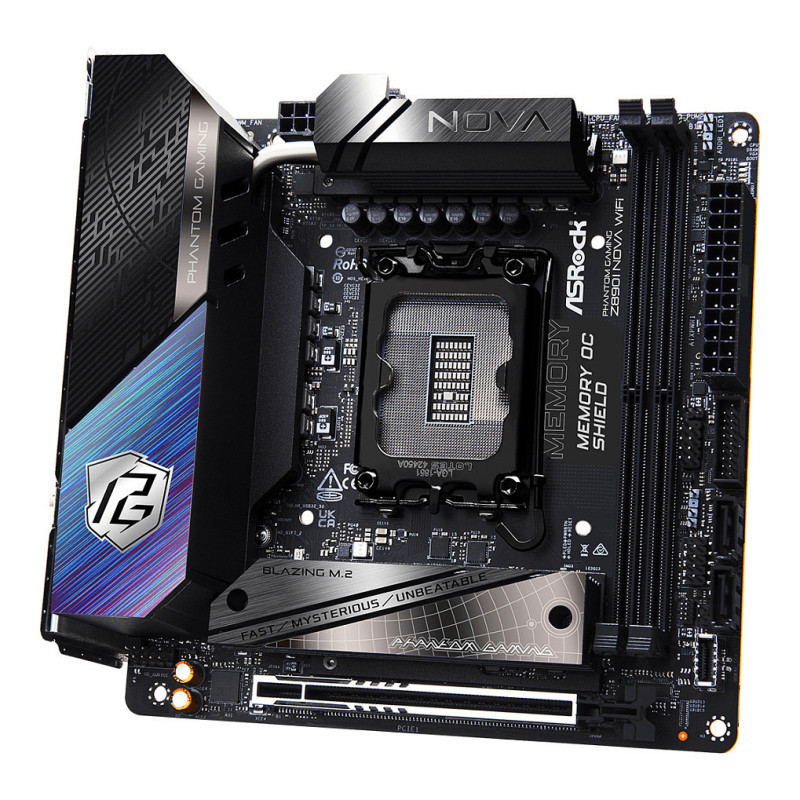

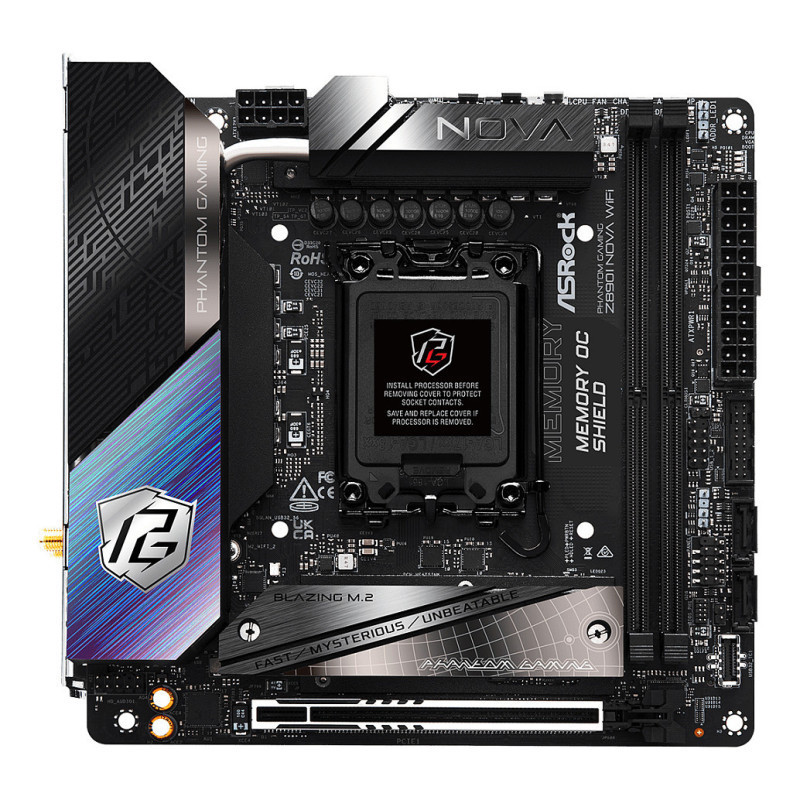

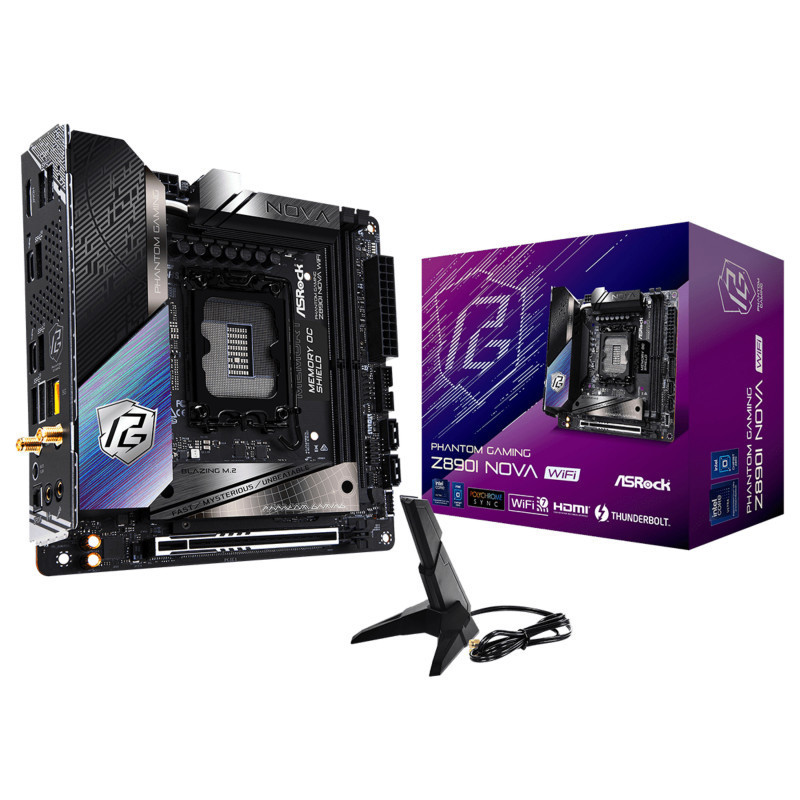

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Product reference:
3-4710483949739
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Product reference:
3-4710483949739
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| Graphics | |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Features | |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini-ITX |
| Audio chip | Realtek ALC4082 |
| Product colour | Black |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Windows operating systems supported | Windows 11 x64 |
| Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| ECC compatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Weight dimensions | |
| Depth | 170mm |
| Width | 170mm |
| Network | |
| LAN controller | Realtek RTL8126 |
| Bluetooth | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Wi-Fi standard | Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of water pump connectors | 1 |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Number of chassis fan connectors | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Antenna included | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Storage controllers | |
| RAID support | Yes |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 5, 10, 0, 1 |
| Number of storage drives supported | 5 |
| Rear panel I/O port | |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) port | 1 |
| S/PDIF out port | Yes |
| HDMI version | 2.1 |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI port quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 6 |
| Expansion slot | |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
