Asrock H610M-HVS / M.2 R2.0 Intel H610 LGA 1700 micro ATX
Product reference:
3-4710483939914
Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX
Asrock H610M-HVS / M.2 R2.0 Intel H610 LGA 1700 micro ATX
Product reference:
3-4710483939914
Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 14
business days
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Graphics | |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Features | |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor | micro ATX |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Motherboard chipset | Intel H610 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Motherboard chipset family | Intel |
| Memory | |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Number of memory slots | 2 |
| Unbuffered memory | Yes |
| Supported memory types | DDR4-SDRAM |
| Weight & dimensions | |
| Width | 197 mm |
| Depth | 188 mm |
| Network | |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Number of M.2 (M) slots | 1 |
| USB 2.0 connectors | 1 |
| TPM connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |
| Chassis intrusion connector | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| Supported storage drive types | HDD & SSD |

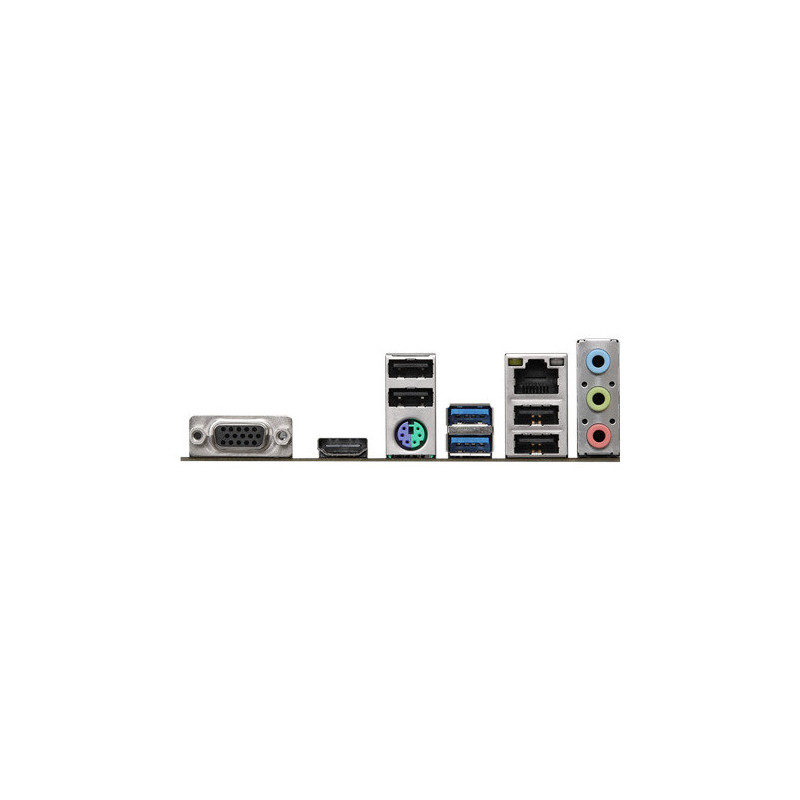

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
