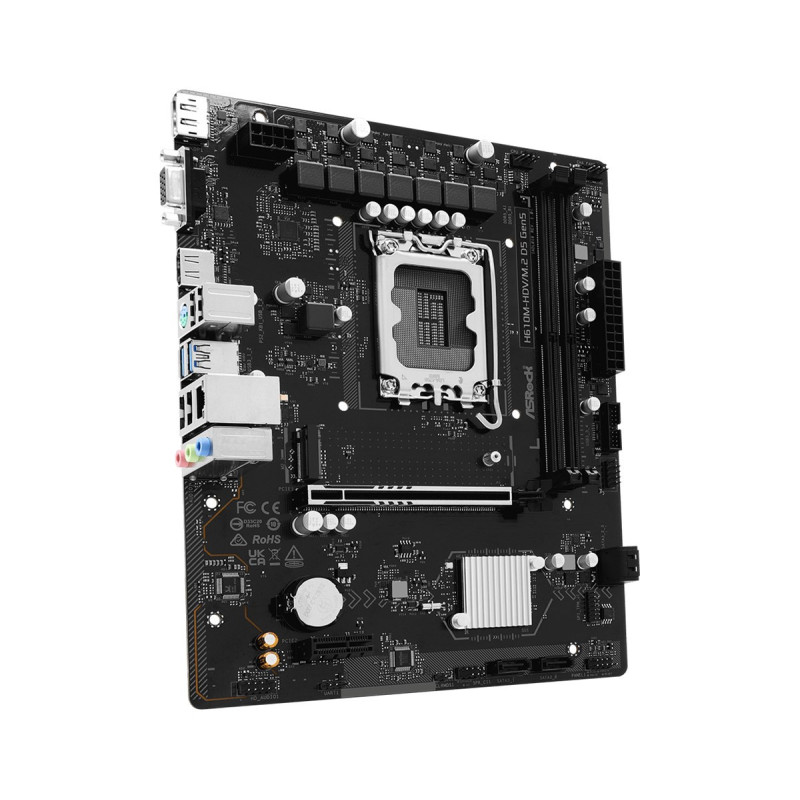

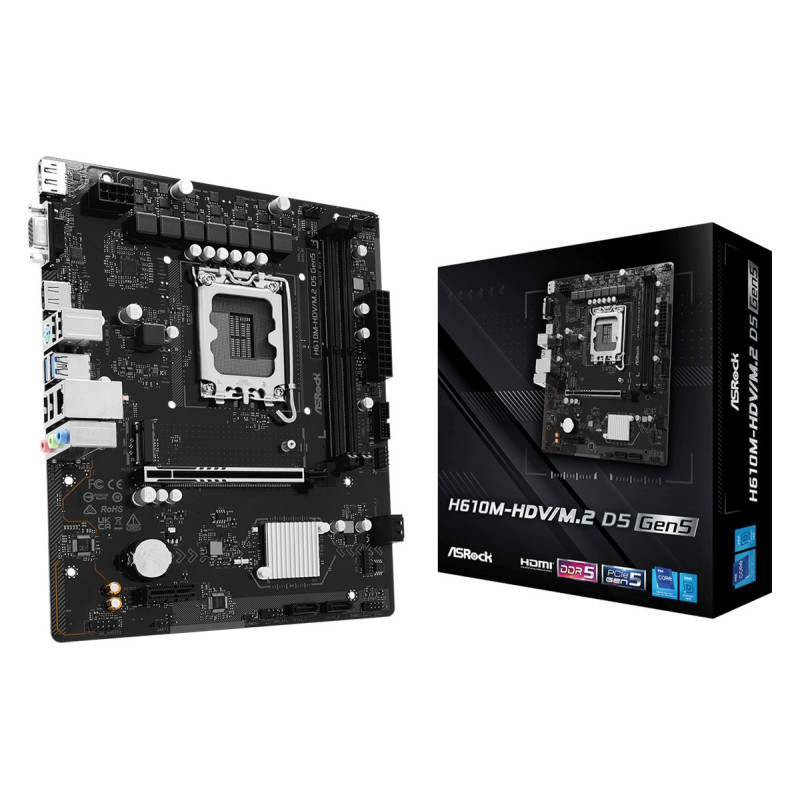

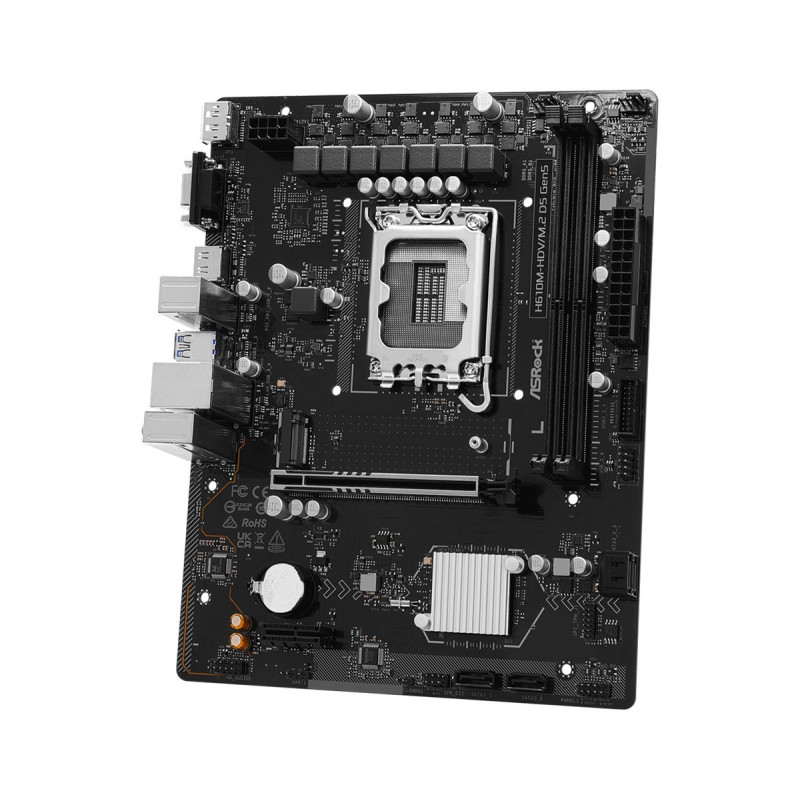

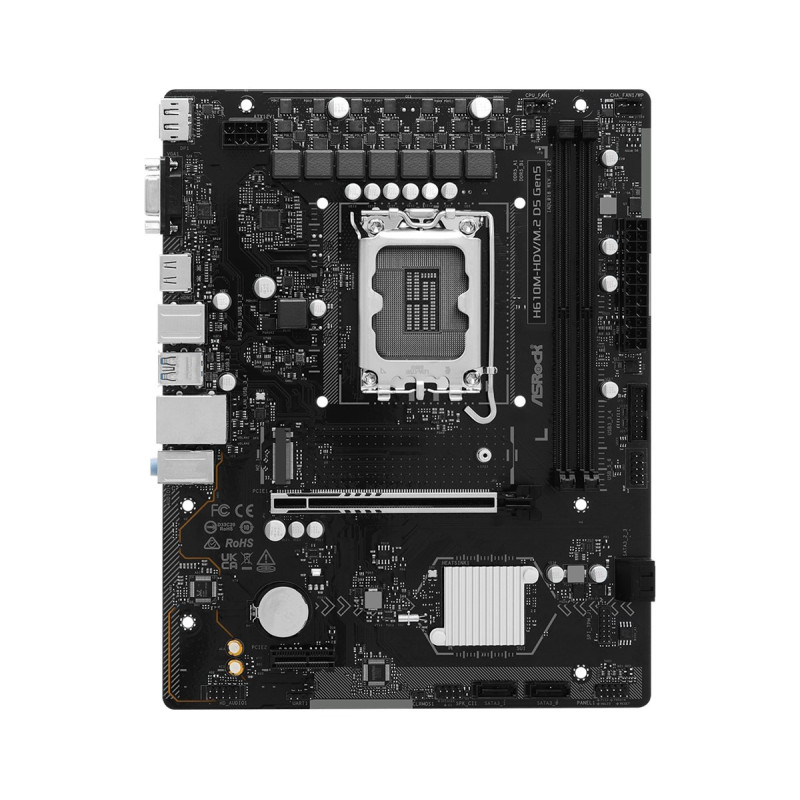

ASRock H610M-HDV / M.2 D5 GEN5 1700 mATX HDMI / DP / D-Sub DDR5
Product reference:
3-4711581492431
Asrock H610M-HDV/M.2 D5 Gen5 Intel H610 LGA 1700 micro ATX
ASRock H610M-HDV / M.2 D5 GEN5 1700 mATX HDMI / DP / D-Sub DDR5
Product reference:
3-4711581492431
Asrock H610M-HDV/M.2 D5 Gen5 Intel H610 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Graphics | |
| HDCP | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| HDCP version | 2.3 |
| Features | |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Memory | |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Number of memory slots | 2 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Weight & dimensions | |
| Depth | 193 mm |
| Width | 244 mm |
| Network | |
| Top Wi-Fi standard | Not available |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of chassis fan connectors | 1 |
| USB 2.0 connectors | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 5 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Line-in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
