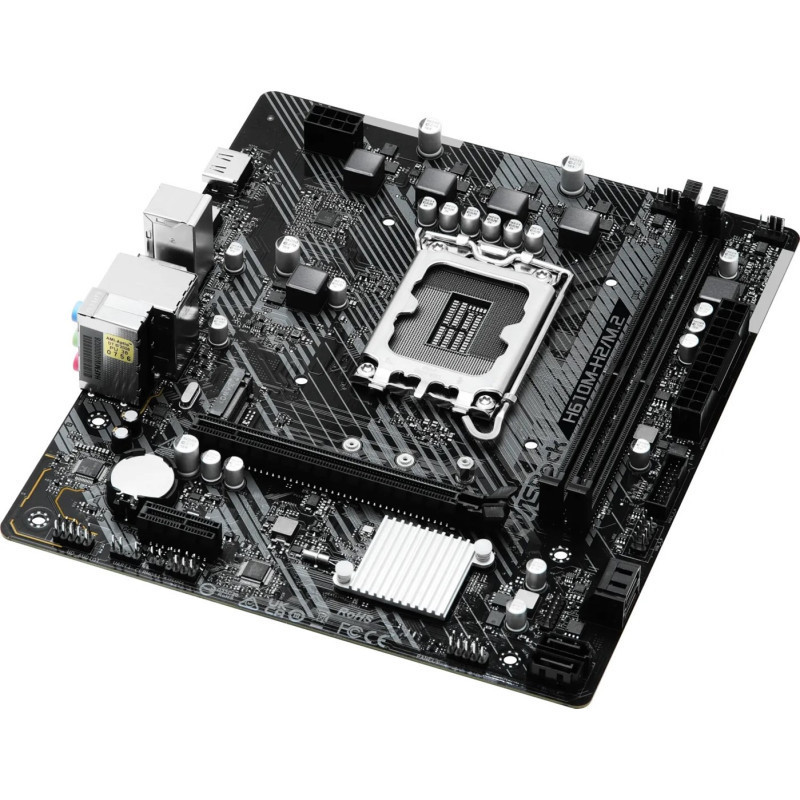

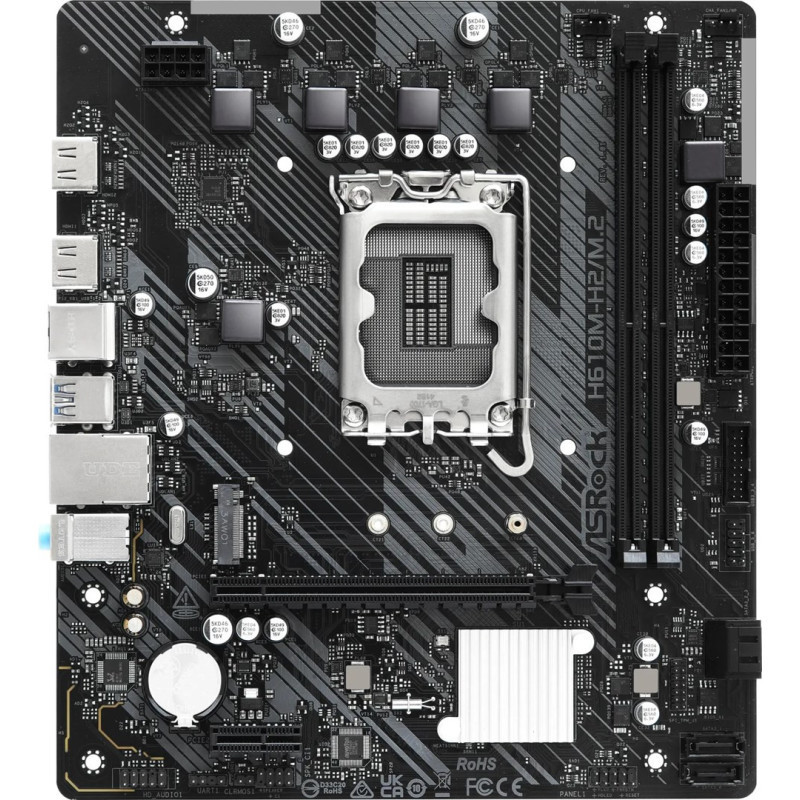

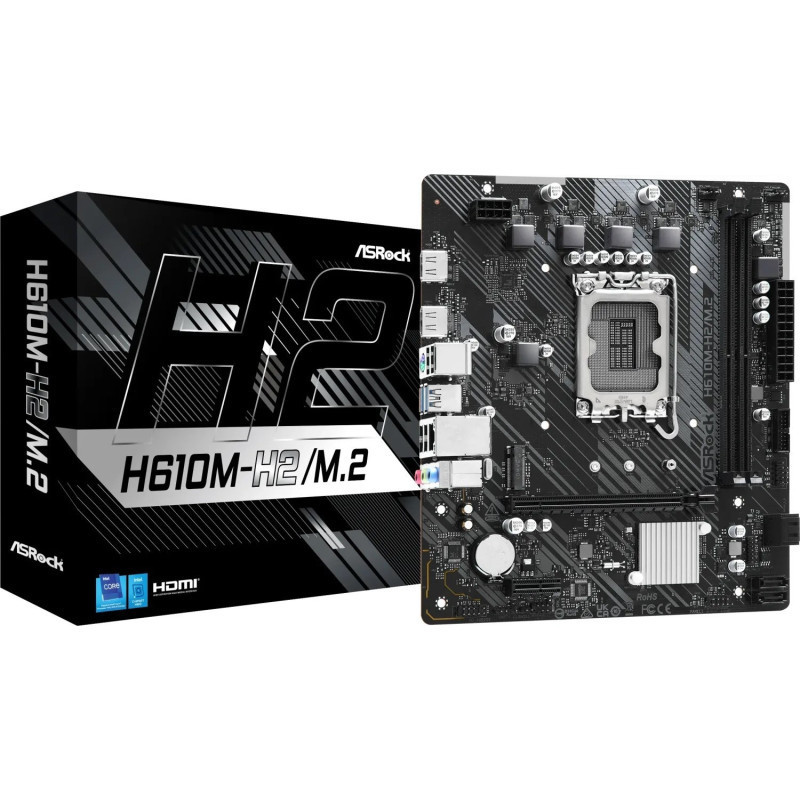

ASRock H610M-H2 / M.2 motherboard

Product reference: 3-4710483946929

ASRock H610M-H2/M.2 motherboard

You have 3 products in compare list, please remove someone and try again

Add to compare

68,77 €

107,46 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

Processor
Processor socket	LGA 1700
Processor manufacturer	Intel
Maximum number of SMP processors	1
Graphics
HDCP	Yes
Parallel processing technology support	Not supported
Maximum resolution	7680 x 4320 pixels
Features
PC health monitoring	Temperature, Voltage, Fan, CPU
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC897
Windows operating systems supported	Windows 11 x64, Windows 10 x64
Memory
Unbuffered memory	Yes
Supported memory types	DDR4-SDRAM
Supported memory clock speed (max)	3200MHz
Memory channels	Dual channel
Number of memory slots	2
Memory slot type	DIMMs
Maximum internal memory	64GB
Weight dimensions
Width	220mm
Depth	193 mm
Network
Ethernet LAN	Yes
LAN controller	Realtek 8111H
Ethernet interface type	Gigabit Ethernet
Wi-Fi	From
Internal I/O
ATX Power connector (24-pin)	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
12V power connector	Yes
Front panel audio connector	Yes
Chassis intrusion connector	Yes
CPU fan connector	Yes
BIOS
BIOS type	UEFI AMI
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD SSD

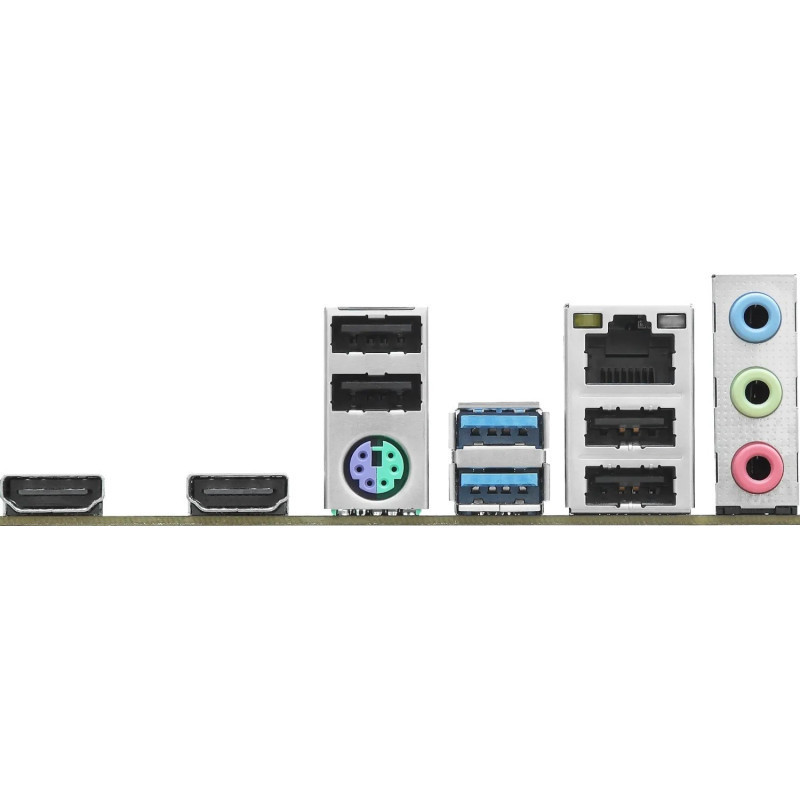

Rear panel I/O port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity	2
HDMI port quantity	2
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) port	1
PS/2 ports quantity	1
Expansion slot
PCI Express x1 (Gen 3.x) slot	1
PCI Express x16 (Gen 4.x) slot	1
